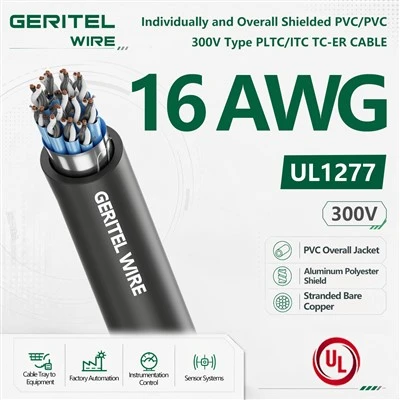

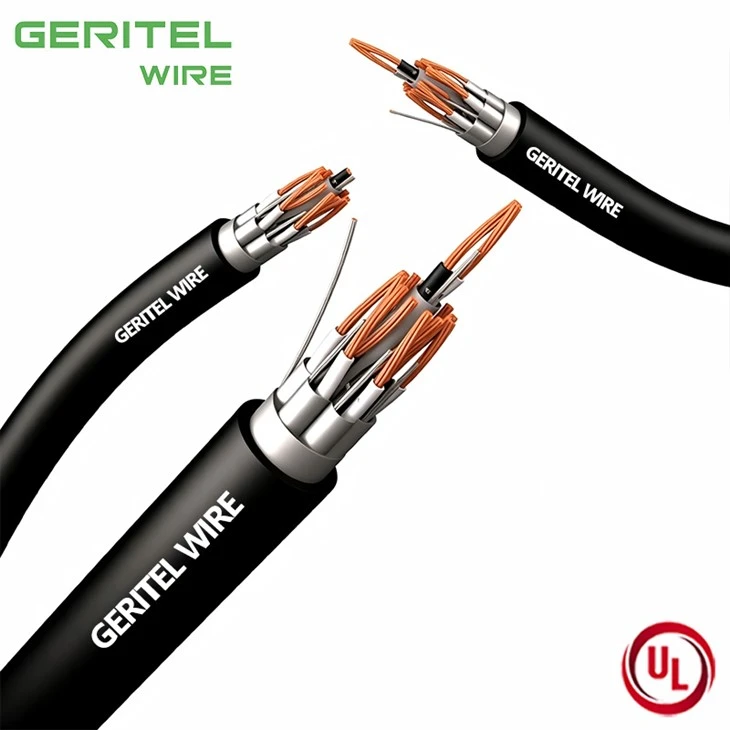

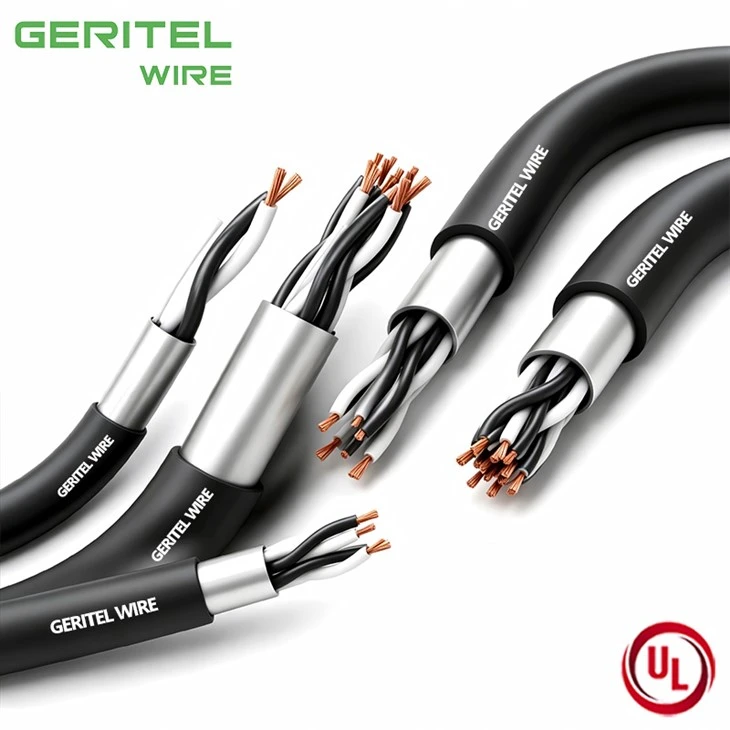

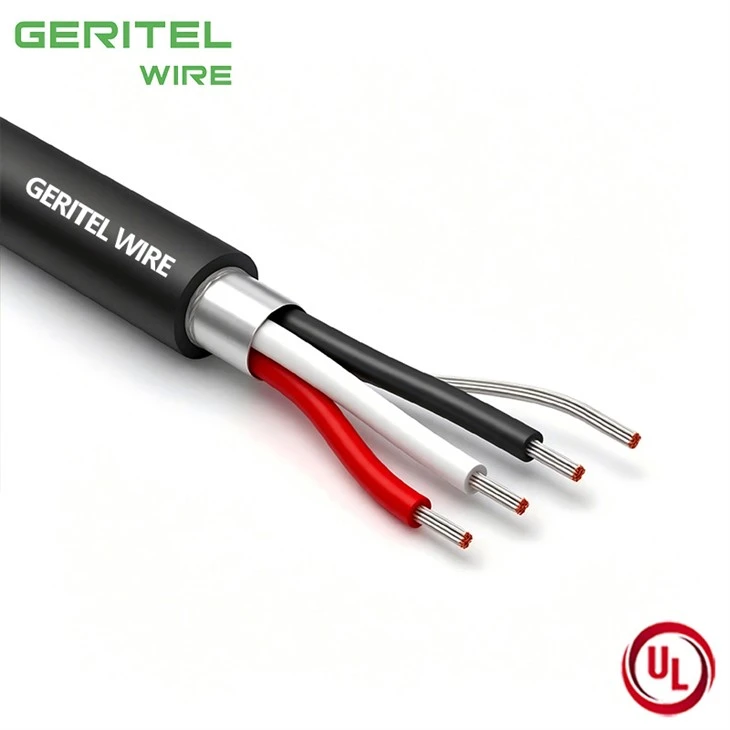

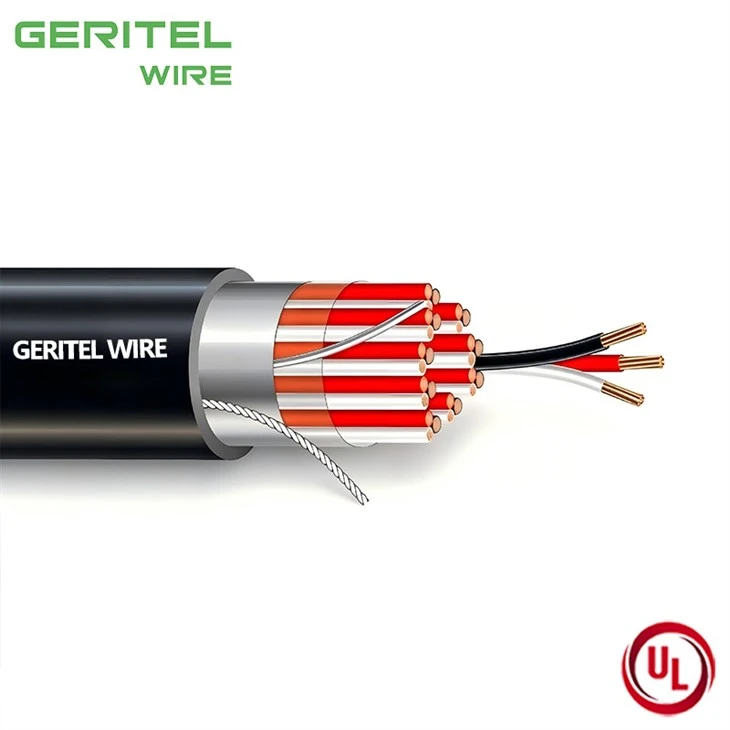

PRODUCT REAL SHOT

UL PLTC ITC cable

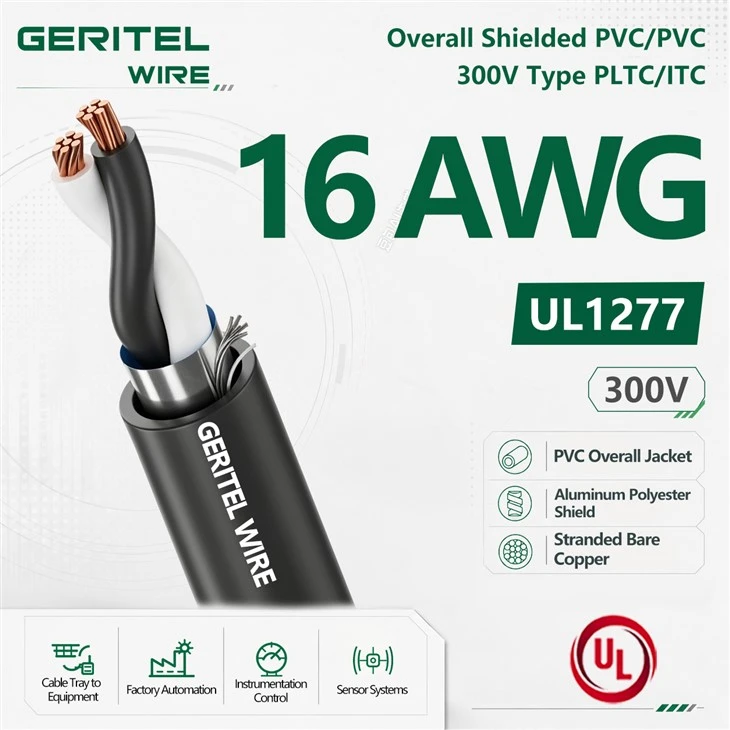

16 AWG PLTC/ITC Cable – Overall Shielded for Cost-Effective Noise Protection in Control Circuits

Instrumentation wiring in industrial plants faces constant challenges from electrical noise and physical stress. This 16 AWG PLTC/ITC instrumentation cable addresses the noise issue with an overall aluminum/polyester shield that provides effective EMI protection while keeping the cable lighter and more flexible than individually shielded constructions. The stranded bare copper conductors ensure reliable signal transmission with excellent flexibility for routing through crowded cable trays and conduits. PVC insulation and a durable PVC jacket protect against moisture, oil, and abrasion commonly encountered in factory environments. UL1277 certified and rated 300V, this cable is approved for cable tray installations and exposed runs, making it a practical choice for factory automation, control panels, and sensor systems where reliable signal transmission is essential. The overall shield provides a cost-effective solution for applications where cross-talk between pairs is not a primary concern but external interference must be controlled.

PRODUCT SPECIFICATIONS

multi pair PLTC cable

Product Description

The PVC/PVC, 300V Type PLTC/ITC Cables consist of fully annealed bare copper, Class B stranded conductors (in pairs or triads), covered with Polyvinyl Chloride (PVC) insulation, overall shielded or individually and overall shielded and black PVC jacket. These cables are used in control systems, audio, intercom, alarm circuits and energy management.

Applications

In free air, ducts, cable trays, conduit, raceways and direct burial
Approved for Class I Div. 2 industrial hazardous locations per NEC

Features

Rated at 105°C
Ripcord (as needed)
Excellent sunlight resistance
Meets cold bend test at -25°C
Pair/Triad ID marking system

SPECIFICATIONS
Conductor Count	Available in 1-pair through 36-pairs, and 1-triad through 24-triads
Conductor	Fully annealed bare copper Class B
Gauge Sizes	Available in 18 or 16 AWG
Insulation	Polyvinyl Chloride (PVC)
Color Coding	Per ICEA S-58-679 Method 9, Table E-1 (black-white-red), plus one conductor per pair/triad printed for identification; additional color coding options available
Shield Options	Overall (OS): Overall Aluminum polyester (mylar) foil shield in contact with 20 AWG stranded tinned copper drain wire Individual and Overall (IS/OS): Combination of both individual and overall with Aluminum polyester (mylar) foil shield in contact with 20 AWG stranded tinned copper drain wire
Jacket	Polyvinyl Chloride (PVC)
Jacket Marking	00000 FT GREATER WIRE CABLE XXAWG XX/PR (or TR) PVC/ PVC OS (or IS or IS/OS) 105C TYPE ITC PLTC (UL) SUN RES DIR BUR FT4/IEEE1202 MADE IN USA MMDDYYYY
Packaging	Non-returnable wood reels in a variety of lengths and dimensions
Performance Compliances	ASTM B8 ASTM B33 UL 13 UL 1685 (flame exposure test) UL 2250 FT4/IEEE1202 (flame compliance) NEC Article 727 for ITC
Other Compliances	EPA 40 CFR, Part 261 OSHA RoHS-compliant/RoHS 2-compliant REACH-compliant

Overall Shielded

Pair Count	Triad Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
1	-	18	0.015(0.38)	0.045(1.14)	0.26(6.6)	40(55)
-	1	18	0.015(0.38)	0.045(1.14)	0.27(6.9)	50(68)
2	-	18	0.015(0.38)	0.045(1.14)	0.36(9.2)	65(91)
4	-	18	0.015(0.38)	0.050(1.27)	0.43(10.8)	100(148)
8	-	18	0.015(0.38)	0.050(1.27)	0.54(13.8)	170(251)
12	-	18	0.015(0.38)	0.060(1.52)	0.67(17.1)	250(372)
16	-	18	0.015(0.38)	0.060(1.52)	0.75(18.9)	320(470)
20	-	18	0.015(0.38)	0.060(1.52)	0.82(20.9)	385(569)
24	-	18	0.015(0.38)	0.070(1.78)	0.94(23.9)	475(705)
36	-	18	0.015(0.38)	0.070(1.78)	1.07(27.2)	665(988)
1	-	16	0.015(0.38)	0.045(1.14)	0.28(7.2)	50(69)
-	1	16	0.015(0.38)	0.045(1.14)	0.30(7.6)	60(87)
2	-	16	0.015(0.38)	0.050(1.27)	0.41(10.5)	85(123)
4	-	16	0.015(0.38)	0.050(1.27)	0.47(12.1)	135(195)
8	-	16	0.015(0.38)	0.060(1.52)	0.63(16.0)	245(359)
12	-	16	0.015(0.38)	0.060(1.52)	0.76(19.2)	345(508)
16	-	16	0.015(0.38)	0.060(1.52)	0.84(21.3)	440(648)
20	-	16	0.015(0.38)	0.070(1.78)	0.95(24.2)	555(825)
24	-	16	0.015(0.38)	0.070(1.78)	1.06(26.9)	655(973)
36	-	16	0.015(0.38)	0.070(1.78)	1.21(30.7)	930(1,381)

Individually and Overall Shielded

Pair Count	Triad Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
2	-	18	0.015(0.38)	0.045(1.14)	0.39(10.0)	70(102)
-	2	18	0.015(0.38)	0.050(1.27)	0.44(11.3)	95(135)
4	-	18	0.015(0.38)	0.050(1.27)	0.47(11.8)	115(168)
-	4	18	0.015(0.38)	0.050(1.27)	0.51(13.1)	150(218)
8	-	18	0.015(0.38)	0.050(1.27)	0.60(15.2)	200(291)
-	8	18	0.015(0.38)	0.060(1.52)	0.68(17.4)	275(404)
12	-	18	0.015(0.38)	0.060(1.52)	0.74(18.9)	295(433)
-	12	18	0.015(0.38)	0.060(1.52)	0.83(21.0)	390(575)
16	-	18	0.015(0.38)	0.060(1.52)	0.82(20.9)	370(550)
-	16	18	0.015(0.38)	0.070(1.78)	0.95(24.0)	520(771)
20	-	18	0.015(0.38)	0.070(1.78)	0.94(23.8)	475(703)
-	20	18	0.015(0.38)	0.070(1.78)	1.05(26.6)	635(938)
24	-	18	0.015(0.38)	0.070(1.78)	1.04(26.4)	560(828)
-	24	18	0.015(0.38)	0.070(1.78)	1.16(29.5)	745(1,108)
36	-	18	0.015(0.38)	0.070(1.78)	1.19(30.2)	790(1,169)
2	-	16	0.015(0.38)	0.050(1.27)	0.45(11.3)	90(134)
-	2	16	0.015(0.38)	0.050(1.27)	0.49(12.5)	120(172)
4	-	16	0.015(0.38)	0.050(1.27)	0.52(13.1)	150(216)
-	4	16	0.015(0.38)	0.050(1.27)	0.57(14.6)	195(287)
8	-	16	0.015(0.38)	0.060(1.52)	0.69(17.5)	270(401)
-	8	16	0.015(0.38)	0.060(1.52)	0.76(19.4)	365(539)
12	-	16	0.015(0.38)	0.060(1.52)	0.83(21.1)	385(569)
-	12	16	0.015(0.38)	0.070(1.78)	0.95(24.2)	545(808)
16	-	16	0.015(0.38)	0.070(1.78)	0.95(24.1)	515(764)
-	16	16	0.015(0.38)	0.070(1.78)	1.06(26.9)	700(1,037)
20	-	16	0.015(0.38)	0.070(1.78)	1.05(26.7)	625(929)
-	20	16	0.015(0.38)	0.070(1.78)	1.18(29.9)	855(1,267)
24	-	16	0.015(0.38)	0.070(1.78)	1.17(29.7)	740(1,097)
-	24	16	0.015(0.38)	0.080(2.03)	1.33(33.7)	1035(1,538)
36	-	16	0.015(0.38)	0.080(2.03)	1.36(34.5)	1080(1,601)

CERTIFICATIONS

copper PLTC ITC cable

PACKAGING

Roll

Plastic Reel

Small Wooden Reel

APPLICATION

Factory Automation

Process Instrumentation

Overall Shield copper instrumentation cable 300V

Water Treatment Control Systems

CASE

Overall Foil Shield copper instrumentation cable 300V

BASF Ludwigshafen Verbund Site

Beldfoil Shield PLTC instrumentation cable 300V

MWRA Deer Island Wastewater Treatment Plant

Shielded Overall PLTC instrumentation cable 300V

Siemens Electronic Works Amberg Factory

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

shielded instrumentation cable for water treatment plant

300V instrumentation cable for pharmaceutical plant

GLOBAL CERTIFICATIONS

shielded instrumentation cable for cable tray

CUSTOMER PHOTOS

300V PLTC instrumentation cable conduit

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

300V PLTC instrumentation cable aerial installation

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

copper conductor 300V instrumentation cable

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

How does overall shielding compare to individually shielded constructions?

Overall shielding protects against external interference but does not prevent cross-talk between pairs within the same cable. It is lighter, more flexible, and more cost-effective than individually shielded cables.

When should I choose overall shielded over individually shielded?

Choose overall shielded when external EMI is the primary concern and cross-talk between pairs within the cable is not critical. For sensitive analog signals, individually shielded is recommended.

Is this cable suitable for analog signals?

Yes, for most analog signals, overall shielding provides adequate protection in typical industrial environments. For longer runs or areas with high EMI, consider individually shielded options.

What are the temperature ratings for this cable?

The PVC insulation and jacket provide reliable performance in a wide temperature range suitable for most industrial environments. Consult the manufacturer's data sheet for specific temperature limits.
