PVC/PVC 300V Type PLTC/ITC

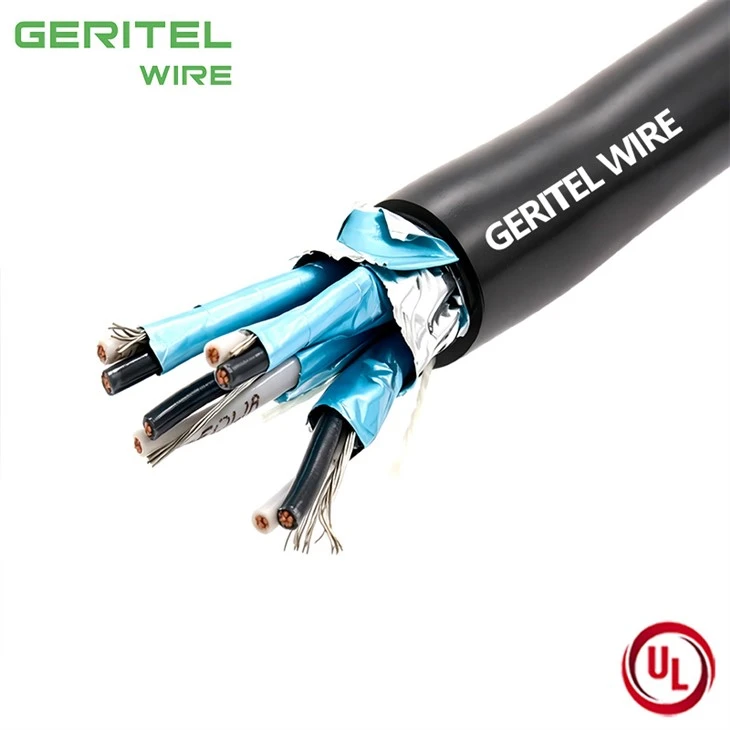

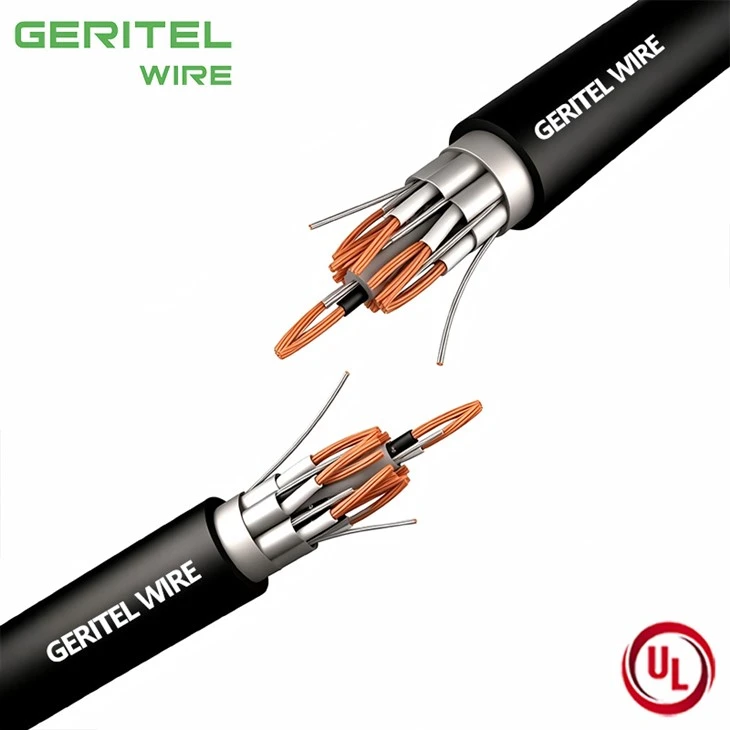

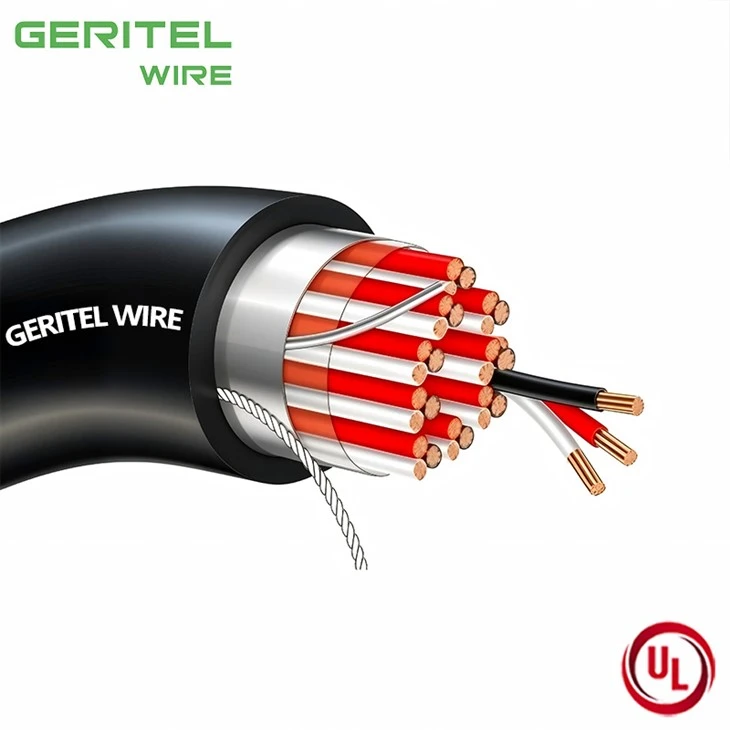

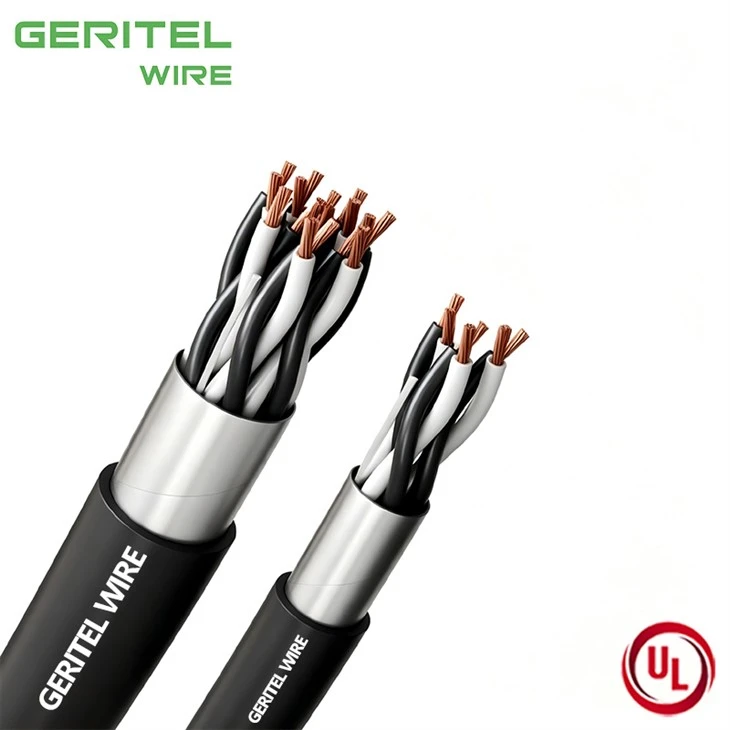

PRODUCT REAL SHOT

industrial instrumentation cable 300V

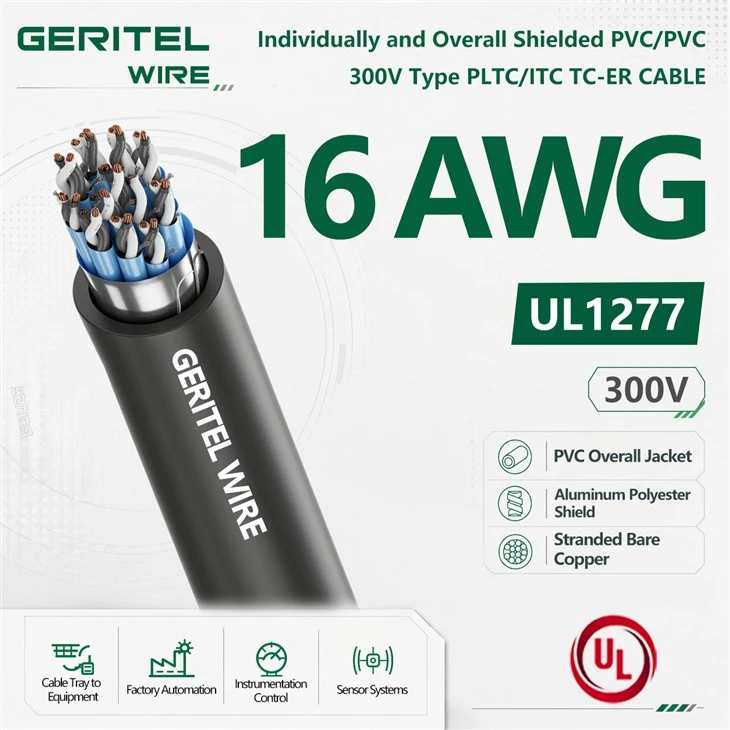

16 AWG PLTC/ITC Cable – Double Shielded for Maximum Signal Integrity in Sensitive Instrumentation Circuits

Signal integrity is everything in instrumentation and control systems. Electrical noise from nearby motors, VFDs, and power cables can corrupt sensor readings and cause erratic equipment behavior. This 16 AWG PLTC/ITC instrumentation cable solves that problem with both individually shielded pairs and an overall shield, providing two layers of protection against electromagnetic interference. The stranded bare copper conductors ensure flexibility for installation, while the PVC insulation and PVC jacket offer durability in industrial environments. UL1277 certified and rated 300V, this cable is approved for cable tray installations and exposed runs, making it ideal for factory automation, control systems, and sensor networks where reliable signal transmission is essential. The double shielding ensures that sensitive analog signals and digital communications reach their destination without distortion.

PRODUCT SPECIFICATIONS

PVC jacket instrumentation cable

Product Description

The PVC/PVC, 300V Type PLTC/ITC Cables consist of fully annealed bare copper, Class B stranded conductors (in pairs or triads), covered with Polyvinyl Chloride (PVC) insulation, overall shielded or individually and overall shielded and black PVC jacket. These cables are used in control systems, audio, intercom, alarm circuits and energy management.

Applications

In free air, ducts, cable trays, conduit, raceways and direct burial
Approved for Class I Div. 2 industrial hazardous locations per NEC

Features

Rated at 105°C
Ripcord (as needed)
Excellent sunlight resistance
Meets cold bend test at -25°C
Pair/Triad ID marking system

SPECIFICATIONS
Conductor Count	Available in 1-pair through 36-pairs, and 1-triad through 24-triads
Conductor	Fully annealed bare copper Class B
Gauge Sizes	Available in 18 or 16 AWG
Insulation	Polyvinyl Chloride (PVC)
Color Coding	Per ICEA S-58-679 Method 9, Table E-1 (black-white-red), plus one conductor per pair/triad printed for identification; additional color coding options available
Shield Options	Overall (OS): Overall Aluminum polyester (mylar) foil shield in contact with 20 AWG stranded tinned copper drain wire Individual and Overall (IS/OS): Combination of both individual and overall with Aluminum polyester (mylar) foil shield in contact with 20 AWG stranded tinned copper drain wire
Jacket	Polyvinyl Chloride (PVC)
Jacket Marking	00000 FT GREATER WIRE CABLE XXAWG XX/PR (or TR) PVC/ PVC OS (or IS or IS/OS) 105C TYPE ITC PLTC (UL) SUN RES DIR BUR FT4/IEEE1202 MADE IN USA MMDDYYYY
Packaging	Non-returnable wood reels in a variety of lengths and dimensions
Performance Compliances	ASTM B8 ASTM B33 UL 13 UL 1685 (flame exposure test) UL 2250 FT4/IEEE1202 (flame compliance) NEC Article 727 for ITC
Other Compliances	EPA 40 CFR, Part 261 OSHA RoHS-compliant/RoHS 2-compliant REACH-compliant

Overall Shielded

Pair Count	Triad Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
1	-	18	0.015(0.38)	0.045(1.14)	0.26(6.6)	40(55)
-	1	18	0.015(0.38)	0.045(1.14)	0.27(6.9)	50(68)
2	-	18	0.015(0.38)	0.045(1.14)	0.36(9.2)	65(91)
4	-	18	0.015(0.38)	0.050(1.27)	0.43(10.8)	100(148)
8	-	18	0.015(0.38)	0.050(1.27)	0.54(13.8)	170(251)
12	-	18	0.015(0.38)	0.060(1.52)	0.67(17.1)	250(372)
16	-	18	0.015(0.38)	0.060(1.52)	0.75(18.9)	320(470)
20	-	18	0.015(0.38)	0.060(1.52)	0.82(20.9)	385(569)
24	-	18	0.015(0.38)	0.070(1.78)	0.94(23.9)	475(705)
36	-	18	0.015(0.38)	0.070(1.78)	1.07(27.2)	665(988)
1	-	16	0.015(0.38)	0.045(1.14)	0.28(7.2)	50(69)
-	1	16	0.015(0.38)	0.045(1.14)	0.30(7.6)	60(87)
2	-	16	0.015(0.38)	0.050(1.27)	0.41(10.5)	85(123)
4	-	16	0.015(0.38)	0.050(1.27)	0.47(12.1)	135(195)
8	-	16	0.015(0.38)	0.060(1.52)	0.63(16.0)	245(359)
12	-	16	0.015(0.38)	0.060(1.52)	0.76(19.2)	345(508)
16	-	16	0.015(0.38)	0.060(1.52)	0.84(21.3)	440(648)
20	-	16	0.015(0.38)	0.070(1.78)	0.95(24.2)	555(825)
24	-	16	0.015(0.38)	0.070(1.78)	1.06(26.9)	655(973)
36	-	16	0.015(0.38)	0.070(1.78)	1.21(30.7)	930(1,381)

Individually and Overall Shielded

Pair Count	Triad Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
2	-	18	0.015(0.38)	0.045(1.14)	0.39(10.0)	70(102)
-	2	18	0.015(0.38)	0.050(1.27)	0.44(11.3)	95(135)
4	-	18	0.015(0.38)	0.050(1.27)	0.47(11.8)	115(168)
-	4	18	0.015(0.38)	0.050(1.27)	0.51(13.1)	150(218)
8	-	18	0.015(0.38)	0.050(1.27)	0.60(15.2)	200(291)
-	8	18	0.015(0.38)	0.060(1.52)	0.68(17.4)	275(404)
12	-	18	0.015(0.38)	0.060(1.52)	0.74(18.9)	295(433)
-	12	18	0.015(0.38)	0.060(1.52)	0.83(21.0)	390(575)
16	-	18	0.015(0.38)	0.060(1.52)	0.82(20.9)	370(550)
-	16	18	0.015(0.38)	0.070(1.78)	0.95(24.0)	520(771)
20	-	18	0.015(0.38)	0.070(1.78)	0.94(23.8)	475(703)
-	20	18	0.015(0.38)	0.070(1.78)	1.05(26.6)	635(938)
24	-	18	0.015(0.38)	0.070(1.78)	1.04(26.4)	560(828)
-	24	18	0.015(0.38)	0.070(1.78)	1.16(29.5)	745(1,108)
36	-	18	0.015(0.38)	0.070(1.78)	1.19(30.2)	790(1,169)
2	-	16	0.015(0.38)	0.050(1.27)	0.45(11.3)	90(134)
-	2	16	0.015(0.38)	0.050(1.27)	0.49(12.5)	120(172)
4	-	16	0.015(0.38)	0.050(1.27)	0.52(13.1)	150(216)
-	4	16	0.015(0.38)	0.050(1.27)	0.57(14.6)	195(287)
8	-	16	0.015(0.38)	0.060(1.52)	0.69(17.5)	270(401)
-	8	16	0.015(0.38)	0.060(1.52)	0.76(19.4)	365(539)
12	-	16	0.015(0.38)	0.060(1.52)	0.83(21.1)	385(569)
-	12	16	0.015(0.38)	0.070(1.78)	0.95(24.2)	545(808)
16	-	16	0.015(0.38)	0.070(1.78)	0.95(24.1)	515(764)
-	16	16	0.015(0.38)	0.070(1.78)	1.06(26.9)	700(1,037)
20	-	16	0.015(0.38)	0.070(1.78)	1.05(26.7)	625(929)
-	20	16	0.015(0.38)	0.070(1.78)	1.18(29.9)	855(1,267)
24	-	16	0.015(0.38)	0.070(1.78)	1.17(29.7)	740(1,097)
-	24	16	0.015(0.38)	0.080(2.03)	1.33(33.7)	1035(1,538)
36	-	16	0.015(0.38)	0.080(2.03)	1.36(34.5)	1080(1,601)

CERTIFICATIONS

NEC Type PLTC ITC cable

PACKAGING

PVC/PVC Type PLTC/ITC cable for PLC I/O wiring

Roll

Plastic Reel

shielded PLTC cable for factory automation

Small Wooden Reel

APPLICATION

Factory Automation

Process Instrumentation

Water Treatment Control Systems

CASE

BASF Ludwigshafen Verbund Site

MWRA Deer Island Wastewater Treatment Plant

Siemens Electronic Works Amberg Factory

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

100% Overall Shield multi pair PLTC cable

what is power limited tray cable used for

GLOBAL CERTIFICATIONS

UL 2250 ITC equivalent cable

CUSTOMER PHOTOS

UL 13 PLTC equivalent cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

power limited tray cable for transducer wiring

300V instrumentation cable for PLC control

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

Why does this cable have both individual and overall shielding?

Individual shielding protects each pair from cross-talk between pairs within the same cable. The overall shield provides an additional layer of protection against external EMI from nearby power cables and equipment. Together, they deliver maximum signal protection.

What is the difference between PLTC and ITC ratings?

PLTC (Power-Limited Tray Cable) is for power-limited control circuits. ITC (Instrumentation Tray Cable) is for instrumentation and control applications. This cable carries both ratings, offering flexibility for various control and instrumentation installations.

What types of signals can this cable carry?

This cable is suitable for analog signals (4-20mA, thermocouple, RTD), digital communications, and low-voltage control signals in instrumentation and automation systems.

Can this cable be installed in cable trays without conduit?

Yes, the PLTC/ITC rating permits cable tray installation. For exposed runs, ensure the installation meets code requirements for physical protection.
