18 AWG Individually & Overall Shielded XLPE/PVC TC-ER Instrumentation Tray Cable for Industrial Control & Instrument Signal Transmission

This 18 AWG multi-pair tray cable is a standard 18 AWG Individually and Overall Shielded XLPE/PVC TC-ER instrumentation tray cable, available in multiple pair configurations including 2 pair, 4 pair and 8 pair versions. It covers 2 pair individual overall shielded XLPE/PVC TC-ER cable, 4 pair XLPE/PVC TC-ER instrumentation cable 600V and 8 pair shielded XLPE instrumentation cable 600V to meet different signal wiring demands. Built with PVC/Nylon/PVC triple layer construction, full individual and overall shielding, the cable delivers stable anti-interference signal transmission, rated 600V, compliant with UL TC-ER tray cable standards, suitable for cable tray, conduit, direct burial and exposed run installation in industrial instrumentation, fire alarm and process control systems.

PRODUCT SPECIFICATIONS

oil resistant Type TC-ER cable

Product Description

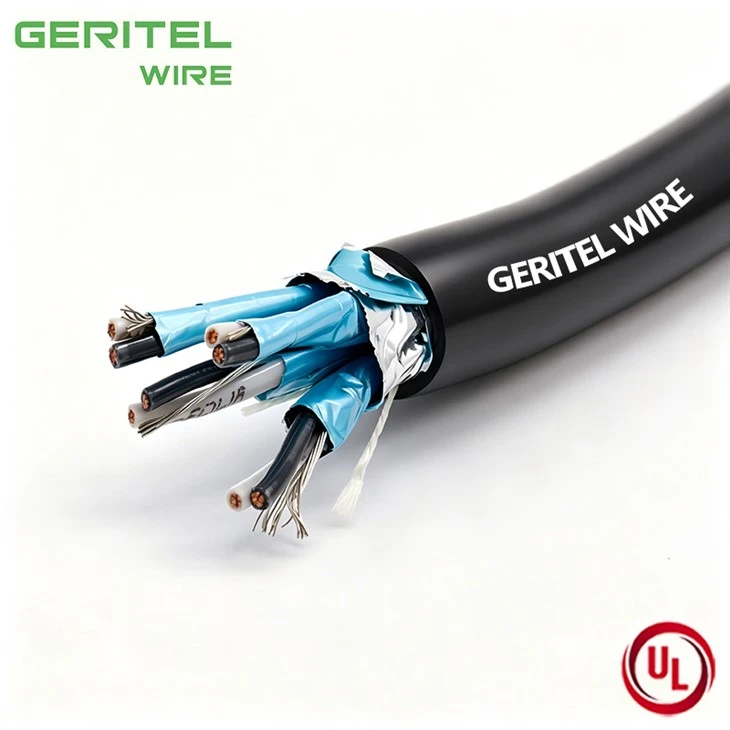

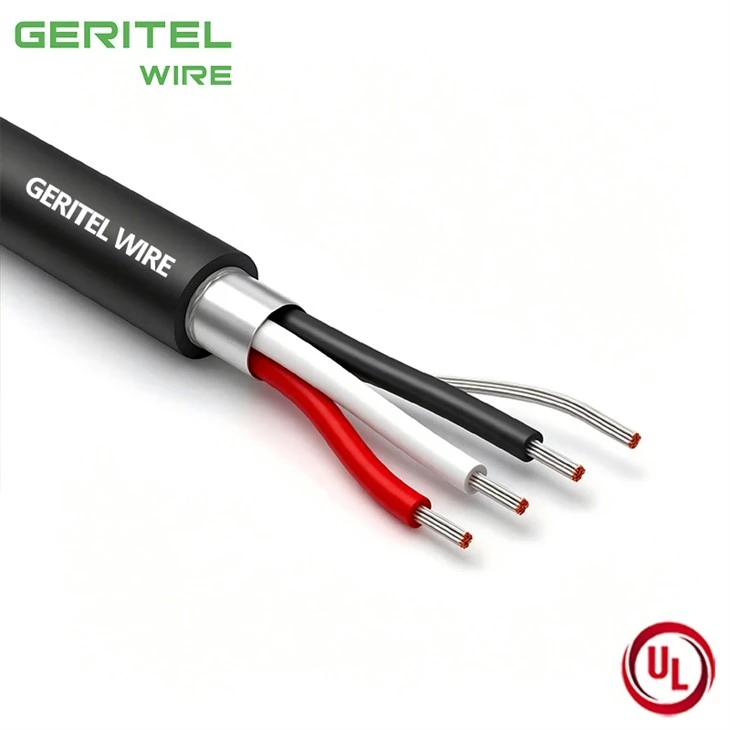

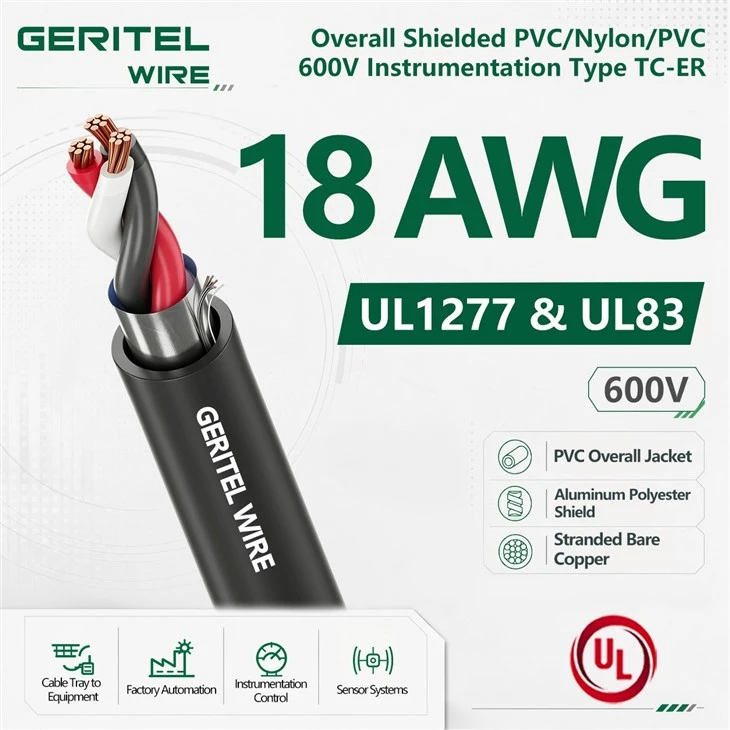

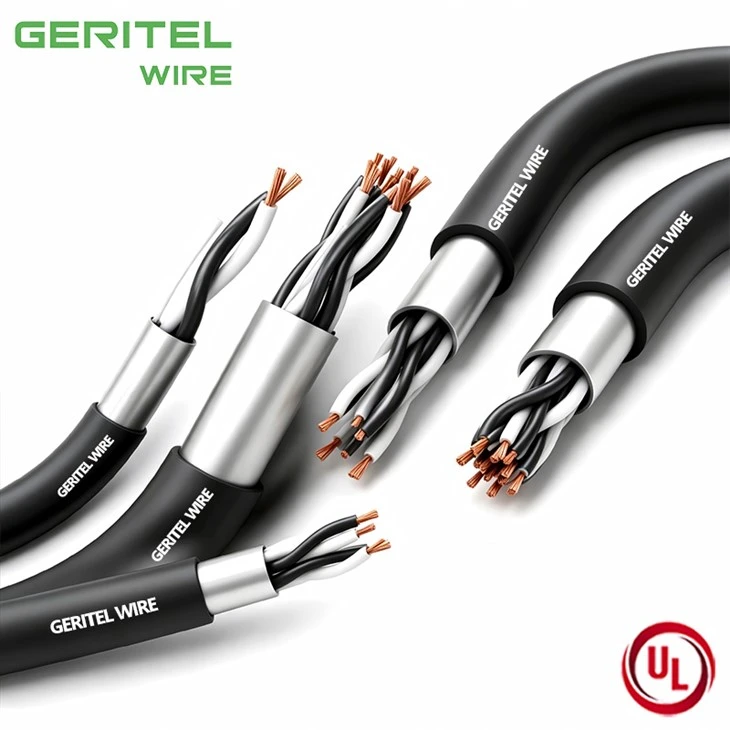

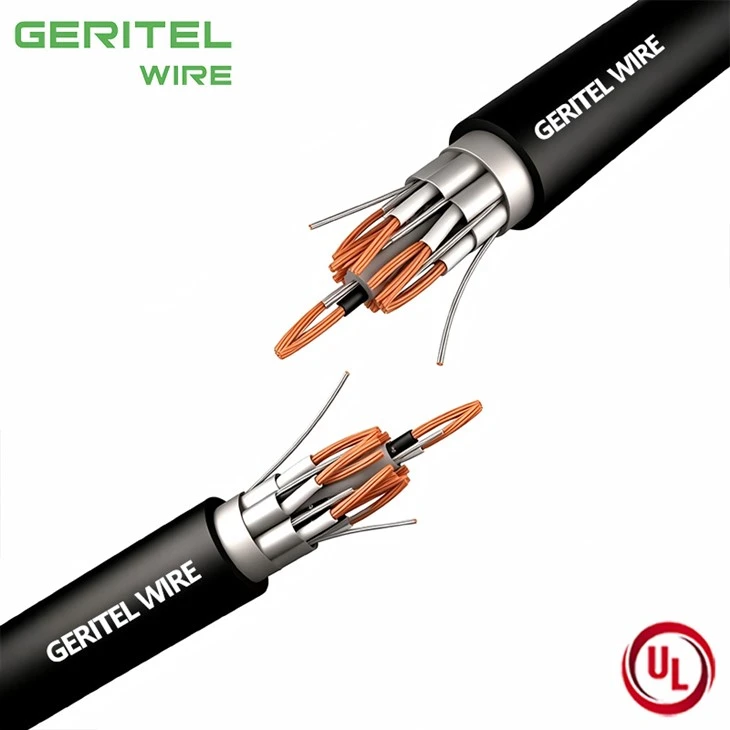

The PVC/Nylon/PVC, 600V Instrumentation, Type TC-ER and Direct Burial Cables consist of fully annealed bare copper Class B stranded conductors (in pairs or triads), covered with Polyvinyl Chloride (PVC) and clear Nylon insulation, overall shielded or individually and overall shielded and black PVC jacket. These cables are used in control systems, audio, intercom, alarm circuits and energy management.

Applications

In free air, ducts, cable trays, conduit, raceways and direct burial
Approved for Class I, Div. 2 industrial hazardous locations per NEC
Used as a non-power-limited fire alarm circuit cable (NPLF) per NEC Article 760
Permitted for Exposed Run (ER) used in accordance with NEC for 3 or more conductors; two conductors without a ground wire are Type TC only

Features

Rated at 90°C wet or dry
Ripcord (as needed)
Excellent sunlight resistance
Meets cold bend test at -25°C

SPECIFICATIONS
Conductor Count	Available in 1-pair through 36-pairs, and 1-triad through 24-triads
Conductor	Fully annealed bare copper Class B
Gauge Sizes	Available in 18 or 16 AWG
Insulation	Polyvinyl Chloride (PVC) covered with Nylon
Color Coding	Per ICEA S-58-679 Method 9, Table E-1 (black-white-red), plus one conductor per pair/triad printed for identification; additional color coding options available
Shield Options	Overall (OS): Overall Aluminum polyester (mylar) foil shield in contact with 20 AWG stranded tinned copper drain wire Individual and Overall (IS/OS): Combination of both individual and overall with Aluminum polyester (mylar) foil shield in contact with 20 AWG stranded tinned copper drain wire
Jacket	Polyvinyl Chloride (PVC)
Jacket Marking	00000 FT GREATER WIRE XXXAWG XX/C THHN/THWN-2 PVC JKT 600V 90C WET OR DRY TYPE TC-ER (UL) SUN RES DIR BURIAL MADE IN USA MMDDYYYY
Packaging	Non-returnable wood reels in a variety of lengths and dimensions
Performance Compliances	ASTM B3, ASTM B8, ASTM B33 UL 83, UL 1277 UL 1685 (flame exposure test) ANSI/NEMA WC 57/ICEA S-73-532 FT4/IEEE1202 (flame compliance) NEC
Other Compliances	EPA 40 CFR, Part 261 OSHA RoHS-compliant/RoHS 2-compliant REACH-compliant

Overall Shielded

Pair Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
1	18	0.020(0.51)	0.045(1.14)	0.28(7.2)	45(61)
-	18	0.020(0.51)	0.045(1.14)	0.30(7.5)	55 (75)
2	18	0.020(0.51)	0.045(1.14)	0.40(10.1)	70(101)
3	18	0.020(0.51)	0.045(1.14)	0.42(10.7)	90(128)
4	18	0.020(0.51)	0.045(1.14)	0.46(11.6)	110(156)
5	18	0.020(0.51)	0.045(1.14)	0.50(12.7)	125(186)
7	18	0.020(0.51)	0.060(1.52)	0.58(14.6)	180(264)
12	18	0.020(0.51)	0.060(1.52)	0.75(19.0)	280(412)
16	18	0.020(0.51)	0.060(1.52)	0.83(21.0)	350(520)
20	18	0.020(0.51)	0.080(2.03)	0.96(24.3)	465(685)
24	18	0.020(0.51)	0.080(2.03)	1.06(26.9)	540(803)
36	18	0.020(0.51)	0.080(2.03)	1.21(30.6)	755 (1,117)
1	16	0.020(0.51)	0.045(1.14)	0.31(7.8)	55(75)
-	16	0.020(0.51)	0.045(1.14)	0.32(8.2)	65(94)
2	16	0.020(0.51)	0.045(1.14)	0.44(11.1)	90(128)
3	16	0.020(0.51)	0.045(1.14)	0.46(11.8)	115(165)
4	16	0.020(0.51)	0.045(1.14)	0.51(12.9)	140 (205)
5	16	0.020(0.51)	0.060(1.52)	0.58(14.9)	185(271)
7	16	0.020(0.51)	0.060(1.52)	0.63(16.1)	235(347)
12	16	0.020(0.51)	0.060(1.52)	0.83(21.0)	375(552)
16	16	0.020(0.51)	0.080(2.03)	0.96(24.4)	515(759)
20	4/0	0.020(0.51)	0.080(2.03)	1.06(27.0)	620(918)
24	250	0.020(0.51)	0.080(2.03)	1.18(29.9)	730(1,081)
36	250	0.020(0.51)	0.080(2.03)	1.34(34.1)	1,025(1,524)
Individually and Overall Shielded
Pair Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
2	18	0.020(0.51)	0.045(1.14)	0.43(10.9)	80(112)
3	18	0.020(0.51)	0.045(1.14)	0.46(11.6)	100 (143)
4	18	0.020(0.51)	0.045(1.14)	0.50(12.7)	120(177)
5	18	0.020(0.51)	0.060(1.52)	0.58(14.7)	160(236)
7	18	0.020(0.51)	0.060(1.52)	0.63(16.0)	205(300)
12	18	0.020(0.51)	0.060(1.52)	0.82(20.8)	320(474)
16	18	0.020(0.51)	0.080(2.03)	0.95(24.2)	445(657)
20	18	0.020(0.51)	0.080(2.03)	1.05(26.7)	535(792)
24	18	0.020(0.51)	0.080(2.03)	1.17(29.6)	625(930)
36	18	0.020(0.51)	0.080(2.03)	1.33(33.9)	880(1,303)
2	16	0.020(0.51)	0.045(1.14)	0.47(12.0)	95 (138)
3	16	0.020(0.51)	0.045(1.14)	0.50(12.8)	125(180)
4	16	0.020(0.51)	0.060(1.52)	0.58(14.8)	170(251)
5	16	0.020(0.51)	0.060(1.52)	0.64(16.2)	205(298)
7	16	0.020(0.51)	0.060(1.52)	0.69(17.6)	260(384)
12	16	0.020(0.51)	0.080(2.03)	0.95(24.2)	450(669)
16	16	0.020(0.51)	0.080(2.03)	1.05(26.8)	570(846)
20	16	0.020(0.51)	0.080(2.03)	1.17(29.6)	690(1,026)
24	16	0.020(0.51)	0.080(2.03)	1.30(32.9)	815(1,209)
36	16	0.020(0.51)	0.080(2.03)	1.48(37.6)	1,150(1,711)
