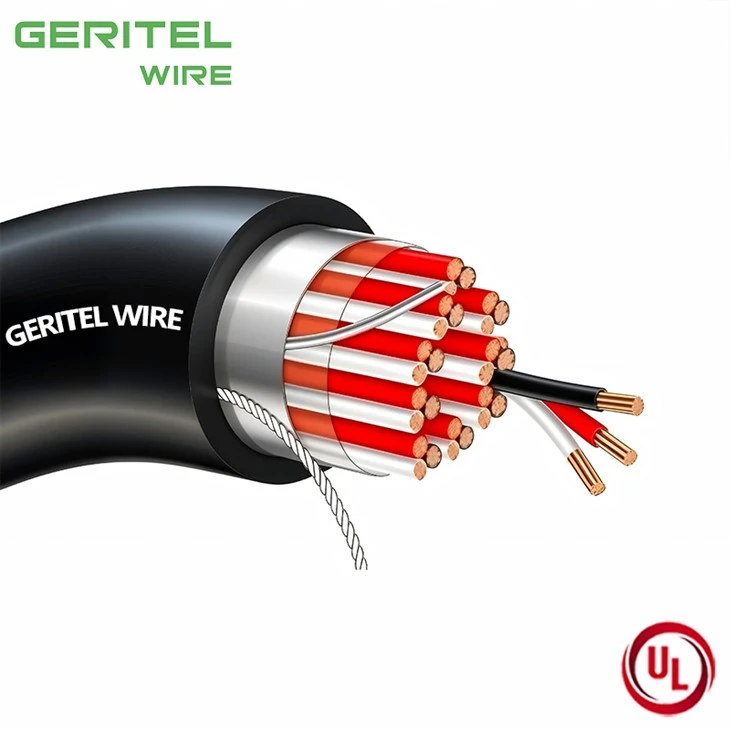

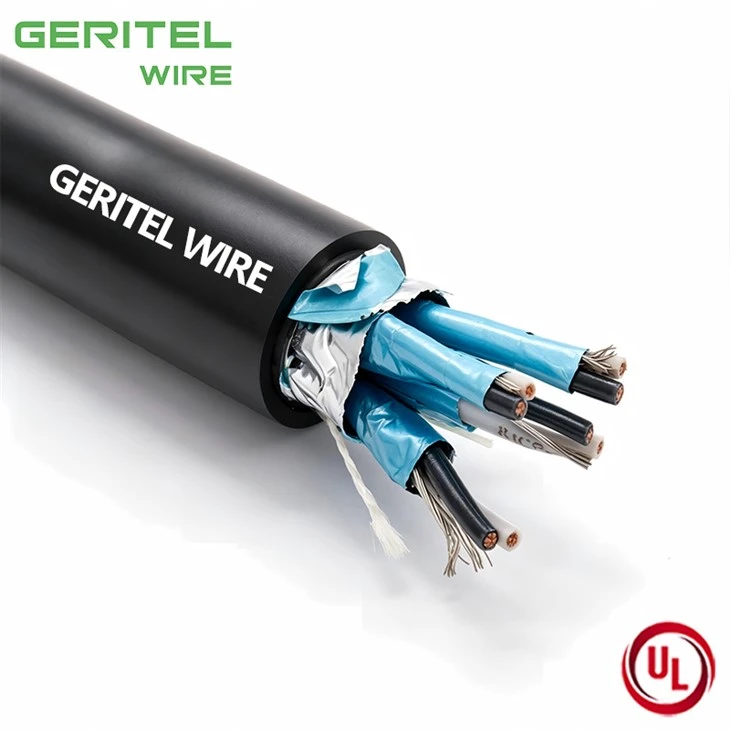

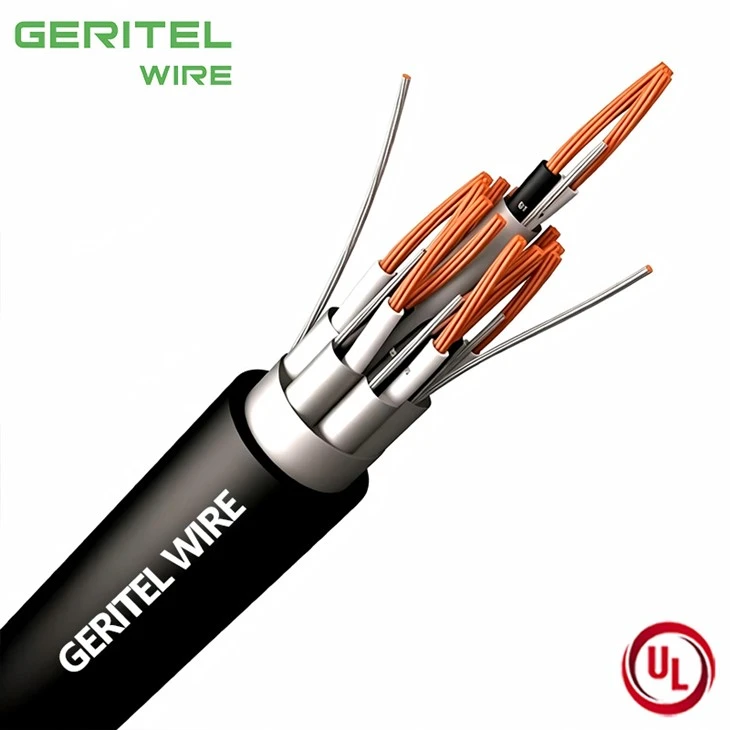

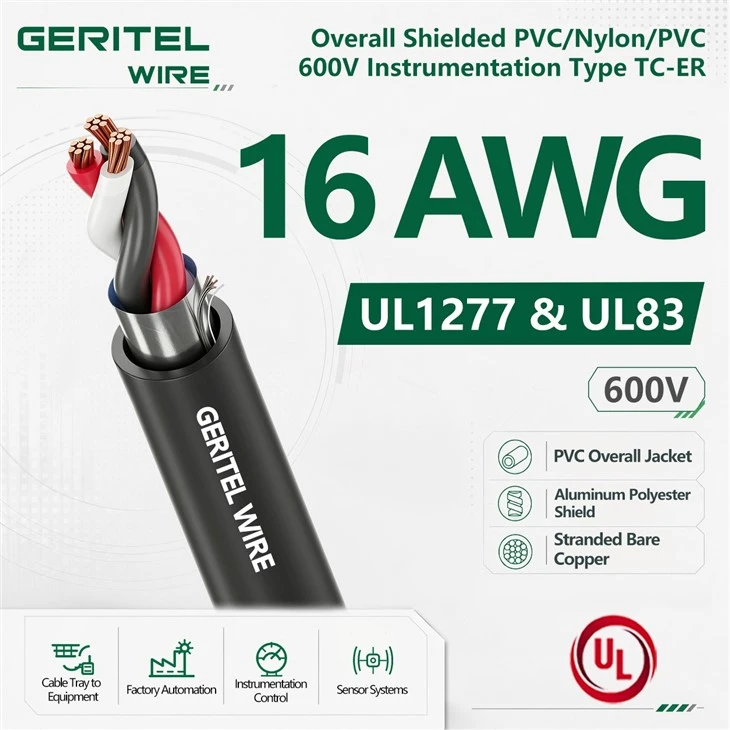

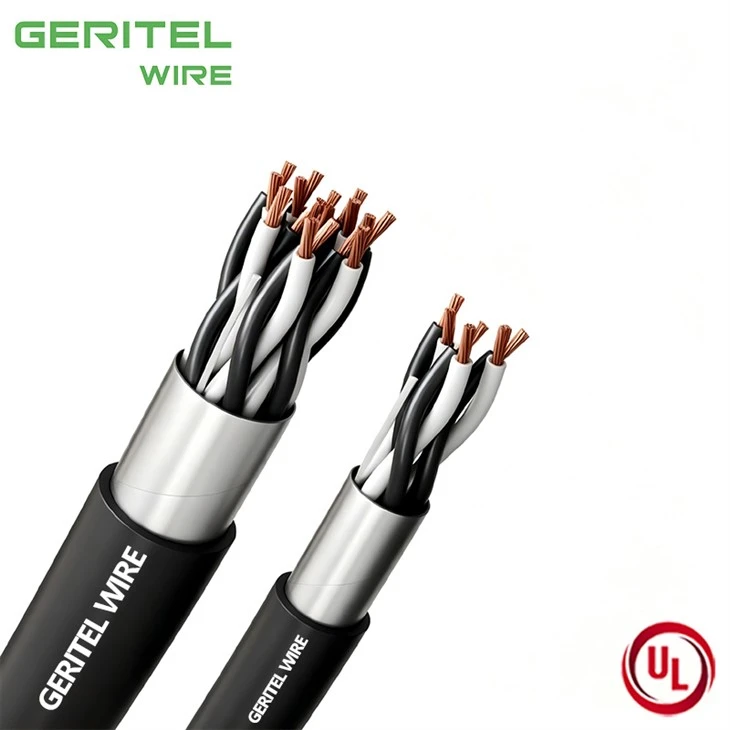

16 AWG 600V Overall Shielded PVC/Nylon/PVC TC-ER Instrumentation Cable for Industrial Automation & Process Control

This 16 AWG cable is a professional 600V shielded pairs PVC/Nylon/PVC instrumentation cable, fully compliant with UL 1277 TC-ER PVC/Nylon/PVC cable 600V and UL 1685 PVC/Nylon/PVC tray cable industry specifications. Adopting overall shield and premium PVC/Nylon/PVC triple-layer structure, it delivers excellent anti-interference performance and stable signal transmission, with outstanding abrasion, oil and UV resistance. Suitable for both 90°C dry and 75°C wet environments, the cable supports tray, conduit, overhead and direct burial installation, serving as a reliable wiring solution for industrial automation and process control instrumentation signal connection scenarios.

PRODUCT SPECIFICATIONS

shielded PVC/Nylon/PVC 600V instrumentation tray cable

Product Description

The PVC/Nylon/PVC, 600V Instrumentation, Type TC-ER and Direct Burial Cables consist of fully annealed bare copper Class B stranded conductors (in pairs or triads), covered with Polyvinyl Chloride (PVC) and clear Nylon insulation, overall shielded or individually and overall shielded and black PVC jacket. These cables are used in control systems, audio, intercom, alarm circuits and energy management.

Applications

In free air, ducts, cable trays, conduit, raceways and direct burial
Approved for Class I, Div. 2 industrial hazardous locations per NEC
Used as a non-power-limited fire alarm circuit cable (NPLF) per NEC Article 760
Permitted for Exposed Run (ER) used in accordance with NEC for 3 or more conductors; two conductors without a ground wire are Type TC only

Features

Rated at 90°C wet or dry
Ripcord (as needed)
Excellent sunlight resistance
Meets cold bend test at -25°C

SPECIFICATIONS
Conductor Count	Available in 1-pair through 36-pairs, and 1-triad through 24-triads
Conductor	Fully annealed bare copper Class B
Gauge Sizes	Available in 18 or 16 AWG
Insulation	Polyvinyl Chloride (PVC) covered with Nylon
Color Coding	Per ICEA S-58-679 Method 9, Table E-1 (black-white-red), plus one conductor per pair/triad printed for identification; additional color coding options available
Shield Options	Overall (OS): Overall Aluminum polyester (mylar) foil shield in contact with 20 AWG stranded tinned copper drain wire Individual and Overall (IS/OS): Combination of both individual and overall with Aluminum polyester (mylar) foil shield in contact with 20 AWG stranded tinned copper drain wire
Jacket	Polyvinyl Chloride (PVC)
Jacket Marking	00000 FT GREATER WIRE XXXAWG XX/C THHN/THWN-2 PVC JKT 600V 90C WET OR DRY TYPE TC-ER (UL) SUN RES DIR BURIAL MADE IN USA MMDDYYYY
Packaging	Non-returnable wood reels in a variety of lengths and dimensions
Performance Compliances	ASTM B3, ASTM B8, ASTM B33 UL 83, UL 1277 UL 1685 (flame exposure test) ANSI/NEMA WC 57/ICEA S-73-532 FT4/IEEE1202 (flame compliance) NEC
Other Compliances	EPA 40 CFR, Part 261 OSHA RoHS-compliant/RoHS 2-compliant REACH-compliant

Overall Shielded

Pair Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
1	18	0.020(0.51)	0.045(1.14)	0.28(7.2)	45(61)
-	18	0.020(0.51)	0.045(1.14)	0.30(7.5)	55 (75)
2	18	0.020(0.51)	0.045(1.14)	0.40(10.1)	70(101)
3	18	0.020(0.51)	0.045(1.14)	0.42(10.7)	90(128)
4	18	0.020(0.51)	0.045(1.14)	0.46(11.6)	110(156)
5	18	0.020(0.51)	0.045(1.14)	0.50(12.7)	125(186)
7	18	0.020(0.51)	0.060(1.52)	0.58(14.6)	180(264)
12	18	0.020(0.51)	0.060(1.52)	0.75(19.0)	280(412)
16	18	0.020(0.51)	0.060(1.52)	0.83(21.0)	350(520)
20	18	0.020(0.51)	0.080(2.03)	0.96(24.3)	465(685)
24	18	0.020(0.51)	0.080(2.03)	1.06(26.9)	540(803)
36	18	0.020(0.51)	0.080(2.03)	1.21(30.6)	755 (1,117)
1	16	0.020(0.51)	0.045(1.14)	0.31(7.8)	55(75)
-	16	0.020(0.51)	0.045(1.14)	0.32(8.2)	65(94)
2	16	0.020(0.51)	0.045(1.14)	0.44(11.1)	90(128)
3	16	0.020(0.51)	0.045(1.14)	0.46(11.8)	115(165)
4	16	0.020(0.51)	0.045(1.14)	0.51(12.9)	140 (205)
5	16	0.020(0.51)	0.060(1.52)	0.58(14.9)	185(271)
7	16	0.020(0.51)	0.060(1.52)	0.63(16.1)	235(347)
12	16	0.020(0.51)	0.060(1.52)	0.83(21.0)	375(552)
16	16	0.020(0.51)	0.080(2.03)	0.96(24.4)	515(759)
20	4/0	0.020(0.51)	0.080(2.03)	1.06(27.0)	620(918)
24	250	0.020(0.51)	0.080(2.03)	1.18(29.9)	730(1,081)
36	250	0.020(0.51)	0.080(2.03)	1.34(34.1)	1,025(1,524)
Individually and Overall Shielded
Pair Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
2	18	0.020(0.51)	0.045(1.14)	0.43(10.9)	80(112)
3	18	0.020(0.51)	0.045(1.14)	0.46(11.6)	100 (143)
4	18	0.020(0.51)	0.045(1.14)	0.50(12.7)	120(177)
5	18	0.020(0.51)	0.060(1.52)	0.58(14.7)	160(236)
7	18	0.020(0.51)	0.060(1.52)	0.63(16.0)	205(300)
12	18	0.020(0.51)	0.060(1.52)	0.82(20.8)	320(474)
16	18	0.020(0.51)	0.080(2.03)	0.95(24.2)	445(657)
20	18	0.020(0.51)	0.080(2.03)	1.05(26.7)	535(792)
24	18	0.020(0.51)	0.080(2.03)	1.17(29.6)	625(930)
36	18	0.020(0.51)	0.080(2.03)	1.33(33.9)	880(1,303)
2	16	0.020(0.51)	0.045(1.14)	0.47(12.0)	95 (138)
3	16	0.020(0.51)	0.045(1.14)	0.50(12.8)	125(180)
4	16	0.020(0.51)	0.060(1.52)	0.58(14.8)	170(251)
5	16	0.020(0.51)	0.060(1.52)	0.64(16.2)	205(298)
7	16	0.020(0.51)	0.060(1.52)	0.69(17.6)	260(384)
12	16	0.020(0.51)	0.080(2.03)	0.95(24.2)	450(669)
16	16	0.020(0.51)	0.080(2.03)	1.05(26.8)	570(846)
20	16	0.020(0.51)	0.080(2.03)	1.17(29.6)	690(1,026)
24	16	0.020(0.51)	0.080(2.03)	1.30(32.9)	815(1,209)
36	16	0.020(0.51)	0.080(2.03)	1.48(37.6)	1,150(1,711)

CERTIFICATIONS

stranded copper PVC/Nylon/PVC process control cable

PACKAGING

600V UL 1277 TC-ER process control cable

Roll

600V UL 1277 TC-ER instrumentation tray cable

Plastic Reel

600V TC-ER PLTC ITC PLTC ITC instrumentation cable

Small Wooden Reel

APPLICATION

600V UL 1277 TC-ER TC-ER instrumentation cable

Factory Automation

600V TC-ER PLTC ITC TC-ER instrumentation cable

Process Instrumentation

stranded copper PVC/Nylon/PVC instrumentation cable

Water Treatment Control Systems

CASE

shielded PVC/Nylon/PVC 600V PLTC ITC instrumentation cable

BASF Ludwigshafen Verbund Site

PVC nylon insulation PVC jacket TC-ER instrumentation cable

MWRA Deer Island Wastewater Treatment Plant

18 AWG Overall Shielded PVC/Nylon/PVC 600V Instrumentation Type TC-ER PLTC/ITC cable

Siemens Electronic Works Amberg Factory

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

18 AWG Overall Shielded 600V TC-ER PLTC ITC instrumentation cable

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

18 AWG Overall Shield PVC nylon PVC instrumentation tray cable

shielded PVC/Nylon/PVC 600V industrial instrumentation cable

shielded PVC/Nylon/PVC 600V tray cable exposed run instrumentation cable

18 AWG Overall Shield PVC/Nylon/PVC 600V Instrumentation Type TC-ER PLTC/ITC cable

18 AWG Individually and Overall Shielded 600V TC-ER PLTC ITC instrumentation cable

18 AWG Individual and Overall Shield PVC/Nylon/PVC 600V Instrumentation Type TC-ER PLTC/ITC cable

GLOBAL CERTIFICATIONS

18 AWG SPOS PVC nylon PVC instrumentation tray cable

CUSTOMER PHOTOS

18 AWG STOS 600V TC-ER PLTC ITC instrumentation cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

18AWG Overall Shielded PVC nylon PVC instrumentation tray cable

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

18 AWG SPOS PVC/Nylon/PVC 600V Instrumentation Type TC-ER PLTC/ITC cable

18 AWG STOS PVC/Nylon/PVC 600V Instrumentation Type TC-ER PLTC/ITC cable

Overall Foil Shield TC-ER cable for process control

18 AWG TOS PVC nylon PVC instrumentation tray cable

18AWG SPOS 600V TC-ER PLTC ITC instrumentation cable

18AWG STOS 600V TC-ER PLTC ITC instrumentation cable

18AWG Individual and Overall Shield PVC nylon PVC instrumentation tray cable

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

18AWG TOS 600V TC-ER PLTC ITC instrumentation cable

FAQ

What certifications and standards does this cable comply with?

This cable is a certified UL 1277 TC-ER PVC/Nylon/PVC cable 600V and UL 1685 PVC/Nylon/PVC tray cable, fully conforming to official industry specifications and 600V voltage rating standards for industrial wiring applications.

What is the core advantage of its overall shielded structure?

The full overall shield with tinned drain wire effectively blocks external electromagnetic interference, ensuring low-noise, stable and accurate low-current signal transmission, which is critical for precision instrumentation and process control systems.

What working environments and installation methods are supported?

It adapts to 90°C dry locations and 75°C wet industrial environments. It supports flexible installation methods including cable tray routing, conduit wiring, overhead laying and direct burial, suitable for various indoor and outdoor industrial scenarios.

What are the main application scenarios of this cable?

It is specially designed for industrial instrumentation signal transmission, widely applied in industrial automation systems, factory process control, chemical, petroleum and other harsh industrial fields.
