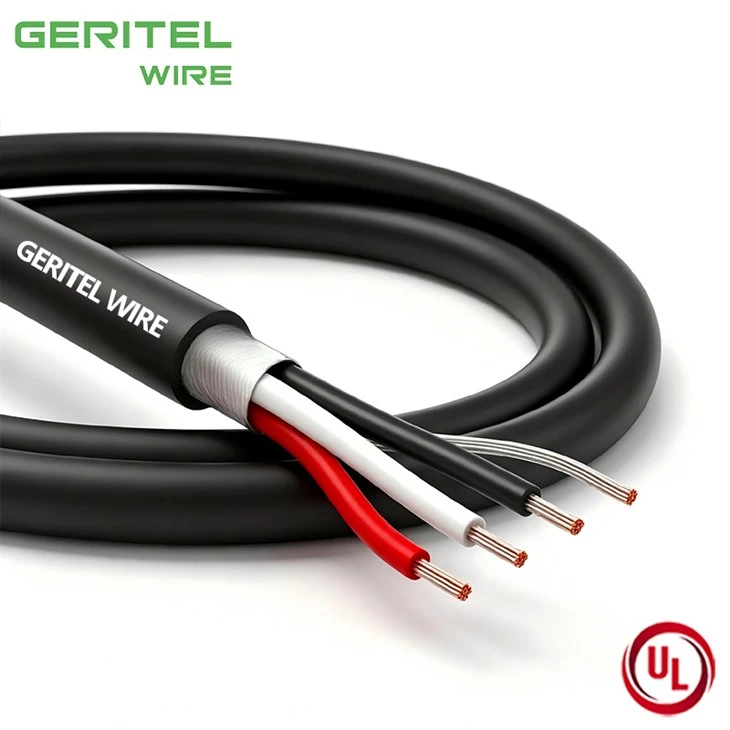

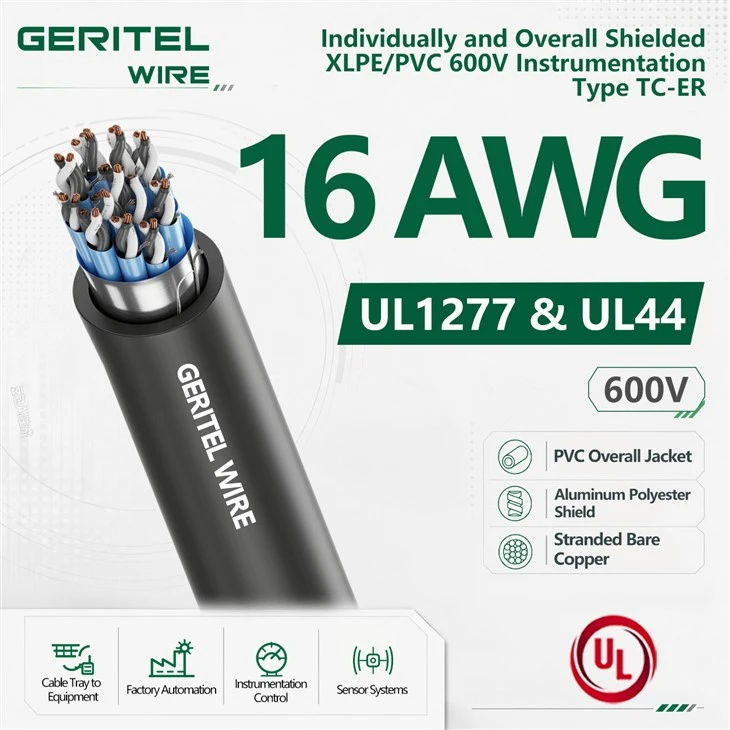

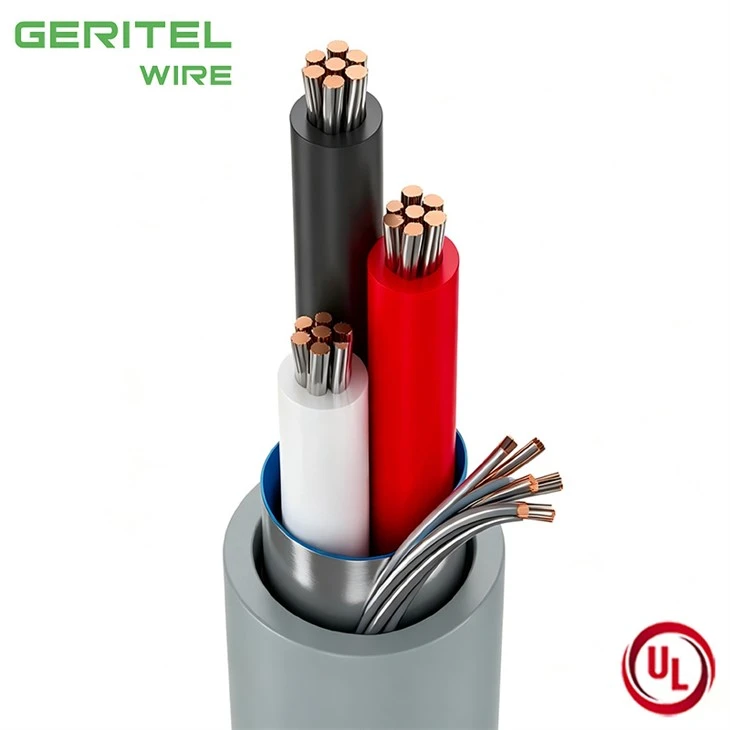

16 AWG Individually and Overall Shielded XLPE/PVC 600V Instrumentation Type TC-ER Cable for Industrial Process Control

This 16 AWG IS/OS signal wiring product is a reliable XLPE insulation XLPE/PVC TC-ER instrumentation cable, manufactured as XLPE/PVC Type TC-ER cable with RFH-2 insulation and rated for 600V working voltage, which can be offered as a complete 600V XLPE/PVC TC-ER instrumentation cable quote and serves as ideal IS/OS XLPE/PVC instrumentation cable replacement for outdated industrial signal wiring. Designed with individual and overall dual shielding, XLPE core insulation plus PVC outer jacket, this TC-ER tray cable delivers strong anti-interference performance, supports exposed run, tray and conduit installation, and fits precision instrumentation, fire alarm and factory control circuit wiring.

PRODUCT SPECIFICATIONS

600V XLPE/PVC TC-ER instrumentation cable China manufacturer

Product Description

The XLPE/PVC, 600V Instrumentation, Type TC-ER and Direct Burial Cables consist of fully annealed bare copper Class B stranded conductors (in pairs or triads), covered with Cross-linked Polyethylene (XLPE) insulation, overall shielded or individually and overall shielded and black PVC jacket. These cables are used in control systems, audio, intercom, alarm circuits and energy management.

Applications

In free air, ducts, cable trays, conduit, raceways and direct burial
Approved for Class I, Div. 2 industrial hazardous locations per NEC
Permitted for Exposed Run (ER) used in accordance with NEC for 3 or more conductors; two conductors without a ground wire are Type TC only

Features

Rated at 90°C wet or dry
Ripcord (as needed)
Excellent sunlight resistance
Meets cold bend test at -25°C

SPECIFICATIONS

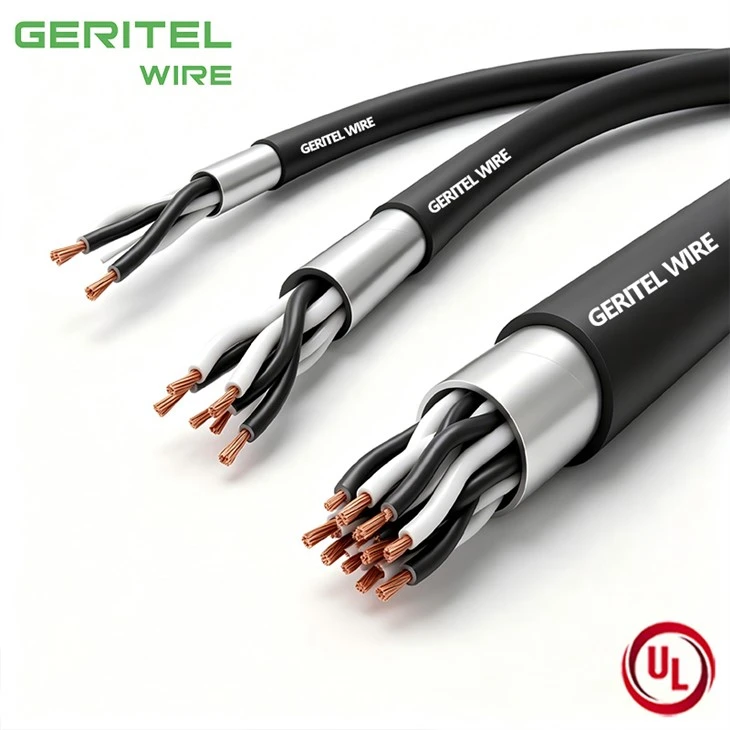

Conductor Count	Available in 1-pair through 36-pairs, and 1-triad through 24-triads
Conductor	Fully annealed bare copper Class B
Gauge Sizes	Available in 18 or 16 AWG
Insulation	Cross-linked Polyethylene (XLPE)
Color Coding	Per ICEA S-58-679 Method 9, Table E-1 (black-white-red), plus one conductor per pair/triad printed for identification; additional color coding options available

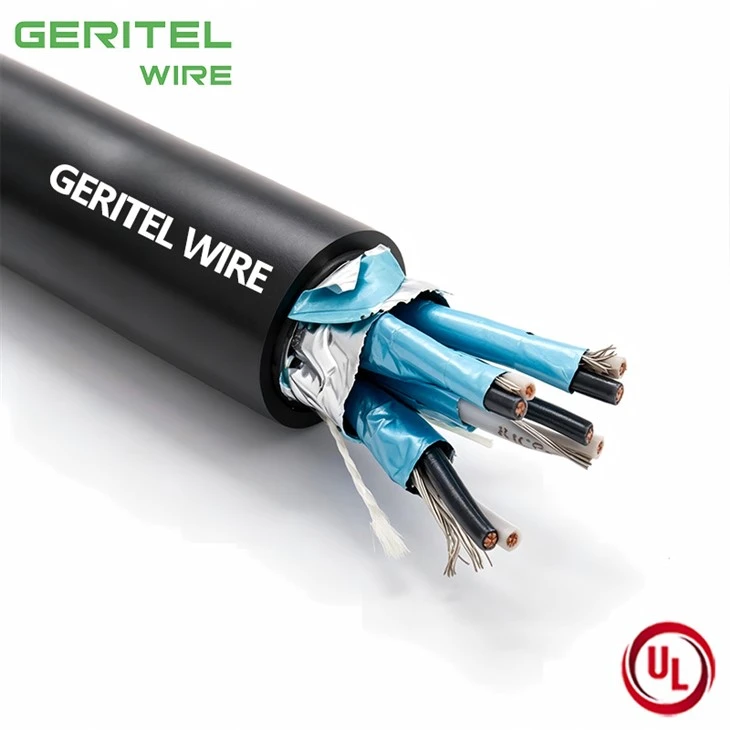

Shield Options	Overall (OS): Overall Aluminum polyester foil shield in contact with 20 AWG stranded tinned copper drain wire Individual and Overall (IS/OS): Combination of both individual and overall with Aluminum polyester foil shield in contact with 20 AWG stranded tinned copper drain wire
Jacket	Polyvinyl Chloride (PVC)
Jacket Marking	00000 FT GREATER WIRE CABLE XXAWG XX/PR (or TR) XLPE/PVC OS (or IS or IS/OS) 600V 90C WET OR DRY TYPE TC-ER (UL) SUN RES DIR BUR MADE IN USA MMDDYYYY
Packaging	Non-returnable wood reels in a variety of lengths and dimensions
Performance Compliances	ASTM B3, ASTM B8, ASTM B33 UL® 44 UL 1277 UL 1685 (flame exposure test) ANSI/NEMA WC 57/ICEA S-73-532
Other Compliances	EPA 40 CFR, Part 261 OSHA RoHS-compliant/RoHS 2-compliant REACH-compliant
