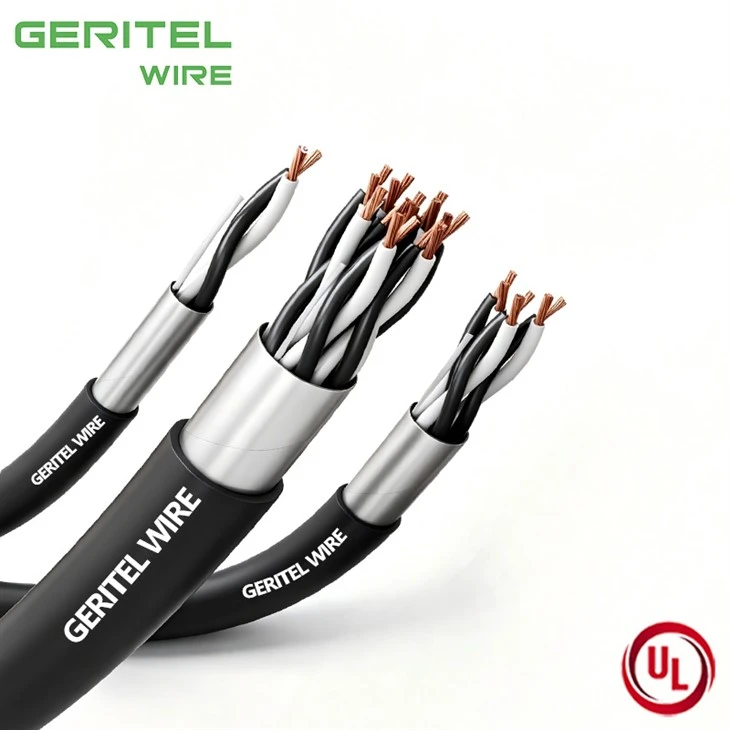

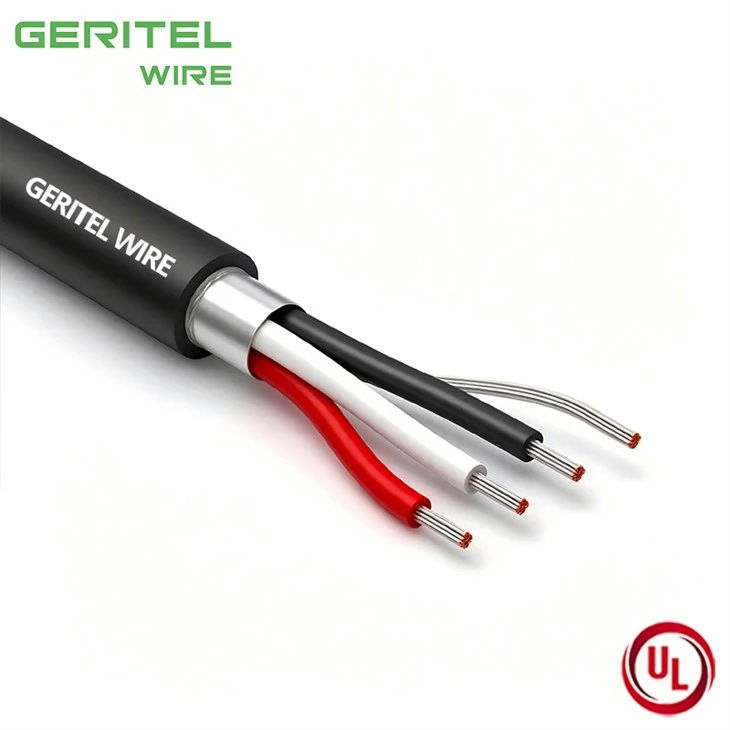

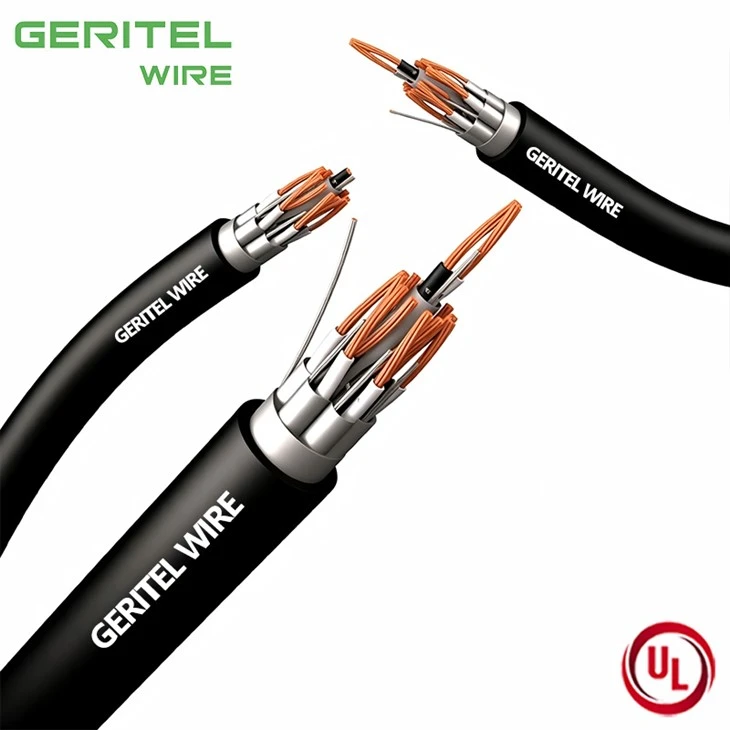

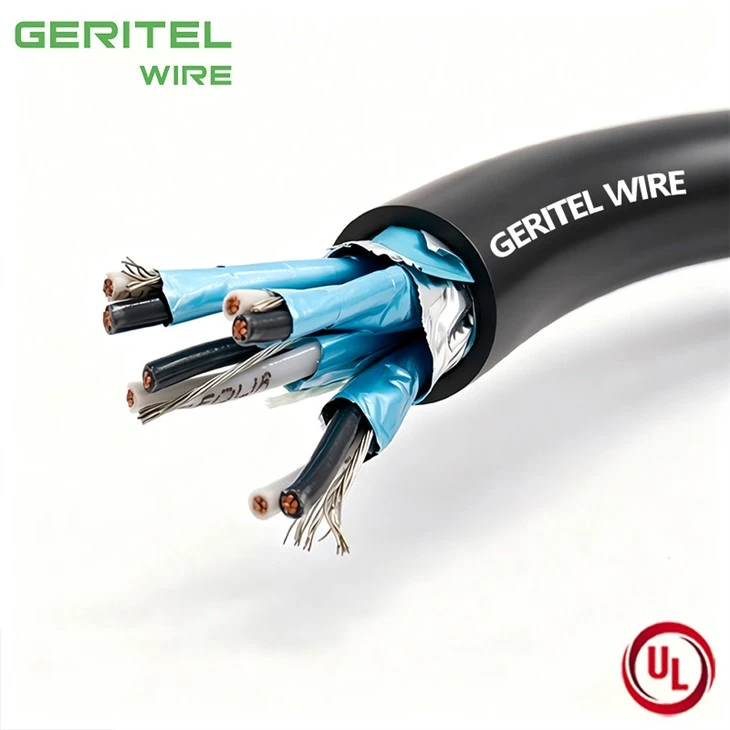

PRODUCT REAL SHOT

PVC/PVC 300V Type PLTC/ITC cable supplier

300V PLTC instrumentation cable factory

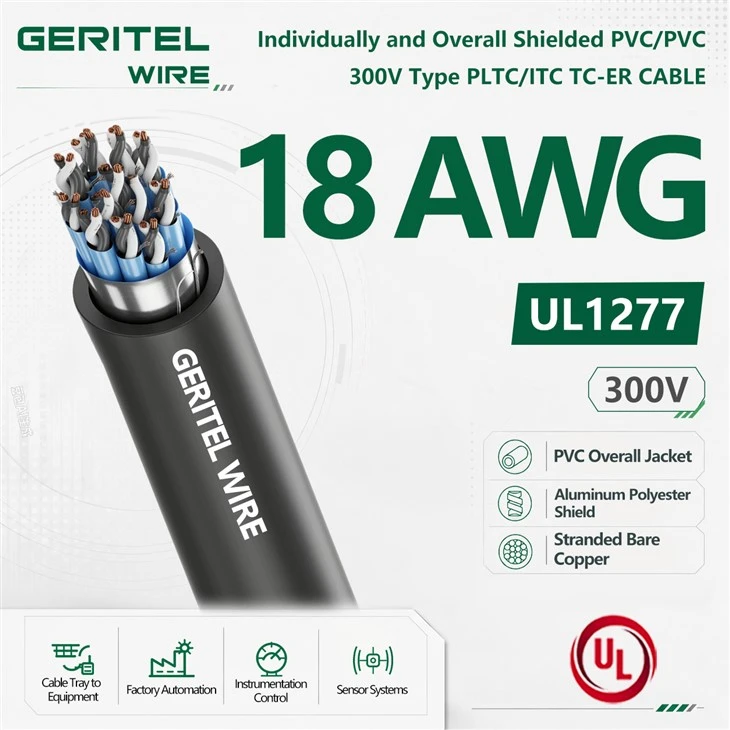

18 AWG PLTC/ITC Cable – Maximum EMI Protection with Double Shielding for Instrumentation and Automation

Field-mounted sensors and transmitters often run long distances through electrically noisy industrial environments. A single corrupted signal can shut down a production line. This 18 AWG PLTC/ITC instrumentation cable provides the highest level of noise protection with individually shielded pairs plus an overall shield, ensuring that critical sensor data reaches the control system with minimal degradation. The stranded bare copper conductors offer excellent flexibility for routing through tight spaces, while the PVC insulation and PVC jacket provide robust protection against moisture, oil, and mechanical stress. UL1277 certified and rated 300V, this cable is approved for cable tray installations and exposed runs, making it suitable for factory automation, process control, sensor networks, and instrumentation systems. The 18 AWG size is ideal for applications where multiple conductors need to be packed into limited space while maintaining signal integrity.

PRODUCT SPECIFICATIONS

Belden 9553 replacement cable

Product Description

The PVC/PVC, 300V Type PLTC/ITC Cables consist of fully annealed bare copper, Class B stranded conductors (in pairs or triads), covered with Polyvinyl Chloride (PVC) insulation, overall shielded or individually and overall shielded and black PVC jacket. These cables are used in control systems, audio, intercom, alarm circuits and energy management.

Applications

In free air, ducts, cable trays, conduit, raceways and direct burial
Approved for Class I Div. 2 industrial hazardous locations per NEC

Features

Rated at 105°C
Ripcord (as needed)
Excellent sunlight resistance
Meets cold bend test at -25°C
Pair/Triad ID marking system

SPECIFICATIONS
Conductor Count	Available in 1-pair through 36-pairs, and 1-triad through 24-triads
Conductor	Fully annealed bare copper Class B
Gauge Sizes	Available in 18 or 16 AWG
Insulation	Polyvinyl Chloride (PVC)
Color Coding	Per ICEA S-58-679 Method 9, Table E-1 (black-white-red), plus one conductor per pair/triad printed for identification; additional color coding options available
Shield Options	Overall (OS): Overall Aluminum polyester (mylar) foil shield in contact with 20 AWG stranded tinned copper drain wire Individual and Overall (IS/OS): Combination of both individual and overall with Aluminum polyester (mylar) foil shield in contact with 20 AWG stranded tinned copper drain wire
Jacket	Polyvinyl Chloride (PVC)
Jacket Marking	00000 FT GREATER WIRE CABLE XXAWG XX/PR (or TR) PVC/ PVC OS (or IS or IS/OS) 105C TYPE ITC PLTC (UL) SUN RES DIR BUR FT4/IEEE1202 MADE IN USA MMDDYYYY
Packaging	Non-returnable wood reels in a variety of lengths and dimensions
Performance Compliances	ASTM B8 ASTM B33 UL 13 UL 1685 (flame exposure test) UL 2250 FT4/IEEE1202 (flame compliance) NEC Article 727 for ITC
Other Compliances	EPA 40 CFR, Part 261 OSHA RoHS-compliant/RoHS 2-compliant REACH-compliant

Overall Shielded

Pair Count	Triad Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
1	-	18	0.015(0.38)	0.045(1.14)	0.26(6.6)	40(55)
-	1	18	0.015(0.38)	0.045(1.14)	0.27(6.9)	50(68)
2	-	18	0.015(0.38)	0.045(1.14)	0.36(9.2)	65(91)
4	-	18	0.015(0.38)	0.050(1.27)	0.43(10.8)	100(148)
8	-	18	0.015(0.38)	0.050(1.27)	0.54(13.8)	170(251)
12	-	18	0.015(0.38)	0.060(1.52)	0.67(17.1)	250(372)
16	-	18	0.015(0.38)	0.060(1.52)	0.75(18.9)	320(470)
20	-	18	0.015(0.38)	0.060(1.52)	0.82(20.9)	385(569)
24	-	18	0.015(0.38)	0.070(1.78)	0.94(23.9)	475(705)
36	-	18	0.015(0.38)	0.070(1.78)	1.07(27.2)	665(988)
1	-	16	0.015(0.38)	0.045(1.14)	0.28(7.2)	50(69)
-	1	16	0.015(0.38)	0.045(1.14)	0.30(7.6)	60(87)
2	-	16	0.015(0.38)	0.050(1.27)	0.41(10.5)	85(123)
4	-	16	0.015(0.38)	0.050(1.27)	0.47(12.1)	135(195)
8	-	16	0.015(0.38)	0.060(1.52)	0.63(16.0)	245(359)
12	-	16	0.015(0.38)	0.060(1.52)	0.76(19.2)	345(508)
16	-	16	0.015(0.38)	0.060(1.52)	0.84(21.3)	440(648)
20	-	16	0.015(0.38)	0.070(1.78)	0.95(24.2)	555(825)
24	-	16	0.015(0.38)	0.070(1.78)	1.06(26.9)	655(973)
36	-	16	0.015(0.38)	0.070(1.78)	1.21(30.7)	930(1,381)

Individually and Overall Shielded

Pair Count	Triad Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
2	-	18	0.015(0.38)	0.045(1.14)	0.39(10.0)	70(102)
-	2	18	0.015(0.38)	0.050(1.27)	0.44(11.3)	95(135)
4	-	18	0.015(0.38)	0.050(1.27)	0.47(11.8)	115(168)
-	4	18	0.015(0.38)	0.050(1.27)	0.51(13.1)	150(218)
8	-	18	0.015(0.38)	0.050(1.27)	0.60(15.2)	200(291)
-	8	18	0.015(0.38)	0.060(1.52)	0.68(17.4)	275(404)
12	-	18	0.015(0.38)	0.060(1.52)	0.74(18.9)	295(433)
-	12	18	0.015(0.38)	0.060(1.52)	0.83(21.0)	390(575)
16	-	18	0.015(0.38)	0.060(1.52)	0.82(20.9)	370(550)
-	16	18	0.015(0.38)	0.070(1.78)	0.95(24.0)	520(771)
20	-	18	0.015(0.38)	0.070(1.78)	0.94(23.8)	475(703)
-	20	18	0.015(0.38)	0.070(1.78)	1.05(26.6)	635(938)
24	-	18	0.015(0.38)	0.070(1.78)	1.04(26.4)	560(828)
-	24	18	0.015(0.38)	0.070(1.78)	1.16(29.5)	745(1,108)
36	-	18	0.015(0.38)	0.070(1.78)	1.19(30.2)	790(1,169)
2	-	16	0.015(0.38)	0.050(1.27)	0.45(11.3)	90(134)
-	2	16	0.015(0.38)	0.050(1.27)	0.49(12.5)	120(172)
4	-	16	0.015(0.38)	0.050(1.27)	0.52(13.1)	150(216)
-	4	16	0.015(0.38)	0.050(1.27)	0.57(14.6)	195(287)
8	-	16	0.015(0.38)	0.060(1.52)	0.69(17.5)	270(401)
-	8	16	0.015(0.38)	0.060(1.52)	0.76(19.4)	365(539)
12	-	16	0.015(0.38)	0.060(1.52)	0.83(21.1)	385(569)
-	12	16	0.015(0.38)	0.070(1.78)	0.95(24.2)	545(808)
16	-	16	0.015(0.38)	0.070(1.78)	0.95(24.1)	515(764)
-	16	16	0.015(0.38)	0.070(1.78)	1.06(26.9)	700(1,037)
20	-	16	0.015(0.38)	0.070(1.78)	1.05(26.7)	625(929)
-	20	16	0.015(0.38)	0.070(1.78)	1.18(29.9)	855(1,267)
24	-	16	0.015(0.38)	0.070(1.78)	1.17(29.7)	740(1,097)
-	24	16	0.015(0.38)	0.080(2.03)	1.33(33.7)	1035(1,538)
36	-	16	0.015(0.38)	0.080(2.03)	1.36(34.5)	1080(1,601)

CERTIFICATIONS

Belden instrumentation cable equivalent

PACKAGING

Roll

Plastic Reel

Small Wooden Reel

APPLICATION

Factory Automation

Process Instrumentation

Water Treatment Control Systems

CASE

BASF Ludwigshafen Verbund Site

MWRA Deer Island Wastewater Treatment Plant

Siemens Electronic Works Amberg Factory

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

difference between power limited tray cable

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

PLTC ITC cable for water treatment plant

300V instrumentation cable for oil and gas

GLOBAL CERTIFICATIONS

shielded instrumentation cable for cable tray

CUSTOMER PHOTOS

power limited tray cable for factory automation

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

power limited tray cable for control panel wiring

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

300V instrumentation cable for PLC control

power limited tray cable for PLC control

300V instrumentation cable for PLC I/O wiring

power limited tray cable for PLC I/O wiring

shielded PLTC cable for control panel wiring

shielded PLTC cable for automation wiring

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

shielded PLTC cable for factory automation

FAQ

Why choose 18 AWG over 16 AWG for instrumentation?

18 AWG is lighter and more flexible, making it easier to route in crowded cable trays and panels. It also allows more conductors in the same space.

What is the maximum distance for 18 AWG instrumentation signals?

Distance depends on the signal type and load. For 4-20mA loops, 18 AWG can typically run several hundred feet. For digital communications, distance is limited by the communication protocol specifications.

Does individual shielding prevent cross-talk?

Yes, individually shielded pairs prevent cross-talk between pairs within the same cable, making this cable ideal for applications with multiple sensitive signals.

Is this cable suitable for thermocouple extensions?

Yes, but ensure proper cold junction compensation as needed for the specific application and instrumentation.
