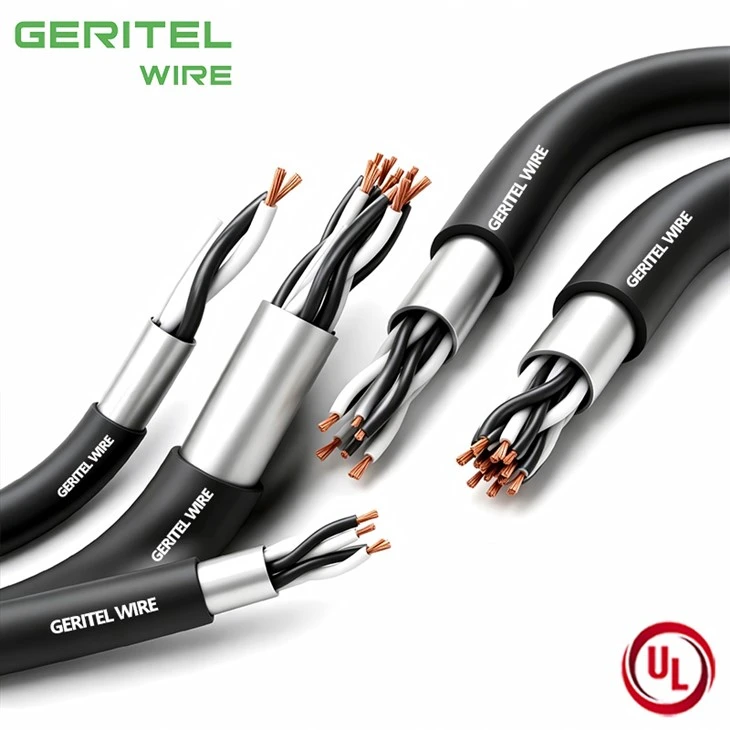

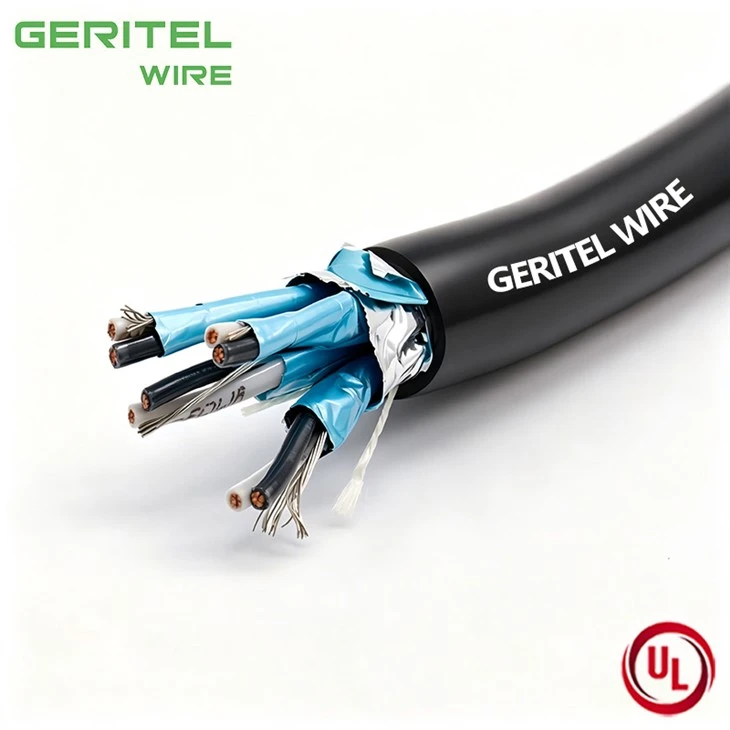

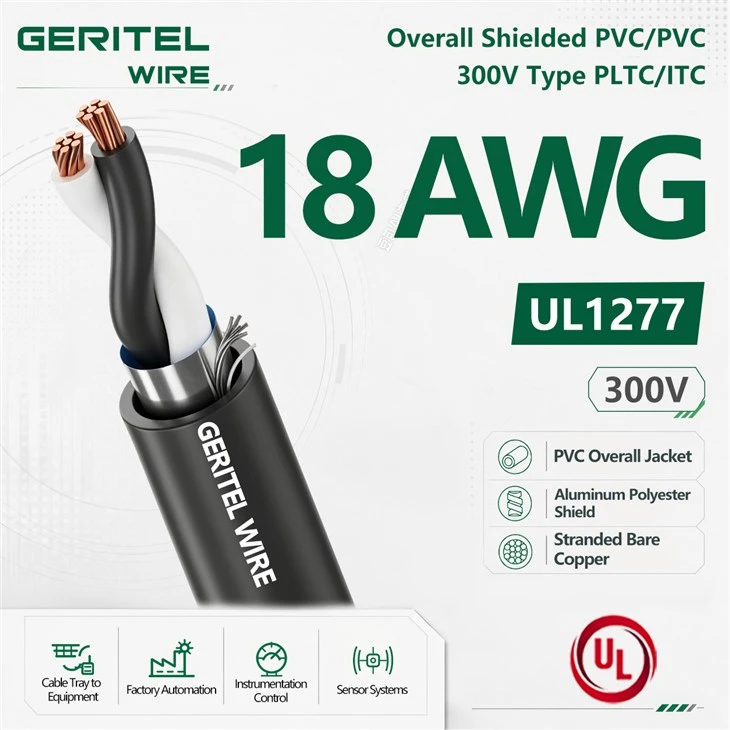

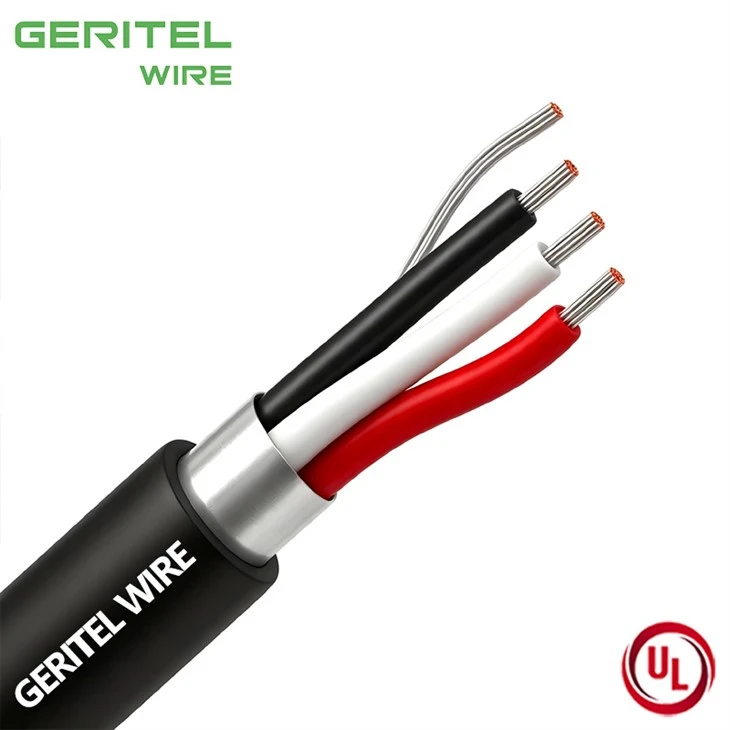

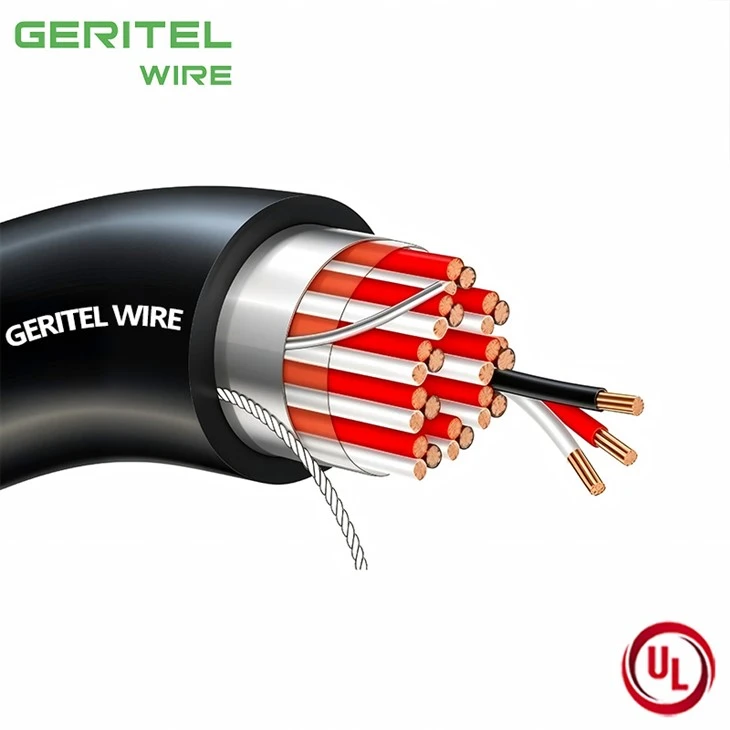

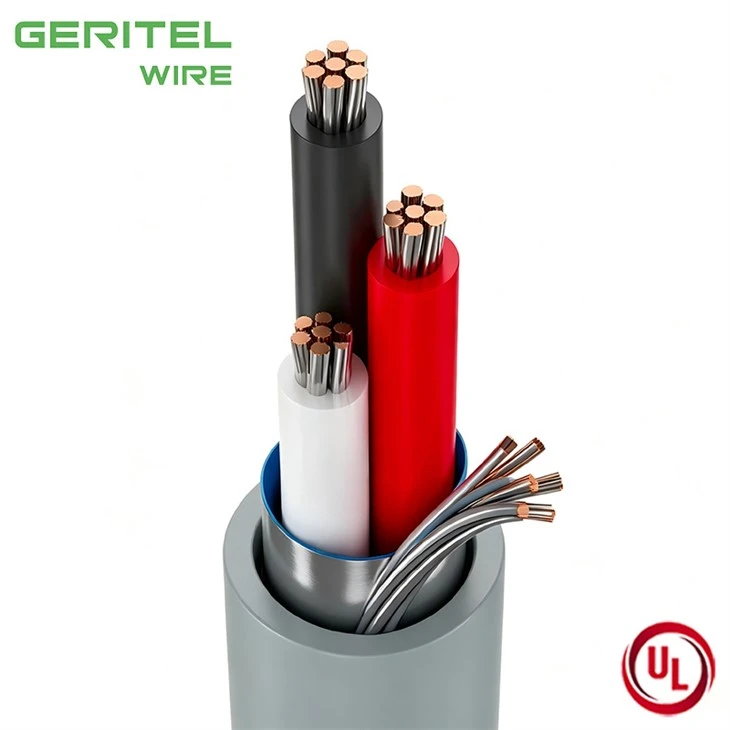

18 AWG PLTC/ITC Cable – Lightweight Overall Shielded Instrumentation Cable for Control and Sensor Systems

Control and sensor wiring in industrial plants needs to be reliable, flexible, and easy to install-especially when space is tight. This 18 AWG PLTC/ITC instrumentation cable offers a practical balance of protection and handling ease with an overall aluminum/polyester shield that provides reliable EMI protection while maintaining a lightweight, flexible construction. The stranded bare copper conductors deliver consistent signal transmission, and the PVC insulation with PVC jacket provides resistance to moisture, oil, and physical wear in demanding industrial environments. UL1277 certified and rated 300V, this cable is approved for cable tray installations and exposed runs, making it suitable for factory automation, sensor systems, and control applications where space is limited. The 18 AWG size allows for higher conductor density in cable trays and panels, while the overall shield provides adequate protection against external interference for most industrial control applications.

PRODUCT SPECIFICATIONS

24 pair ITC instrumentation cable 300V

Product Description

The PVC/PVC, 300V Type PLTC/ITC Cables consist of fully annealed bare copper, Class B stranded conductors (in pairs or triads), covered with Polyvinyl Chloride (PVC) insulation, overall shielded or individually and overall shielded and black PVC jacket. These cables are used in control systems, audio, intercom, alarm circuits and energy management.

Applications

In free air, ducts, cable trays, conduit, raceways and direct burial
Approved for Class I Div. 2 industrial hazardous locations per NEC

Features

Rated at 105°C
Ripcord (as needed)
Excellent sunlight resistance
Meets cold bend test at -25°C
Pair/Triad ID marking system

SPECIFICATIONS
Conductor Count	Available in 1-pair through 36-pairs, and 1-triad through 24-triads
Conductor	Fully annealed bare copper Class B
Gauge Sizes	Available in 18 or 16 AWG
Insulation	Polyvinyl Chloride (PVC)
Color Coding	Per ICEA S-58-679 Method 9, Table E-1 (black-white-red), plus one conductor per pair/triad printed for identification; additional color coding options available
Shield Options	Overall (OS): Overall Aluminum polyester (mylar) foil shield in contact with 20 AWG stranded tinned copper drain wire Individual and Overall (IS/OS): Combination of both individual and overall with Aluminum polyester (mylar) foil shield in contact with 20 AWG stranded tinned copper drain wire
Jacket	Polyvinyl Chloride (PVC)
Jacket Marking	00000 FT GREATER WIRE CABLE XXAWG XX/PR (or TR) PVC/ PVC OS (or IS or IS/OS) 105C TYPE ITC PLTC (UL) SUN RES DIR BUR FT4/IEEE1202 MADE IN USA MMDDYYYY
Packaging	Non-returnable wood reels in a variety of lengths and dimensions
Performance Compliances	ASTM B8 ASTM B33 UL 13 UL 1685 (flame exposure test) UL 2250 FT4/IEEE1202 (flame compliance) NEC Article 727 for ITC
Other Compliances	EPA 40 CFR, Part 261 OSHA RoHS-compliant/RoHS 2-compliant REACH-compliant

Overall Shielded

Pair Count	Triad Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
1	-	18	0.015(0.38)	0.045(1.14)	0.26(6.6)	40(55)
-	1	18	0.015(0.38)	0.045(1.14)	0.27(6.9)	50(68)
2	-	18	0.015(0.38)	0.045(1.14)	0.36(9.2)	65(91)
4	-	18	0.015(0.38)	0.050(1.27)	0.43(10.8)	100(148)
8	-	18	0.015(0.38)	0.050(1.27)	0.54(13.8)	170(251)
12	-	18	0.015(0.38)	0.060(1.52)	0.67(17.1)	250(372)
16	-	18	0.015(0.38)	0.060(1.52)	0.75(18.9)	320(470)
20	-	18	0.015(0.38)	0.060(1.52)	0.82(20.9)	385(569)
24	-	18	0.015(0.38)	0.070(1.78)	0.94(23.9)	475(705)
36	-	18	0.015(0.38)	0.070(1.78)	1.07(27.2)	665(988)
1	-	16	0.015(0.38)	0.045(1.14)	0.28(7.2)	50(69)
-	1	16	0.015(0.38)	0.045(1.14)	0.30(7.6)	60(87)
2	-	16	0.015(0.38)	0.050(1.27)	0.41(10.5)	85(123)
4	-	16	0.015(0.38)	0.050(1.27)	0.47(12.1)	135(195)
8	-	16	0.015(0.38)	0.060(1.52)	0.63(16.0)	245(359)
12	-	16	0.015(0.38)	0.060(1.52)	0.76(19.2)	345(508)
16	-	16	0.015(0.38)	0.060(1.52)	0.84(21.3)	440(648)
20	-	16	0.015(0.38)	0.070(1.78)	0.95(24.2)	555(825)
24	-	16	0.015(0.38)	0.070(1.78)	1.06(26.9)	655(973)
36	-	16	0.015(0.38)	0.070(1.78)	1.21(30.7)	930(1,381)

Individually and Overall Shielded

Pair Count	Triad Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
2	-	18	0.015(0.38)	0.045(1.14)	0.39(10.0)	70(102)
-	2	18	0.015(0.38)	0.050(1.27)	0.44(11.3)	95(135)
4	-	18	0.015(0.38)	0.050(1.27)	0.47(11.8)	115(168)
-	4	18	0.015(0.38)	0.050(1.27)	0.51(13.1)	150(218)
8	-	18	0.015(0.38)	0.050(1.27)	0.60(15.2)	200(291)
-	8	18	0.015(0.38)	0.060(1.52)	0.68(17.4)	275(404)
12	-	18	0.015(0.38)	0.060(1.52)	0.74(18.9)	295(433)
-	12	18	0.015(0.38)	0.060(1.52)	0.83(21.0)	390(575)
16	-	18	0.015(0.38)	0.060(1.52)	0.82(20.9)	370(550)
-	16	18	0.015(0.38)	0.070(1.78)	0.95(24.0)	520(771)
20	-	18	0.015(0.38)	0.070(1.78)	0.94(23.8)	475(703)
-	20	18	0.015(0.38)	0.070(1.78)	1.05(26.6)	635(938)
24	-	18	0.015(0.38)	0.070(1.78)	1.04(26.4)	560(828)
-	24	18	0.015(0.38)	0.070(1.78)	1.16(29.5)	745(1,108)
36	-	18	0.015(0.38)	0.070(1.78)	1.19(30.2)	790(1,169)
2	-	16	0.015(0.38)	0.050(1.27)	0.45(11.3)	90(134)
-	2	16	0.015(0.38)	0.050(1.27)	0.49(12.5)	120(172)
4	-	16	0.015(0.38)	0.050(1.27)	0.52(13.1)	150(216)
-	4	16	0.015(0.38)	0.050(1.27)	0.57(14.6)	195(287)
8	-	16	0.015(0.38)	0.060(1.52)	0.69(17.5)	270(401)
-	8	16	0.015(0.38)	0.060(1.52)	0.76(19.4)	365(539)
12	-	16	0.015(0.38)	0.060(1.52)	0.83(21.1)	385(569)
-	12	16	0.015(0.38)	0.070(1.78)	0.95(24.2)	545(808)
16	-	16	0.015(0.38)	0.070(1.78)	0.95(24.1)	515(764)
-	16	16	0.015(0.38)	0.070(1.78)	1.06(26.9)	700(1,037)
20	-	16	0.015(0.38)	0.070(1.78)	1.05(26.7)	625(929)
-	20	16	0.015(0.38)	0.070(1.78)	1.18(29.9)	855(1,267)
24	-	16	0.015(0.38)	0.070(1.78)	1.17(29.7)	740(1,097)
-	24	16	0.015(0.38)	0.080(2.03)	1.33(33.7)	1035(1,538)
36	-	16	0.015(0.38)	0.080(2.03)	1.36(34.5)	1080(1,601)

CERTIFICATIONS

1 triad ITC instrumentation cable 300V

PACKAGING

PVC/PVC Type PLTC/ITC cable for industrial control

Roll

Plastic Reel

Small Wooden Reel

APPLICATION

Factory Automation

Process Instrumentation

Water Treatment Control Systems

CASE

BASF Ludwigshafen Verbund Site

MWRA Deer Island Wastewater Treatment Plant

Siemens Electronic Works Amberg Factory

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

Overall Shielded ITC instrumentation cable 300V

Overall Shield ITC instrumentation cable 300V

GLOBAL CERTIFICATIONS

Overall Foil Shield 300V PLTC ITC instrumentation cable

CUSTOMER PHOTOS

Overall Foil Shield ITC instrumentation cable 300V

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

Overall Foil Shield power limited tray cable 300V

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

Overall Foil Shield multi pair PLTC cable

Aluminum Polyester Foil Shield 300V PLTC ITC instrumentation cable

Aluminum Polyester Foil Shield multi pair PLTC cable

Beldfoil Shield ITC instrumentation cable 300V

Aluminum Polyester Foil Shield PVC/PVC 300V Type PLTC/ITC cable

Aluminum Polyester Foil Shield PLTC instrumentation cable 300V

Beldfoil Shield 300V PLTC ITC instrumentation cable

Beldfoil Shield power limited tray cable 300V

100% Overall Shield ITC instrumentation cable 300V

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

Shielded Overall PVC/PVC 300V Type PLTC/ITC cable

FAQ

What are the advantages of 18 AWG overall shielded cable?

It is lightweight, flexible, and cost-effective. The 18 AWG size allows more conductors in the same space, making it ideal for high-density installations.

Can this cable be used outdoors?

This cable is designed for indoor industrial use. For outdoor applications, consult the manufacturer for sunlight-resistant or outdoor-rated options.

How does the overall shield terminate?

The overall shield can be terminated using a grounding lug or by folding the drain wire back and connecting to the equipment ground terminal.

Is this cable suitable for fieldbus or communication protocols?

Yes, overall shielded 18 AWG cable is commonly used for RS-485, Modbus, and other fieldbus communications in industrial automation applications.
