Dongguan Greater Wire & Cable Co., Ltd. is one of the leading manufacturers and suppliers of industrial acwu90 power wire 600v in China, also supports customized service. Please rest assured to wholesale durable industrial acwu90 power wire 600v made in China here from our factory. If you have any enquiry about free sample, please feel free to email us.

ACWU90 aluminium cable PVC jacketed

PRODUCT REAL SHOT

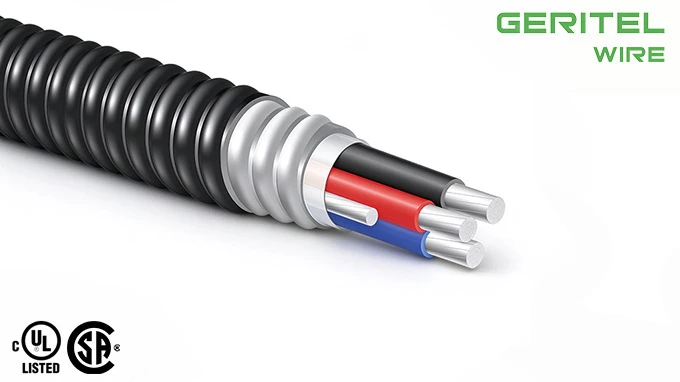

ACWU90 aluminium cable sunlight resistant

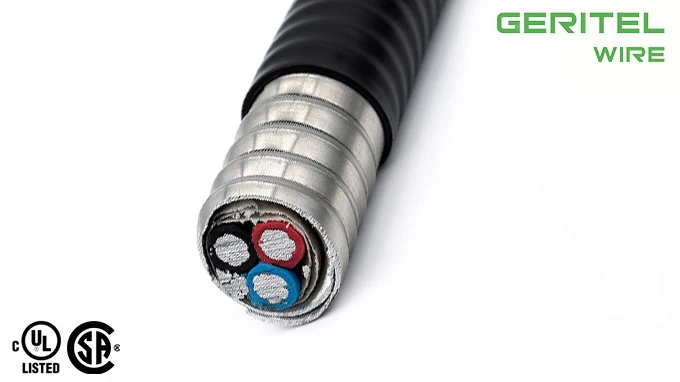

ACWU90 cable for commercial building feeders

Robust fixed feeders for production infrastructure

Manufacturing plants do not route every electrical feeder through the same environment. Some runs pass near equipment, others follow cable trays, and several may encounter moisture or outdoor exposure. Industrial ACWU90 Power Wire provides an armoured 600V aluminum conductor option for fixed power distribution when the installation method is approved. Its XLPE insulated cores, interlocked aluminum armour and PVC jacket are distinct from flexible machine cords. GERITEL WIRE works with plant engineers and industrial cable distributors to clarify route conditions, procurement schedules and inspection expectations. Send us the equipment distribution drawing and required certification details so the proposed product can be reviewed with the correct scope.

PRODUCT SPECIFICATIONS

ACWU90 cable for commercial building power distribution

Scope

This specification covers three or four compact-stranded 8000 series aluminum alloy conductors with cross-linked polyethylene (XLPE) insulation plus one bare aluminum alloy bonding conductor in multi-conductor cables. Conductor assembly is wrapped and enclosed in interlocked aluminum armour with flame retardant PVC jacket.Type ACWU90 cable is conforming to CSA C22.2 No. 51 standard .cUL file No.E544860.

Application

Type ACWU90 cables are primarily intended for exposed and concealed wiring in dry or wet locations and where exposed to the weather. For use in ventilated, non-ventilated, and ladder type cable trays in wet and dry locations; direct earth burial; service entrance above or below ground.

SPECIFICATIONS
Conductor	8000 series compact-stranded aluminum alloy
Insulation	XLPE. Thickness per CSA C22.2 No. 51
Color Coding	For 3 conductors construction: Black, red and blue plus bare bonding conductor.Or black, red and white plus bare bonding conductor. For 4 conductors construction: Black, red, blue and white plus bare bonding conductor.
Bonding Conductor	One bare 8000 series compact-stranded aluminum alloy.
Cabling	Three or four insulated conductors plus one bare bonding conductor are assembled without fillers and wrapped by a PP tape.
Armour	Aluminum interlocked armour(AIA)
Jacket	Flame retardant PVC jacket
Rated Voltage	600V
Rated Temperature	90°C
Low Temperatue Classification	-40°C
Flame Test Rating	FT4

Type ACWU90 Cable Data

(AA 8000 series alloy conductor)

SIZE (AWG/kcmil)	Strands No./O.D. (mm)	XLPE Insulation Average Thickness (mm)	PVC Jacket Average Thickness (mm)	Approx. O.D. (mm)	Max.DC Resistance (20°C,Ω/km)	Approx. Weight (kg/km)
3 x 6+8	7/1.60 7/1.28	0.76	1.14	21.44	2.211/3.515	469.49
3 x 4+6	7/2.02 7/1.60	1.02	1.14	24.84	1.390/2.211	630.58
3 x 2+6	7/2.58 7/1.60	1.02	1.14	30.68	0.8745/2.211	805.92
3 x 1+4	18/1.82 7/2.02	1.27	1.14	33.61	0.6934/1.390	980.49
3 x 1/0+4	18/2.02 7/2.02	1.27	1.14	35.51	0.5498/1.390	1112.91
3 x 2/0+4	18/2.32 7/2.02	1.27	1.14	37.24	0.4361/1.390	1267.50
3 x 3/0+4	18/2.58 7/2.02	1.27	1.14	39.32	0.3459/1.390	1459.66
3 x 4/0+4	18/2.83 7/2.02	1.27	1.14	41.86	0.2743/1.390	1699.24
3 x 250+2	36/2.22 7/2.58	1.52	1.14	45.65	0.2322/0.8745	2008.08
3 x 300+2	36/2.42 7/2.58	1.52	1.14	47.92	0.1935/0.8745	2268.74
3 x 350+2	36/2.58 7/2.58	1.52	1.14	51.11	0.1659/0.8745	2623.71
3 x 400+2	36/2.74 7/2.58	1.52	1.14	53.29	0.1450/0.8745	2894.90
3 x 500+2	36/3.10 18/1.82	1.52	1.14	57.01	0.1161/0.6934	3420.76
3 x 600+2	58/2.65 18/1.82	1.52	1.50	61.40	0.09673/0.6934	4038.83
3 x 750+1/0	58/2.98 18/2.02	1.52	1.50	66.21	0.07738/0.5498	4823.16
4 x 6+8	7/1.60 7/1.28	0.76	1.14	23.29	2.211/3.515	549.68
4 x 4+6	7/2.02 7/1.60	1.02	1.14	27.15	1.390/2.211	749.09
4 x 2+6	7/2.58 7/1.60	1.02	1.14	33.48	0.8745/2.211	970.96
4 x 1+4	18/1.82 7/2.02	1.27	1.14	36.78	0.6934/1.390	1186.84
4 x 1/0+4	18/2.02 7/2.02	1.27	1.14	39.05	0.5498/1.390	1358.96
4 x 2/0+4	18/2.32 7/2.02	1.27	1.14	41.10	0.4361/1.390	1561.06
4 x 3/0+4	18/2.58 7/2.02	1.27	1.14	43.59	0.3459/1.390	1812.41
4 x 4/0+4	18/2.83 7/2.02	1.27	1.14	46.61	0.2743/1.390	2125.94
4 x 250+2	36/2.22 7/2.58	1.52	1.14	51.96	0.2322/0.8745	2615.19
4 x 300+2	36/2.42 7/2.58	1.52	1.14	54.66	0.1935/0.8745	2963.18
4 x 350+2	36/2.58 7/2.58	1.52	1.14	57.15	0.1659/0.8745	3303.61
4 x 400+2	36/2.74 7/2.58	1.52	1.14	60.50	0.1450/0.8745	3763.51
4 x 500+2	36/3.10 18/1.82	1.52	1.50	64.79	0.1161/0.6934	4451.79
4 x 600+2	58/2.65 18/1.82	1.52	1.50	69.11	0.09673/0.6934	5133.01
4 x 750+1/0	58/2.98 18/2.02	1.52	1.50	74.65	0.07738/0.5498	6151.02
