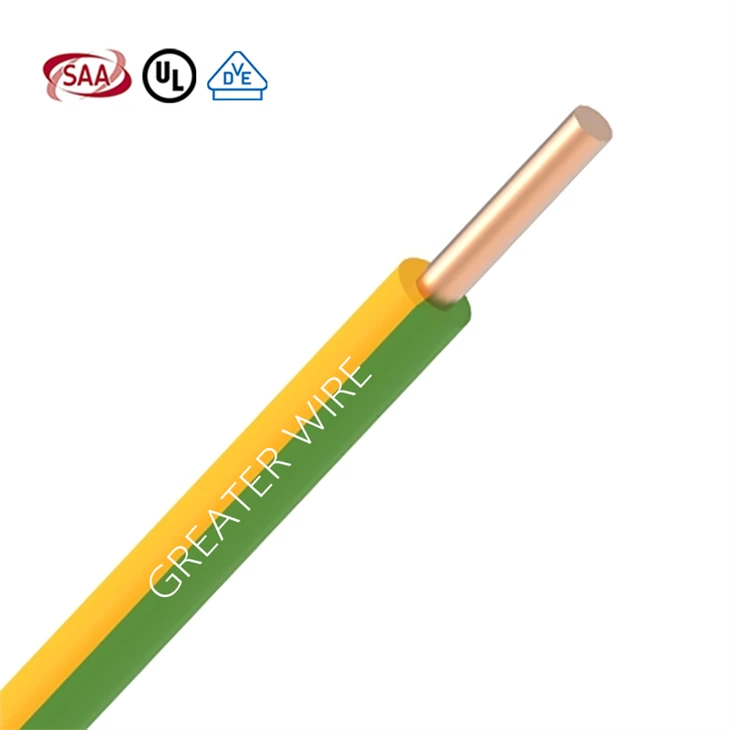

The 1.5mm Solid Electrical Ground Cable for Earthing is a single solid copper conductor with durable PVC insulation, designed to provide reliable grounding and earthing in residential, commercial, and light industrial installations. It ensures electrical safety, fault current dissipation, and system stability, making it ideal for applications such as main switchboards, small distribution boards, lighting circuits, and low-power machinery. Compact and cost-effective, this cable is suitable for standard indoor fixed wiring where flexibility is not required.
Application
The 1.5mm solid electrical ground cable is widely used for safe grounding across residential, commercial, and light industrial installations, including main switchboards, small distribution boards, lighting circuits, office equipment, and low-power machinery, providing reliable fault current dissipation and maintaining overall system stability.
Feature
- Standards: IEC/EN 60332-1-2
- Conductor: Plain annealed copper conductor
- Insulation: PVC
- Normal Operating Temperature: +70°c
- Minimum Operating Temperature: -15℃
- Voltage: 450/750V
Certification
Greater Wire's 1.5mm solid ground cable complies with multiple international and regional standards, ensuring safety, reliability, and regulatory compliance in residential, commercial, and light industrial installations. Designed and tested according to relevant IEC and EN standards, the cable's flame-retardant properties are verified, ensuring it can prevent the spread of fire under standard testing conditions. Furthermore, the product has received SAA certification for the Australian market, demonstrating compliance with Australian safety and quality regulations. These certifications ensure the cable has undergone rigorous testing for electrical safety, insulation integrity, mechanical strength, and long-term durability, providing customers and installers with confidence in its performance.
Package
Production Line
The production of 1.5mm solid electrical ground cable involves several key steps on a specialized cable manufacturing line. First, high-purity copper rods are drawn into solid conductors of precise diameter. The conductors then pass through an insulation extrusion process, where durable PVC is applied evenly around the copper. After cooling, the cables undergo cutting, marking, and quality inspection, including checks for conductor continuity, insulation thickness, and surface defects. This streamlined production line ensures consistent electrical performance, safety, and long-term reliability of every cable batch.
customer
Partner
FAQ
Q: What is the 1.5mm solid electrical ground cable used for?
Q: What are the conductor and insulation specifications?
Q: Does Greater Wire provide customization or bulk supply?
Hot Tags: 1.5mm soild electrical ground cable for earthing, China 1.5mm soild electrical ground cable for earthing manufacturers, suppliers, factory, HO7V-U
|
Conductor
|
Cable
|
Min.
installed
bending
radius
mm
|
|||||
|
Nominal
C.S.A.
mm²
|
Number and
diameter
of wires
No/mm
|
Nominal
diameter
mm
|
Nominal
insulation
thickness
mm
|
Overall diameter
|
Approx.
mass
kg/100 m
|
||
|
Minimum
mm
|
Maximum
mm
|
||||||
| 1.0* | 1/1.13 | 1.13 | 0.8 | 2.6 | 2.8 | 1.7 | 10 |
| 1.5 | 7/0.50 | 1.5 | 0.8 | 3.0 | 3.2 | 2.2 | 15 |
| 2.5* | 1/1.78 | 1.78 | 0.8 | 3.3 | 3.5 | 3.3 | 15 |
| 2.5 | 7/0.67 | 2.0 | 0.8 | 3.5 | 3.7 | 3.4 | 15 |
| 4 | 7/0.85 | 2.6 | 1.0 | 4.5 | 4.6 | 5.4 | 20 |
| 6 | 7/1.04 | 3.1 | 1.0 | 5.1 | 5.2 | 7.6 | 20 |
| 10 | 7/1.35 | 4.1 | 1.0 | 6.0 | 6.1 | 12 | 25 |
| 16 | 7/1.70 | 5.1 | 1.0 | 7.1 | 7.2 | 18 | 30 |
| 25 | 19/1.35 | 6.8 | 1.2 | 9.1 | 9.3 | 27 | 35 |
| 35 | 19/1.53 | 7.7 | 1.2 | 10.0 | 10.1 | 36 | 40 |
| 50 | 19/1.78 | 8.9 | 1.4 | 11.6 | 11.9 | 51 | 50 |
| 70 | 19/2.14 | 10.7 | 1.4 | 13.4 | 13.5 | 70 | 55 |
| 95 | 19/2.45 | 12.5 | 1.6 | 15.6 | 15.9 | 98 | 65 |
| 120 | 37/2.03 | 14.2 | 1.6 | 17.1 | 17.4 | 120 | 70 |
| 150 | 37/2.25 | 15.8 | 1.8 | 19.3 | 19.5 | 148 | 80 |
| 185 | 37/2.52 | 17.6 | 2.0 | 21.2 | 21.7 | 185 | 90 |
|
Conductor
nominal
C.S.A.
mm²
|
Current rating (a)
|
Electrical characteristics
|
||||
|
Three phase
|
Single phase
|
Maximum D.C.
resistance
at 20°C
Ω/km
|
Reactance per core
(Trefoil, Touching)
Ω/km
|
|||
|
In conduit
in air
A
|
Underground
in duct
A
|
In conduit
in air
A
|
Underground
in duct
A
|
|||
| 1.0* | 11 | 16 | 13 | 18 | 18.1 | 0.119 |
| 1.5 | 14 | 20 | 16 | 24 | 13.6 | 0.111 |
| 2.5* | 20 | 28 | 22 | 33 | 7.41 | 0.102 |
| 2.5 | 20 | 28 | 22 | 33 | 7.41 | 0.102 |
| 4 | 26 | 37 | 30 | 42 | 4.61 | 0.102 |
| 6 | 34 | 46 | 38 | 53 | 3.08 | 0.0967 |
| 10 | 47 | 61 | 53 | 71 | 1.83 | 0.0906 |
| 16 | 62 | 80 | 71 | 91 | 1.15 | 0.0861 |
| 25 | 87 | 105 | 97 | 120 | 0.727 | 0.0853 |
| 35 | 100 | 125 | 115 | 145 | 0.524 | 0.0826 |
| 50 | 125 | 150 | 140 | 170 | 0.387 | 0.0797 |
| 70 | 155 | 185 | 175 | 210 | 0.268 | 0.0770 |
| 95 | 185 | 225 | 210 | 260 | 0.193 | 0.0766 |
| 120 | 220 | 260 | 250 | 295 | 0.153 | 0.0743 |
| 150 | 250 | 290 | 280 | 335 | 0.124 | 0.0745 |
| 185 | 285 | 335 | 325 | 380 | 0.0991 | 0.0744 |
