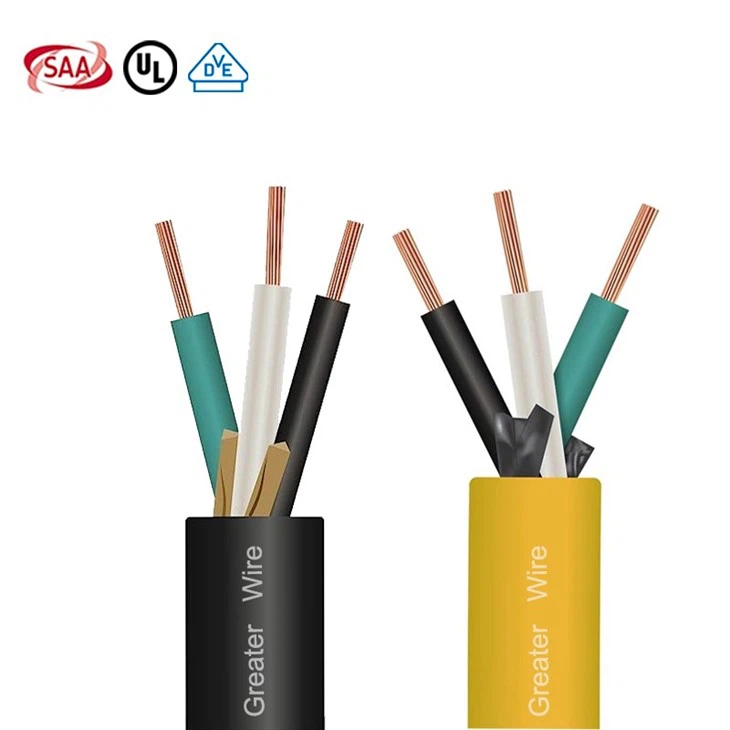

ST Cable

Conductor： Flexible soft copper conductor, Class K stranded
Insulation：Flame Retardant Polyvinyl chloride (PVC 60° C)
Jacket: Flame Retardant Polyvinyl chloride (PVC 60° C)
Operating Temperature: 60℃
Operating Voltage: 600 V

Application

ST cables are mainly used for connecting equipment and portable tools, especially in factories, on-site work environments and display cabinets. The cable has high durability and flexibility, can withstand frequent use in harsh environments, and is suitable for open wiring installation. ST cables are widely used in equipment connections that require convenient expansion, especially in portable power extension cables with terminal connectors so that the equipment can operate stably and safely.

Feature

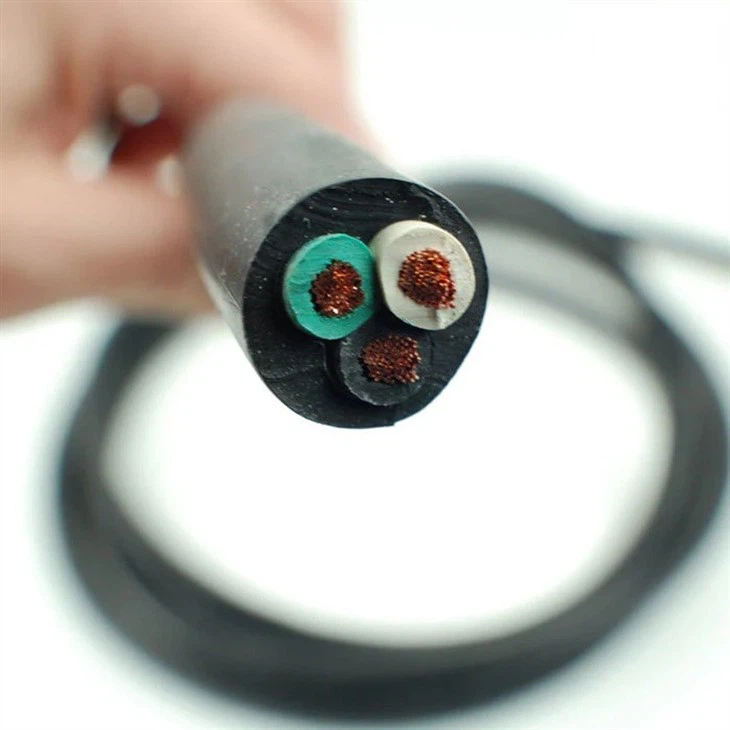

ST cable is a multi-conductor cable with two, three or four flexible soft copper conductors, and each conductor is insulated with polyvinyl chloride (PVC) material, which has good electrical insulation performance. The conductors are finely twisted to effectively reduce electromagnetic interference and improve the quality of signal transmission. The outer covering layer of the cable is made of polyvinyl chloride (PVC) material, which provides an additional layer of protection and enhances the cable's wear resistance, corrosion resistance and aging resistance.

Certification

ST Cable has passed UL and CE certification standards to ensure that it has the necessary safety, performance and reliability in specific application scenarios. Certified cables ensure compliance with industry requirements, such as durability, fire resistance, anti-interference and other characteristics. ST Cable can not only meet strict quality and safety requirements, but also enhance its competitiveness in the market and gain customer trust. It is the key guarantee for reliable operation in modern industrial applications, building facilities, and high-end communications.

Package

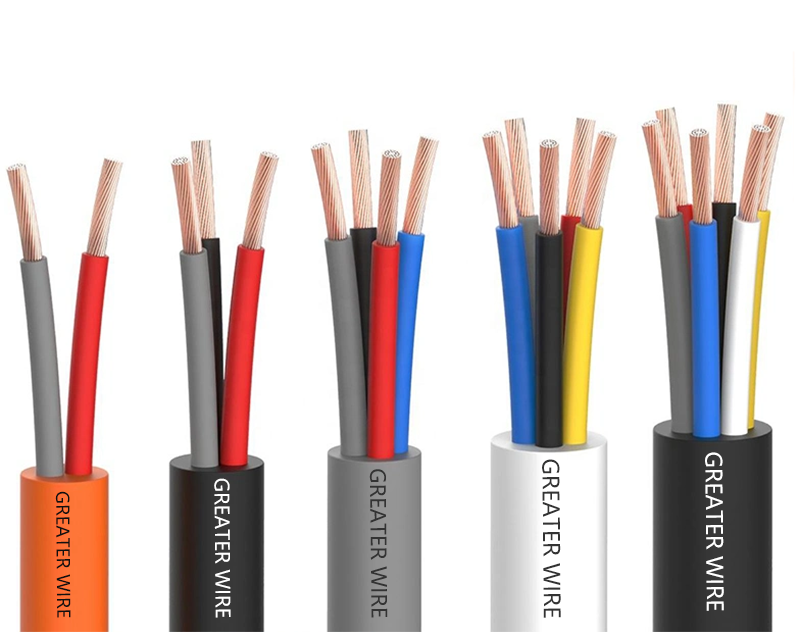

ST cord package

Factory

Greater Wire has over 100 production lines for wire and cable equipment, and cable manufacturing adopts fully automated production. The precision of automated production equipment can reach 0.002mm, ensuring that all products undergo 100% testing and digital labeling. The company has a super large warehouse with a daily output of 3 million meters, strong scalability, timely delivery, and guarantees your business. We have a professional sales team. Our power cables are supplied to many countries and regions around the world, such as Lebanon, Iraq, Myanmar, the Philippines, Germany, the United States, Sweden, South Africa, and other major countries and regions.

Case

ST cable supplier cases

Partner

Greater Wire Partner

FAQ

Q: How can we guarantee quality?

A: We can provide samples and support inspection. In addition, we have a 1-year warranty.

Q: How is the quality of these products?

A: Our products have passed many certifications, such as UL, SAA, TUV, CE, CB, and others. Over 20 years of experience in this area, Providing wires and cables to more than 90 countries around the world.

Hot Tags: st cable, China st cable manufacturers, suppliers, factory, UL BPS Certificated THHN THWN Copper Building Wire, 0 6 1KV Single Core Flexible Cable, xlpe armoured cable, ul thhn wire, solar cable, tuv solar cable

ST Cable specification

SIZE	CONDUCTORS No.	COPPER CONDUCTOR				INSULATION THICKNESS	JACKET THICKNESS	OVERALL DIAMETER	APPROX. TOTAL WEIGHT	DC RESISTANCE AT 20°C 1
AWG		STRANDS	STRAND DIAMETER (mm	SECTION (mm2 )	DIAMETER (mm)	(mm)	(mm)	(mm)	(kg/km)	(ohm/km)
14	2	41	10.0	4.10	78	45	80	508	141	2.63
	3							535	164
	4							579	195
12	2	65	10.0	6.50	99	45	95	582	190	1.66
	3							611	222
	4							661	265
10	2	104	10.0	10.4	126	45	95	636	240	1.04
	3							670	286
	4							727	344
8	2	168	10.0	16.80	144	60	110	764	359	0.642
	3						110	805	433
	4						125	906	550
6	2	266	10.0	26.60	162	60	125	831	465	0.406
	3						125	875	572
	4						140	980	727
4	2	420	10.0	42.00	265	60	140	1066	731	0.257
	3						140	1127	892
	4						155	1258	1125
2	2	665	10.0	66.50	338	60	155	1244	1036	0.162
	3						155	1315	1277
	4						170	1463	1605

Notes: 1. DC Resistance calculated based on a 17.241 ohm-mm2/km copper resistivity.

2. Ampacities based on 60°C conductor temperature, and Section 400 of NEC (NTC 2050) and 30°C ambient temperature.

3. Two current carrying conductors.

4. Three current carrying conductors.

5. Values herein indicated are approximated and are subject to normal manufacturing tolerances.
