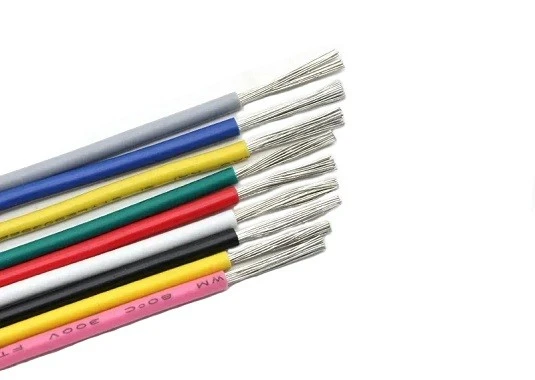

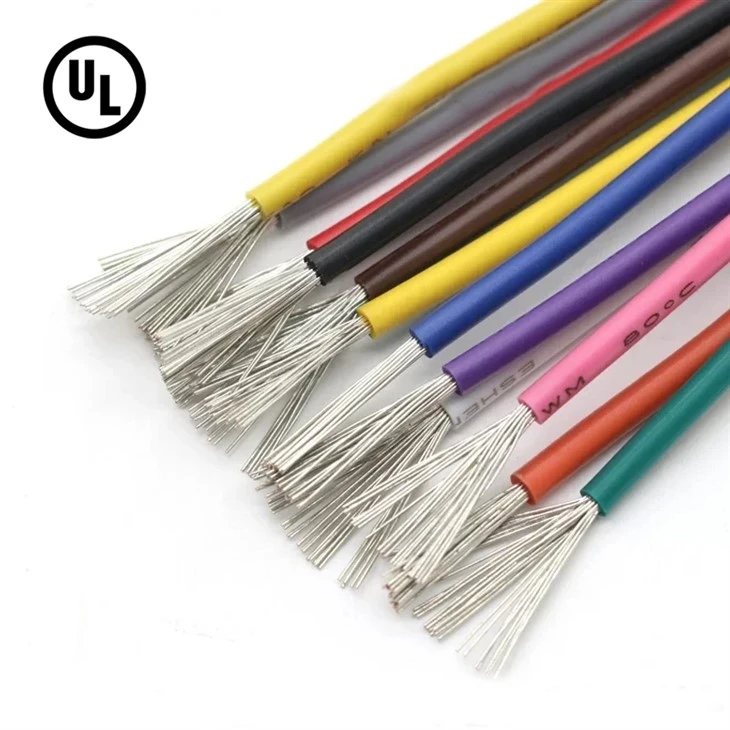

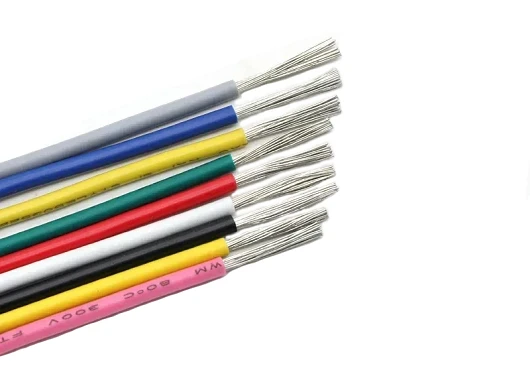

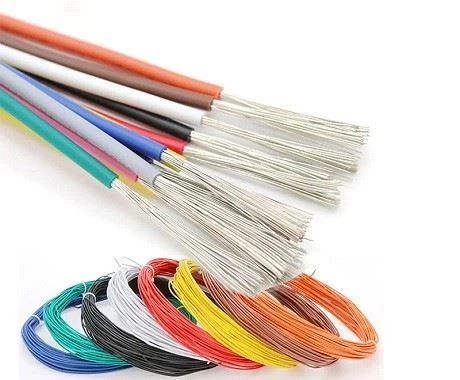

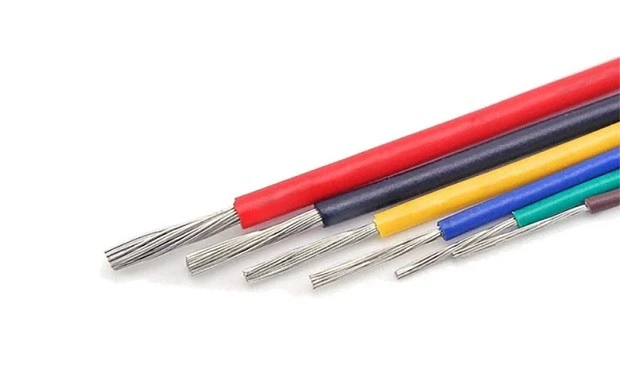

UL3239 Wire 24AWG Silicone Rubber insulated Wire
UL3239 24AWG Silicone Rubber Insulated Wire is a high-voltage, fine-stranded cable designed for demanding electrical environments. Its multi-stranded copper conductor ensures excellent conductivity and flexibility, while the premium silicone insulation provides superior heat resistance, durability, and dielectric strength. Rated for high-voltage applications, this wire maintains stable performance in temperatures ranging from -60°C to +200°C and resists mechanical stress, chemical exposure, and flame. Ideal for use in laser machines, medical devices, high-voltage test equipment, neon lighting, and precision electronics, the UL3239 wire combines reliability, safety, and compliance with UL standards, making it a trusted choice for both industrial and commercial applications.
Application
Our latest projects
UL3239 24AWG Silicone Rubber Insulated Wire is widely used in applications where high-voltage insulation, flexibility, and reliability are critical. It is ideal for high-voltage electronic equipment, laser systems, medical devices, neon signs, and laboratory testing instruments, where stable performance under extreme temperatures and continuous operation is required. Additionally, it is commonly applied in industrial automation, HV LED drivers, electric vehicle charging modules, and precision control circuits, providing safe and durable wiring solutions in both commercial and industrial settings
Laser equipment
Suitable for powering and controlling high-voltage components in industrial or medical laser systems.
Neon signs and lighting systems
Ensures durability and insulation stability for continuous operation under high-voltage lighting.
Electric vehicles and charging systems
Provides safe high-voltage insulation for components in EV battery packs or charging equipment.
Certification
UL3239 24AWG silicone rubber insulated wire has been rigorously tested and certified to UL's high-voltage wire standards. It meets requirements for dielectric strength, insulation thickness, flame retardancy, and high-temperature resistance, ensuring safe operation in harsh environments. The silicone insulation has passed the UL VW-1 vertical flame test, demonstrating flame retardancy. Both the conductor and insulation materials are RoHS-compliant, ensuring they contain no hazardous substances such as lead or mercury. These certifications not only demonstrate safety and reliability, but also make it suitable for global markets requiring compliance with international safety and environmental standards.
Package
Our Package
The cables are neatly wound onto paper, wooden or plastic drums, with appropriate specifications and support strength selected according to customer needs.
Provide outer box packaging, pallet loading and reinforcement measures according to the logistics requirements of different destinations to ensure the safe arrival of cables
The cables will be neatly coiled and placed in sturdy cardboard or wooden boxes, supplemented with moisture-proof and shock-proof materials to ensure that they remain intact and safe during packing and transportation.
Production Line
Our production lines are equipped with advanced automated equipment, covering the entire process from high-purity copper wire drawing, precision stranding, silicone or PVC insulation extrusion, to cabling, sheathing, testing and packaging. Each step is completed under strict quality control to ensure that the cables meet international standards in terms of conductivity, flexibility, temperature resistance and safety, providing customers with reliable, stable and high-performance cable products.
Technology and Experience
With years of experience in cable R&D and production, we provide professional technical support and solutions to help customers optimize cabling and product performance.
Global Service Network
Our products are exported to numerous countries and regions, and we have established a comprehensive pre-sales, in-sales, and after-sales service system to ensure that customers in different markets receive efficient and reliable support.
50,000M²
Factory
Area
30+Years
Production
Experience
50+Servings
Product
Certifications
80+Countries
Export
Experience
Customer
At Dongguan Greater Wire & Cable Co., Ltd., our customers' satisfaction is at the heart of everything we do. Clients consistently praise our stable product quality, flexible customization, and responsive service, noting that our cables perform reliably even in demanding environments such as industrial automation, robotics, medical devices, and LED lighting systems. Many long-term partners highlight how our technical support team proactively provides guidance, helping them optimize wiring layouts and reduce project risk. Feedback from international clients also emphasizes our timely delivery and professional communication, which ensures smooth collaboration across different regions and time zones. This strong record of positive customer experiences reflects our commitment to reliability, quality, and building lasting partnerships with clients worldwide.
User Evaluation
Michael Thompson
USA
Sophie Dubois
France
Hiroshi Tanaka
Japan
Hot Tags: ul3239 wire 24awg silicone rubber insulated wire, China ul3239 wire 24awg silicone rubber insulated wire manufacturers, suppliers, factory
| Conductor | Insulation | Maximum Resistance at 20°C | |||
| AWG | Construction | Diamater | |||
| No/mm | mm | Thickness mm |
Diamater (mm) |
Ω/km | |
| 24 | 11/0.16 | 0.61 | 0.76 | 2.20 | 94.20 |
| 22 | 17/0.16 | 0.76 | 0.76 | 2.35 | 59.40 |
| 20 | 26/0.16 | 0.94 | 0.76 | 2.55 | 36.70 |
| 18 | 41/0.16 | 1.18 | 0.76 | 2.80 | 23.20 |
| 16 | 26/0.254 | 1.49 | 0.76 | 3.10 | 14.60 |
| 14 | 41/0.254 | 1.87 | 0.76 | 3.50 | 8.96 |
