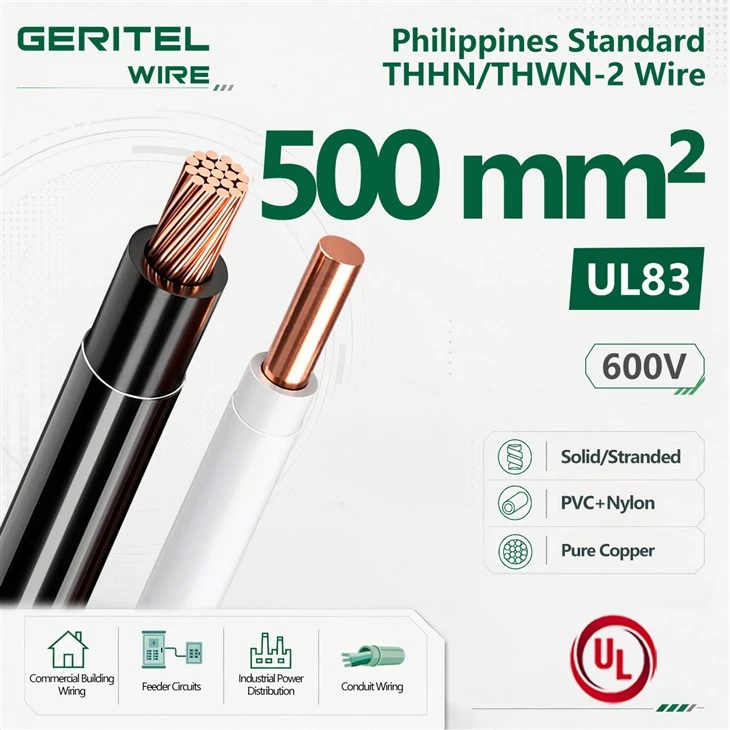

500 MM THHN/THWN-2 Copper Wire for Large-Scale Power Distribution
At the top of the range, 500 mm² THHN/THWN-2 copper building wire delivers maximum capacity for the largest power distribution applications. Constructed with a pure copper stranded conductor, PVC insulation with a nylon jacket, and certified to UL83. Rated 600V. The 500 mm² cross-section provides exceptional ampacity for utility-scale loads, large transformer connections, and primary feeders in heavy industrial installations. The nylon jacket protects against abrasion and moisture. This wire is specified for main service entrances to large industrial plants, utility substation feeders, and connections to large switchgear in high-demand facilities.
PRODUCT SPECIFICATIONS
|
Size of Conductor |
No. & Nominal Diameter of Wire | Wall Thickness |
Approxi mate Overall Diameter |
Minimum Insulation Resistance |
Ampacity | Cable Nominal Weight | ||||||
| MM | Approxi mate AWG |
MM | MM | MM | M-Ohm-Km | 70℃ Wet |
90℃ Dry |
KG/KM | ||||
| Solid | PVC | NYLON | THWN | THHN | ||||||||
| 1.6 | 14 | 1x1.60 | 0.4 | 0.10 | 2.60 | 130 | 35 | 35 | 22.62 | |||
| 2.0 | 12 | 1x2.0 | 0.4 | 0.10 | 3.00 | 110 | 40 | 40 | 33.57 | |||
| 2.6 | 10 | 1x2.6 | 0.5 | 0.10 | 3.80 | 120 | 55 | 55 | 55.78 | |||
| 3.2 | 8 | 1x3.2 | 0.8 | 0.13 | 5.06 | 120 | 75 | 75 | 88.33 | |||
| Stranded | ||||||||||||
| 2.0 | 14/7 | 7x0.60 | 0.4 | 0.10 | 2.80 | 130 | 30 | 35 | 23.51 | |||
| 3.5 | 12/7 | 7x0.80 | 0.4 | 0.10 | 3.40 | 110 | 35 | 40 | 39.12 | |||
| 5.5 | 10/7 | 7x1.00 | 0.5 | 0.10 | 4.20 | 120 | 50 | 55 | 60.56 | |||
| 8.0 | 8/7 | 7x1.20 | 0.8 | 0.13 | 5.46 | 120 | 65 | 75 | 91.95 | |||
| 14 | 6/7 | 7x1.60 | 0.8 | 0.13 | 6.66 | 100 | 95 | 105 | 151.77 | |||
| 22 | 4/7 | 7x2.0 | 1.0 | 0.15 | 8.30 | 100 | 130 | 140 | 236.65 | |||
| 30 | 2/7 | 7x2.30 | 1.0 | 0.15 | 9.20 | 100 | 160 | 170 | 306.50 | |||
| 38 | 1-19 | 19x1.60 | 1.3 | 0.18 | 10.96 | 100 | 185 | 195 | 409.82 | |||
| 50 | 1/0-19 | 19x1.80 | 1.3 | 0.18 | 11.96 | 100 | 220 | 235 | 509.05 | |||
| 60 | 2/0-19 | 19x2.00 | 1.3 | 0.18 | 12.96 | 80 | 250 | 260 | 618.96 | |||
| 80 | 3/0-19 | 19x2.30 | 1.3 | 0.18 | 14.46 | 80 | 300 | 320 | 804.44 | |||
| 100 | 4/0-19 | 19x2.60 | 1.3 | 0.18 | 15.96 | 80 | 355 | 370 | 1013.94 | |||
| 125 | 250MCM | 37x2.10 | 1.6 | 0.18 | 18.26 | 80 | 400 | 420 | 1286.37 | |||
| 150 | 300MCM | 37x2.30 | 1.6 | 0.20 | 19.70 | 80 | 440 | 475 | 1542.02 | |||
| 350MCM | 37x2.47 | 1.6 | 0.20 | 20.90 | 80 | 505 | 570 | 1783.07 | ||||
| 200 | 400MCM | 37x2.60 | 1.6 | 0.20 | 21.80 | 60 | 540 | 570 | 1946.72 | |||
| 500MCM | 37x2.95 | 1.6 | 0.20 | 24.25 | 60 | 620 | 655 | 2486.02 | ||||
| 250 | 500MCM | 61x2.30 | 1.6 | 0.20 | 24.30 | 60 | 620 | 655 | 2437.34 | |||
| 600MCM | 61x2.52 | 1.8 | 0.23 | 26.76 | 60 | 690 | 715 | 2995.93 | ||||
| 325 | 650MCM | 61x2.60 | 1.8 | 0.23 | 27.46 | 60 | 720 | 770 | 3191.58 | |||
| 750MCM | 61x2.82 | 1.8 | 0.23 | 29.36 | 60 | 785 | 845 | 3719.63 | ||||
| 400 | 800MCM | 61x2.90 | 1.8 | 0.23 | 30.16 | 60 | 810 | 875 | 3927.55 | |||
| 500 | 1000MCM | 61x3.20 | 1.8 | 0.23 | 32.86 | 60 | 930 | 995 | 4750.91 | |||
