1.5mm2 solar cable

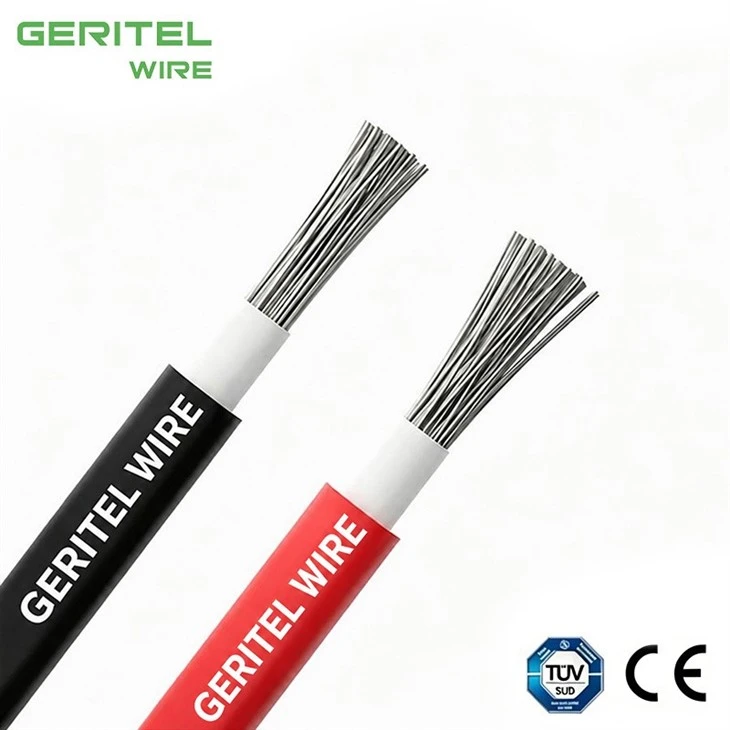

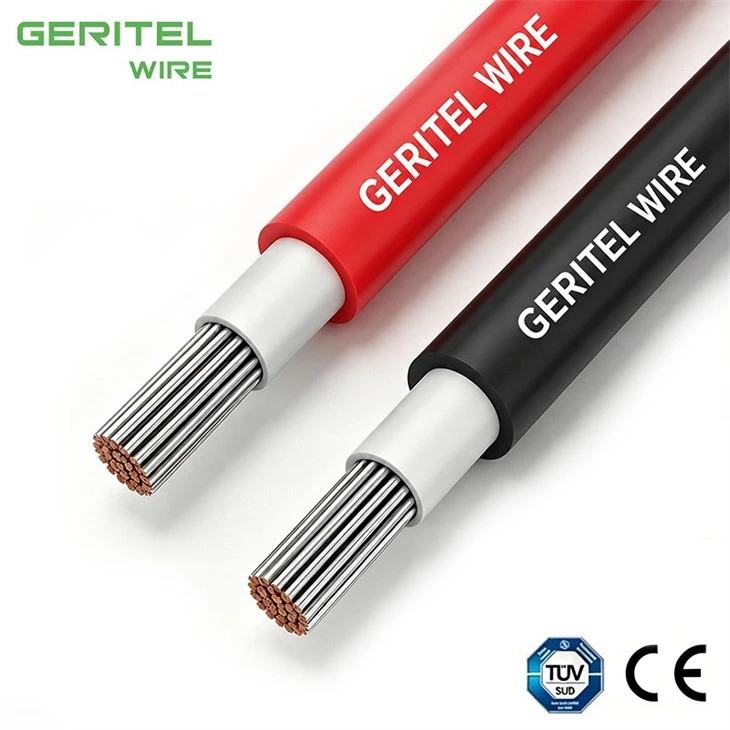

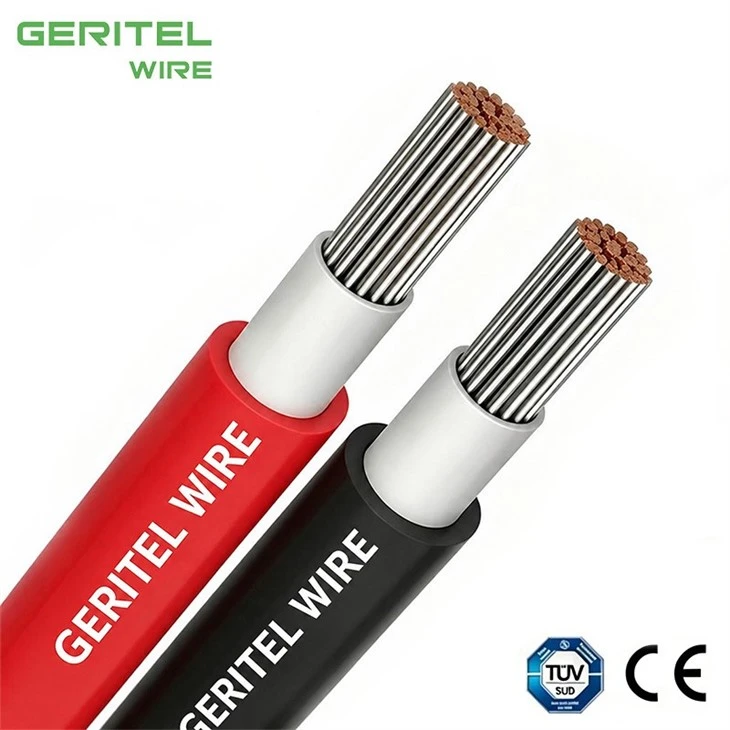

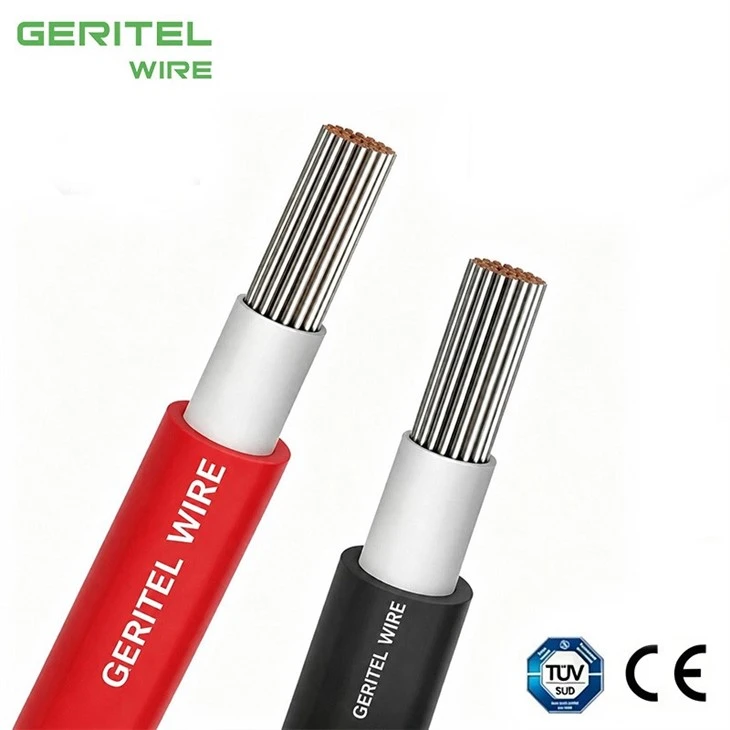

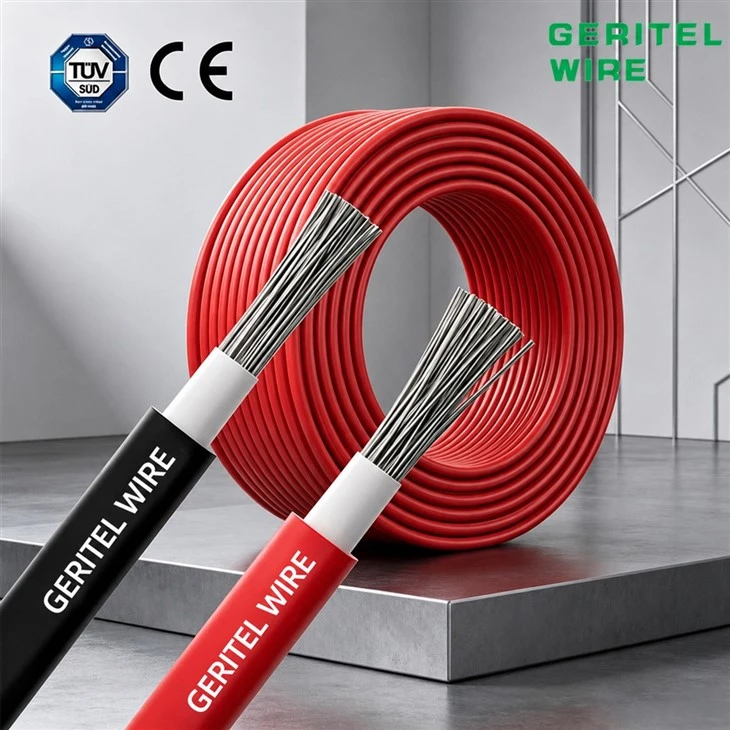

PRODUCT REAL SHOT

1.5mm2 solar DC cable

TUV Certified PV Cable 1.5mm² for Reliable Rooftop PV Connections

Designed for compact module and string wiring, GERITEL WIRE offers this 1.5mm² single-core option for residential rooftops and panel interconnections. The 1.5mm² solar panel cable targets reliable DC transmission where installers need flexibility and long outdoor service. GERITEL WIRE uses flexible Class 5 tinned copper with halogen-free cross-linked insulation and an outdoor-duty cross-linked sheath. The cable is designed for 1.5kV DC photovoltaic circuits with 90°C thermal performance plus UV, ozone and water resistance. Buyers searching for tinned copper PV wire can match this size to project current, route length and voltage-drop requirements. GERITEL WIRE focuses on consistent construction, practical packaging and export-oriented technical support.

PRODUCT SPECIFICATIONS

1.5mm2 tinned copper solar cable

Application

The GERITEL WIRE PV H1Z2Z2-K cable, which is TUV certifiedaccording to EN 50618 and AENOR certified according to IEC62930, it is suitable for both fixed and mobile solar installations(solar farms, rooftop solar installations and floating plants).It is a highly flexible cable compatible with all major connectorsand specially designed for the connection of photovoltaic panels.

This versatile single-conductor cable is designed to meet the varying needs of the solar industry.

Suitable for wet, damp and humid locations.

Solar PV installations string cable.

SPECIFICATIONS
Conductor	Electrolytic annealed tinned copper, class 5 (flexible) according toIEC 60228 and EN 60228.
Insulation	Halogen free cross-linked rubber according to table B1 in Annex Bof EN 50618 and IEC 62930.
Outer sheath	Halogen free cross-linked flexible rubber according to table B1 inAnnex B of EN 50618 and IEC 62930. Red or black colour.
Electrical performance	Low voltage: 1,5 (1,8) kV DC. 1,0/1,0 kV AC.
Thermal performance	Maximum conductor temperature:90°C (120°C during 20.000 h).Maximum short-circuit temperature: 250°C (max. 5 s).Minimum service temperature: -40°C (fixed and protected installations).
Fire performance	Flame non-propagation according to EN 60332-1-2 / IEC 60332-1-2. Fire non-propagation according to EN 50399.Reaction to fire CPR: Caa-slb, d2, al according to EN 50575.Low smoke halogen free according to EN 60754-1/IEC 60754-1.Low corrosive gases emission according to EN 60754-2 / IEC60754-2. Low smoke emission according to EN 61034 /IEC 61034: Light transmittance > 60%.
Mechanical performance	Minimum bending radius: 4x cable diameter (cable diameter ≤ 8 mm) 5x cable diameter (8 < cable diameter s 12 mm) 6x cable diameter (cable diameter >12 mm). Impact resistance: AG2 Medium severity.
Environmental performance	Chemical & Oil resistance: Excellent. Grease & mineral oils resistance: Excellent. Ozone resistant according to EN 50618. UV Resistant according to EN 50618 and IEC 62930. Water resistance: AD7+ Immersion. AD8 Submersion.
Installation conditions	Open Air. Buried. In conduit.

Conductor	Conductor Stranding	Insulation Thickness	Jacket Thickness	Nominal O.D.	Approx Net Weight	Allowable Ampacities(1) @30℃ Ambient
Nominal Area(mm2)	Number of Strands	mils	mils	Inch	lbs/1000ft	75℃	90℃
1X1.5	1.57	0.7	0.8	4.7	38	860	0.86	13.7
1X2.5	2.04	0.7	0.8	5.2	45	690	0.69	8.21
1X4	2.6	0.7	0.8	5.6	60	580	0.58	5.09
1X6	3.16	0.7	0.8	6.3	90	500	0.50	3.39
1X10	4.5	0.7	0.8	7.6	131	420	0.42	1.95
1X16	5.7	0.7	0.9	9.0	187	340	0.34	1.24
1X25	7.2	0.9	1.0	11.2	267	340	0.34	0.795
1X35	8.5	0.9	1.1	12.7	368	290	0.29	0.565
1X50	9.4	1.0	1.2	14.5	560	270	0.27	0.393
1X70	11.1	1.1	1.2	16.5	756	250	0.25	0.277
1X95	13.1	1.1	1.3	18.7	1036	220	0.22	0.210
1X120	14.8	1.2	1.3	20.4	1309	210	0.21	0.164
1X150	16.5	1.4	1.4	22.7	1636	210	0.21	0.132
1X185	18.3	1.6	1.6	25.2	2000	200	0.20	0.108
1X240	21.0	1.7	1.7	28.5	2607	200	0.20	0.0817
2X1.5	1.57	0.7	0.8	4.8*10.5	78	860	0.86	13.7
2X2.5	2.04	0.7	0.8	5.2*11.8	92	690	0.69	8.21
2X4	2.6	0.7	0.8	5.6*12.8	122	580	0.58	5.09
2X6	3.16	0.7	0.8	6.3*13.7	182	500	0.50	3.39
2X10	4.5	0.7	0.8	8.0*16.8	264	420	0.42	1.95
2X16	5.7	0.7	0.9	9.0*19.8	376	340	0.34	1.24

CERTIFICATIONS

1.5mm2 flexible PV cable

PACKAGING

1,Roll

Small Wooden Reel

Large Wooden Reel

APPLICATION

Residential Rooftop Solar System

Solar Carport + EV Charging

Utility-Scale Solar Far

CASE

Mauritius Henrietta Solar Power Plant Wire Export

Somalia Mogadishu Solar PV System Project

Tunisia Hammamet New City Industrial Park Solar PV Project

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

grid scale solar battery system solar cable

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

grid scale solar battery system PV cable

H1Z2Z2-K cable for grid scale solar battery system

TÜV photovoltaic cable for grid scale solar battery system

PV array cable for grid scale solar battery system

large scale PV storage plant solar cable

GLOBAL CERTIFICATIONS

H1Z2Z2-K cable for large scale PV storage plant

CUSTOMER PHOTOS

TÜV photovoltaic cable for large scale PV storage plant

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

What is a TÜV Solar Cable?

A TÜV Solar Cable is a photovoltaic DC cable whose construction has been tested/certified to an applicable PV cable standard such as EN 50618 or IEC 62930. The product shown here uses flexible tinned-copper conductors with halogen-free cross-linked insulation and sheath for solar-system wiring. For project orders, GERITEL WIRE can support technical clarification, cable marking, reel or drum packaging and export documentation.

What is H1Z2Z2-K cable used for?

H1Z2Z2-K solar cable is primarily used on the DC side of photovoltaic systems, including module-to-module connections, string wiring, combiner-box circuits and panel-to-inverter routes. It is designed for permanent outdoor exposure and demanding PV environments. GERITEL WIRE can review the buyer's voltage, route length, current and installation environment before recommending a suitable cable size.

Is H1Z2Z2-K the same thing as PV cable?

H1Z2Z2-K is a specific European-style designation used for photovoltaic cable under EN 50618. 'PV cable' is a broader commercial term, so buyers should check the exact standard, voltage rating and construction rather than relying only on the generic name. For distributors and EPC buyers, GERITEL WIRE can provide specification confirmation, project packaging and documentation support. The relevant buyer keyword is H1Z2Z2-K PV cable.

Why do solar panels need special PV cable?

Solar arrays expose wiring to DC voltage, sunlight, ozone, rain, humidity and large temperature swings. A purpose-designed solar PV cable uses materials and tests intended for those conditions, unlike many general building wires that may not be suitable for continuous outdoor PV service. GERITEL WIRE focuses on matching the ordered construction to the applicable certificate and can provide supporting technical documents for project review.
