Name: China Packaging Machine High Temperature Wire For Heated Tooling Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 313928668

Description

Technical Parameters

Certification

high temperature resistant silicone wire

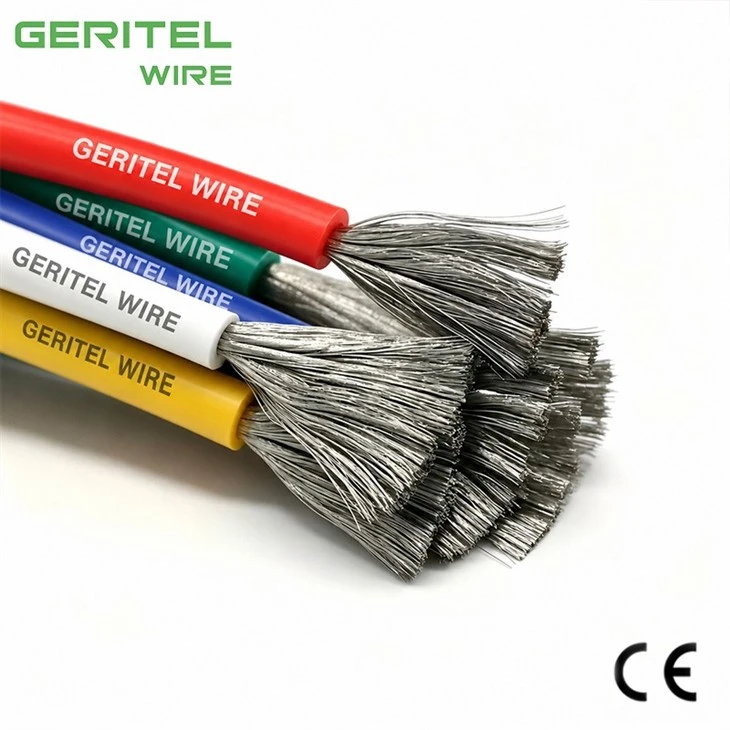

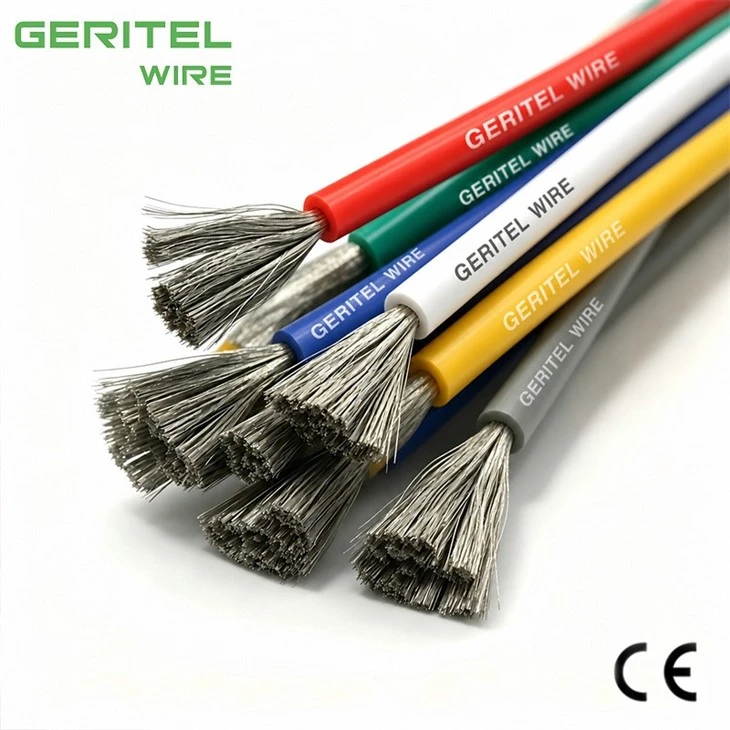

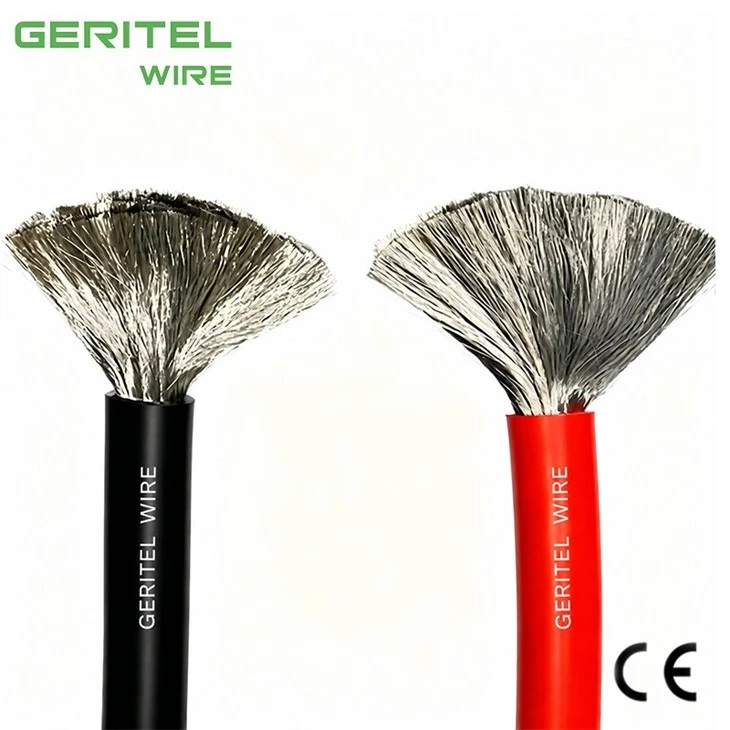

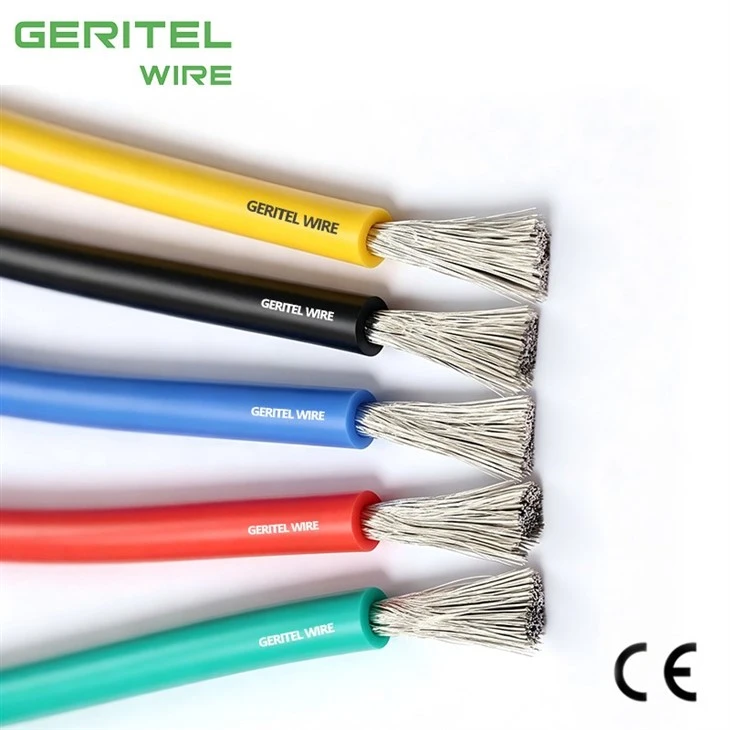

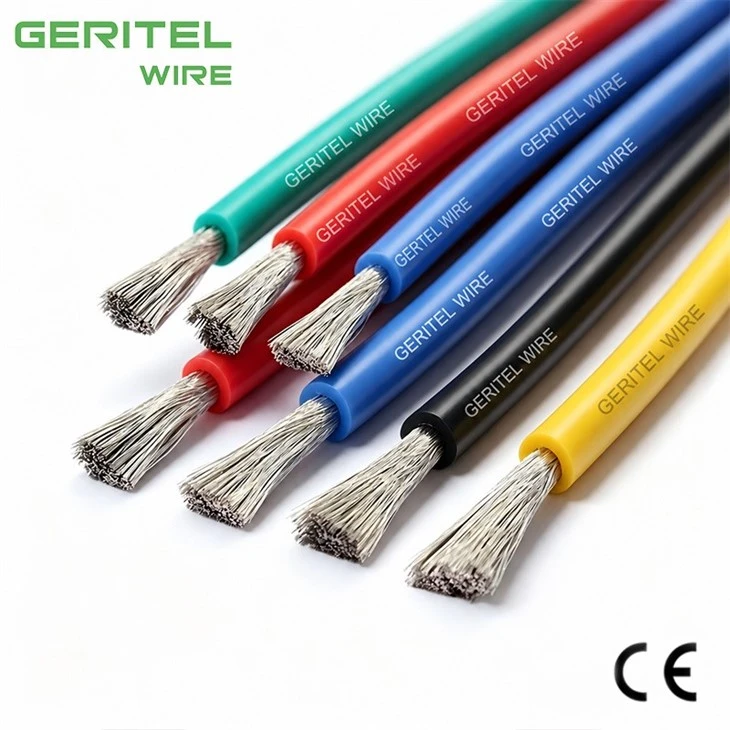

PRODUCT REAL SHOT

flexible copper silicone insulation cable

annealed copper silicone cable

Heat Sealer Silicone Cable for Protected Machine Circuits

Packaging equipment heater wire serves sealing bars, temperature sensors, controllers and terminal points near heated tooling. A sealing jaw connection cable often experiences machine vibration and maintenance movement, so fixed SIAF routing must be supported and kept outside true continuous-motion zones. For thermoforming machine wiring, silicone single cores can be used inside protected cabinets and hot assemblies with suitable mechanical guarding. GERITEL WIRE supplies machine builders and retrofit distributors with consistent conductor options. Review duty cycle, motion profile, sharp edges, heater power, terminal temperature and control-panel standards; choose a purpose-designed flex cable wherever repeated bending cannot be eliminated.

PRODUCT SPECIFICATIONS

tinned conductor heat resistant wire

Applications

Designed for use in environments where sustained heat resistance is required, SIA and SIAF cables have heat resistant properties up to 200°C and can also be employed at temperatures as low as -60°C. These cables are low smoke zero halogen and are suitable for power plants, a wide range of industrial applications in processing, packaging, refrigeration,foundaries, air craft construction and ship building.

SPECIFICATIONS
Voltage Rating Uo/U	SIA:300/500V SIAF:0.25mm² to 6mm² 300/500V ; 10mm² and above: 0.6/1kV
Temperature Rating	Fixed:-60°C to +200°C
Minimum Bending Radius	Fixed: 4 x overall diameter
Conductor	Class 1 solid copper (plain or tinned) conductor Class 5 flexible copper (plain or tinned) conductor
Insulation	Silicone rubber
Sheath Colour	Black,Blue,Brown,Red ,White,Grey,Pink,Yellow,Green/Yellow,Orange,Violet
Standards	EN 50525-2-41, IEC/EN 60228

DIMENSIONS

Solid Core Silicone Rubber Insulated Cable (SIA)

NO.OF CORES

	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL THICKNESS OF INSULATION mm²	NOMINAL OVERALL DIAMETER mm²	NOMINAL WEIGHT kg/km
	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL THICKNESS OF INSULATION mm²	NOMINAL OVERALL DIAMETER mm²	NOMINAL WEIGHT kg/km
1	0.5	0.6	2.0	10
1	0.75	0.6	2.2	12
1	1	0.6	2.3	15
1	1.5	0.6	2.6	20
1	2.5	0.7	3.2	31
1	4	0.8	3.9	48
1	6	0.8	4.4	67
1	10	1	5.6	108

Flexible Core Silicone Rubber Insulated Cable (SIAF)

NO.OF CORES

	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL THICKNESS OF INSULATION mm²	NOMINAL OVERALL DIAMETER mm²	NOMINAL WEIGHT kg/km
	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL THICKNESS OF INSULATION mm²	NOMINAL OVERALL DIAMETER mm²	NOMINAL WEIGHT kg/km
1	0.25	0.6	1.8	7
1	0.35	0.6	1.9	8
1	0.5	0.6	2.1	10
1	0.75	0.6	2.3	13
1	1	0.6	2.5	15
1	1.5	0.6	2.8	21
1	2.5	0.7	3.5	34
1	4	0.8	4.1	49
1	6	0.8	4.7	68
1	10	1	6.1	110
1	16	1.2	7.5	168
1	25	1.4	9.1	254
1	35	1.4	10.3	347
1	50	1.6	12	490
1	70	1.8	13.7	686
1	95	1.8	15.6	888
1	120	1.8	17.4	1149
1	150	2	19.3	1411
1	185	2.2	21.4	1722
1	240	2.4	24.3	2284
1	300	2.6	26.9	2895

CONDUCTORS

Class 5 Flexible Copper Conductors for Single Core and Multi-Core Cables

NOMINAL CROSS SECTIONAL AREA mm²	MAXIMUM RESISTANCE OF CONDUCTOR AT 20°C ohms/km
NOMINAL CROSS SECTIONAL AREA mm²	Circular, Annealed Copper Conductors, Metal-Coated Wires
0.5	36.7
0.75	24.8
1	18.2
1.5	12.2
2.5	7.56
4	4.7
6	3.11
10	1.84

Class 5 Flexible Copper Conductors for Single Core and Multi-Core Cables (SIAF)

NOMINAL CROSS SECTIONAL AREA mm²	MAXIMUM DIAMETER OF WIRES IN CONDUCTOR mm	MAXIMUM RESISTANCE OF CONDUCTOR AT 20°C ohms/km
NOMINAL CROSS SECTIONAL AREA mm²	MAXIMUM DIAMETER OF WIRES IN CONDUCTOR mm	Metal-Coated Wires
0.25	0.21	86
0.35	0.21	55.5
0.5	0.21	40.1
0.75	0.21	26.7
1	0.21	20
1.5	0.26	13.7
2.5	0.26	8.21
4	0.31	5.09
6	0.31	3.39
10	0.41	1.95
16	0.41	1.24
25	0.41	0.795
35	0.41	0.565
50	0.41	0.393
70	0.51	0.277
95	0.51	0.21
120	0.51	0.164
150	0.51	0.132
185	0.51	0.108
240	0.51	0.0817
300	0.51	0.0654

CURRENT CARRYING CAPACITY

Solid Core Silicone Rubber Insulated Cable (SIA)

NOMINAL CROSSS ECTIONAL AREA mm²	CURRENT RATING IN AIR Amps
NOMINAL CROSSS ECTIONAL AREA mm²	at 30°C	at 60°C	at 90°C	at 120°C	at 150°C
0.5	24	21	17	14	9
0.75	30	26	22	17	11
1	36	31	26	20	13
1.5	45	39	33	26	17
2.5	61	53	45	55	23
4	81	71	60	47	31
6	105	92	77	60	39
10	146	128	107	84	55

Flexible Core Silicone Rubber Insulated Cable (SIAF)

NOMINAL CROSSS ECTIONAL AREA mm²	CURRENT RATING IN AIR Amps
NOMINAL CROSSS ECTIONAL AREA mm²	at 30°C	at 60°C	at 90°C	at 120°C	at 150°C	at 170°C
0.25	15	13	11	9	6	3
0.35	19	17	14	11	7	4
0.5	23	20	17	13	9	5
0.75	30	26	22	17	11	6
1	35	31	26	20	13	7
1.5	44	38	32	25	17	8
2.5	61	53	45	35	23	12
4	82	71	60	47	31	16
6	104	91	77	60	39	20
10	148	129	108	85	56	28
16	197	173	145	114	75	58
25	263	230	193	151	99	51
35	327	286	240	188	124	63
50	413	362	304	238	157	80
70	531	465	391	306	201	103
95	623	545	458	359	236	121
120	738	645	543	425	280	143
150	850	744	626	491	323	166
185	969	848	714	560	369	190
240	1191	1043	879	689	454	234
300	1339	1173	988	776	512	264

CERTIFICATIONS

annealed copper silicone cable

PACKAGING

Roll

Plastic Reel

Small Wooden Reel

APPLICATION

Industrial Machinery & Automation

Marine & Shipbuilding

fixed wiring high temperature silicone wire

Refrigeration & HVAC Equipment

CASE

Bosch Industry 4.0 Smart Factory

Liebherr Professional Refrigeration Systems Upgrade

Mitsui E&S Marine Propulsion System

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

high temperature oxidation resistant conductor wire

silicone rubber insulated wire for rail vehicle heater cabinets

flexible silicone wire for shipboard heaters

GLOBAL CERTIFICATIONS

Class 1 solid conductor silicone cable

CUSTOMER PHOTOS

Class 1 solid conductor SIAF cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

Class 1 solid conductor heat resistant wire

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

Class 1 solid conductor high temperature cable

Class 1 solid conductor silicone equipment wire

Class 1 solid conductor single core silicone wire

Class 1 solid conductor silicone appliance wire

crosslinked silicone rubber insulated silicone wire

crosslinked silicone rubber insulated silicone equipment wire

crosslinked silicone rubber insulated high temperature cable

crosslinked silicone rubber insulated heat resistant wire

crosslinked silicone rubber insulated SIAF cable

crosslinked silicone rubber insulated silicone cable

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

crosslinked silicone rubber insulated single core silicone wire

FAQ

Is H05S-U the solid version of silicone appliance wire?

H05S-U solid silicone wire describes a solid-conductor silicone single core used for protected fixed connections. It is useful where a formed wire path should remain stable after assembly. GERITEL WIRE can coordinate colour, marking, packaging and repeat-order traceability for engineering and purchasing teams once the technical specification is locked. A practical next step is: Share the terminal type, bend conditions and installation photos to reduce selection risk.

Does this product have an outer sheath?

A standard single core silicone insulated wire normally has one copper conductor covered directly by silicone insulation and no separate outer sheath. If abrasion, impact or grouping protection is needed, the equipment design must add conduit, sleeving or another suitable barrier. For engineering and purchasing teams, GERITEL WIRE helps compare plain or tinned copper, terminal compatibility and any required mechanical protection. Ask for a sample so stripping, crimping and heat-cycle trials can be completed.

Why do many silicone wires use tinned copper?

GERITEL WIRE can support prototype trials and production lots with consistent identification, giving engineering and purchasing teams a clearer approval path. Tinned copper silicone cable is popular because the strand surface can suit established crimping, soldering and storage processes. Tinning does not automatically make the wire waterproof, corrosion-proof or suitable for every chemical environment. Approve a sealed sample and document revision before mass production.

Why does silicone electrical wire feel unusually soft?

Soft silicone electrical wire remains pliable across a broad temperature range and often uses fine copper stranding. That softness helps routing, but it also means the insulation needs protection from cuts, sharp edges and uncontrolled rubbing. Request the exact datasheet and test evidence before approving the material. GERITEL WIRE offers technical clarification and practical sourcing support for engineering and purchasing teams, including document and sample coordination.
