Conductor: Finely stranded bare flexible copper conductor.
Insulation: EPR rubber
Sheath: Black \ Blue heavy duty EPR.

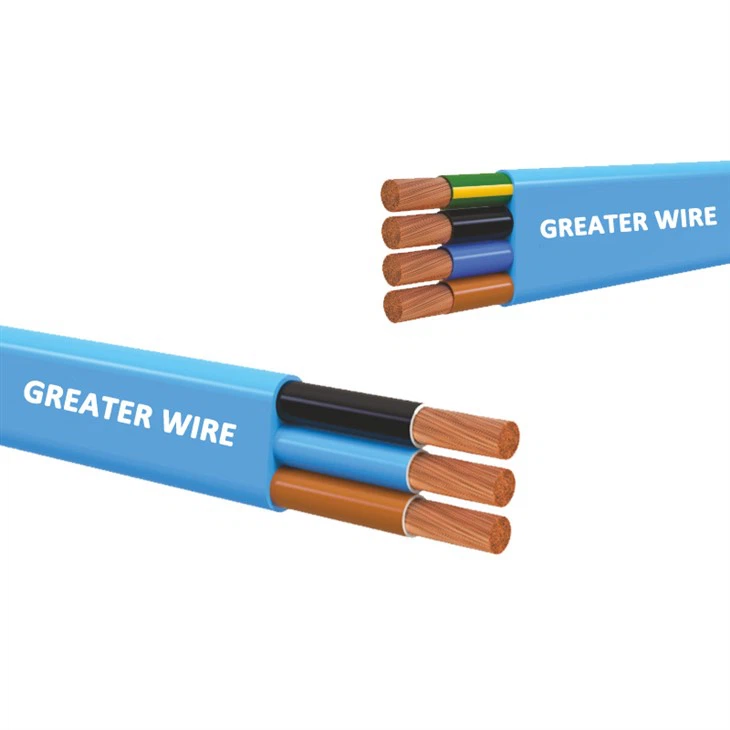

Core Colours: 3core - Red, Yellow, Blue OR Brown, Blue, Black
4core: Red, Yellow, Blue, Green OR Brown, Blue, Black, Yellow with Green line OR Green with Yellow line
Application
Rubber 3 & 4 core flat cables EPDM well pump wire is a high-performance cable specially developed for deep well submersible pump systems. It is suitable for long-term underwater use in wells up to 500 meters deep. The EPR heavy-duty sheath is particularly suitable for applications that require high mechanical strength and long-term immersion, effectively preventing the impact of water pressure, electric shock and mechanical damage on the cable, and extending the service life of the product. The cable adopts a flat structure design, which makes it difficult to tangle or knot during deep well hanging installation, greatly reducing the construction difficulty and maintenance cost. Compared with traditional round cables, flat cables are easier to arrange in scenarios with limited well or pipeline space, suitable for laying multiple cables side by side, while improving heat dissipation efficiency and current balanced transmission capacity. Its three-core structure (red, yellow, blue, or brown, blue, black) and four-core structure (plus green or green-yellow ground wire) are suitable for a variety of submersible pump models and wiring requirements. It is widely used in agricultural irrigation systems, industrial pumping projects, urban and rural drinking water projects, geothermal pump systems, and other fields that require extremely high cable stability and durability.
Feature
Rubber 3 & 4 core flat cables are designed for deep well submersible pump systems and are suitable for long-term underwater operation at depths up to 500 meters. The cable uses EPR (ethylene propylene rubber) insulation material, which has excellent electrical insulation performance and heat, wear, and moisture resistance. It can maintain stable power supply even in underground environments with high temperature, high humidity, or frequent load changes. The outer sheath is made of heavy black or blue EPR rubber, which has outstanding resistance to aging, mechanical impact, and oil corrosion, providing strong protection for the cable and ensuring long-term stable operation.
Certification
Rubber submersible cables meet the highest safety and performance standards, ensuring reliable operation underwater and in harsh environments. These cables meet a variety of international certifications, including IEC 60227, BS 6500 and DIN VDE 0281, guaranteeing they meet stringent electrical, mechanical and environmental durability requirements.
Package
Production Line
Dongguan Greater Wire & Cable Co., Ltd. was established in 1995, It is a professional wire and cable manufacturer. Our company has an independent production plant, covering more than 50,000 square meters. Our company has advanced production equipment and production technology, complete testing equipment, and strong product technology strength. After years of hard work and the support of clients from all over the World, our company has developed rapidly and won a high honor and share in overseas markets. The company has passed the ISO9001 quality management system certification, National high-tech enterprise certification, national specialization, and special new enterprise certification. The product has passed CCC, RoHS, CE, CB, SAA, TUV, VDE, UL, CUL, FCC, SGS, and other quality system certifications, and obtained a number of patent certificates, with independent brand trademarks.
customer
Partner
FAQ
Q: Are you a manufacturer or trading company?
Q: What's your Minimum Order Quantity?
Hot Tags: Rubber 3 & 4 Core Flat Cables EPDM Well Pump Wire, China Rubber 3 & 4 Core Flat Cables EPDM Well Pump Wire manufacturers, suppliers, factory, SPT 1 SPT 2 Wire, 110 elastomer cables, rubber welding cable, HO7V-R, Solar Cable 1500V H1Z2Z2 K TUV UL EN 50618 Solar PV Cable, orange circular cable
EPDM Rubber 3 Core Flat Cable For Submersible Pumps (1100 Volts)
| Conductor | Rubber Insulation | Rubber Sheath |
ConductorResistanceat 20°C(max) ohms/km |
Current Rating at 40℃ Amps. | ||||
| Nominal Area in Sq.mm. |
Nos. & Dia of wire Nos./mm. |
Nominal Thickness (in mm) |
Nominal Core Dia (in mm) |
Nominal Thickness (in mm) |
Approx. Overall Dimensions (in mm) | |||
| W | H | |||||||
| 1.50 | 22/0.30 | 0.80 | 3.25 | 1.15 | 12.80 | 6.20 | 12.10 | 23 |
| 2.50 | 36/0.30 | 0.90 | 3.80 | 1.15 | 14.60 | 6.40 | 7.41 | 30 |
| 4.00 | 56/0.30 | 1.00 | 4.50 | 1.15 | 16.80 | 7.40 | 4.95 | 34 |
| 6.00 | 84/0.30 | 1.00 | 5.25 | 1.15 | 18.70 | 8.00 | 3.30 | 43 |
| 10.00 | 140/0.30 | 1.00 | 6.50 | 1.40 | 23.70 | 9.90 | 1.91 | 61 |
| 16.00 | 224/0.30 | 1.00 | 8.00 | 1.40 | 28.00 | 11.80 | 1.21 | 81 |
| 25.00 | 350/0.30 | 1.20 | 10.10 | 2.00 | 35.50 | 14.70 | 0.780 | 108 |
| 35.00 | 490/0.30 | 1.20 | 11.30 | 2.00 | 39.50 | 16.80 | 0.554 | 135 |
| 50.00 | 703/0.30 | 1.40 | 13.30 | 2.20 | 45.50 | 18.30 | 0.386 | 170 |
| 70.00 | 988/0.30 | 1.40 | 15.30 | 2.20 | 51.00 | 20.00 | 0.272 | 220 |
| 95.00 | 1349/0.30 | 1.60 | 18.00 | 2.40 | 60.00 | 23.50 | 0.206 | 265 |
| 120.00 | 608/0.50 | 1.80 | 19.80 | 2.80 | 65.00 | 25.00 | 0.161 | 306 |
| 150.00 | 760/0.50 | 2.20 | 22.00 | 4.00 | 76.10 | 30.70 | 0.129 | 365 |
EPDM Rubber 4 Core Flat Cable For Submersible Pumps (1100 Volts)
| Conductor | Rubber Insulation | Rubber Sheath |
ConductorResistanceat 20°C(max) ohms/km |
Current Rating at 40℃ Amps. | ||||
| Nominal Area in Sq.mm. |
Nos. & Dia of wire Nos./mm. |
Nominal Thickness (in mm) |
Nominal Core Dia (in mm) |
Nominal Thickness (in mm) |
Approx. Overall Dimensions (in mm) | |||
| W | H | |||||||
| 1.50 | 22/0.30 | 0.80 | 3.25 | 1.30 | 15.80 | 6.20 | 12.10 | 23 |
| 2.50 | 36/0.30 | 0.90 | 3.80 | 1.30 | 18.00 | 6.40 | 7.41 | 30 |
| 4.00 | 56/0.30 | 1.00 | 4.50 | 1.45 | 21.00 | 7.40 | 4.95 | 34 |
| 6.00 | 84/0.30 | 1.00 | 5.25 | 1.50 | 24.50 | 8.00 | 3.30 | 43 |
| 10.00 | 140/0.30 | 1.00 | 6.50 | 1.80 | 29.70 | 9.90 | 1.91 | 61 |
| 16.00 | 224/0.30 | 1.00 | 8.00 | 1.95 | 36.00 | 11.80 | 1.21 | 81 |
| 25.00 | 350/0.30 | 1.20 | 10.10 | 2.00 | 45.10 | 14.70 | 0.780 | 108 |
| 35.00 | 490/0.30 | 1.20 | 11.30 | 2.00 | 50.10 | 16.80 | 0.554 | 135 |
| 50.00 | 703/0.30 | 1.40 | 13.30 | 2.20 | 58.10 | 18.30 | 0.386 | 170 |
| 70.00 | 988/0.30 | 1.40 | 15.30 | 2.20 | 66.50 | 20.00 | 0.272 | 220 |
| 95.00 | 1349/0.30 | 1.60 | 18.00 | 2.40 | 77.30 | 23.50 | 0.206 | 265 |
| 120.00 | 608/0.50 | 1.80 | 19.80 | 3.50 | 87.00 | 27.40 | 0.161 | 306 |
