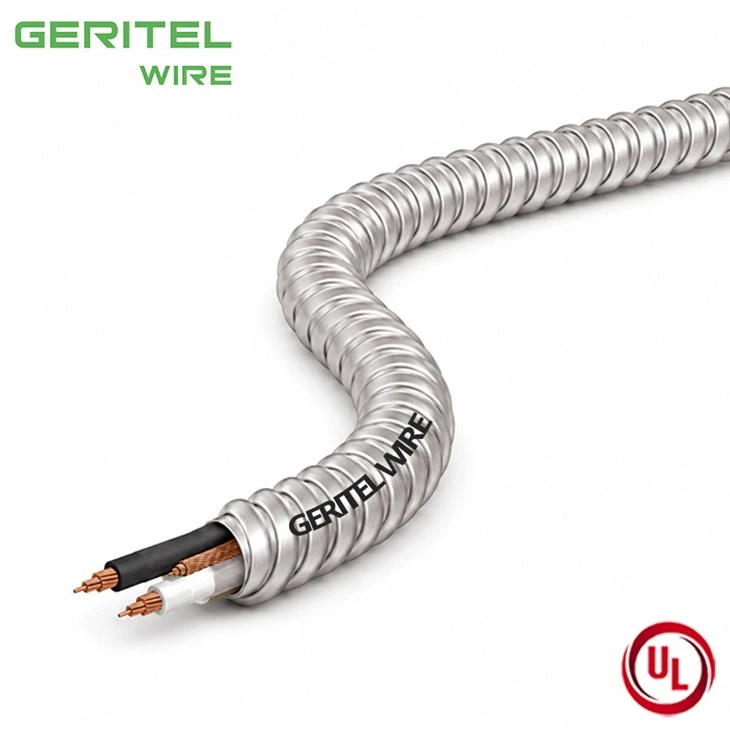

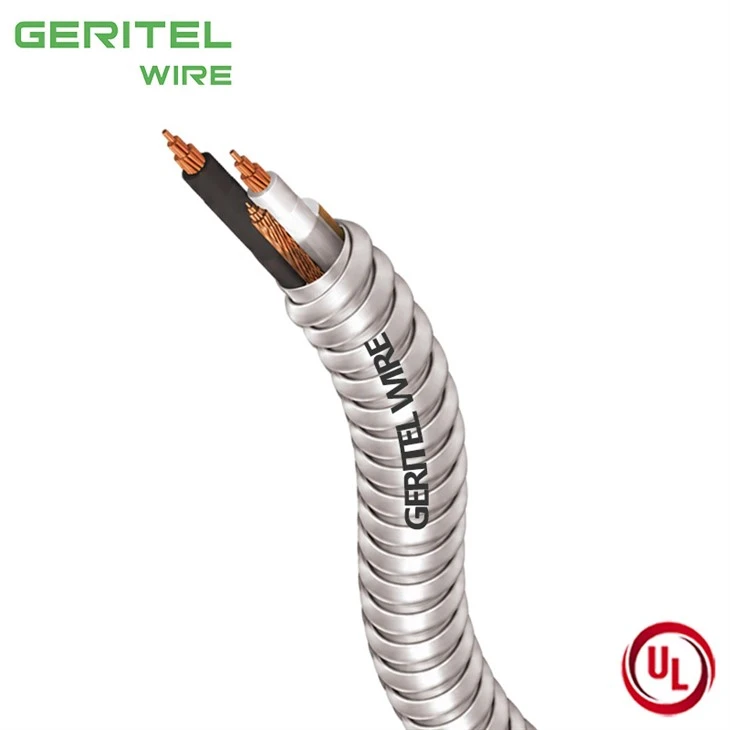

PRODUCT REAL SHOT
500kcmil 600V Interlocked Aluminum MC Cable:Heavy-Duty Power Delivery for Large-Scale Indoor Installations
This 500kcmil 600V metal-clad cable is constructed with interlocked aluminum armor, a separator tape, and THHN/THWN-2 insulated conductors. It is specifically designed for building wiring, equipment connection, industrial installation, and indoor power distribution where high current capacity is required. Typical applications include main feeders from transformers to switchgear, large motor supplies, and heavy industrial branch circuits. The interlocked aluminum armor provides outstanding mechanical protection against crushing and pulling while remaining manageable for field bending. THHN/THWN-2 conductors are rated 90°C dry and 75°C wet, with a nylon jacket that resists oil and abrasion. Two relevant keywords for this product are high-ampacity MC cable and main feeder armored cable. A separator tape ensures electrical isolation between conductors and the armor. Certified to UL 1569 (Metal-Clad Cable) and UL 83 (Thermoplastic-Insulated Wires), this 500kcmil cable is the backbone of large-scale commercial and industrial power systems.
PRODUCT SPECIFICATIONS
| Conductors |
Outside Diameter Over Armor (in) |
Approximate Net Weight (lbs/1000ft) |
Allowable Ampacity (Amps) |
Standard Packaging (ft) |
||||
|---|---|---|---|---|---|---|---|---|
| AWG/NO. | Type | Ground | 75℃ | 90℃ | Reels | |||
| 250-3 | Stranded | 4 AWG Bare | 1.702 | 2730 | 255 | 290 | 1000' | |
| 250-4 | Stranded | 4 AWG Bare | 1.862 | 3578 | 255 | 290 | 1000' | |
| 300-3 | Stranded | 3 AWG Bare | 1.773 | 3362 | 285 | 320 | 1000' | |
| 300-4 | Stranded | 3 AWG Bare | 1.962 | 4395 | 285 | 320 | 1000' | |
| 350-3 | Stranded | 3 AWG Bare | 1.930 | 3754 | 310 | 350 | 1000' | |
| 350-4 | Stranded | 3 AWG Bare | 2.120 | 4927 | 310 | 350 | 1000' | |
| 400-3 | Stranded | 3 AWG Bare | 1.969 | 4382 | 335 | 380 | 1000' | |
| 400-4 | Stranded | 3 AWG Bare | 2.182 | 5738 | 335 | 380 | 1000' | |
| 500-3 | Stranded | 2 AWG Bare | 2.208 | 5286 | 380 | 430 | 1000' | |
| 500-4 | Stranded | 2 AWG Bare | 2.423 | 6952 | 380 | 430 | 1000' | |
| 600-3 | Stranded | 2 AWG Bare | 2.433 | 6351 | 420 | 475 | 1000' | |
| 600-4 | Stranded | 2 AWG Bare | 2.465 | 7880 | 420 | 475 | 1000' | |
| 750-3 | Stranded | 1 AWG Bare | 2.644 | 7833 | 475 | 535 | 1000' | |
| 750-4 | Stranded | 1 AWG Bare | 2.910 | 10325 | 475 | 535 | 1000' | |
CERTIFICATIONS
PACKAGING
Roll
Small Wooden Reel
Large Wooden Reel
APPLICATION
Warehouse and Logistics Facility Wiring
Power Wiring for Motors, Pumps, and Ventilation Equipment
Public Infrastructure
CASE
Ritz-Carlton, Key Biscayne
Johns Hopkins Hospital
First Solar solarpanel factory
WHY CHOOSE US
in one-stop service
Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.
With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.
We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.
Greater Cable - Certified Quality. Reliable Supply. Engineering Value.
PLANT EQUIPMENT
GLOBAL CERTIFICATIONS
CUSTOMER PHOTOS
INTERNATIONL TRANSPORTATION
01
Sea Freight
We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.
02
Air Freight
For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.
03
International Express
Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.
COOPERATIVE PARTNER
We are looking for a cooperative partner to expand our business.
Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.
Our address
Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China
Phone Number
+86 136 6257 9592
+86 135 1078 4550
manager01@greaterwire.com
FAQ
What is the typical bend radius for 500kcmil MC cable during installation?
Minimum bending radius is approximately 7 to 8 times the cable diameter due to the large conductor size. Use proper bending tools.
How do I terminate such a large gauge cable?
Use compression lugs or mechanical lugs rated for 500kcmil. Ensure the termination is matched to the conductor material (copper).
What voltage drop should I expect over long runs?
For a 500kcmil copper cable at 300A load, voltage drop is about 1.5V per 100 feet at 480V. Calculate based on your actual load and distance.
Does this cable require special supports in cable trays?
Yes. Follow NEC support spacing for large cables – typically every 3 to 4 feet for horizontal runs due to the weight.
