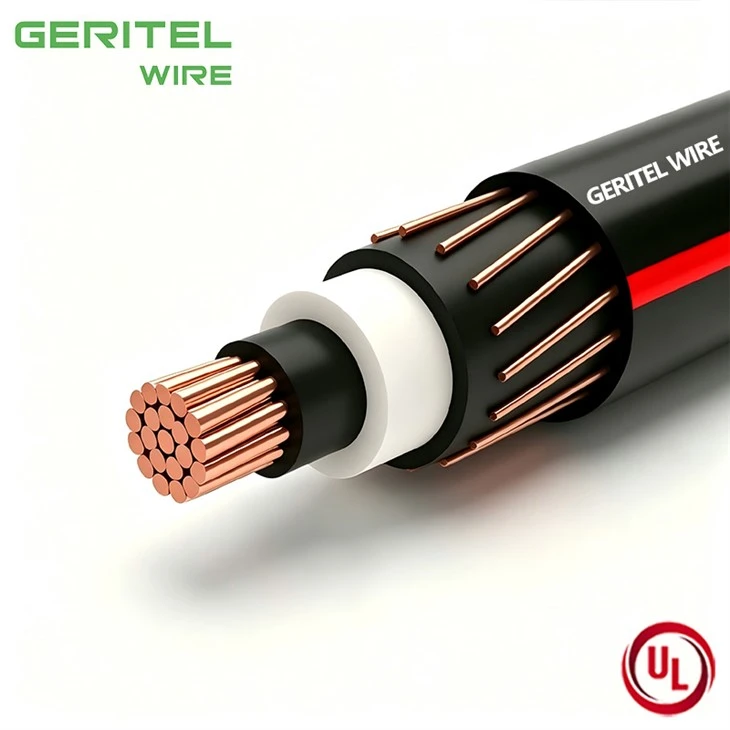

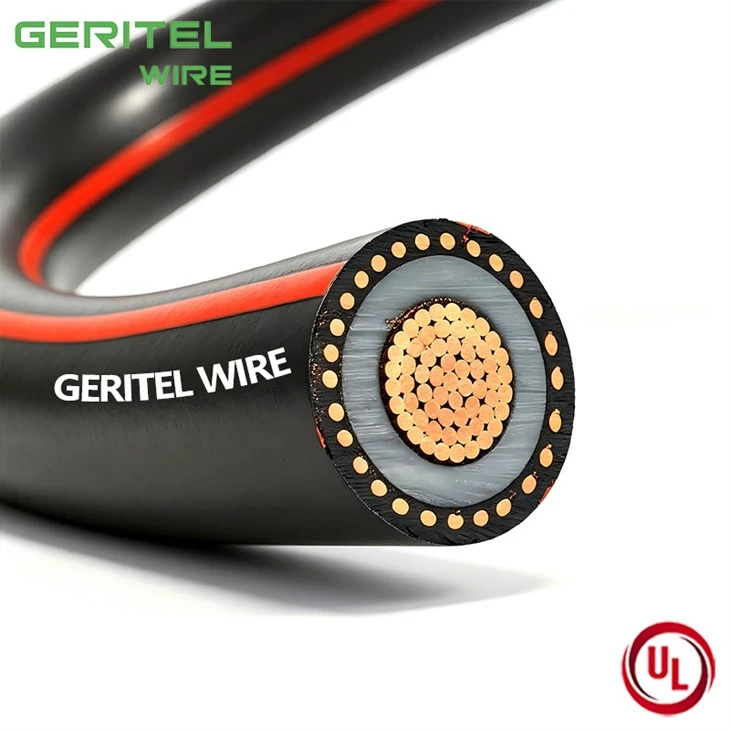

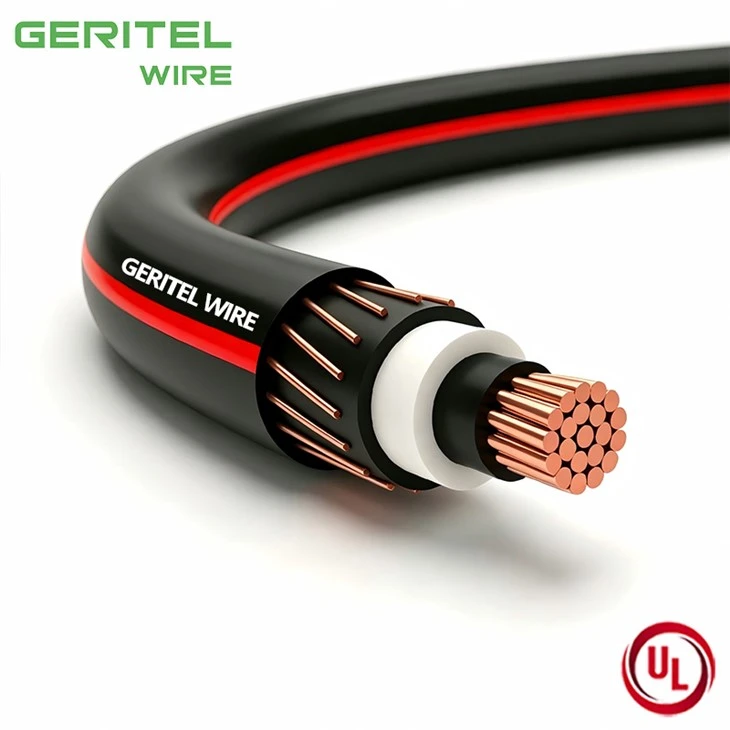

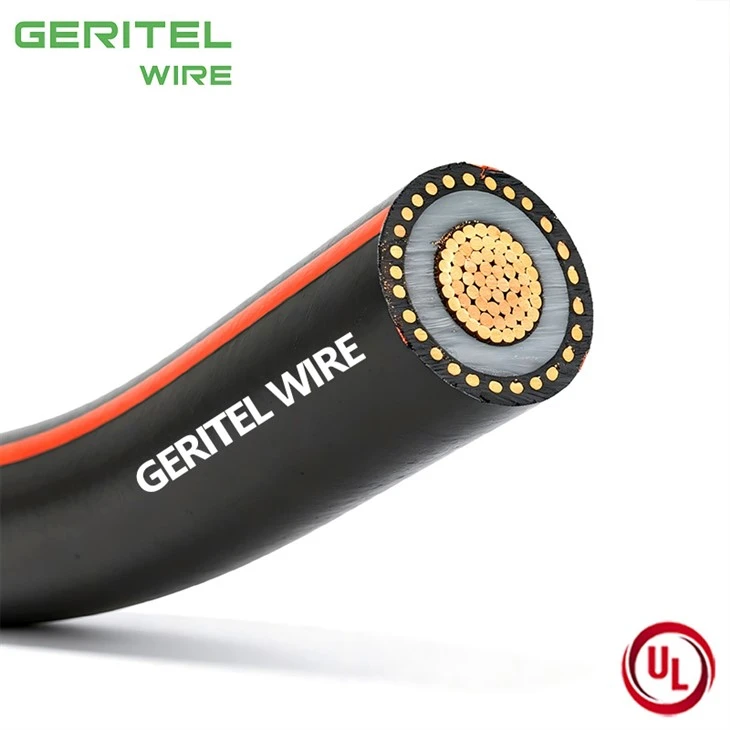

PRODUCT REAL SHOT
25kV 133% I.L. – Maximum Insulation Protection for Critical 25kV Power Distribution Infrastructure
PRODUCT SPECIFICATIONS
Product Description
The Medium Voltage Underground Distribution (UD) cables consist of a Copper (filled or unfilled) conductor, covered with ethylene propylene rubber (EPR), a concentric neutral of helically applied copper wires, and a linear low-density polyethylene (LLDPE) jacket with 3 extruded red stripes.
Applications
- Suitable for underground primary power applications
- For wet or dry locations
- For direct burial or in duct
Features
- High dielectric strength
- Low moisture absorption
- Low dielectric loss
- Excellent resistance to treeing
- Jacket is sunlight-resistant
- Designed to operate continuously at a conductor temperature not exceeding
105°C for normal operations
130°C for emergency overload
250°C for short circuit
| SPECIFICATIONS | |
|
Conductor Count |
1 conductor |
|
Conductor |
Fully annealed bare copper Class B compressed strand (filled or unfilled) |
|
Gauge Sizes |
Available in 2 AWG through 1000 kcmil |
|
Conductor Strand Shield |
Extruded thermoset semi-conducting polymer over the conductor |
|
Insulation |
Ethylene Propylene Rubber (EPR) |
|
Insulation Shield |
Extruded thermoset semi-conducting polymer over the insulation |
| Neutral | Helically applied, annealed, solid bare copper wires |
|
Jacket |
Linear Low-Density Polyethylene (LLDPE)
|
|
Jacket Marking |
00000 FT GREATER WIRE XXXAWG (KCMIL) CU (FS) 1/C XXXV XXX% INSUL LEVEL XXXMILS EPR AA X #BB LLDPE JKT MV-90 (UL) MADE IN USA MMDDYYYY |
|
Packaging |
Non-returnable wood reels in a variety of lengths and dimensions |
|
Performance Compliances |
ASTM B3 ASTM B8 ICEA S-94-649 ICEA T-31-610 (water block compliance), as needed ICEA T-34-664 (moisture blocked jacket), as needed AEIC CS8 UL 1072 (MV-90) RUS U1 |
Copper Unfilled/Filled 25kV 133% I.L. 320mils
| Conductor Size AWG/kcmil |
Nom. Conductor Diameter in (mm) |
Insulation Diameter in (mm) |
Concentric Neutral No. x AWG |
Jacket Thickness in (mm) |
Approx. Overall Diameter in (mm) |
Approx. Net Weight lbs/kft (kg/km) |
Ampacity | |
| Underground Duct | Direct Buried | |||||||
| 1/3 Reduced Neutral | ||||||||
| 1 | 0.322(8.2) | 1.02(25.9) | 7×14 | 0.050(1.3) | 1.35(34.3) | 935(1,391) | 180 | 220 |
| 1/0 | 0.362(9.2) | 1.06(26.9) | 9×14 | 0.050(1.3) | 1.39(35.3) | 1,055(1,570) | 200 | 250 |
| 2/0 | 0.405(10.3) | 1.11(28.2) | 11×14 | 0.050(1.3) | 1.45(36.8) | 1,215(1,808) | 230 | 285 |
| 3/0 | 0.456(11.6) | 1.16(29.5) | 14×14 | 0.050(1.3) | 1.51(38.4) | 1,395(2,076) | 260 | 320 |
| 4/0 | 0.512(13.0) | 1.22(31.0) | 18×14 | 0.050(1.3) | 1.56(39.6) | 1,620(2,411) | 300 | 360 |
| 250 | 0.558(14.2) | 1.27(32.3) | 21×14 | 0.050(1.3) | 1.62(41.1) | 1,815(2,701) | 330 | 385 |
| 350 | 0.661(16.8) | 1.38(35.1) | 29×14 | 0.075(1.9) | 1.78(45.2) | 2,345(3,489) | 390 | 460 |
| 500 | 0.789(20.0) | 1.51(38.4) | 26×12 | 0.075(1.9) | 1.94(49.3) | 3,090(4,598) | 455 | 525 |
| 750 | 0.968(24.6) | 1.70(43.2) | 25×10 | 0.075(1.9) | 2.21(56.1) | 4,365(6,495) | 545 | 580 |
| Full Neutral | ||||||||
| 1 | 0.322(8.2) | 1.02(25.9) | 20×14 | 0.050(1.3) | 1.35(34.3) | 1,090(1,622) | 175 | 220 |
| 1/0 | 0.362(9.2) | 1.06(26.9) | 25×14 | 0.050(1.3) | 1.39(35.3) | 1,245(1,853) | 200 | 250 |
| 2/0 | 0.405(10.3) | 1.11(28.2) | 32×14 | 0.050(1.3) | 1.45(36.8) | 1,465(2,180) | 225 | 280 |
| 3/0 | 0.456(11.6) | 1.16(29.5) | 25×12 | 0.050(1.3) | 1.54(39.1) | 1,735(2,582) | 260 | 315 |
| 4/0 | 0.512(13.0) | 1.22(31.0) | 32×12 | 0.050(1.3) | 1.60(40.6) | 2,045(3,043) | 295 | 355 |
