300 kcmil aluminum RHH wire

PRODUCT REAL SHOT

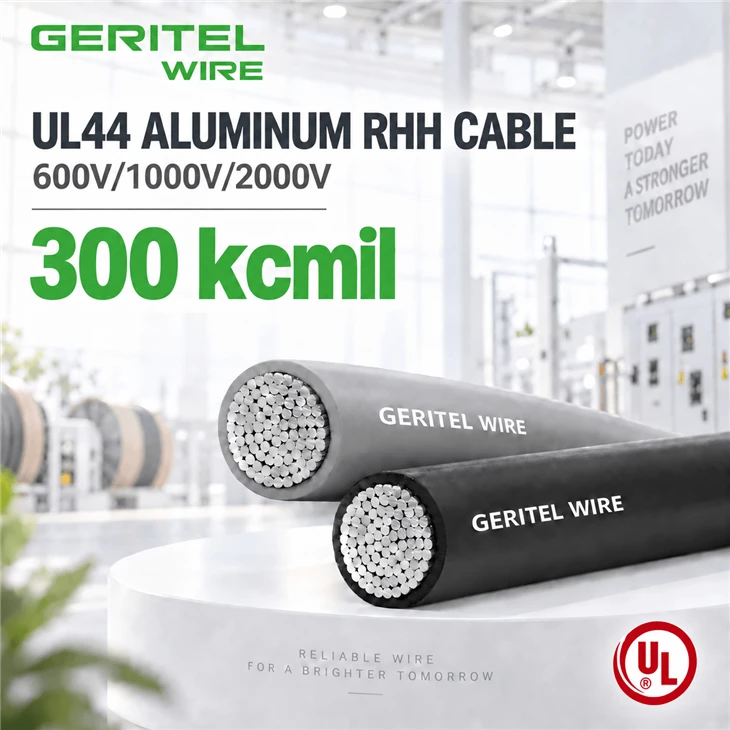

UL44 300 kcmil aluminum RHH wire

Large Thermoset Feeder Wire for Central Electrical Rooms Main Panels and Multi Building Power Systems

Multi-building campuses frequently centralize electrical distribution and then send larger feeders to separate facilities, making conductor weight and reel organization important. 300 kcmil aluminum RHH cable fits this type of architecture when the design permits aluminum building wire. GERITEL WIRE supplies 300 MCM aluminum RHH wire with stranded construction and thermoset insulation for protected 90°C dry-location operation. UL44 300 kcmil aluminum RHH wire can be assigned by building, phase or feeder route through custom reel numbering and length allocation. Because this size occupies meaningful pathway space, conduit fill, pulling layout and equipment lug range should be confirmed before the final bill of materials is released.

PRODUCT SPECIFICATIONS

UL44 300 kcmil aluminum RHH cable

APPLICATIONS

Type USE-2, RHH or RHW-2 cables with Aluminum Alloy 8000 Series conductors are suitable for use in conduit and raceways installed underground in wet locations, and where condensation and moisture accumulations within the conduit do not exceed 90°C. Permitted for Type USE-2 per UL-854 for applications requiring direct burial. For applications requiring Type RHH or RHW-2, conductor temperatures shall not exceed 90°C in wet or dry locations. Type USE-2 is permitted for 600 volt applications. Type RHH/RHW-2 is permitted for applications up to 1000 volts.

FEATURES

10 AWG and larger rated for Sunlight Resistance. Cables comply with UL's FT-2 (horizontal wire flame). On 250 KCMIL and larger, sequential foot markings located every foot for easy measuring. For 1 AWG through 4/0 AWG, sequential foot markings on master reels only unless otherwise specified. 1/0 AWG and larger are rated for cable tray use and comply with UL-1685-Method 1 (70,000 Btu/hr) flame test. Excellent ruggedized and mechanical protection.

SPECIFICATIONS
Standards	Underwriters Laboratories® Standards UL-44, UL-854, UL-1581, UL-1685, UL-2556; Compact Stranded Aluminum Alloy 8000 Series per ASTM B800, ASTM B801,ASTM B836; Federal Specification AA-59544; NEMA WC70/ICEA S-95-658; NEMA RV-4; NFPA 70 (NEC®); RoHS Compliant; American National Standards Institute; UL-1685 Method 1 Flame Test; ICEA S-81-570; MasterSpec Division 26 Sections 260519, 260523; VW-1 or IEEE 1202 (FT4) optional.
Conductors	Compact Stranded Conductors, Aluminum Alloy 8000 Series per ASTM B800, ASTM B801 and ASTM B836
Insulation	Cross-linked polyethylene (XLPE) per UL-44 and UL-854. Sunlight-resistant in all colors 8 AWG and larger

Conductors		Compact Diameter of Aluminum Conductor (in)	XLPE Insulation Thickness (in)	Outside Diameter (in)	Approximate Net Weight (lbs/1000 ft)	Allowable Ampacities (Amps)¹		Standard Packaging (ft)
Size (AWG or KCMIL)	No. of Strands	Compact Diameter of Aluminum Conductor (in)	XLPE Insulation Thickness (in)	Outside Diameter (in)	Approximate Net Weight (lbs/1000 ft)	75°C	90°C	Standard Packaging (ft)
8	7	0.134	0.060	0.254	32	40	45	500' 1000' 2500' 5000' Reels
6	7	0.169	0.060	0.289	44	50	55	500' 1000' 2500' 5000' Reels
4	7	0.213	0.060	0.333	62	65	75	500' 1000' 2500' 5000' Reels
3	7	0.238	0.060	0.358	78	75	85	500' 1000' 2500' 5000' Reels
2	7	0.268	0.060	0.388	90	90	100	500' 1000' 2500' 5000' Reels
1	7	0.299	0.080	0.459	120	100	115	500' 1000' 2500' 5000' Reels
1/0	7	0.336	0.080	0.496	150	120	135	500' 1000' 2500' 5000' Reels
2/0	12	0.376	0.080	0.536	176	135	150	500' 1000' 2500' 5000' Reels
3/0	15	0.423	0.080	0.583	216	155	175	500' 1000' 2500' 5000' Reels
4/0	19	0.475	0.080	0.635	262	180	205	500' 1000' 2500' 5000' Reels
250	21	0.520	0.095	0.710	320	205	230	500' 1000' 2500' 4000' Reels
300	22	0.570	0.095	0.760	375	230	260	500' 1000' 3500' Reels
350	24	0.616	0.095	0.806	450	250	280	500' 1000' 3000' Reels
400	27	0.659	0.095	0.849	484	270	305	500' 1000' 3000' Reels
500	34	0.736	0.095	0.926	583	310	350	500' 1000' 2500' Reels
600	41	0.813	0.110	1.033	710	340	385	500' 1000' 2000' Reels
700	45	0.877	0.110	1.097	810	375	425	500' 1000' 1500' Reels
750	47	0.908	0.110	1.128	865	385	435	500' 1000' 1500' Reels
900	58	0.999	0.110	1.219	1015	425	480	500' 1000' Reels
1000	61	1.060	0.110	1.280	1096	445	500	500' 1000' Reels
¹ Ampacity of conductors are based on the National Electrical Code (NFPA 70) Table 310.15(B)(16). See 110.14(C), 240.4(D) and 310.15(B) for other limitations where applicable. The above data is approximate and subject to manufacturing tolerances.

CERTIFICATIONS

300 kcmil aluminum RHH building wire

PACKAGING

Roll

Small Wooden Reel

Large Wooden Reel

APPLICATION

Underground Conduit Installation

Conduit Wiring

Feeder Circuit Wiring

CASE

Tesla Gigafactory Texas

Stanford University California USA

300 kcmil single conductor aluminum RHH cable

Mayo Clinic Hospital, Saint Marys Campus

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

300 kcmil aluminum RHH wire for commercial buildings

300 kcmil aluminum RHH cable for industrial facilities

300 kcmil aluminum RHH wire for switchgear

GLOBAL CERTIFICATIONS

300 kcmil aluminum RHH cable for electrical panels

CUSTOMER PHOTOS

300 kcmil aluminum RHH conduit wire

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

300 kcmil aluminum RHH power distribution wire

300 kcmil aluminum RHH feeder wire for electrical rooms

300 kcmil aluminum RHH cable for data centers

300 kcmil aluminum RHH wire for BESS facilities

300 kcmil aluminum RHH cable for renewable energy projects

300 kcmil aluminum RHH wire for modular buildings

300 kcmil aluminum RHH cable for prefabricated buildings

300 kcmil aluminum RHH wire manufacturer

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

What is the benefit of compact aluminum conductor in conduit?

compact aluminum RHH wire can provide a smaller, more uniform conductor profile that may improve pulling and space utilization in approved raceways. The practical advantage depends on the final insulated diameter and the conduit-fill calculation for the complete circuit. Always use the actual manufacturer dimensions rather than assuming a generic diameter.

Is the conductor suitable for standard aluminum-rated lugs?

Aluminum RHH Wire termination should use connectors and lugs specifically listed and sized for aluminum conductors and the equipment involved. Proper stripping, surface preparation, torque and connector selection are critical to reliable performance. Follow the connector manufacturer's instructions and the applicable electrical code rather than using copper-only terminals.

Can the conductor be supplied in different sizes?

Aluminum RHH Wire sizes can cover a broad range for building feeders and larger power-distribution circuits, depending on the approved product family. GERITEL WIRE can quote the required AWG or kcmil size together with the voltage and quantity. Sending the complete size list helps us plan reels, production and packaging more efficiently.

Why is conductor structure important for large aluminum cables?

large Aluminum RHH Cable must balance electrical capacity, pulling performance, termination requirements and physical dimensions. Conductor construction affects flexibility, diameter and installation handling, especially on high-capacity feeders. For large sizes, GERITEL WIRE recommends reviewing conductor details and reel dimensions before finalizing the purchase.
