Name: China UL44 RHH Copper Wire 0.6/1/2 KV 90°C Thermoset Insulated Building Cable Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 316350784

Description

Technical Parameters

Certification

RHH Wire

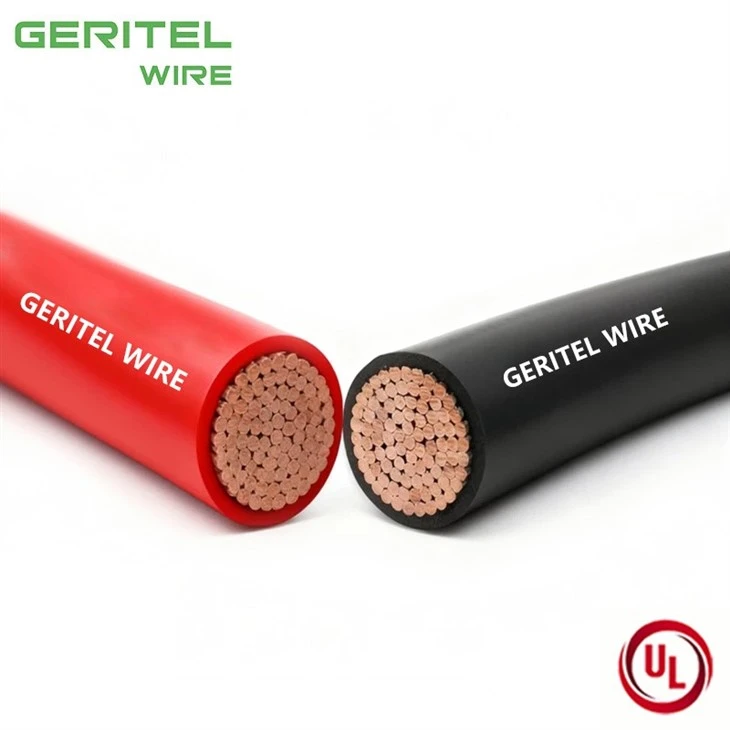

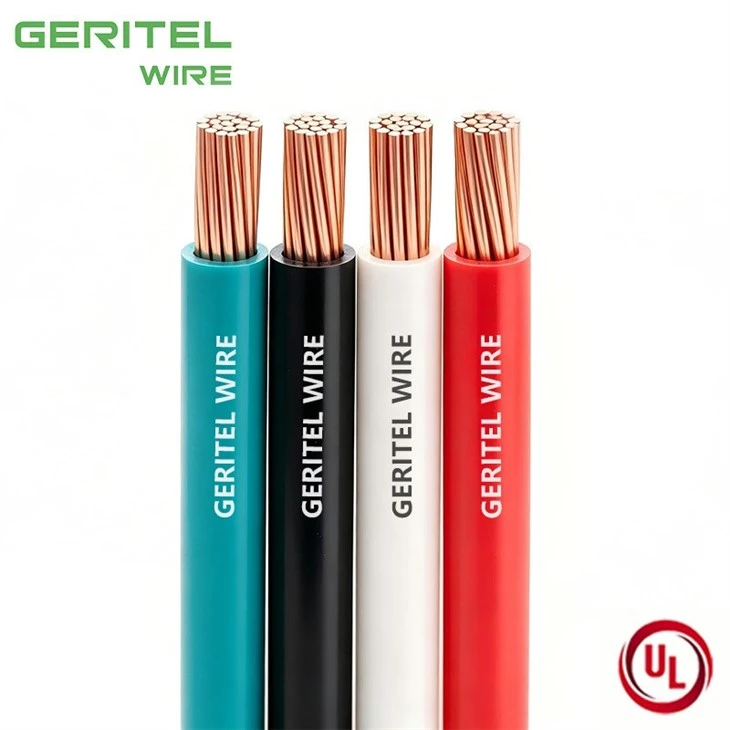

PRODUCT REAL SHOT

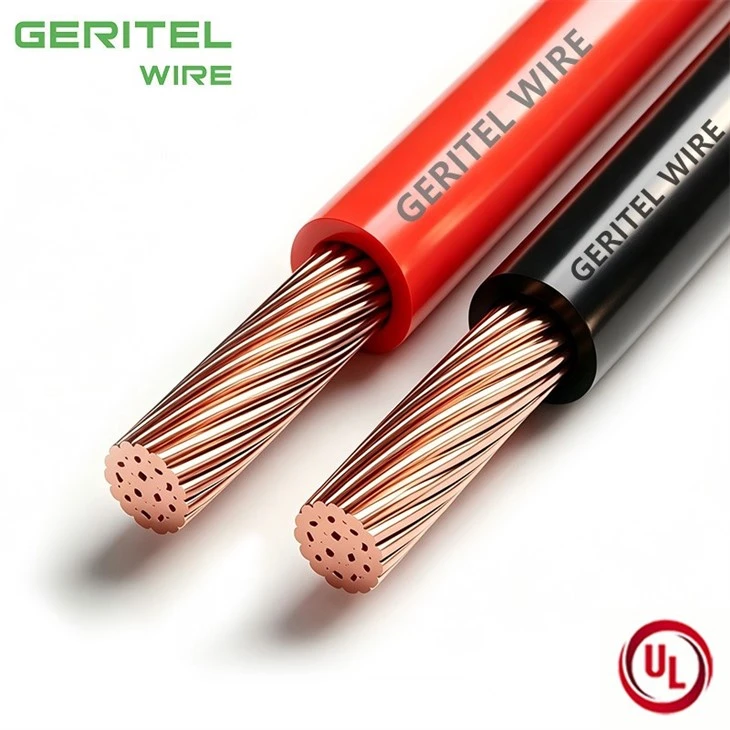

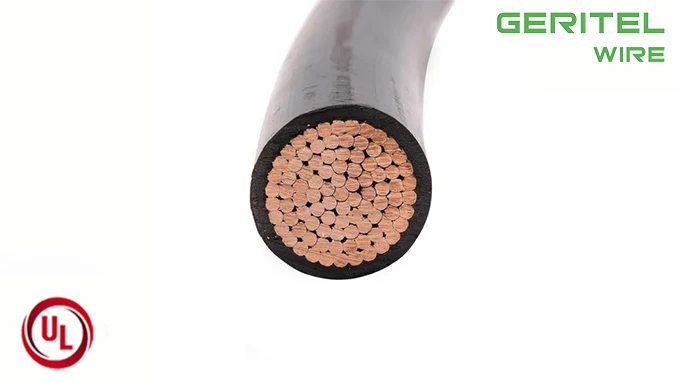

Copper RHH Wire

UL44 Certified RHH Copper Wire for Industrial Building and Power Distribution Applications

GERITEL WIRE manufactures UL44 RHH Copper Wire for reliable power distribution in commercial buildings, industrial facilities, electrical rooms and other fixed wiring systems. The cable uses a stranded copper conductor with thermoset insulation designed for 90°C service in dry locations, providing dependable electrical performance and durable insulation for demanding installations. Available in 0.6/1/2 kV options and a wide range of conductor sizes, this RHH building wire can be supplied in different colors, lengths and packaging formats. As a professional cable manufacturer, GERITEL WIRE supports OEM production, project quantities, specification customization and stable bulk supply for distributors, contractors and electrical equipment manufacturers.

PRODUCT SPECIFICATIONS

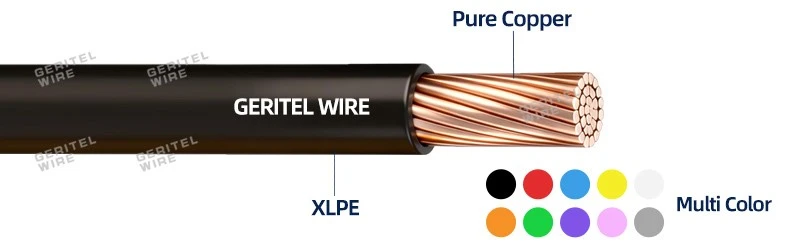

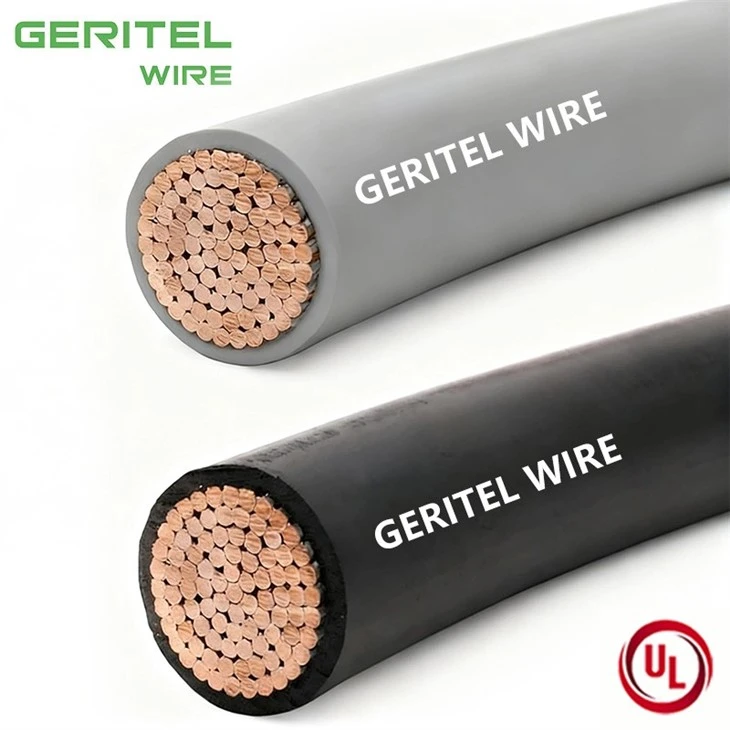

Copper RHH Cable

Application and Description

The THW conductor is suitable for most current wiring solutions for residential, commercial and industrial environments. It is used in service entrance, feeders and branch circuits for permanent installations.THWconductors in sizes 14 AWG to 1000 Kcmil (MCM) can be installed in conduits and other raceways.The temperature of installation shall not exceed 75°C(THW), not exceed 90°C(THW-2).

SPECIFICATIONS
Conductor	Bare annealed copper conductor, solid or stranded
Insulation	PVC 75°C insulation
Color	upon request, black is preferable
Technical Compliances	ASTM B3, B8 UL 83 - Thermoplastic-Insulated Wires and Cables UL 1581 - Electrical Wires, Cables and Flexible Cords

AWG or kcmil	Strand	Nominal Insulation Thickness		Nominl Overall Diameter		Cable Weight
AWG or kcmil	Strand	Inch	mm	Inch	mm	Lbs/kft	kg/km
14	1	0.030	0.76	0.169	4.3	22	33
12	1	0.030	0.76	0.189	4.8	32	47
10	1	0.030	0.76	0.213	5.4	46	68
8	1	0.045	1.14	0.240	6.1	67	100
6	1	0.060	1.52	0.276	7	101	151
14	7	0.030	0.76	0.177	4.5	24	36
12	7	0.030	0.76	0.201	5.1	34	50
10	7	0.030	0.76	0.228	5.8	49	73
8	7	0.045	1.14	0.291	7.4	79	118
6	7	0.060	1.52	0.335	8.5	117	174
4	7	0.060	1.52	0.386	9.8	172	256
2	7	0.080	2.03	0.445	11.3	263	391
1	19	0.080	2.03	0.531	13.5	339	505
1/0	19	0.080	2.03	0.575	14.6	418	622
2/0	19	0.080	2.03	0.622	15.8	515	767
3/0	19	0.080	2.03	0.677	17.2	638	950
4/0	37	0.080	2.03	0.740	18.8	792	1179
250	37	0.095	2.14	0.823	20.9	943	1404
300	37	0.095	2.14	0.882	22.4	1118	1664
350	37	0.095	2.14	0.937	23.8	1292	1923
400	37	0.095	2.14	0.984	25	1465	2180
500	61	0.095	2.14	1.079	27.4	1810	2694
600	61	0.110	2.79	1.197	30.4	2178	3241
700	61	0.110	2.79	1.272	32.3	2521	3751
750	61	0.110	2.79	1.307	33.2	2693	4007
800	61	0.110	2.79	1.343	34.1	2863	4260
900	61	0.110	2.79	1.409	35.8	3205	4769
1000	61	0.110	2.79	1.472	37.4	3538	5265

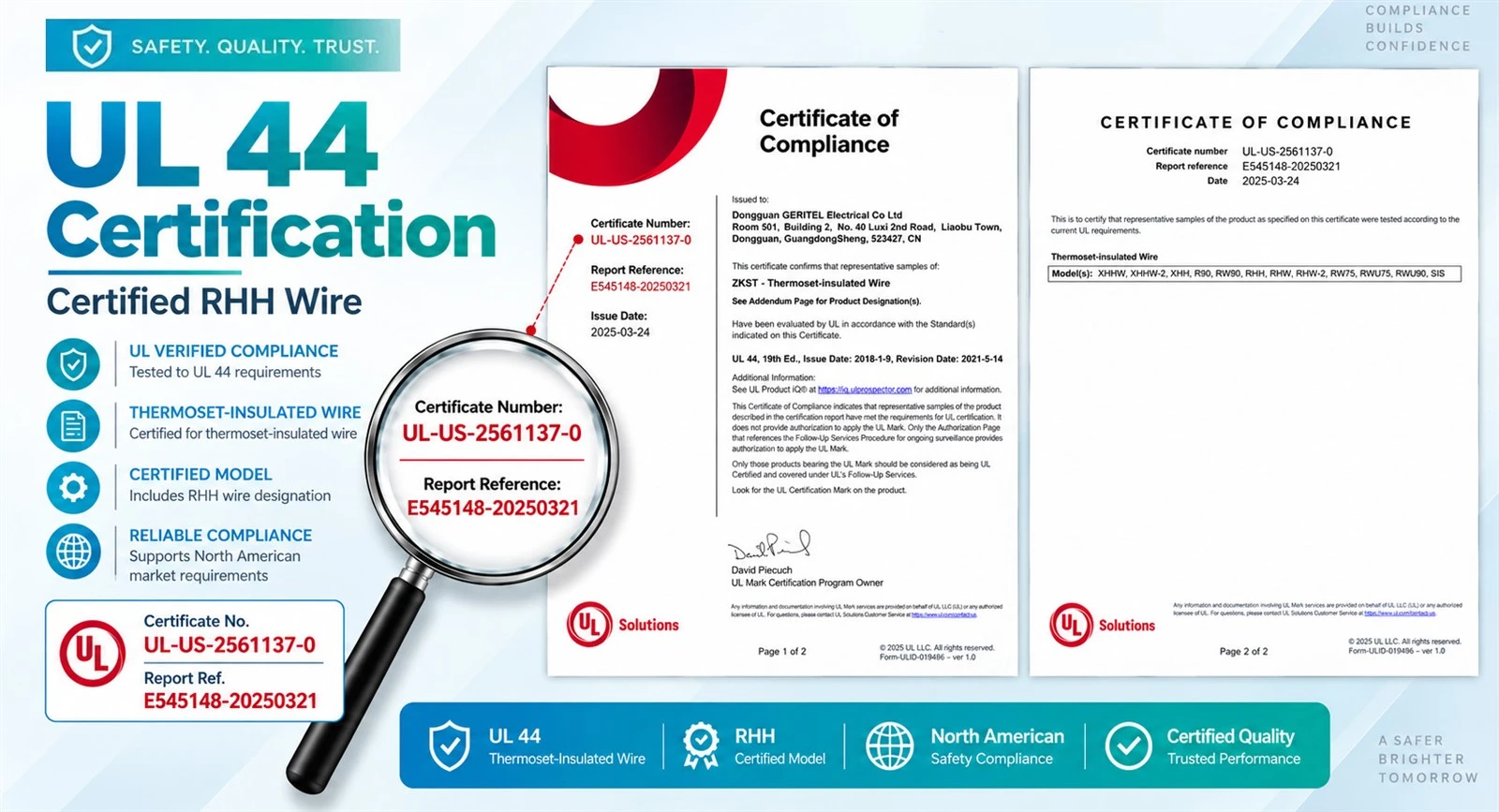

CERTIFICATIONS

UL44 RHH Wire

PACKAGING

Roll

Small Wooden Reel

Large Wooden Reel

APPLICATION

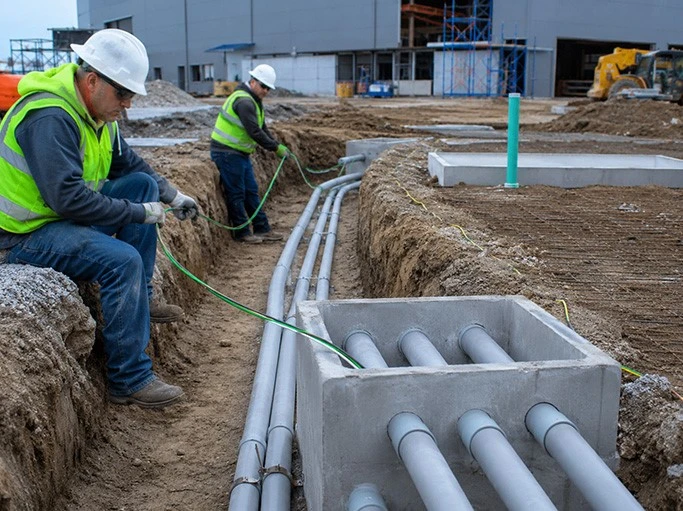

Underground Conduit Installation

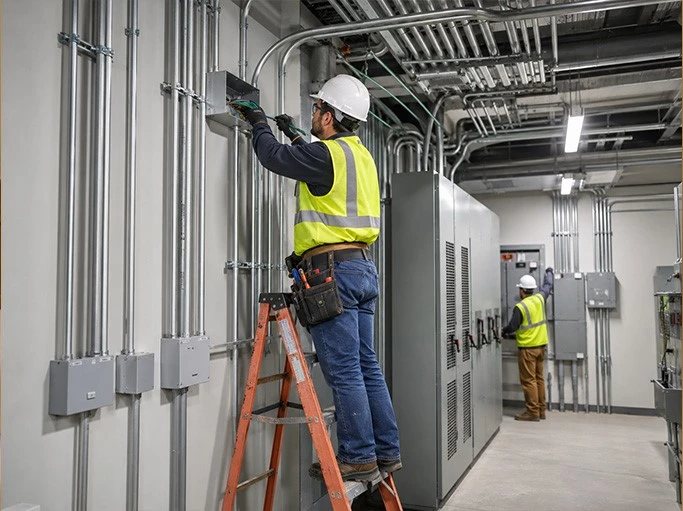

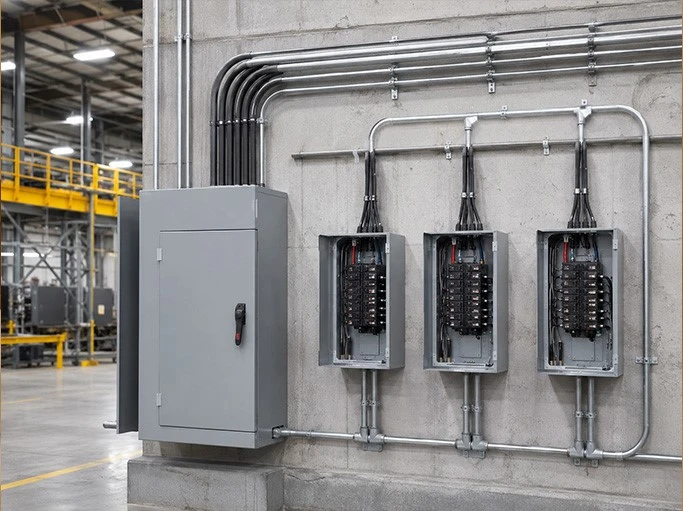

Conduit Wiring

Feeder Circuit Wiring

CASE

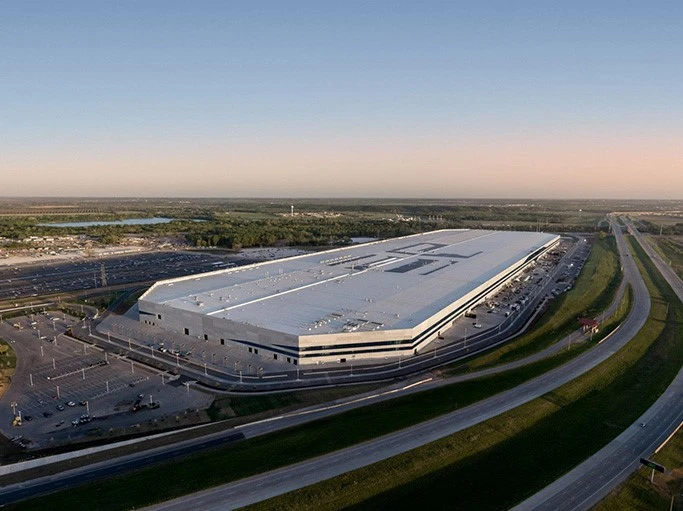

Tesla Gigafactory Texas

Stanford University California USA

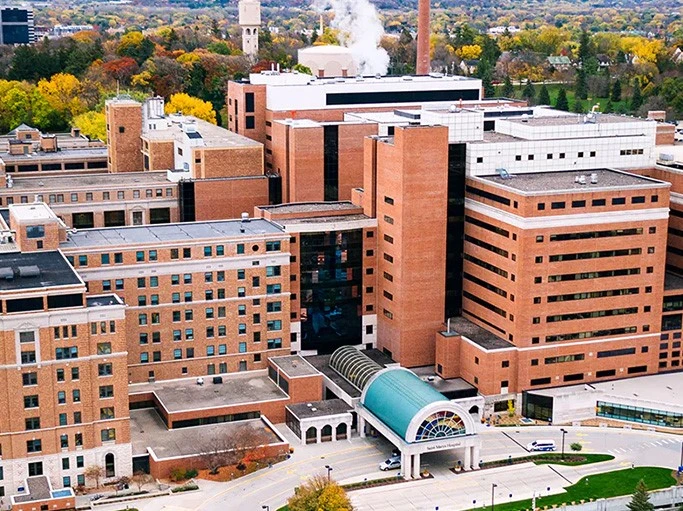

Mayo Clinic Hospital, Saint Marys Campus

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

Thermoset Insulated RHH Cable Direct Manufacturer

UL44 Thermoset Insulated Wire Professional Manufacturer

GLOBAL CERTIFICATIONS

UL44 Certified RHH Cable Manufacturer

CUSTOMER PHOTOS

600V RHH Cable Global Supplier

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

What is RHH Wire used for?

RHH Wire is commonly used for power distribution and fixed wiring in commercial buildings, industrial facilities, electrical rooms and other dry-location installations. GERITEL WIRE supplies UL44 RHH Wire with stranded copper conductors and thermoset insulation for reliable electrical performance in demanding projects.

What temperature rating does RHH Cable have?

RHH Cable is typically rated for operation up to 90°C in dry locations. GERITEL WIRE manufactures 90°C RHH Cable with durable thermoset insulation designed to provide stable performance for industrial wiring, building power distribution and electrical equipment applications.

Can GERITEL WIRE customize RHH Wire specifications?

Yes. GERITEL WIRE supports customized RHH Copper Wire based on project requirements, including conductor size, cable color, printing, length and packaging. OEM and bulk-order services are available for distributors, contractors, electrical equipment manufacturers and project buyers.

Is GERITEL RHH Wire UL44 certified?

Yes. GERITEL WIRE manufactures UL44 RHH Wire under its UL certification for thermoset-insulated wire. The product can be supplied for 0.6/1/2 kV applications according to the approved product specifications, helping buyers source compliant RHH wire for North American and international projects.
