18 AWG Sunlight Resistant Exposed Run VNTC Tray Cable from Reliable TC-ER Cable Supplier

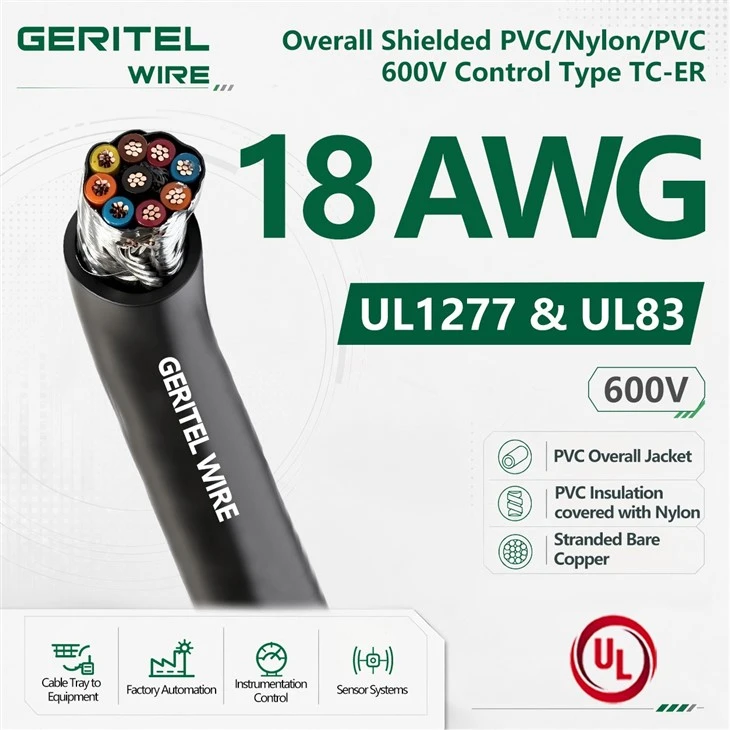

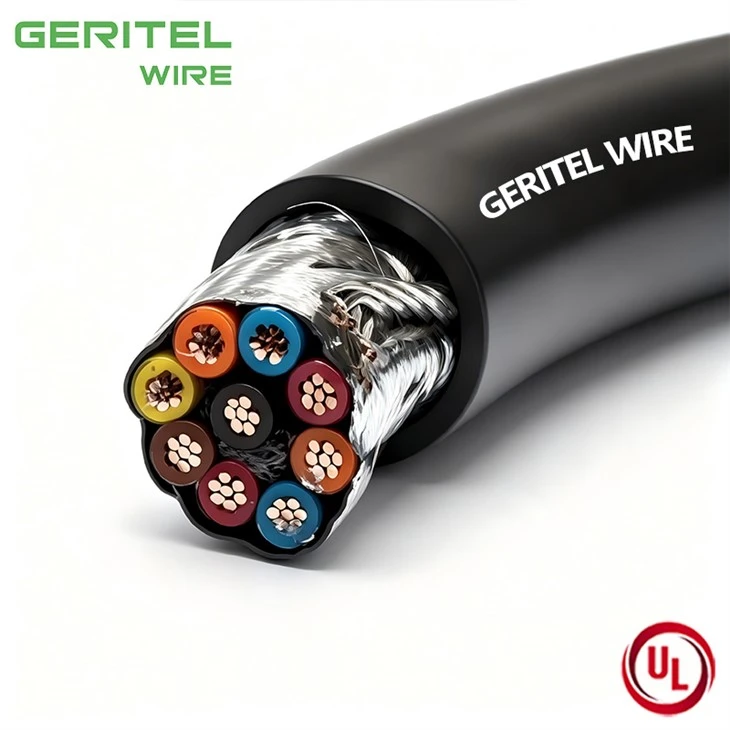

This 18 AWG PVC Nylon PVC overall shielded TC-ER control cable is high-performance shielded TC-ER control cable, durable sunlight resistant control cable, NEC compliant exposed run tray cable, and we operate as professional TC-ER cable supplier. Designed with triple-layer THHN PVC-nylon insulation, full aluminum Mylar foil shielding and UV stabilized black PVC jacket, this multi-core wire supports exposed tray routing, conduit and direct burial installation for industrial control circuits, rated continuous 90°C for wet & dry locations with complete UL certification.

PRODUCT SPECIFICATIONS

TC-ER control cable supplier

Product Description

The PVC/Nylon/PVC (THHN/THWN-2), 600V Control, Type TC-ER and Direct Burial Cables consist of fully annealed bare copper Class B stranded conductors, covered with oil and gas resistant Polyvinyl Chloride (PVC) and clear Nylon insulation, unshielded or shielded and black PVC jacket. These cables are used in industrial power or station control circuits.

Applications

In conduit, duct, free air, raceways and direct burial, primary installations include cable trays, and outdoor locations
In wet or dry locations
Approved for Class I, Div. 2 industrial hazardous locations per NEC
Permitted for Exposed Run (ER) used in accordance with NEC for 3 or more conductors; two conductors without a ground wire are Type TC only

Features

Rated at 90°C wet or dry
Ripcord (as needed)
Excellent sunlight resistance
Meets cold bend test at -25°C

SPECIFICATIONS
Conductor Count	Available in 2 through 37 conductors
Conductor	Fully annealed bare copper Class B
Gauge Sizes	Available in 18 through 10 AWG
Insulation	Polyvinyl Chloride (PVC) covered • 14 AWG and larger are type THHN/THWN-2
Color Coding	Per ICEA S-58-679 Method 1, Table E-2; additional color coding options available
Fillers	Non-hygroscopic fillers, as necessary to obtain a circular cross section
Shield(optional)	Overall aluminum polyester (mylar) foil in contact with 20 AWG stranded tinned copper drain wire
Jacket	Polyvinyl Chloride (PVC)
Jacket Marking	Conductor sizes 18 AWG – 16 AWG: 00000 FT GREATER WIRE CABLE XXAWG XX/C PVC/NYLON PVC JKT (or OS) 600V 90C WET OR DRY TYPE TC (or -ER) (UL) SUN RES DIR BUR FT4/IEEE1202 MADE IN USA MMDDYYYYConductor sizes 14 AWG – 10 AWG: 00000 FT GREATER WIRE CABLE XXAWG XX/C THHN/THWN-2 PVC JKT (or OS) 600V 90C WET OR DRY TYPE TC (or -ER) (UL) SUN RES DIR BUR FT4/IEEE1202 MADE IN USA MMDDYYYY
Packaging	Non-returnable wood reels in a variety of lengths and dimensions
Performance Compliances	ASTM B8, ASTM B33 UL 83 UL 1277 UL 1685 (flame exposure test) ANSI/NEMA WC 70/ICEA S-95-658 ANSI/NEMA WC 57/ICEA S-73-532 NEC
Other Compliances	EPA 40 CFR, Part 261 OSHA RoHS-compliant/RoHS 2-compliant REACH-compliant

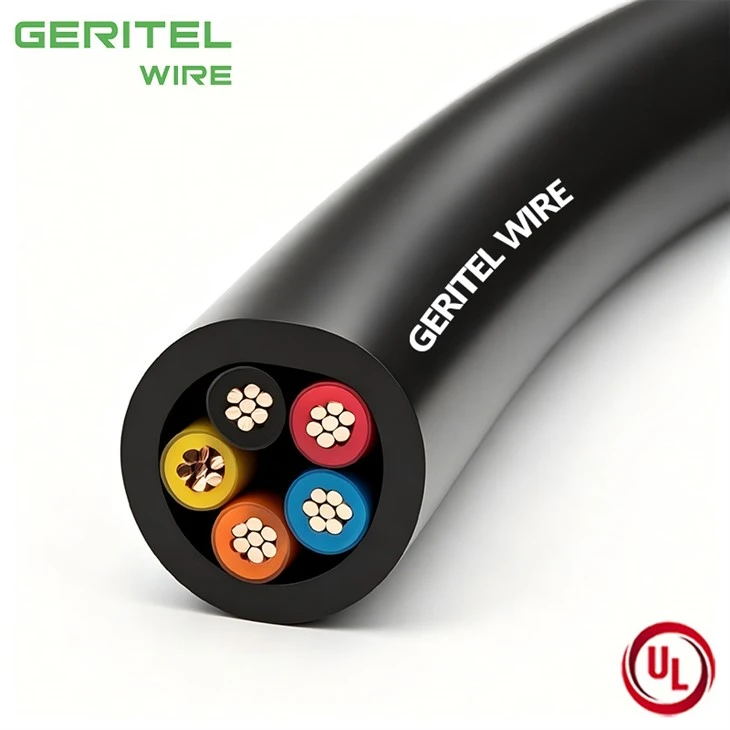

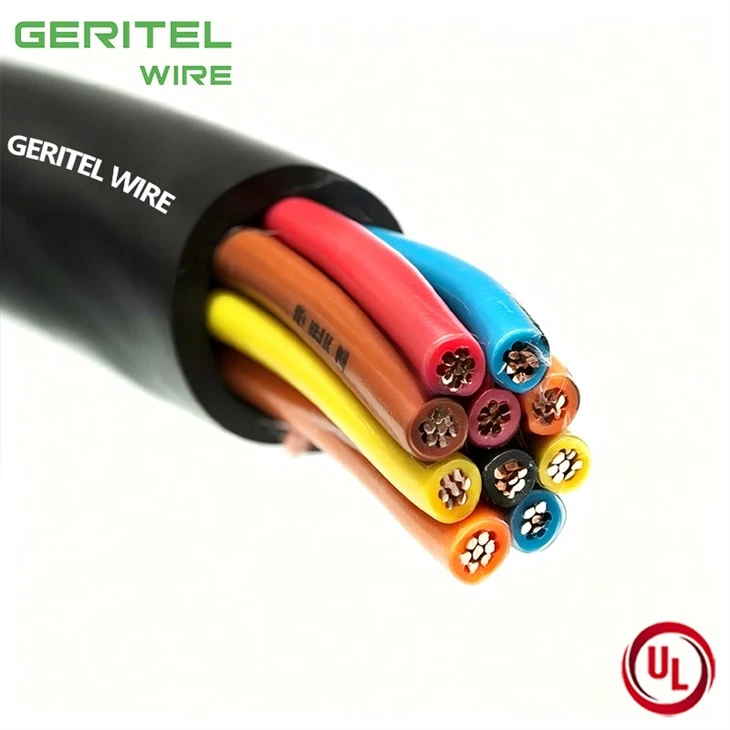

Unshielded

Conductor Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
2	18	0.020(0.51)	0.045(1.14)	0.28(7.1)	40(56)
3	18	0.020(0.51)	0.045(1.14)	0.29(7.5	50 (69)
4	18	0.020(0.51)	0.045(1.14)	0.32(8.0)	60(84)
5	18	0.020(0.51)	0.045(1.14)	0.34(8.7)	70(99)
7	18	0.020(0.51)	0.045(1.14)	0.37(9.4)	85(126)
9	18	0.020(0.51)	0.045(1.14)	0.43(10.9)	110(158)
12	18	0.020(0.51)	0.045(1.14)	0.47(12.0)	135(199)
19	18	0.020(0.51)	0.045(1.14)	0.55(14.0)	205(298)
25	18	0.020(0.51)	0.060(1.52)	0.67(17.1)	280(414)
37	18	0.020(0.51)	0.060(1.52)	0.76(19.4)	390(573)
2	16	0.020(0.51)	0.045(1.14)	0.30(7.7)	50 (69)
3	16	0.020(0.51)	0.045(1.14)	0.32(8.1)	60(88)
4	16	0.020(0.51)	0.045(1.14)	0.35(8.8)	75(109)
5	16	0.020(0.51)	0.045(1.14)	0.37(9.5)	90 (130)
7	16	0.020(0.51)	0.045(1.14)	0.40(10.3)	115(168)
9	16	0.020(0.51)	0.045(1.14)	0.47(12.0)	145(211)
12	16	0.020(0.51)	0.045(1.14)	0.52(13.3)	185(269)
16	16	0.020(0.51)	0.060(1.52)	0.61(15.6)	255(378)
19	16	0.020(0.51)	0.060(1.52)	0.64(16.4)	295(435)
25	16	0.020(0.51)	0.060(1.52)	0.75(18.9)	380(560)
30	16	0.020(0.51)	0.060(1.52)	0.79(20.0)	440(653)
37	16	0.020(0.51)	0.060(1.52)	0.85(21.5)	530(784)
2	14	0.020(0.51)	0.045(1.14)	0.33(8.4)	60(88)
3	14	0.020(0.51)	0.045(1.14)	0.35(8.8)	80(115)
4	14	0.020(0.51)	0.045(1.14)	0.38(9.6)	100(143)
5	14	0.020(0.51)	0.045(1.14)	0.41(10.4)	120(172)
7	14	0.020(0.51)	0.045(1.14)	0.45(11.3)	155(226)
9	14	0.020(0.51)	0.045(1.14)	0.52(13.2)	195(285)
12	14	0.020(0.51)	0.060(1.52)	0.61(15.5)	265(393)
19	14	0.020(0.51)	0.060(1.52)	0.71(18.1)	400(591)
25	14	0.020(0.51)	0.060(1.52)	0.83(21.0)	515(763)
30	14	0.020(0.51)	0.060(1.52)	0.87(22.2)	605(895)
37	14	0.020(0.51)	0.080(2.03)	0.98(25.0)	765(1,138)
2	12	0.020(0.51)	0.045(1.14)	0.37(9.3)	80(117)
3	12	0.020(0.51)	0.045(1.14)	0.39(9.8)	110(157)
4	12	0.020(0.51)	0.045(1.14)	0.42(10.7)	135(198)
5	12	0.020(0.51)	0.045(1.14)	0.46(11.7)	165(240)
7	12	0.020(0.51)	0.045(1.14)	0.50(12.7)	215(318)
9	12	0.020(0.51)	0.060(1.52)	0.62(15.7)	290(431)
12	12	0.020(0.51)	0.060(1.52)	0.69(17.4)	375(553)
19	12	0.020(0.51)	0.060(1.52)	0.80(20.3)	565(840)
25	12	0.020(0.51)	0.080(2.03)	0.98(24.8)	775(1,147)
30	12	0.020(0.51)	0.080(2.03)	1.03(26.2)	905(1,344)
37	12	0.020(0.51)	0.080(2.03)	1.11(28.2)	1,090(1,622)
2	10	0.025(0.64)	0.025(0.64)	0.43(11.0)	115(169)
3	10	0.025(0.64)	0.025(0.64)	0.46(11.7)	160(231)
4	10	0.025(0.64)	0.025(0.64)	0.50(12.8)	200(295)
5	10	0.025(0.64)	0.025(0.64)	0.58(14.8)	260(385)
7	10	0.025(0.64)	0.025(0.64)	0.63(16.1)	345(511)
9	10	0.025(0.64)	0.025(0.64)	0.74(18.9)	435(647)
12	10	0.025(0.64)	0.025(0.64)	0.83(21.0)	565(836)
Overall Shielded
Pair Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
2	18	0.020(0.51)	0.045(1.14)	0.28(7.2)	45(62)
3	18	0.020(0.51)	0.045(1.14)	0.30(7.5)	55(76)
4	18	0.020(0.51)	0.045(1.14)	0.32(8.1)	65(91)
5	18	0.020(0.51)	0.045(1.14)	0.34(8.8)	75(106)
7	18	0.020(0.51)	0.045(1.14)	0.37(9.4)	90(133)
9	18	0.020(0.51)	0.045(1.14)	0.43(10.9)	115(165)
12	18	0.020(0.51)	0.045(1.14)	0.48(12.1)	140(207)
19	18	0.020(0.51)	0.045(1.14)	0.56(14.1)	210(306)
25	18	0.020(0.51)	0.060(1.52)	0.68(17.2)	285(423)
37	18	0.020(0.51)	0.060(1.52)	0.77(19.5)	395(583)
2	16	0.020(0.51)	0.045(1.14)	0.31(7.8)	55 (76)
3	16	0.020(0.51)	0.045(1.14)	0.32(8.2)	65(95)
4	16	0.020(0.51)	0.045(1.14)	0.35(8.9)	80(116)
5	16	0.020(0.51)	0.045(1.14)	0.38(9.6)	95(137)
7	16	0.020(0.51)	0.045(1.14)	0.41(10.4)	120(175)
9	16	0.020(0.51)	0.045(1.14)	0.47(12.1)	150(219)
12	16	0.020(0.51)	0.045(1.14)	0.53(13.4)	190(277)
16	16	0.020(0.51)	0.060(1.52)	0.62(15.7)	265(387)
19	16	0.020(0.51)	0.060(1.52)	0.65(16.4)	300(444)
25	16	0.020(0.51)	0.060(1.52)	0.75(19.0)	385(569)
30	16	0.020(0.51)	0.060(1.52)	0.79(20.1)	450(663)
37	16	0.020(0.51)	0.060(1.52)	0.85(21.6)	535(794)
2	14	0.020(0.51)	0.045(1.14)	0.33(8.4)	65(94)
3	14	0.020(0.51)	0.045(1.14)	0.35(8.9)	65(95)
4	14	0.020(0.51)	0.045(1.14)	0.38(9.6)	85(121)
5	14	0.020(0.51)	0.045(1.14)	0.41(10.4)	105(150)
7	14	0.020(0.51)	0.045(1.14)	0.44(11.3)	125(179)
9	14	0.020(0.51)	0.045(1.14)	0.52(13.2)	160(232)
12	14	0.020(0.51)	0.060(1.52)	0.61(15.4)	200(292)
19	14	0.020(0.51)	0.060(1.52)	0.71(18.0)	270(400)
25	14	0.020(0.51)	0.060(1.52)	0.82(20.9)	405(597)
30	14	0.020(0.51)	0.060(1.52)	0.87(22.0)	520(770)
37	14	0.020(0.51)	0.080(2.03)	0.98(24.8)	610(1,144)
2	12	0.020(0.51)	0.045(1.14)	0.37(9.3)	85(124)
3	12	0.020(0.51)	0.045(1.14)	0.39(9.8)	110(163)
4	12	0.020(0.51)	0.045(1.14)	0.42(10.7)	140(205)
5	12	0.020(0.51)	0.045(1.14)	0.46(11.6)	170(246)
7	12	0.020(0.51)	0.045(1.14)	0.50(12.6)	220(325)
9	12	0.020(0.51)	0.060(1.52)	0.62(15.6)	295(438)
12	12	0.020(0.51)	0.060(1.52)	0.68(17.3)	380(560)
19	12	0.020(0.51)	0.060(1.52)	0.80(20.2)	570(846)
25	12	0.020(0.51)	0.080(2.03)	0.97(24.6)	775(1,153)
30	12	0.020(0.51)	0.080(2.03)	1.02(26.0)	910(1,350)
37	12	0.020(0.51)	0.080(2.03)	1.10(28.0)	1,095(1,627)
2	12	0.020(0.51)	0.045(1.14)	0.43(11.0)	120(176)
3	10	0.025(0.64)	0.045(1.14)	0.46(11.7)	160(238)
4	10	0.025(0.64)	0.045(1.14)	0.50(12.8)	205(302)
5	10	0.025(0.64)	0.060(1.52)	0.58(14.7)	265(392)
7	10	0.025(0.64)	0.060(1.52)	0.63(16.0)	350(517)
9	10	0.025(0.64)	0.060(1.52)	0.74(18.8)	440(654)
12	10	0.025(0.64)	0.060(1.52)	0.82(20.9)	570(843)
