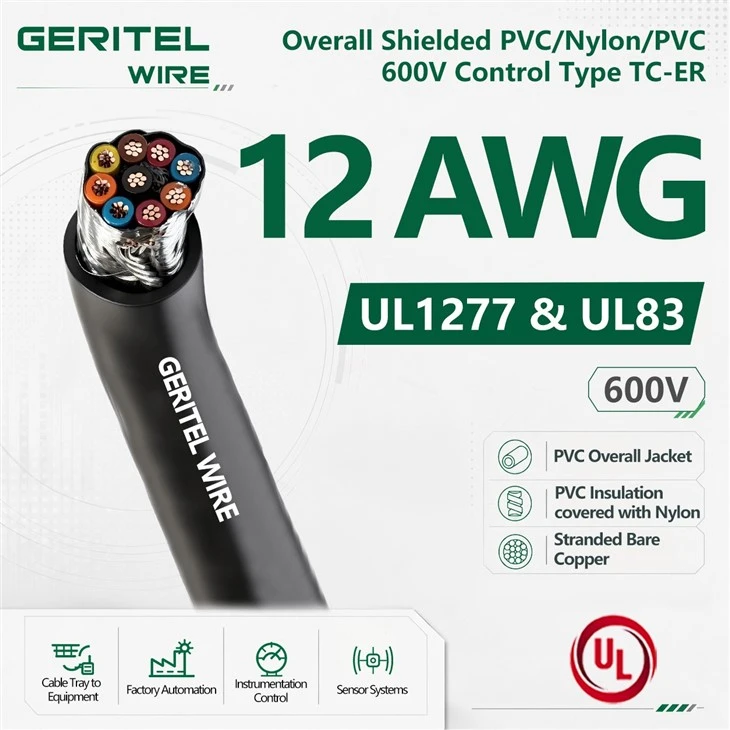

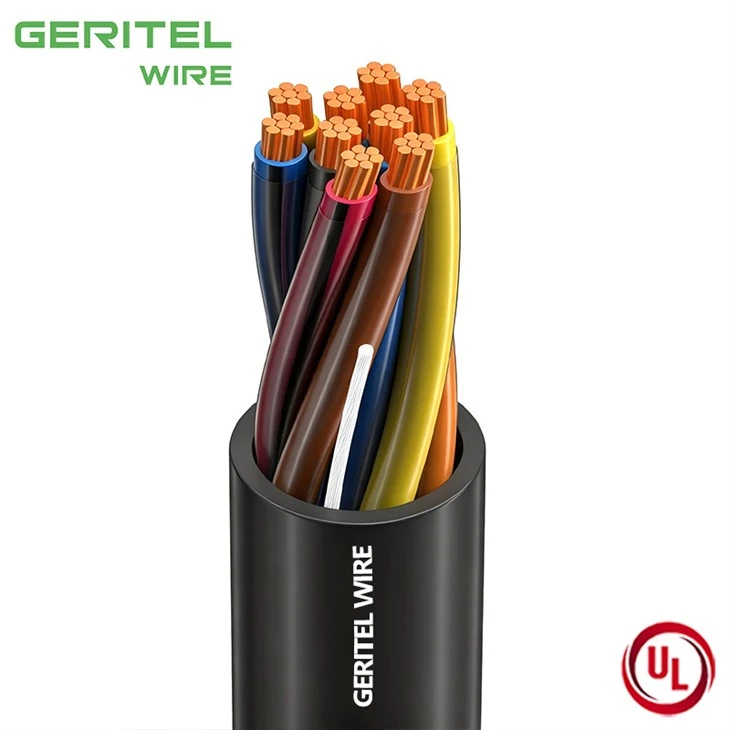

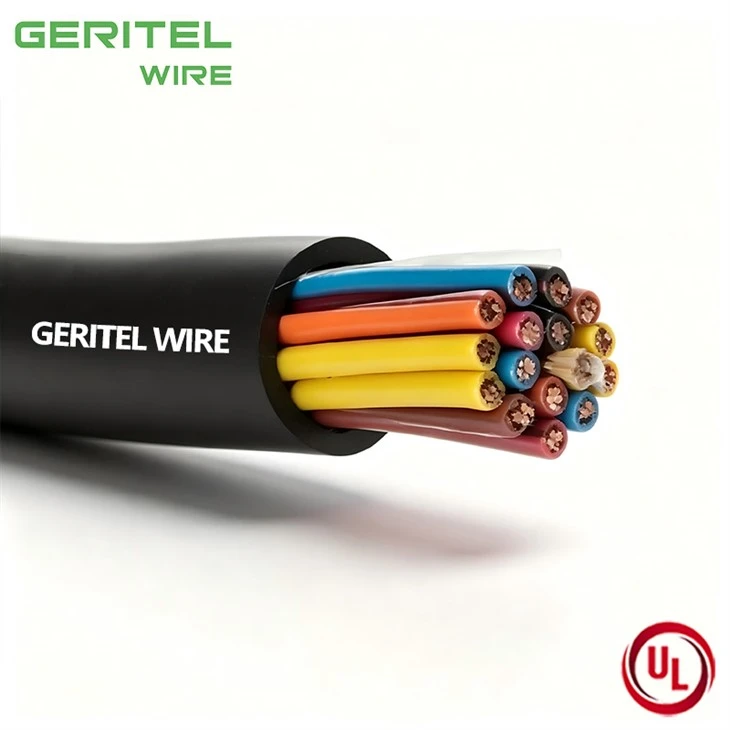

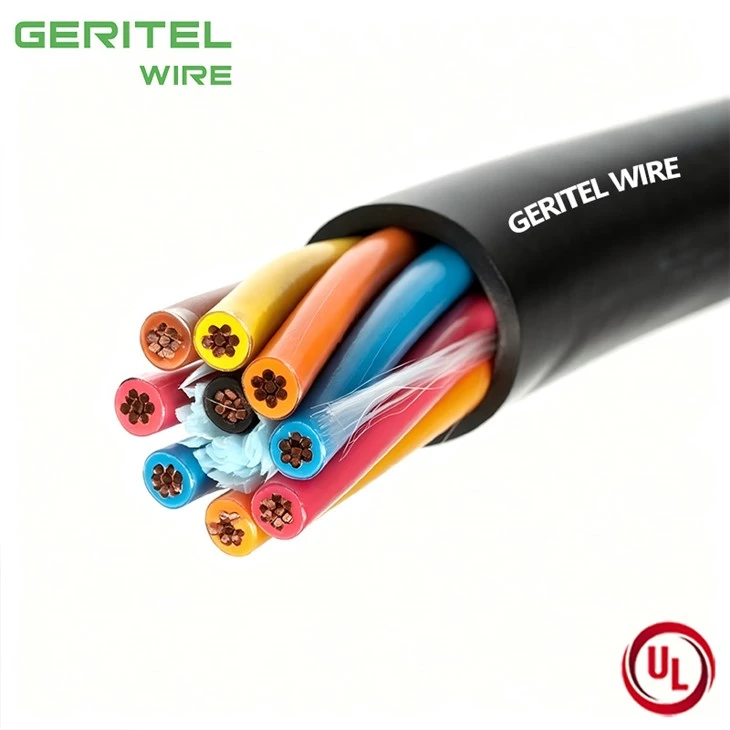

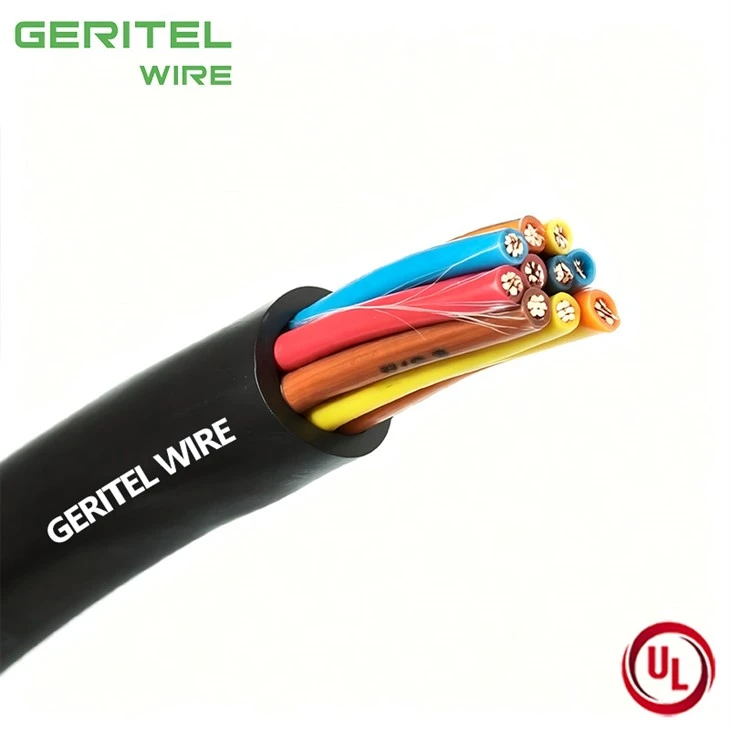

12 AWG 600V Type TC-ER Shielded Control Cable PVC Nylon PVC

12 AWG 600V Type TC-ER Shielded Control Cable PVC Nylon PVC
Details:
·PVC Overall Jacket
·Fully annealed bare copper Class B
·Polyvinyl Chloride (PVC) covered
·Filler(as needed)
·Voltage Rating:600V
·Temperatura:Rated at 90℃ wet or dry
·Size Range:Available in 18 through 10 AWG
·Standard:UL83/UL1277
·Available in 2 through 37 conductors
·Color:Per ICEA S-58-679 Method 1, Table E-2; additional color coding options available
Send Inquiry
Download
Description
Technical Parameters
Certification

600V control cable for raceway

PRODUCT REAL SHOT



TC-ER control cable for wireway
TC-ER control cable for wireway
600V control cable for wireway

VNTC tray cable for trough

12 AWG Shielded PVC Nylon PVC Class 1 Div 2 VNTC Tray Cable
This 12 AWG 600V Type TC-ER shielded control cable is qualified Class 1 Div 2 VNTC tray cable, standard certified UL 1277 tray cable 600V, built with ASTM B8 stranded copper tray cable conductors, and suitable robust TC-ER control cable for channel. Featuring triple-layer PVC/Nylon/PVC THHN insulation, full aluminum Mylar foil shielding and anti-aging black PVC jacket, it adapts to cable channel, tray, conduit, outdoor exposed and direct burial wiring in hazardous industrial zones, rated 90°C wet/dry with full North American electrical standard compliance.
PRODUCT SPECIFICATIONS



THHN PVC tray cable for wireway

Product Description



The PVC/Nylon/PVC (THHN/THWN-2), 600V Control, Type TC-ER and Direct Burial Cables consist of fully annealed bare copper Class B stranded conductors, covered with oil and gas resistant Polyvinyl Chloride (PVC) and clear Nylon insulation, unshielded or shielded and black PVC jacket. These cables are used in industrial power or station control circuits.

Applications



  • In conduit, duct, free air, raceways and direct burial, primary installations include cable trays, and outdoor locations

  • In wet or dry locations

  • Approved for Class I, Div. 2 industrial hazardous locations per NEC

  • Permitted for Exposed Run (ER) used in accordance with NEC for 3 or more conductors; two conductors without a ground wire are Type TC only

Features


  • Rated at 90°C wet or dry
  • Ripcord (as needed)
  • Excellent sunlight resistance
  • Meets cold bend test at -25°C
SPECIFICATIONS

Conductor Count

 Available in 2 through 37 conductors

Conductor

 Fully annealed bare copper Class B

Gauge Sizes

 Available in 18 through 10 AWG

Insulation

 Polyvinyl Chloride (PVC) covered
• 14 AWG and larger are type THHN/THWN-2
Color Coding Per ICEA S-58-679 Method 1, Table E-2; additional color coding options available
Fillers Non-hygroscopic fillers, as necessary to obtain a circular cross section
Shield(optional) Overall aluminum polyester (mylar) foil in contact with 20 AWG stranded tinned copper drain wire
Jacket Polyvinyl Chloride (PVC)

Jacket Marking

 Conductor sizes 18 AWG – 16 AWG: 00000 FT GREATER WIRE CABLE XXAWG XX/C PVC/NYLON PVC JKT (or OS) 600V 90C WET OR DRY TYPE TC (or -ER) (UL) SUN RES DIR BUR FT4/IEEE1202 MADE IN USA MMDDYYYYConductor sizes 14 AWG – 10 AWG: 00000 FT GREATER WIRE CABLE XXAWG XX/C THHN/THWN-2 PVC JKT (or OS) 600V 90C WET OR DRY TYPE TC (or -ER) (UL) SUN RES DIR BUR FT4/IEEE1202 MADE IN USA MMDDYYYY

Packaging

 Non-returnable wood reels in a variety of lengths and dimensions

Performance Compliances

ASTM B8, ASTM B33

UL 83

UL 1277

UL 1685 (flame exposure test)

ANSI/NEMA WC 70/ICEA S-95-658

ANSI/NEMA WC 57/ICEA S-73-532

NEC

Other Compliances

EPA 40 CFR, Part 261

OSHA

RoHS-compliant/RoHS 2-compliant

REACH-compliant

Unshielded

Conductor Count Conductor Size AWG Insulation Thickness
in (mm)		 Jacket Thickness
in (mm)		 Approx. Overall Diameter
in (mm)		 Approx. Net Weight
lbs/kft (kg/km)

2

 18 0.020(0.51) 0.045(1.14) 0.28(7.1) 40(56)
3 18 0.020(0.51) 0.045(1.14) 0.29(7.5 50 (69)
4 18 0.020(0.51) 0.045(1.14) 0.32(8.0) 60(84)
5 18 0.020(0.51) 0.045(1.14) 0.34(8.7) 70(99)
7 18 0.020(0.51) 0.045(1.14) 0.37(9.4) 85(126)
9 18 0.020(0.51) 0.045(1.14) 0.43(10.9) 110(158)
12 18 0.020(0.51) 0.045(1.14) 0.47(12.0) 135(199)
19 18 0.020(0.51) 0.045(1.14) 0.55(14.0) 205(298)
25 18 0.020(0.51) 0.060(1.52) 0.67(17.1) 280(414)
37 18 0.020(0.51) 0.060(1.52) 0.76(19.4) 390(573)
2 16 0.020(0.51) 0.045(1.14) 0.30(7.7) 50 (69)
3 16 0.020(0.51) 0.045(1.14) 0.32(8.1) 60(88)
4 16 0.020(0.51) 0.045(1.14) 0.35(8.8) 75(109)
5 16 0.020(0.51) 0.045(1.14) 0.37(9.5) 90 (130)
7 16 0.020(0.51) 0.045(1.14) 0.40(10.3) 115(168)
9 16 0.020(0.51) 0.045(1.14) 0.47(12.0) 145(211)
12 16 0.020(0.51) 0.045(1.14) 0.52(13.3) 185(269)
16 16 0.020(0.51) 0.060(1.52) 0.61(15.6) 255(378)
19 16 0.020(0.51) 0.060(1.52) 0.64(16.4) 295(435)
25 16 0.020(0.51) 0.060(1.52) 0.75(18.9) 380(560)
30 16 0.020(0.51) 0.060(1.52) 0.79(20.0) 440(653)
37 16 0.020(0.51) 0.060(1.52) 0.85(21.5) 530(784)
2 14 0.020(0.51) 0.045(1.14) 0.33(8.4) 60(88)
3 14 0.020(0.51) 0.045(1.14) 0.35(8.8) 80(115)
4 14 0.020(0.51) 0.045(1.14) 0.38(9.6) 100(143)
5 14 0.020(0.51) 0.045(1.14) 0.41(10.4) 120(172)
7 14 0.020(0.51) 0.045(1.14) 0.45(11.3) 155(226)
9 14 0.020(0.51) 0.045(1.14) 0.52(13.2) 195(285)
12 14 0.020(0.51) 0.060(1.52) 0.61(15.5) 265(393)
19 14 0.020(0.51) 0.060(1.52) 0.71(18.1) 400(591)
25 14 0.020(0.51) 0.060(1.52) 0.83(21.0)   515(763)
30 14 0.020(0.51) 0.060(1.52) 0.87(22.2)    605(895)
37 14 0.020(0.51) 0.080(2.03) 0.98(25.0) 765(1,138)
2 12 0.020(0.51) 0.045(1.14) 0.37(9.3) 80(117)
3 12 0.020(0.51) 0.045(1.14) 0.39(9.8) 110(157)
4 12 0.020(0.51) 0.045(1.14) 0.42(10.7) 135(198)
5 12 0.020(0.51) 0.045(1.14) 0.46(11.7) 165(240)
7 12 0.020(0.51) 0.045(1.14) 0.50(12.7) 215(318)
9 12 0.020(0.51) 0.060(1.52) 0.62(15.7) 290(431)
12 12 0.020(0.51) 0.060(1.52) 0.69(17.4) 375(553)
19 12 0.020(0.51) 0.060(1.52) 0.80(20.3) 565(840)
25 12 0.020(0.51) 0.080(2.03) 0.98(24.8) 775(1,147)
30 12 0.020(0.51) 0.080(2.03) 1.03(26.2) 905(1,344)
37 12 0.020(0.51) 0.080(2.03) 1.11(28.2) 1,090(1,622)
2 10 0.025(0.64) 0.025(0.64) 0.43(11.0) 115(169)
3 10 0.025(0.64) 0.025(0.64) 0.46(11.7) 160(231)
4 10 0.025(0.64) 0.025(0.64) 0.50(12.8) 200(295)
5 10 0.025(0.64) 0.025(0.64) 0.58(14.8) 260(385)
7 10 0.025(0.64) 0.025(0.64) 0.63(16.1) 345(511)
9 10 0.025(0.64) 0.025(0.64) 0.74(18.9) 435(647)
12 10 0.025(0.64) 0.025(0.64) 0.83(21.0) 565(836)



Overall Shielded
Pair Count Conductor Size AWG Insulation Thickness
in (mm)		 Jacket Thickness
in (mm)		 Approx. Overall Diameter
in (mm)		 Approx. Net Weight
lbs/kft (kg/km)

2

 18 0.020(0.51) 0.045(1.14) 0.28(7.2) 45(62)
3 18 0.020(0.51) 0.045(1.14) 0.30(7.5) 55(76)
4 18 0.020(0.51) 0.045(1.14) 0.32(8.1) 65(91)
5 18 0.020(0.51) 0.045(1.14) 0.34(8.8) 75(106)
7 18 0.020(0.51) 0.045(1.14) 0.37(9.4) 90(133)
9 18 0.020(0.51) 0.045(1.14) 0.43(10.9) 115(165)
12 18 0.020(0.51) 0.045(1.14) 0.48(12.1) 140(207)
19 18 0.020(0.51) 0.045(1.14) 0.56(14.1) 210(306)
25 18 0.020(0.51) 0.060(1.52) 0.68(17.2) 285(423)
37 18 0.020(0.51) 0.060(1.52) 0.77(19.5) 395(583)
2 16 0.020(0.51) 0.045(1.14) 0.31(7.8) 55 (76)
3 16 0.020(0.51) 0.045(1.14) 0.32(8.2) 65(95)
4 16 0.020(0.51) 0.045(1.14) 0.35(8.9) 80(116)
5 16 0.020(0.51) 0.045(1.14) 0.38(9.6) 95(137)
7 16 0.020(0.51) 0.045(1.14) 0.41(10.4) 120(175)
9 16 0.020(0.51) 0.045(1.14) 0.47(12.1) 150(219)
12 16 0.020(0.51) 0.045(1.14) 0.53(13.4) 190(277)
16 16 0.020(0.51) 0.060(1.52) 0.62(15.7) 265(387)
19 16 0.020(0.51) 0.060(1.52) 0.65(16.4) 300(444)
25 16 0.020(0.51) 0.060(1.52) 0.75(19.0) 385(569)
30 16 0.020(0.51) 0.060(1.52) 0.79(20.1) 450(663)
37 16 0.020(0.51) 0.060(1.52) 0.85(21.6) 535(794)
2 14 0.020(0.51) 0.045(1.14) 0.33(8.4) 65(94)
3 14 0.020(0.51) 0.045(1.14) 0.35(8.9) 65(95)
4 14 0.020(0.51) 0.045(1.14) 0.38(9.6) 85(121)
5 14 0.020(0.51) 0.045(1.14) 0.41(10.4) 105(150)
7 14 0.020(0.51) 0.045(1.14) 0.44(11.3) 125(179)
9 14 0.020(0.51) 0.045(1.14) 0.52(13.2) 160(232)
12 14 0.020(0.51) 0.060(1.52) 0.61(15.4) 200(292)
19 14 0.020(0.51) 0.060(1.52) 0.71(18.0) 270(400)
25 14 0.020(0.51) 0.060(1.52) 0.82(20.9) 405(597)
30 14 0.020(0.51) 0.060(1.52) 0.87(22.0) 520(770)
37 14 0.020(0.51) 0.080(2.03) 0.98(24.8) 610(1,144)
2 12 0.020(0.51) 0.045(1.14) 0.37(9.3) 85(124)
3 12 0.020(0.51) 0.045(1.14) 0.39(9.8) 110(163)
4 12 0.020(0.51) 0.045(1.14) 0.42(10.7) 140(205)
5 12 0.020(0.51) 0.045(1.14) 0.46(11.6) 170(246)
7 12 0.020(0.51) 0.045(1.14) 0.50(12.6) 220(325)
9 12 0.020(0.51) 0.060(1.52) 0.62(15.6) 295(438)
12 12 0.020(0.51) 0.060(1.52) 0.68(17.3) 380(560)
19 12 0.020(0.51) 0.060(1.52) 0.80(20.2) 570(846)
25 12 0.020(0.51) 0.080(2.03) 0.97(24.6) 775(1,153)
30 12 0.020(0.51) 0.080(2.03) 1.02(26.0) 910(1,350)
37 12 0.020(0.51) 0.080(2.03) 1.10(28.0) 1,095(1,627)
2 12 0.020(0.51) 0.045(1.14) 0.43(11.0) 120(176)
3 10 0.025(0.64) 0.045(1.14) 0.46(11.7) 160(238)
4 10 0.025(0.64) 0.045(1.14) 0.50(12.8) 205(302)
5 10 0.025(0.64) 0.060(1.52) 0.58(14.7) 265(392)
7 10 0.025(0.64) 0.060(1.52) 0.63(16.0) 350(517)
9 10 0.025(0.64) 0.060(1.52) 0.74(18.8) 440(654)
12 10 0.025(0.64) 0.060(1.52) 0.82(20.9) 570(843)
