TC-ER control cable for raceway

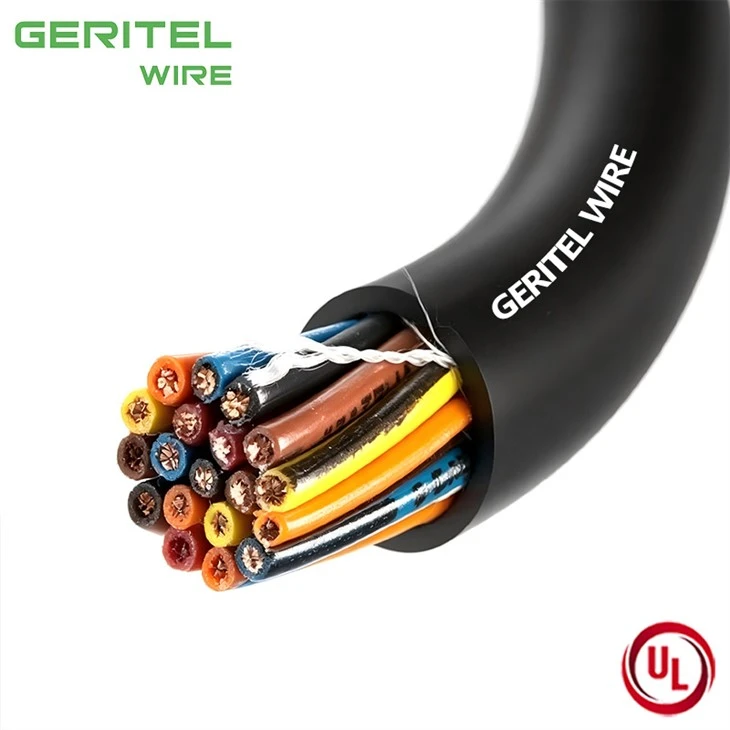

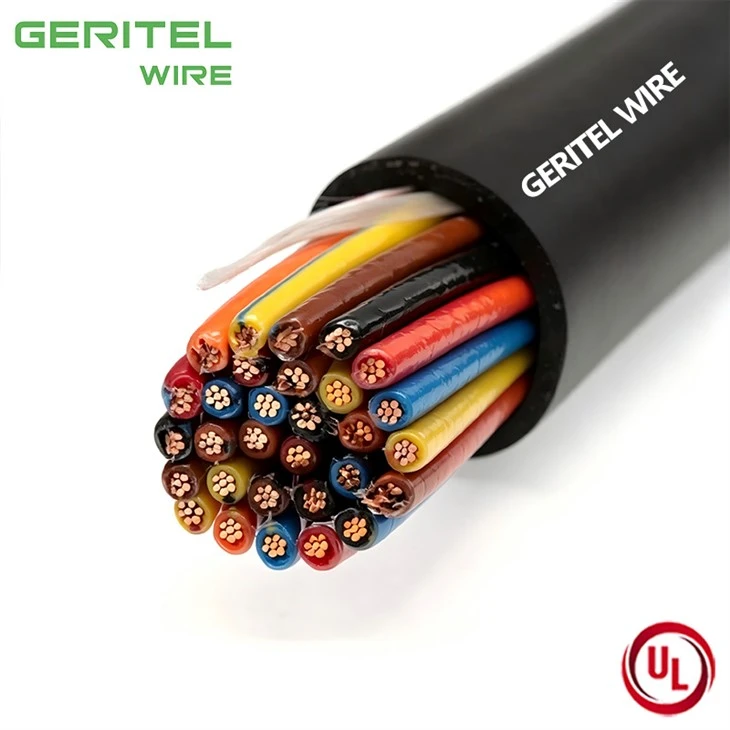

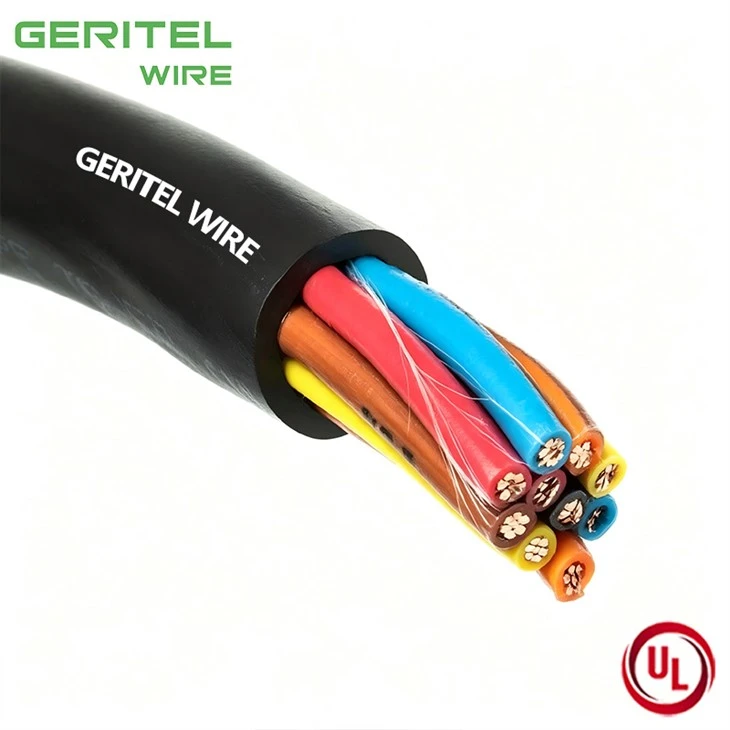

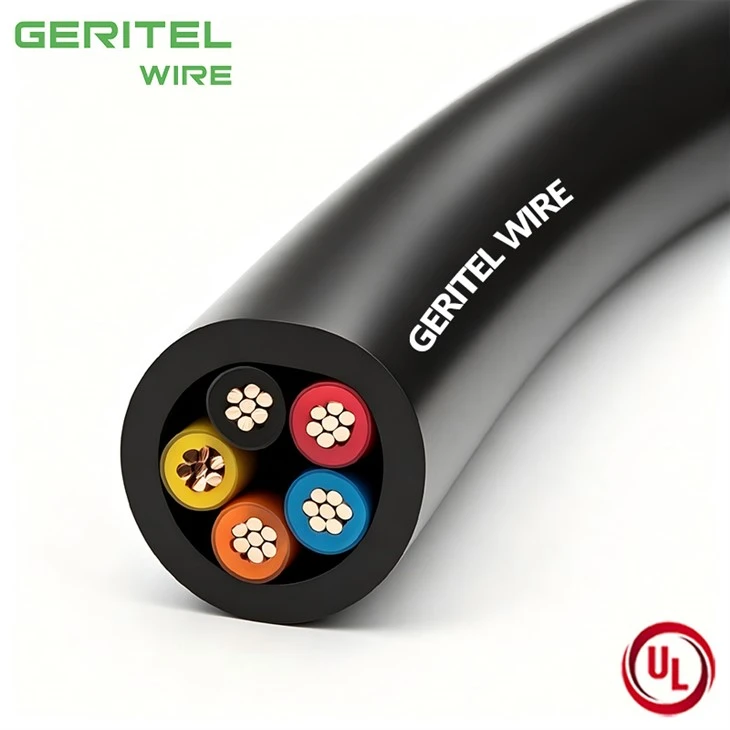

14 AWG THHN PVC Nylon Unshielded TC-ER VNTC Tray Cable

This 14 AWG PVC Nylon unshielded tray control cable acts as durable VNTC tray cable for conduit, standard THHN PVC tray cable for raceway, and certified heavy-duty TC-ER control cable for trough. Built with THHN/THWN-2 PVC-nylon composite insulation and UV-resistant black PVC jacket, it fits exposed runs, cable troughs, conduits, raceways and underground direct burial for wet & dry industrial control circuits, rated 90℃ with full UL certifications.

PRODUCT SPECIFICATIONS

600V control cable for ventilated tray

Product Description

The PVC/Nylon/PVC (THHN/THWN-2), 600V Control, Type TC-ER and Direct Burial Cables consist of fully annealed bare copper Class B stranded conductors, covered with oil and gas resistant Polyvinyl Chloride (PVC) and clear Nylon insulation, unshielded or shielded and black PVC jacket. These cables are used in industrial power or station control circuits.

Applications

In conduit, duct, free air, raceways and direct burial, primary installations include cable trays, and outdoor locations
In wet or dry locations
Approved for Class I, Div. 2 industrial hazardous locations per NEC
Permitted for Exposed Run (ER) used in accordance with NEC for 3 or more conductors; two conductors without a ground wire are Type TC only

Features

Rated at 90°C wet or dry
Ripcord (as needed)
Excellent sunlight resistance
Meets cold bend test at -25°C

SPECIFICATIONS
Conductor Count	Available in 2 through 37 conductors
Conductor	Fully annealed bare copper Class B
Gauge Sizes	Available in 18 through 10 AWG
Insulation	Polyvinyl Chloride (PVC) covered • 14 AWG and larger are type THHN/THWN-2
Color Coding	Per ICEA S-58-679 Method 1, Table E-2; additional color coding options available
Fillers	Non-hygroscopic fillers, as necessary to obtain a circular cross section
Shield(optional)	Overall aluminum polyester (mylar) foil in contact with 20 AWG stranded tinned copper drain wire
Jacket	Polyvinyl Chloride (PVC)
Jacket Marking	Conductor sizes 18 AWG – 16 AWG: 00000 FT GREATER WIRE CABLE XXAWG XX/C PVC/NYLON PVC JKT (or OS) 600V 90C WET OR DRY TYPE TC (or -ER) (UL) SUN RES DIR BUR FT4/IEEE1202 MADE IN USA MMDDYYYYConductor sizes 14 AWG – 10 AWG: 00000 FT GREATER WIRE CABLE XXAWG XX/C THHN/THWN-2 PVC JKT (or OS) 600V 90C WET OR DRY TYPE TC (or -ER) (UL) SUN RES DIR BUR FT4/IEEE1202 MADE IN USA MMDDYYYY
Packaging	Non-returnable wood reels in a variety of lengths and dimensions
Performance Compliances	ASTM B8, ASTM B33 UL 83 UL 1277 UL 1685 (flame exposure test) ANSI/NEMA WC 70/ICEA S-95-658 ANSI/NEMA WC 57/ICEA S-73-532 NEC
Other Compliances	EPA 40 CFR, Part 261 OSHA RoHS-compliant/RoHS 2-compliant REACH-compliant

Unshielded

Conductor Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
2	18	0.020(0.51)	0.045(1.14)	0.28(7.1)	40(56)
3	18	0.020(0.51)	0.045(1.14)	0.29(7.5	50 (69)
4	18	0.020(0.51)	0.045(1.14)	0.32(8.0)	60(84)
5	18	0.020(0.51)	0.045(1.14)	0.34(8.7)	70(99)
7	18	0.020(0.51)	0.045(1.14)	0.37(9.4)	85(126)
9	18	0.020(0.51)	0.045(1.14)	0.43(10.9)	110(158)
12	18	0.020(0.51)	0.045(1.14)	0.47(12.0)	135(199)
19	18	0.020(0.51)	0.045(1.14)	0.55(14.0)	205(298)
25	18	0.020(0.51)	0.060(1.52)	0.67(17.1)	280(414)
37	18	0.020(0.51)	0.060(1.52)	0.76(19.4)	390(573)
2	16	0.020(0.51)	0.045(1.14)	0.30(7.7)	50 (69)
3	16	0.020(0.51)	0.045(1.14)	0.32(8.1)	60(88)
4	16	0.020(0.51)	0.045(1.14)	0.35(8.8)	75(109)
5	16	0.020(0.51)	0.045(1.14)	0.37(9.5)	90 (130)
7	16	0.020(0.51)	0.045(1.14)	0.40(10.3)	115(168)
9	16	0.020(0.51)	0.045(1.14)	0.47(12.0)	145(211)
12	16	0.020(0.51)	0.045(1.14)	0.52(13.3)	185(269)
16	16	0.020(0.51)	0.060(1.52)	0.61(15.6)	255(378)
19	16	0.020(0.51)	0.060(1.52)	0.64(16.4)	295(435)
25	16	0.020(0.51)	0.060(1.52)	0.75(18.9)	380(560)
30	16	0.020(0.51)	0.060(1.52)	0.79(20.0)	440(653)
37	16	0.020(0.51)	0.060(1.52)	0.85(21.5)	530(784)
2	14	0.020(0.51)	0.045(1.14)	0.33(8.4)	60(88)
3	14	0.020(0.51)	0.045(1.14)	0.35(8.8)	80(115)
4	14	0.020(0.51)	0.045(1.14)	0.38(9.6)	100(143)
5	14	0.020(0.51)	0.045(1.14)	0.41(10.4)	120(172)
7	14	0.020(0.51)	0.045(1.14)	0.45(11.3)	155(226)
9	14	0.020(0.51)	0.045(1.14)	0.52(13.2)	195(285)
12	14	0.020(0.51)	0.060(1.52)	0.61(15.5)	265(393)
19	14	0.020(0.51)	0.060(1.52)	0.71(18.1)	400(591)
25	14	0.020(0.51)	0.060(1.52)	0.83(21.0)	515(763)
30	14	0.020(0.51)	0.060(1.52)	0.87(22.2)	605(895)
37	14	0.020(0.51)	0.080(2.03)	0.98(25.0)	765(1,138)
2	12	0.020(0.51)	0.045(1.14)	0.37(9.3)	80(117)
3	12	0.020(0.51)	0.045(1.14)	0.39(9.8)	110(157)
4	12	0.020(0.51)	0.045(1.14)	0.42(10.7)	135(198)
5	12	0.020(0.51)	0.045(1.14)	0.46(11.7)	165(240)
7	12	0.020(0.51)	0.045(1.14)	0.50(12.7)	215(318)
9	12	0.020(0.51)	0.060(1.52)	0.62(15.7)	290(431)
12	12	0.020(0.51)	0.060(1.52)	0.69(17.4)	375(553)
19	12	0.020(0.51)	0.060(1.52)	0.80(20.3)	565(840)
25	12	0.020(0.51)	0.080(2.03)	0.98(24.8)	775(1,147)
30	12	0.020(0.51)	0.080(2.03)	1.03(26.2)	905(1,344)
37	12	0.020(0.51)	0.080(2.03)	1.11(28.2)	1,090(1,622)
2	10	0.025(0.64)	0.025(0.64)	0.43(11.0)	115(169)
3	10	0.025(0.64)	0.025(0.64)	0.46(11.7)	160(231)
4	10	0.025(0.64)	0.025(0.64)	0.50(12.8)	200(295)
5	10	0.025(0.64)	0.025(0.64)	0.58(14.8)	260(385)
7	10	0.025(0.64)	0.025(0.64)	0.63(16.1)	345(511)
9	10	0.025(0.64)	0.025(0.64)	0.74(18.9)	435(647)
12	10	0.025(0.64)	0.025(0.64)	0.83(21.0)	565(836)
Overall Shielded
Pair Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
2	18	0.020(0.51)	0.045(1.14)	0.28(7.2)	45(62)
3	18	0.020(0.51)	0.045(1.14)	0.30(7.5)	55(76)
4	18	0.020(0.51)	0.045(1.14)	0.32(8.1)	65(91)
5	18	0.020(0.51)	0.045(1.14)	0.34(8.8)	75(106)
7	18	0.020(0.51)	0.045(1.14)	0.37(9.4)	90(133)
9	18	0.020(0.51)	0.045(1.14)	0.43(10.9)	115(165)
12	18	0.020(0.51)	0.045(1.14)	0.48(12.1)	140(207)
19	18	0.020(0.51)	0.045(1.14)	0.56(14.1)	210(306)
25	18	0.020(0.51)	0.060(1.52)	0.68(17.2)	285(423)
37	18	0.020(0.51)	0.060(1.52)	0.77(19.5)	395(583)
2	16	0.020(0.51)	0.045(1.14)	0.31(7.8)	55 (76)
3	16	0.020(0.51)	0.045(1.14)	0.32(8.2)	65(95)
4	16	0.020(0.51)	0.045(1.14)	0.35(8.9)	80(116)
5	16	0.020(0.51)	0.045(1.14)	0.38(9.6)	95(137)
7	16	0.020(0.51)	0.045(1.14)	0.41(10.4)	120(175)
9	16	0.020(0.51)	0.045(1.14)	0.47(12.1)	150(219)
12	16	0.020(0.51)	0.045(1.14)	0.53(13.4)	190(277)
16	16	0.020(0.51)	0.060(1.52)	0.62(15.7)	265(387)
19	16	0.020(0.51)	0.060(1.52)	0.65(16.4)	300(444)
25	16	0.020(0.51)	0.060(1.52)	0.75(19.0)	385(569)
30	16	0.020(0.51)	0.060(1.52)	0.79(20.1)	450(663)
37	16	0.020(0.51)	0.060(1.52)	0.85(21.6)	535(794)
2	14	0.020(0.51)	0.045(1.14)	0.33(8.4)	65(94)
3	14	0.020(0.51)	0.045(1.14)	0.35(8.9)	65(95)
4	14	0.020(0.51)	0.045(1.14)	0.38(9.6)	85(121)
5	14	0.020(0.51)	0.045(1.14)	0.41(10.4)	105(150)
7	14	0.020(0.51)	0.045(1.14)	0.44(11.3)	125(179)
9	14	0.020(0.51)	0.045(1.14)	0.52(13.2)	160(232)
12	14	0.020(0.51)	0.060(1.52)	0.61(15.4)	200(292)
19	14	0.020(0.51)	0.060(1.52)	0.71(18.0)	270(400)
25	14	0.020(0.51)	0.060(1.52)	0.82(20.9)	405(597)
30	14	0.020(0.51)	0.060(1.52)	0.87(22.0)	520(770)
37	14	0.020(0.51)	0.080(2.03)	0.98(24.8)	610(1,144)
2	12	0.020(0.51)	0.045(1.14)	0.37(9.3)	85(124)
3	12	0.020(0.51)	0.045(1.14)	0.39(9.8)	110(163)
4	12	0.020(0.51)	0.045(1.14)	0.42(10.7)	140(205)
5	12	0.020(0.51)	0.045(1.14)	0.46(11.6)	170(246)
7	12	0.020(0.51)	0.045(1.14)	0.50(12.6)	220(325)
9	12	0.020(0.51)	0.060(1.52)	0.62(15.6)	295(438)
12	12	0.020(0.51)	0.060(1.52)	0.68(17.3)	380(560)
19	12	0.020(0.51)	0.060(1.52)	0.80(20.2)	570(846)
25	12	0.020(0.51)	0.080(2.03)	0.97(24.6)	775(1,153)
30	12	0.020(0.51)	0.080(2.03)	1.02(26.0)	910(1,350)
37	12	0.020(0.51)	0.080(2.03)	1.10(28.0)	1,095(1,627)
2	12	0.020(0.51)	0.045(1.14)	0.43(11.0)	120(176)
3	10	0.025(0.64)	0.045(1.14)	0.46(11.7)	160(238)
4	10	0.025(0.64)	0.045(1.14)	0.50(12.8)	205(302)
5	10	0.025(0.64)	0.060(1.52)	0.58(14.7)	265(392)
7	10	0.025(0.64)	0.060(1.52)	0.63(16.0)	350(517)
9	10	0.025(0.64)	0.060(1.52)	0.74(18.8)	440(654)
12	10	0.025(0.64)	0.060(1.52)	0.82(20.9)	570(843)
