3/0 AWG Heavy Duty Tray Cable for Mining Equipment Power Distribution
PRODUCT SPECIFICATIONS
Product Description

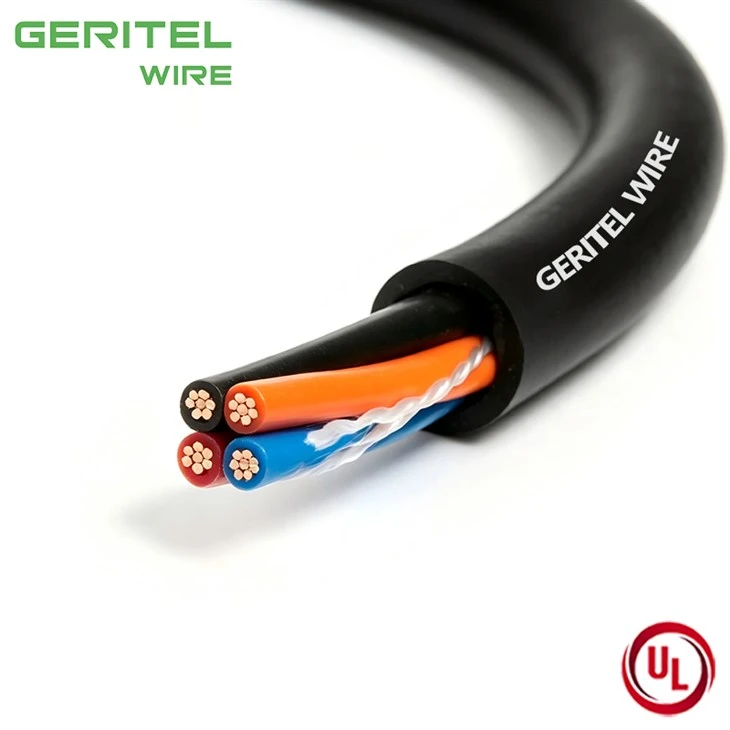

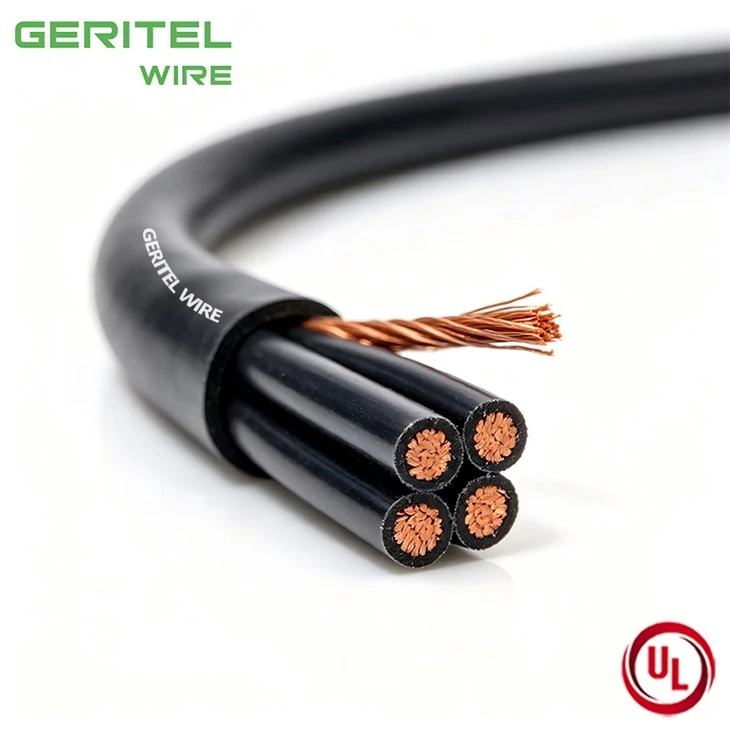

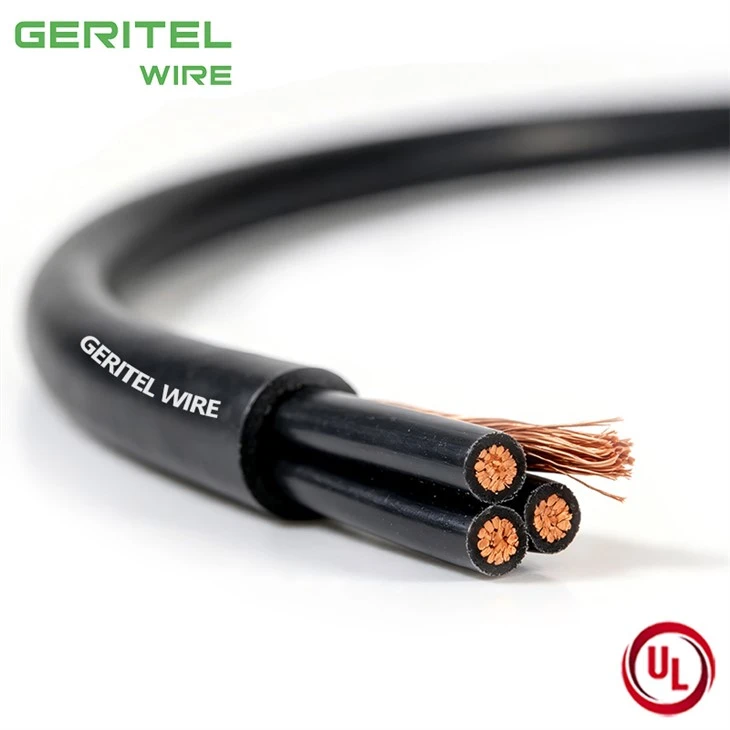

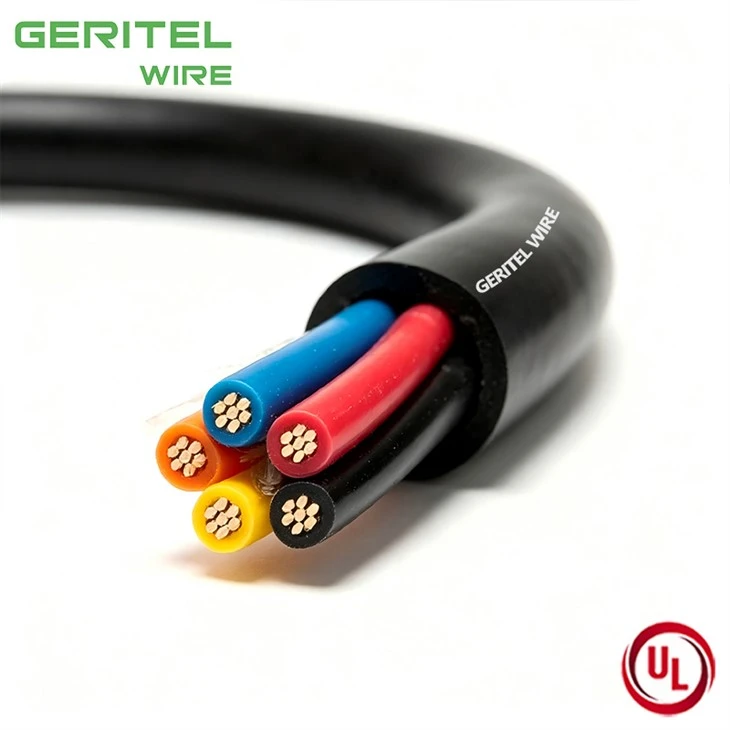

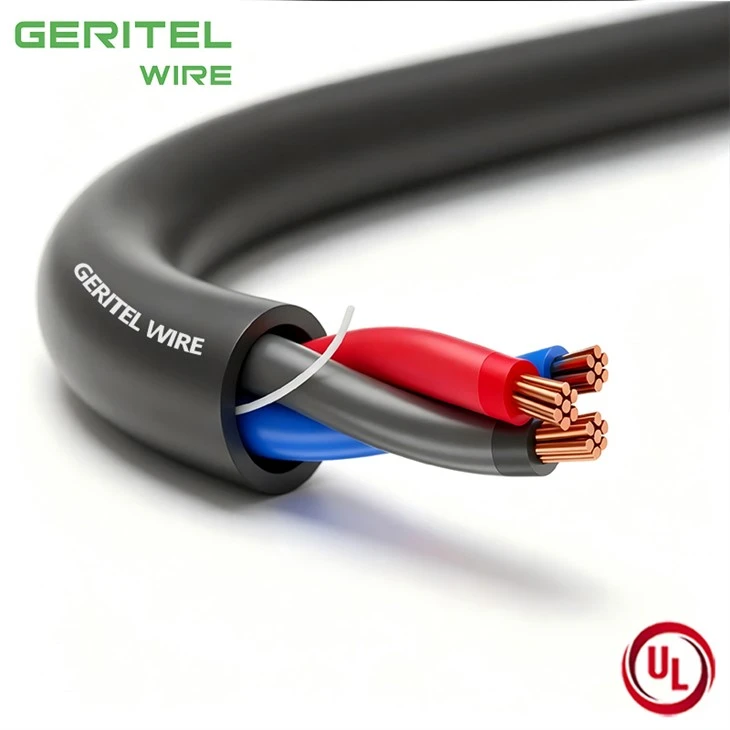

The PVC/Nylon/PVC (THHN/THWN-2), 600V Power, TC-ER Direct Burial Cable consist of fully annealed bare copper Class B stranded conductors, covered with Polyvinyl Chloride (PVC) and oil and gas resistant Nylon insulation, unshielded and black PVC jacket. These cables are used in industrial power.
Applications
- In conduit, duct, free air, raceways and direct burial, primary installations include cable trays, and outdoor locations
- In wet or dry locations
- Approved for Class I, Div. 2 industrial hazardous locations per NEC
- Permitted for Exposed Run (ER) use in accordance with NEC for 3 or more conductors
Features
- Rated at 90°C wet or dry
- Ripcord (as needed)
- Excellent sunlight resistance
- Meets cold bend test at -25°C
| SPECIFICATIONS | |
|
Conductor Count |
Available in 3 or 4 conductors |
|
Conductor |
Fully annealed bare copper Class B compressed strand per ASTM B8 |
|
Gauge Sizes |
Available in 12 AWG through 750 kcmil |
|
Insulation |
Polyvinyl Chloride (PVC) covered with
|
| Color Coding | Per ICEA S-58-679 Method 4 or Method 1, Table E-1 (K-1) or E-2 (K-2); additional color coding options available |
| Fillers | Non-hygroscopic fillers, as necessary to obtain a circular cross section |
| Ground Conductor | Uninsulated bare copper ground Optional: Insulated ground |
| Jacket | Polyvinyl Chloride (PVC) |
|
Jacket Marking |
00000 FT GREATER WIRE XXXAWG XX/C THHN/THWN-2 PVC JKT 600V 90C WET OR DRY TYPE TC-ER (UL) SUN RES DIR BURIAL MADE IN USA MMDDYYYY |
|
Packaging |
Non-returnable wood reels in a variety of lengths and dimensions |
|
Performance Compliances |
ASTM B3, ASTM B8 UL 83 UL1277 UL 1685 (flame exposure test) ANSI/NEMA WC 70/ICEA S-95-658 FT4/IEEE1202 (flame compliance) NEC |
|
Other Compliances |
EPA 40 CFR, Part 261 OSHA RoHS-compliant/RoHS 2-compliant REACH-compliant |
TC-ER Tray Cable with THHN/THWN-2 Copper Conductors Data Sheet
| Conductor Count | Conductor Size AWG/kcmil | Ground Size AWG | Insulation Thickness in (mm) |
Jacket Thickness in (mm) |
Approx. Overall Diameter in (mm) |
Approx. Net Weight lbs/kft (kg/km) |
|
3 |
12 | 12 | 0.020(0.51) | 0.045(1.14) | 0.39(9.9) | 135(195) |
| 4 | 12 | 12 | 0.020(0.51) | 0.045(1.14) | 0.43(10.8) | 160 (237) |
| 3 | 10 | 10 | 0.025(0.64) | 0.045(1.14) | 0.46(11.8) | 200(291) |
| 4 | 10 | 10 | 0.025(0.64) | 0.045(1.14) | 0.51(12.9) | 240(356) |
| 3 | 8 | 10 | 0.036(0.91) | 0.060(1.52) | 0.61(15.5) | 305(453) |
| 4 | 8 | 10 | 0.036(0.91) | 0.060(1.52) | 0.67(17.0) | 380(561) |
| 3 | 6 | 8 | 0.038(0.97) | 0.060(1.52) | 0.70(17.7) | 440(652) |
| 4 | 6 | 8 | 0.038(0.97) | 0.060(1.52) | 0.77(19.4) | 550(812) |
| 3 | 4 | 8 | 0.049(1.24) | 0.060(1.52) | 0.85(21.5) | 640(952) |
| 4 | 4 | 8 | 0.049(1.24) | 0.080(2.03) | 0.97(24.7) | 850(1,260) |
| 3 | 2 | 6 | 0.049(1.24) | 0.080(2.03) | 1.01(25.8) | 980(1,455) |
| 4 | 2 | 6 | 0.049(1.24) | 0.080(2.03) | 1.11(28.3) | 1.235(1.836) |
| 3 | 1 | 6 | 0.060(1.52) | 0.080(2.03) | 1.15(29.1) | 1,210(1,800) |
| 4 | 1 | 6 | 0.060(1.52) | 0.080(2.03) | 1.26(32.1) | 1,540(2,286) |
| 3 | 1/0 | 6 | 0.060(1.52) | 0.080(2.03) | 1.23(31.3) | 1,450(2,154) |
| 4 | 1/0 | 6 | 0.060(1.52) | 0.080(2.03) | 1.36(34.5) | 1,850(2,750) |
| 3 | 2/0 | 6 | 0.060(1.52) | 0.080(2.03) | 1.32(33.7) | 1,745 (2,592) |
| 4 | 2/0 | 6 | 0.060(1.52) | 0.080(2.03) | 1.46(37.2) | 2,235(3,326) |
| 3 | 3/0 | 4 | 0.060(1.52) | 0.080(2.03) | 1.44(36.5) | 2,160(3,209) |
| 4 | 3/0 | 4 | 0.060(1.52) | 0.080(2.03) | 1.59(40.3) | 2,770(4,116) |
| 3 | 4/0 | 4 | 0.060(1.52) | 0.080(2.03) | 1.56(39.5) | 2,615(3,890) |
| 4 | 4/0 | 4 | 0.060(1.52) | 0.080(2.03) | 1.72(43.7) | 3,370(5,012) |
| 3 | 250 | 4 | 0.071(1.80) | 0.080(2.03) | 1.71(43.4) | 3,080(4581) |
| 4 | 250 | 4 | 0.071(1.80) | 0.110(2.79) | 1.95(49.6) | 4,090(6,083) |
| 3 | 350 | 3 | 0.071(1.80) | 0.110(2.79) | 1.99(50.5) | 4.265(6.340) |
| 4 | 350 | 3 | 0.071(1.80) | 0.110(2.79) | 2.2(55.9) | 5,505(8,186) |
| 3 | 500 | 2 | 0.071(1.80) | 0.110(2.79) | 2.27(57.6) | 5.850(8.701) |
| 4 | 500 | 2 | 0.071(1.80) | 0.110(2.79) | 2.51(63.8) | 7,580(11,276) |
| 3 | 750 | 1 | 0.082(2.08) | 0.110(2.79) | 2.70(68.6) | 8,535(12,700) |
| 4 | 750 | 1 | 0.082(2.08) | 0.140(3.56) | 3.06(77.8) | 11.295(16,807) |
