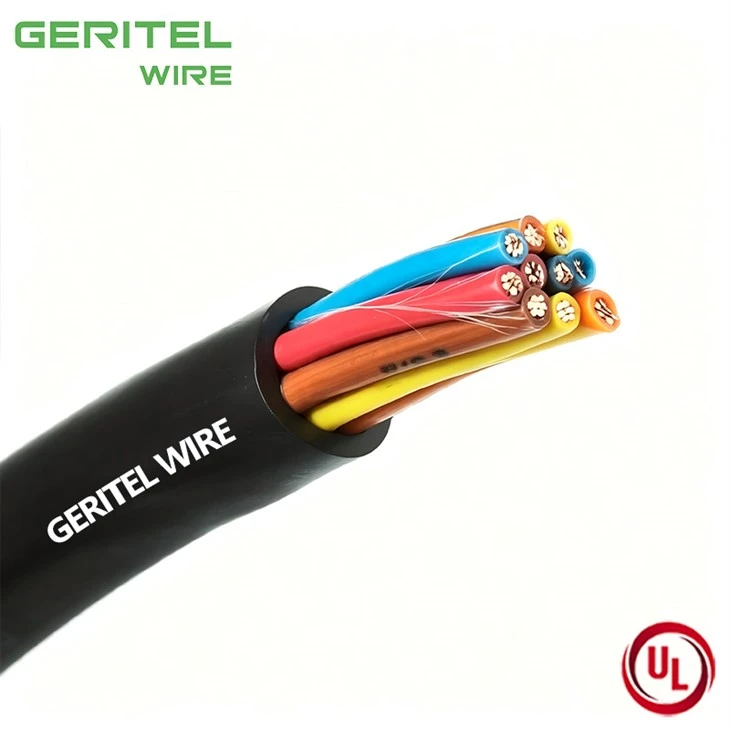

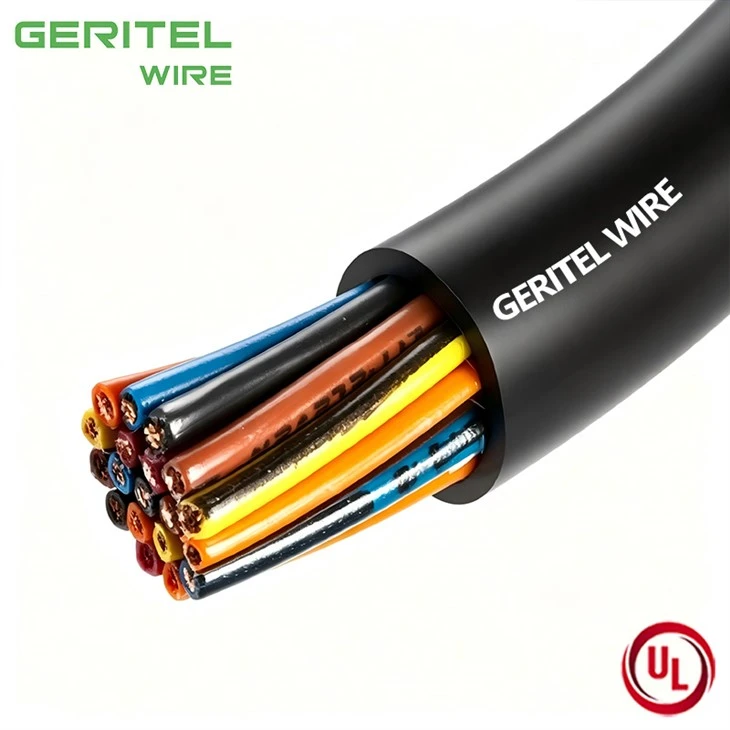

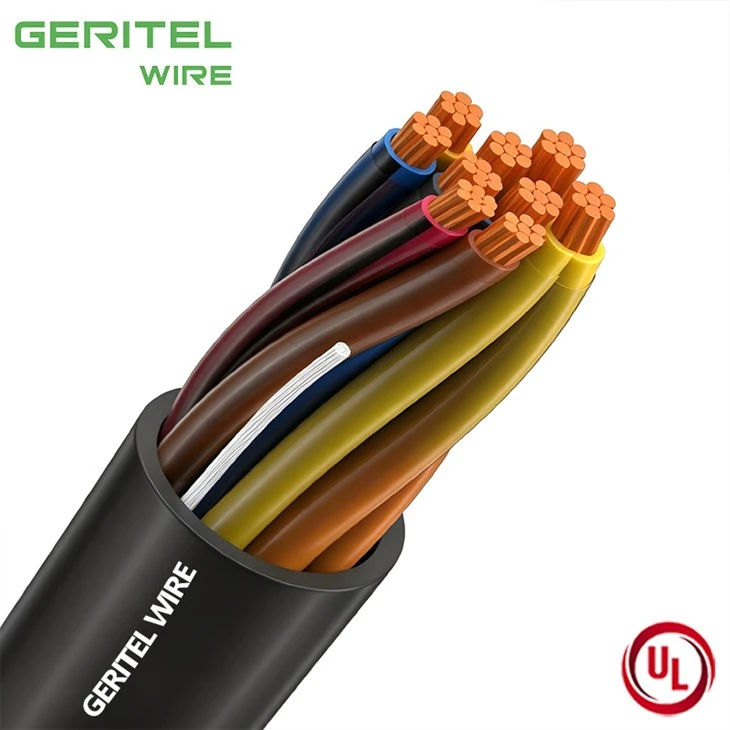

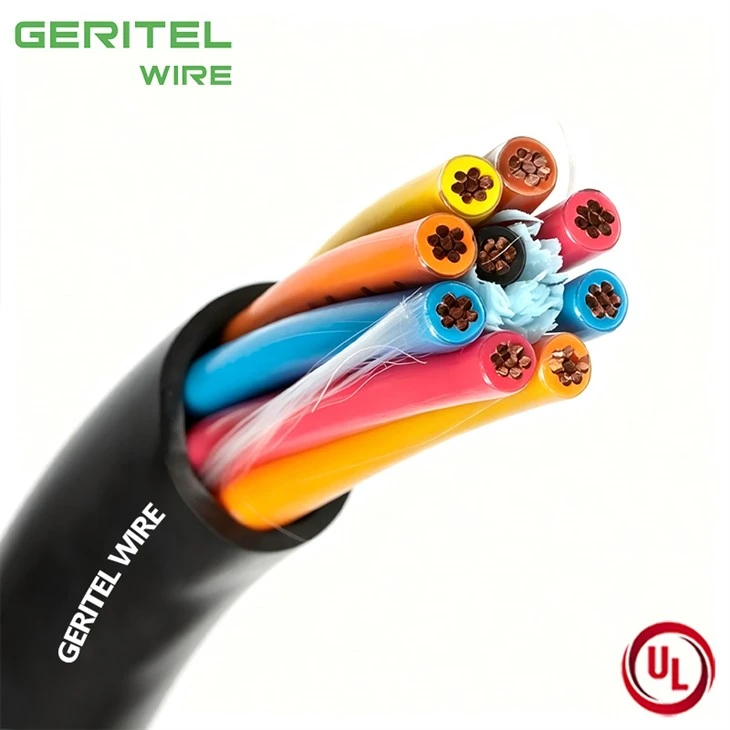

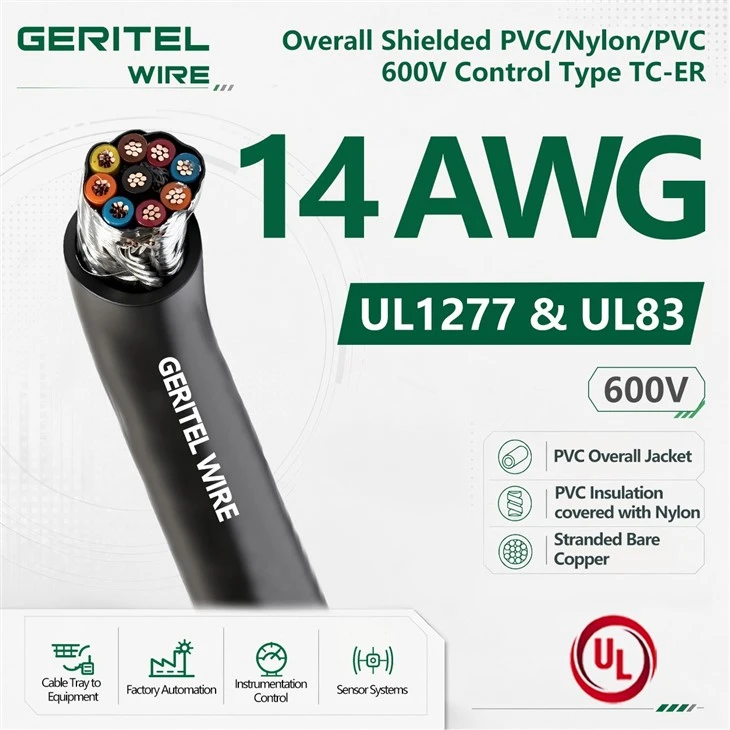

14 AWG Overall Shielded Control Tray Cable PVC Nylon PVC TC-ER 600V

14 AWG Overall Shielded Control Tray Cable PVC Nylon PVC TC-ER 600V
Details:
·PVC Overall Jacket
·Fully annealed bare copper Class B
·Polyvinyl Chloride (PVC) covered
·Filler(as needed)
·Voltage Rating:600V
·Temperatura:Rated at 90℃ wet or dry
·Size Range:Available in 18 through 10 AWG
·Standard:UL83/UL1277
·Available in 2 through 37 conductors
·Color:Per ICEA S-58-679 Method 1, Table E-2; additional color coding options available
Send Inquiry
Download
Description
Technical Parameters
Certification

TC-ER control cable for ventilated tray

PRODUCT REAL SHOT



THHN PVC tray cable for cable tray
600V control cable for ladder tray
600V control cable for trough

TC-ER control cable for underground

14 AWG Overall Shielded PVC Nylon PVC TC-ER for Duct Banks & Non-Ventilated Trays
This 14 AWG overall shielded PVC Nylon PVC TC-ER 600V control tray cable is high-performance commercial VNTC tray cable, certified safe Class 1 Div 2 THHN PVC tray cable, perfectly suited as reliable TC-ER control cable for non ventilated tray, and engineered durable THHN PVC tray cable for duct bank. Built with triple-layer THHN PVC-nylon insulation, full aluminum Mylar foil overall shielding and heat-resistant black PVC jacket, it supports wiring inside non-ventilated cable trays, underground duct banks, exposed industrial runs and commercial facility layouts, rated 90°C wet/dry and fully compliant with UL & NEC industrial electrical standards.
PRODUCT SPECIFICATIONS



TC-ER control cable for open air

Product Description



The PVC/Nylon/PVC (THHN/THWN-2), 600V Control, Type TC-ER and Direct Burial Cables consist of fully annealed bare copper Class B stranded conductors, covered with oil and gas resistant Polyvinyl Chloride (PVC) and clear Nylon insulation, unshielded or shielded and black PVC jacket. These cables are used in industrial power or station control circuits.

Applications



  • In conduit, duct, free air, raceways and direct burial, primary installations include cable trays, and outdoor locations

  • In wet or dry locations

  • Approved for Class I, Div. 2 industrial hazardous locations per NEC

  • Permitted for Exposed Run (ER) used in accordance with NEC for 3 or more conductors; two conductors without a ground wire are Type TC only

Features


  • Rated at 90°C wet or dry
  • Ripcord (as needed)
  • Excellent sunlight resistance
  • Meets cold bend test at -25°C
SPECIFICATIONS

Conductor Count

 Available in 2 through 37 conductors

Conductor

 Fully annealed bare copper Class B

Gauge Sizes

 Available in 18 through 10 AWG

Insulation

 Polyvinyl Chloride (PVC) covered
• 14 AWG and larger are type THHN/THWN-2
Color Coding Per ICEA S-58-679 Method 1, Table E-2; additional color coding options available
Fillers Non-hygroscopic fillers, as necessary to obtain a circular cross section
Shield(optional) Overall aluminum polyester (mylar) foil in contact with 20 AWG stranded tinned copper drain wire
Jacket Polyvinyl Chloride (PVC)

Jacket Marking

 Conductor sizes 18 AWG – 16 AWG: 00000 FT GREATER WIRE CABLE XXAWG XX/C PVC/NYLON PVC JKT (or OS) 600V 90C WET OR DRY TYPE TC (or -ER) (UL) SUN RES DIR BUR FT4/IEEE1202 MADE IN USA MMDDYYYYConductor sizes 14 AWG – 10 AWG: 00000 FT GREATER WIRE CABLE XXAWG XX/C THHN/THWN-2 PVC JKT (or OS) 600V 90C WET OR DRY TYPE TC (or -ER) (UL) SUN RES DIR BUR FT4/IEEE1202 MADE IN USA MMDDYYYY

Packaging

 Non-returnable wood reels in a variety of lengths and dimensions

Performance Compliances

ASTM B8, ASTM B33

UL 83

UL 1277

UL 1685 (flame exposure test)

ANSI/NEMA WC 70/ICEA S-95-658

ANSI/NEMA WC 57/ICEA S-73-532

NEC

Other Compliances

EPA 40 CFR, Part 261

OSHA

RoHS-compliant/RoHS 2-compliant

REACH-compliant

Unshielded

Conductor Count Conductor Size AWG Insulation Thickness
in (mm)		 Jacket Thickness
in (mm)		 Approx. Overall Diameter
in (mm)		 Approx. Net Weight
lbs/kft (kg/km)

2

 18 0.020(0.51) 0.045(1.14) 0.28(7.1) 40(56)
3 18 0.020(0.51) 0.045(1.14) 0.29(7.5 50 (69)
4 18 0.020(0.51) 0.045(1.14) 0.32(8.0) 60(84)
5 18 0.020(0.51) 0.045(1.14) 0.34(8.7) 70(99)
7 18 0.020(0.51) 0.045(1.14) 0.37(9.4) 85(126)
9 18 0.020(0.51) 0.045(1.14) 0.43(10.9) 110(158)
12 18 0.020(0.51) 0.045(1.14) 0.47(12.0) 135(199)
19 18 0.020(0.51) 0.045(1.14) 0.55(14.0) 205(298)
25 18 0.020(0.51) 0.060(1.52) 0.67(17.1) 280(414)
37 18 0.020(0.51) 0.060(1.52) 0.76(19.4) 390(573)
2 16 0.020(0.51) 0.045(1.14) 0.30(7.7) 50 (69)
3 16 0.020(0.51) 0.045(1.14) 0.32(8.1) 60(88)
4 16 0.020(0.51) 0.045(1.14) 0.35(8.8) 75(109)
5 16 0.020(0.51) 0.045(1.14) 0.37(9.5) 90 (130)
7 16 0.020(0.51) 0.045(1.14) 0.40(10.3) 115(168)
9 16 0.020(0.51) 0.045(1.14) 0.47(12.0) 145(211)
12 16 0.020(0.51) 0.045(1.14) 0.52(13.3) 185(269)
16 16 0.020(0.51) 0.060(1.52) 0.61(15.6) 255(378)
19 16 0.020(0.51) 0.060(1.52) 0.64(16.4) 295(435)
25 16 0.020(0.51) 0.060(1.52) 0.75(18.9) 380(560)
30 16 0.020(0.51) 0.060(1.52) 0.79(20.0) 440(653)
37 16 0.020(0.51) 0.060(1.52) 0.85(21.5) 530(784)
2 14 0.020(0.51) 0.045(1.14) 0.33(8.4) 60(88)
3 14 0.020(0.51) 0.045(1.14) 0.35(8.8) 80(115)
4 14 0.020(0.51) 0.045(1.14) 0.38(9.6) 100(143)
5 14 0.020(0.51) 0.045(1.14) 0.41(10.4) 120(172)
7 14 0.020(0.51) 0.045(1.14) 0.45(11.3) 155(226)
9 14 0.020(0.51) 0.045(1.14) 0.52(13.2) 195(285)
12 14 0.020(0.51) 0.060(1.52) 0.61(15.5) 265(393)
19 14 0.020(0.51) 0.060(1.52) 0.71(18.1) 400(591)
25 14 0.020(0.51) 0.060(1.52) 0.83(21.0)   515(763)
30 14 0.020(0.51) 0.060(1.52) 0.87(22.2)    605(895)
37 14 0.020(0.51) 0.080(2.03) 0.98(25.0) 765(1,138)
2 12 0.020(0.51) 0.045(1.14) 0.37(9.3) 80(117)
3 12 0.020(0.51) 0.045(1.14) 0.39(9.8) 110(157)
4 12 0.020(0.51) 0.045(1.14) 0.42(10.7) 135(198)
5 12 0.020(0.51) 0.045(1.14) 0.46(11.7) 165(240)
7 12 0.020(0.51) 0.045(1.14) 0.50(12.7) 215(318)
9 12 0.020(0.51) 0.060(1.52) 0.62(15.7) 290(431)
12 12 0.020(0.51) 0.060(1.52) 0.69(17.4) 375(553)
19 12 0.020(0.51) 0.060(1.52) 0.80(20.3) 565(840)
25 12 0.020(0.51) 0.080(2.03) 0.98(24.8) 775(1,147)
30 12 0.020(0.51) 0.080(2.03) 1.03(26.2) 905(1,344)
37 12 0.020(0.51) 0.080(2.03) 1.11(28.2) 1,090(1,622)
2 10 0.025(0.64) 0.025(0.64) 0.43(11.0) 115(169)
3 10 0.025(0.64) 0.025(0.64) 0.46(11.7) 160(231)
4 10 0.025(0.64) 0.025(0.64) 0.50(12.8) 200(295)
5 10 0.025(0.64) 0.025(0.64) 0.58(14.8) 260(385)
7 10 0.025(0.64) 0.025(0.64) 0.63(16.1) 345(511)
9 10 0.025(0.64) 0.025(0.64) 0.74(18.9) 435(647)
12 10 0.025(0.64) 0.025(0.64) 0.83(21.0) 565(836)



Overall Shielded
Pair Count Conductor Size AWG Insulation Thickness
in (mm)		 Jacket Thickness
in (mm)		 Approx. Overall Diameter
in (mm)		 Approx. Net Weight
lbs/kft (kg/km)

2

 18 0.020(0.51) 0.045(1.14) 0.28(7.2) 45(62)
3 18 0.020(0.51) 0.045(1.14) 0.30(7.5) 55(76)
4 18 0.020(0.51) 0.045(1.14) 0.32(8.1) 65(91)
5 18 0.020(0.51) 0.045(1.14) 0.34(8.8) 75(106)
7 18 0.020(0.51) 0.045(1.14) 0.37(9.4) 90(133)
9 18 0.020(0.51) 0.045(1.14) 0.43(10.9) 115(165)
12 18 0.020(0.51) 0.045(1.14) 0.48(12.1) 140(207)
19 18 0.020(0.51) 0.045(1.14) 0.56(14.1) 210(306)
25 18 0.020(0.51) 0.060(1.52) 0.68(17.2) 285(423)
37 18 0.020(0.51) 0.060(1.52) 0.77(19.5) 395(583)
2 16 0.020(0.51) 0.045(1.14) 0.31(7.8) 55 (76)
3 16 0.020(0.51) 0.045(1.14) 0.32(8.2) 65(95)
4 16 0.020(0.51) 0.045(1.14) 0.35(8.9) 80(116)
5 16 0.020(0.51) 0.045(1.14) 0.38(9.6) 95(137)
7 16 0.020(0.51) 0.045(1.14) 0.41(10.4) 120(175)
9 16 0.020(0.51) 0.045(1.14) 0.47(12.1) 150(219)
12 16 0.020(0.51) 0.045(1.14) 0.53(13.4) 190(277)
16 16 0.020(0.51) 0.060(1.52) 0.62(15.7) 265(387)
19 16 0.020(0.51) 0.060(1.52) 0.65(16.4) 300(444)
25 16 0.020(0.51) 0.060(1.52) 0.75(19.0) 385(569)
30 16 0.020(0.51) 0.060(1.52) 0.79(20.1) 450(663)
37 16 0.020(0.51) 0.060(1.52) 0.85(21.6) 535(794)
2 14 0.020(0.51) 0.045(1.14) 0.33(8.4) 65(94)
3 14 0.020(0.51) 0.045(1.14) 0.35(8.9) 65(95)
4 14 0.020(0.51) 0.045(1.14) 0.38(9.6) 85(121)
5 14 0.020(0.51) 0.045(1.14) 0.41(10.4) 105(150)
7 14 0.020(0.51) 0.045(1.14) 0.44(11.3) 125(179)
9 14 0.020(0.51) 0.045(1.14) 0.52(13.2) 160(232)
12 14 0.020(0.51) 0.060(1.52) 0.61(15.4) 200(292)
19 14 0.020(0.51) 0.060(1.52) 0.71(18.0) 270(400)
25 14 0.020(0.51) 0.060(1.52) 0.82(20.9) 405(597)
30 14 0.020(0.51) 0.060(1.52) 0.87(22.0) 520(770)
37 14 0.020(0.51) 0.080(2.03) 0.98(24.8) 610(1,144)
2 12 0.020(0.51) 0.045(1.14) 0.37(9.3) 85(124)
3 12 0.020(0.51) 0.045(1.14) 0.39(9.8) 110(163)
4 12 0.020(0.51) 0.045(1.14) 0.42(10.7) 140(205)
5 12 0.020(0.51) 0.045(1.14) 0.46(11.6) 170(246)
7 12 0.020(0.51) 0.045(1.14) 0.50(12.6) 220(325)
9 12 0.020(0.51) 0.060(1.52) 0.62(15.6) 295(438)
12 12 0.020(0.51) 0.060(1.52) 0.68(17.3) 380(560)
19 12 0.020(0.51) 0.060(1.52) 0.80(20.2) 570(846)
25 12 0.020(0.51) 0.080(2.03) 0.97(24.6) 775(1,153)
30 12 0.020(0.51) 0.080(2.03) 1.02(26.0) 910(1,350)
37 12 0.020(0.51) 0.080(2.03) 1.10(28.0) 1,095(1,627)
2 12 0.020(0.51) 0.045(1.14) 0.43(11.0) 120(176)
3 10 0.025(0.64) 0.045(1.14) 0.46(11.7) 160(238)
4 10 0.025(0.64) 0.045(1.14) 0.50(12.8) 205(302)
5 10 0.025(0.64) 0.060(1.52) 0.58(14.7) 265(392)
7 10 0.025(0.64) 0.060(1.52) 0.63(16.0) 350(517)
9 10 0.025(0.64) 0.060(1.52) 0.74(18.8) 440(654)
12 10 0.025(0.64) 0.060(1.52) 0.82(20.9) 570(843)

CERTIFICATIONS



VNTC tray cable for packaging machinery

PACKAGING



600V control cable for packaging machinery

Roll

TC-ER cable for oil and gas facilities

Plastic Reel

TC-ER cable for packaging machinery

Small Wooden Reel

APPLICATION



TC-ER control cable wholesale
Factory Automation
TC-ER control cable exporter
Process Instrumentation
600V TC-ER tray cable price
Water Treatment Control Systems
CASE



600V TC-ER tray cable manufacturer

BASF Ludwigshafen Verbund Site

600V TC-ER tray cable distributor

MWRA Deer Island Wastewater Treatment Plant

600V TC-ER tray cable custom length

Siemens Electronic Works Amberg Factory

WHY CHOOSE US



30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

what is TC-ER cable

15K
Finished Projects
150+
professional staff
15K
happy clients
92+
awards & certifacates
PLANT EQUIPMENT



TC-ER vs TC-ER-JP cable

TC-ER control cable bulk order

TC-ER control cable manufacturer

14 AWG 25 conductor VNTC tray cable 600V

buy TC-ER control cable

TC-ER control cable factory

GLOBAL CERTIFICATIONS



TC-ER control cable spec sheet download

CUSTOMER PHOTOS


14 AWG 15 conductor TC-ER control cable

INTERNATIONL TRANSPORTATION



01

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

02

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

03

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

14 AWG 25 conductor TC-ER control cable
COOPERATIVE PARTNER



We are looking for a cooperative partner to expand our business.

14 AWG 16 conductor TC-ER control cable
TC-ER control cable quote
TC-ER control cable cut to length
14 AWG 5 conductor TC-ER control cable
14 AWG 37 conductor TC-ER control cable
TC-ER control cable for cable tray
commercial THHN PVC tray cable
commercial power and control tray cable
industrial VNTC tray cable
exposed run TC-ER control cable
How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

exposed run PVC/Nylon/PVC control cable
FAQ



What makes this ideal commercial VNTC tray cable for business facilities?
It balances stable signal shielding, UV resistance and cost efficiency, designed for regular commercial building power, automation and HVAC control wiring projects.
Is this Class 1 Div 2 THHN PVC tray cable safe for hazardous industrial spaces?
Yes, its flame-retardant, oil-gas resistant THHN composite insulation meets NEC specifications for Class I Division 2 hazardous locations with flammable vapor or dust.
Can this cable work as TC-ER control cable for non ventilated tray?
Absolutely. The heat-resistant PVC-Nylon insulation and FT4 flame retardant jacket maintain stable performance within enclosed, non-ventilated cable trays without heat buildup risks.
Why select this as professional THHN PVC tray cable for duct bank underground routing?
Its round compact structure fits neatly inside cable channels and troughs; TC-ER rating allows exposed layout within channels without additional conduit protection for 3+ conductor configurations.



Hot Tags: 14 awg overall shielded control tray cable pvc nylon pvc tc-er 600v, China 14 awg overall shielded control tray cable pvc nylon pvc tc-er 600v manufacturers, suppliers, factory

You Might Also Like

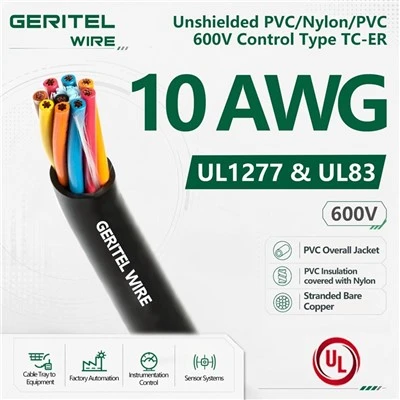

  • 10 AWG Industrial TC-ER Control Cable PVC Nylon PVC 600V Unshielded
    10 AWG Industrial TC-ER Control Cable PVC Nylon PVC ...
  • 250 Kcmil PVC Nylon TC-ER Tray Cable For Industrial Applications
    250 Kcmil PVC Nylon TC-ER Tray Cable For Industrial ...
  • 2/0 AWG Tray Cable For Heavy Industrial Main Feeder Circuits
    2/0 AWG Tray Cable For Heavy Industrial Main Feeder ...
  • PVC Nylon Power 8 AWG Tray Cable For Industrial Control Systems
    PVC Nylon Power 8 AWG Tray Cable For Industrial Cont...
  • 4/0 AWG Industrial Tray Cable For Motors, Pumps And Control Panels
    4/0 AWG Industrial Tray Cable For Motors, Pumps And ...
  • 600V Type TC-ER Control Cable PVC/Nylon Insulated PVC Sheath
    600V Type TC-ER Control Cable PVC/Nylon Insulated PV...
Send Inquiry
