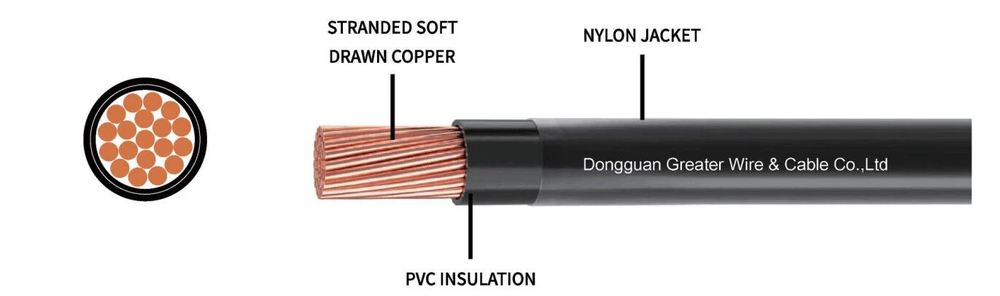

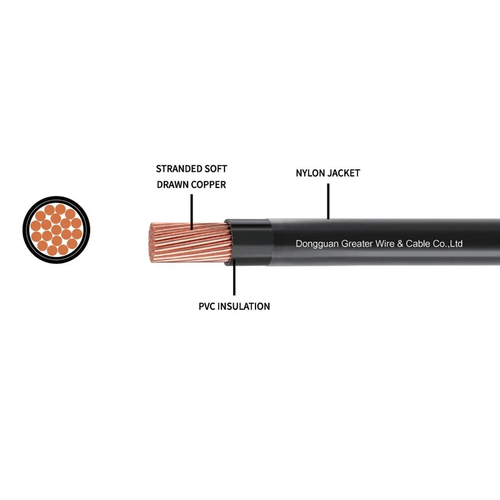

Conductors: Stranded uncoated copper conductors per ASTM B3 and B8 as applicable
-
Insulation: Polyvinyl Chloride (PVC) per UL 66, UL 758 and UL 1063
-
Jacket: Nylon, per UL 66, UL 758 and UL 1063
-
Temperature:
90 °C (194 °F) in dry locations for TFFN;
90 °C (194 °F) in dry locations, or 60 °C (140 °F) in wet locations or where oils or coolants are present for MTW;
105 °C (221 °F) in dry locations for AWM.
- Features:
TFFN MTW or AWM:
18 AWG size are in 16 strands (30 AWG wire)
16 AWG size are in 19 strands.
RoHS compliant.
Application

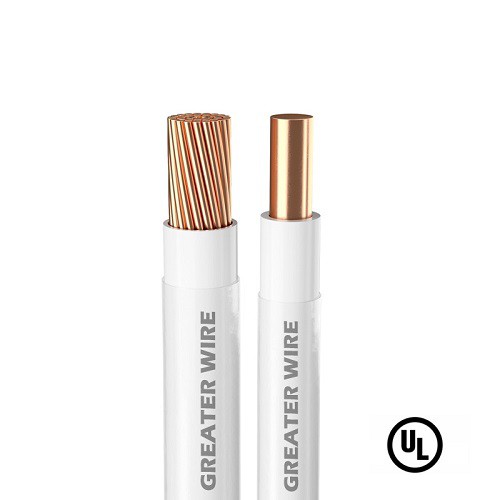

UL TFFN fixture wire is designed to make it particularly suitable for use when connected to branch circuit conductors that power lamps. Its high-temperature tolerance ensures the safety of the wire under high-load working conditions. In addition, the wire meets strict safety standards and can operate at voltages up to 600 volts, providing reliable performance for electrical systems.
Feature
UL TFFN fixture wire is available in a variety of colors to suit different installation needs and has excellent heat resistance. It is particularly suitable for electrical connections in lamp installations and similar equipment, which are often in closed or protected environments and do not involve bending or twisting during use. According to its rated performance, TFFN can withstand temperatures up to 90°C (194°F) in a dry environment, ensuring that it has sufficient durability in conventional electrical installations.
Certification
UL TFFN fixture wire is UL certified. The wire has been rigorously tested and meets the standards of safety, performance and quality. It can provide high reliability and excellent safety in practical applications, effectively prevent potential electrical safety hazards such as fire, and ensure the safe operation of electrical equipment.
Package
Production Line
Greater Wire Manufacturer attaches great importance to social responsibility and actively promotes sustainable development. By using green production processes and environmentally friendly materials, the factory reduces its impact on the environment. At the same time, the factory is also actively involved in local community development, providing employment opportunities, and carrying out public welfare activities. The factory has also formulated a detailed sustainable development strategy, which aims to reduce the negative impact of production on the environment through energy conservation and emission reduction, resource recycling, and other means, and promote the long-term sustainable development of the enterprise.
customer
Partner
FAQ
Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer, offering full control over your order from start to finish. From initial design to final delivery, we ensure every step meets the highest standards.
Q: How is the quality of these products?
Hot Tags: ul tffn fixture wire, China ul tffn fixture wire manufacturers, suppliers, factory, h05vv-f, 110 elastomer cables, ul1007 hook up wire, 600V UL1015 MTW Hook Up Wire, xlpe unarmoured cable, orange circular cable
| Conductor | Vinyl Insulation (mils) | Nylon Jacket (mils) | Nominal O.D. (mills) | Approx. Net Wt. Per 1000' (lbs.) | Allowable Ampacities+ | ||
| Size (AWG or kcmil) | No. of strands | TFFN | MTW | ||||
| 18 | 16 | 15 | 4 | 85 | 7 | 6 | 7 |
| 16 | 26 | 15 | 4 | 99 | 11 | 8 | 10 |
