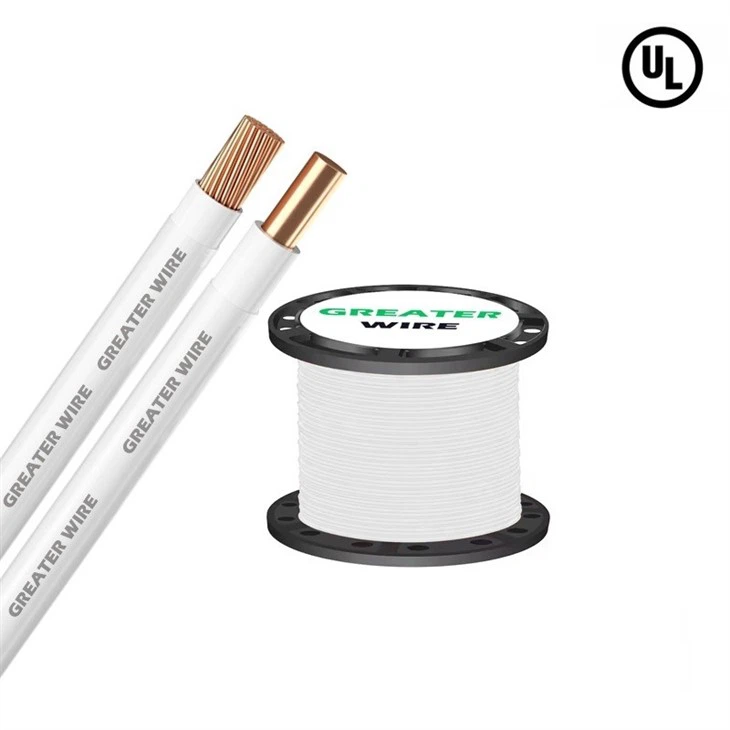

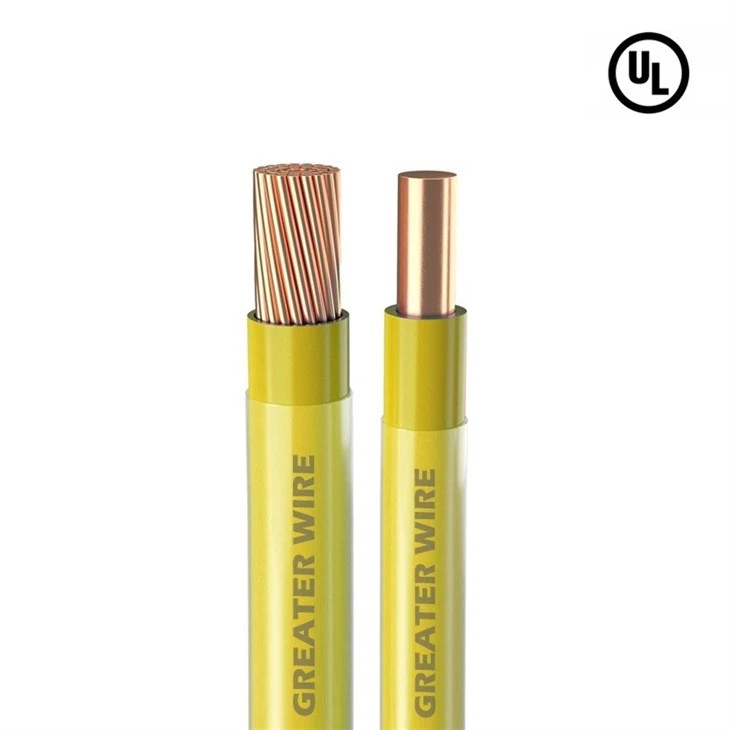

THHN THWN-2 14 Gauge Solid Or Stranded Wire

A: Yes, THWN wire can be used in wet locations. THWN stands for "Thermoplastic Heat and Water-resistant Nylon-coated," and the "W" in THWN specifically indicates that the wire is suitable for wet environments. This type of wire is designed to withstand exposure to moisture and can be safely installed in areas where it might come into contact with water, such as outdoor applications, underground conduits, and other damp or wet locations.

A: THWN-2 and XHHW-2 are both types of electrical wire commonly used in building construction, but they differ in terms of their insulation materials, temperature ratings, and typical applications.

1) Insulation Material

THWN-2: The insulation is made of thermoplastic material, typically PVC (Polyvinyl Chloride), with a nylon coating for additional protection. The "TH" stands for thermoplastic, "W" indicates suitability for wet locations, and "N" indicates the nylon coating.

XHHW-2: The insulation is made of cross-linked polyethylene (XLPE). "X" stands for cross-linked, "HH" indicates high heat resistance, "W" indicates suitability for wet locations, and "2" refers to the updated version with a higher temperature rating.

2) Temperature Ratings

THWN-2: THWN-2 wire has a temperature rating of 90°C (194°F) in both wet and dry locations. The "-2" designation indicates the wire meets the higher temperature rating standard.

XHHW-2: XHHW-2 wire also has a temperature rating of 90°C (194°F) in both wet and dry locations. Like THWN-2, the "-2" indicates it meets higher temperature standards.

3) Durability and Flexibility

THWN-2: The thermoplastic insulation of THWN-2 wire is less resistant to mechanical damage, abrasion, and chemicals compared to cross-linked polyethylene. It is also less flexible than XHHW-2.

XHHW-2: The cross-linked polyethylene insulation of XHHW-2 wire is more durable, offering better resistance to chemicals, abrasion, and moisture. It is also more flexible, making it easier to work with during installation.

4) Applications

THWN-2: Commonly used in conduit systems, both indoors and outdoors, and is suitable for residential, commercial, and industrial applications where wet or dry conditions are present.

XHHW-2: Often preferred in industrial settings or harsh environments where greater durability and chemical resistance are required. It is also used in conduit systems but is particularly favored for long runs or where the wire may be subject to mechanical stress.

5) Cost

THWN-2: Generally less expensive due to the thermoplastic insulation material.

XHHW-2: Typically more expensive due to the higher quality and more durable cross-linked polyethylene insulation.

A: THHN wire is generally not recommended for use outdoors or in wet locations due to its insulation properties. THHN Wire can be used in conduit systems indoors, it is not ideal for outdoor use because it is not designed to withstand the effects of moisture, sunlight, and varying temperatures that occur outside. Prolonged exposure to outdoor conditions could lead to deterioration of the insulation.
