Conductor: Stranded bare copper to ASTM B
-
Insulation: XLPE (Cross-linked polyethylene)
-
Sheath: PVC (Polyvinyl chloride)
-
Sheath Colour: Black
-
Rated Voltage Uo/U (Um): 600V
-
Temperature Rating Fixed: -40°C to +90°C
-
Minimum Bending Radius: 5x Overall Diameter
-
Standards: FAA L-824 Type C, ICEA S-95-658/NEWA WC71FAA AC150/5345-7F

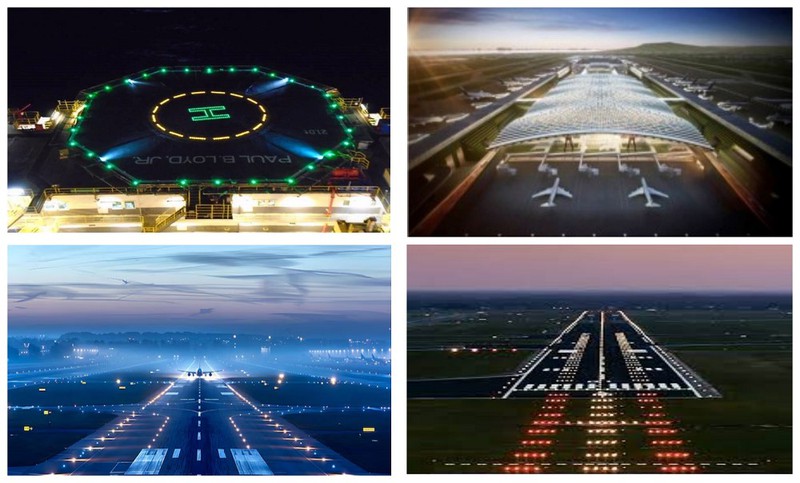

Application
FAA L-824 Type C 600V cables are mainly used for power and control circuits in airport lighting systems, especially for lighting wiring in areas such as runways, taxiways and aprons. The cable is designed for fixed installation and can be laid underground, in cable ducts or cable troughs. It can withstand harsh climatic and mechanical environmental conditions and is widely used in aviation navigation lighting systems that require long-term reliable operation. It is resistant to high temperatures, cold weather, and has excellent insulation properties, ensuring the stability of signal transmission and the safety of system operation, meeting the strict requirements of modern airports for high-reliability cable systems.
Feature
FAA L-824 Type C cables use stranded bare copper conductors (compliant with ASTM B standards), XLPE (cross-linked polyethylene) insulation, and PVC (polyvinyl chloride) outer sheath with good weather resistance. They have excellent mechanical strength and heat resistance and are suitable for long-term use in harsh environments. The rated voltage is 600V.
Package
Factory
Greater Wire Manufacturer strictly abides by environmental regulations and promotes green manufacturing during the production process. The factory uses advanced environmental protection equipment to reduce the emission of wastewater, waste gas, and waste materials. At the same time, it prefers to use environmentally friendly materials in the selection of raw materials, such as halogen-free low-smoke cables and recycled materials. By improving energy efficiency and reducing carbon emissions, the factory is committed to creating a sustainable production environment and contributing to the protection of the ecological environment.
Case
Partner
FAQ
Q: Where is your factory?
Q: How long is the life of your wires and cables?
Hot Tags: faa l-824 cable type c 600v cable, China faa l-824 cable type c 600v cable manufacturers, suppliers, factory, HO7V2 K 90 PVC, tps cable, NMD90 Cable, H07ZZ F Cable, sdi cable, CU XLPE SWA Cable
| NUMBER OF CORES |
NOMINAL CROSS-SECTIONAL AREA mm2/AWG |
NUMBER OF STRAND |
NOMINAL INSULATION THICKNESS mm |
NOMINAL SHEATH THICKNESS mm |
NOMINAL OVERALL DIAMETER mm |
NOMINAL WEIGHT kg/km |
| 1 | 12 | 7 | 1.14 | - | 4.62 | 46 |
| 1 | 10 | 7 | 1.14 | - | 5.21 | 61 |
| 1 | 8 | 7 | 1.52 | - | 6.76 | 101 |
| 1 | 6 | 7 | 1.52 | - | 7.72 | 152 |
| 1 | 4 | 7 | 1.52 | - | 8.94 | 231 |
| 2 | 12 | 7 | 0.76 | 1.14 | 10.41 | 146 |
| 2 | 10 | 7 | 0.76 | 1.14 | 11.56 | 199 |
| 2 | 8 | 7 | 1.14 | 1.52 | 15.37 | 323 |
| 2 | 6 | 7 | 1.14 | 1.52 | 17.40 | 446 |
| 2 | 4 | 7 | 1.14 | 1.52 | 19.81 | 632 |
| 3 | 12 | 7 | 0.76 | 1.14 | 11.05 | 187 |
