Name: China 25mm AS/NZS 1125 Flexible Single Core Conductor Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 309881635

Description

Technical Parameters

Certification

25mm flexible cable 0.6/1kV

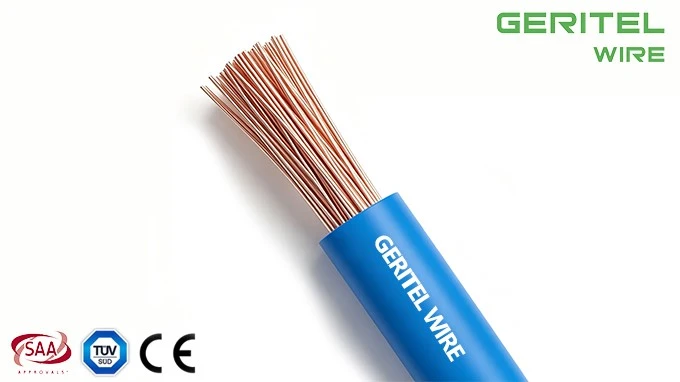

PRODUCT REAL SHOT

1C 25mm flexible cable

600/1000V Cable with Improved PVC Ageing Performance

Designed for improved ageing, this 25mm 0.6/1kV flexible cable combines fine-stranded Class 5 annealed copper with durable V-90 PVC insulation. The 600/1000V single-core cable is manufactured to AS/NZS 5000.1 and must be used in fixed electrical installations under AS/NZS 3000. Its flexible conductor simplifies routing and termination inside protected wiring systems, while the 25mm V-90 PVC flexible wire is suitable for cable-gland entry. The permitted operating range is 0°C to +90°C, supporting installations where better PVC ageing performance is required. GERITEL WIRE supplies standard circuit colours and a green/yellow 25mm Class 5 flexible copper cable option for protective earth, with project lengths and export packing available.

PRODUCT SPECIFICATIONS

25 sq mm flexible copper cable

Cable description

Flexible PVC insulated to AS/NZS 5000.1

Applications

For use as protective earth in electrical installations. For use where improved aging properties to those of 75°C PVC are required because of higher ambient temperatures. Suitable for glanding.

SPECIFICATIONS
Approvals	Suitable for fixed applications only in accordance with AS/NZS 3000 +AS/NZS 5000.1
Behaviour in flame and fire	Flame propagation=AS/NZS 1660.5.6
Temperature range	Maximum operating temperature: +90°C Minimum operating temperature: 0 °C
Minimum bending radius	Installed cables: 4D During installation: 6D
Resistance to	Chemical exposure: Occasional Mechanical impact: Light Water exposure: Occasional condensation Solar radiation and weather exposure: Occasional
Cable design	Conductor: Flexible bunched annealed copper conductor to AS/NZS 1125 (Class 5) Insulation: V-90 PVC
Installation conditions	Industrial equipment In conduit Machines Internal wiring

For fixed installation

Conductor
Conductor		Cable				Min. installed bending radius mm
Nominal C.S.A mm²	Nominal diameter mm	Nominal nsulation thickness mm	Overall diameter		Approx. mass kg/100 m
Nominal C.S.A mm²	Nominal diameter mm	Nominal nsulation thickness mm	Minimum mm	Maximum mm	Approx. mass kg/100 m
1.0	1.3	0.8	2..9	3.0	1.6	12
1.5	1.5	0.8	3.1	3.2	2.0	13
2.5	2.0	0.8	3.6	3.7	3.0	15
4	2.7	1.0	4.6	4.7	5.4	19
6	3.5	1.0	5.4	5.6	8.0	22
10	4.2	1.0	6.1	6.3	11	25
16	5.3	1.0	7.2	7.4	16	30
25	6.7	1.2	8.9	9.1	25	40
35	7.9	1.2	10.1	10.3	34	45
50	9.5	1.4	12.1	12.3	49	50
70	11.3	1.4	13.9	14.2	67	60
95	13.0	1.6	16.0	16.2	89	65
120	14.7	1.6	17.6	17.9	112	75
150	16.5	1.8	19.8	20.2	140	85
185	18.2	2.0	21.9	22.2	170	90
240	20.9	2.2	25	25.4	223	105
300	23.5	2.4	27.9	28.4	279	115
400	26.9	2.6	31.7	32.2	365	130

Electrical characteristics

Conductor nominal C.S.A. mm²	MaximumD.C. resistance at 20°C Ω/km	Reactance per core (Trefoil, Touching) Ω/km


1.0	19.5	0.116
1.5	13.3	0.109
2.5	7.98	1.101
4	4.95	0.100
6	3.30	0.0954
10	1.91	0.0876
16	1.21	0.0835
25	0.780	0.0829
35	0.554	0.0801
50	0.386	0.0799
70	0.272	0.0773
95	0.206	0.0771
120	0.161	0.0753
150	0.129	0.0755
185	0.106	0.0754
240	0.0801	0.0749
300	0.0641	0.0747
400	0.0486	0.0738

CERTIFICATIONS

25mm V-90 PVC flexible cable

25mm AS/NZS 5000.1 flexible cable

PACKAGING

Roll

Plastic Reel

Small Wooden Reel

APPLICATION

Industrial Control Panel

Renewable Energy Power Connection

Switchboard Wiring

CASE

Adelaide Airport Switchboard Upgrade

Industrial Main Switchboard Power Distribution

Main Switchboard Flexible Cable Replacement

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

China AS/NZS flexible cable manufacturer

GLOBAL CERTIFICATIONS

large size flexible cable supplier

CUSTOMER PHOTOS

what is 0.6/1kV flexible cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

is flexible cable suitable for fixed wiring

can flexible cable be used as protective earth

which colour is used for protective earth

can green yellow cable be used for active conductor

how to select a cable gland for flexible cable

can flexible cable be installed in conduit

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

can flexible cable be installed in switchboards

FAQ

Can I use this cable on a 415V three-phase system?

A 0.6/1kV cable is commonly selected for 400/415V low-voltage systems, but the circuit design must still verify insulation coordination, conductor size, fault level and installation rules. Use the 600/1000V single core cable only after the project engineer confirms the complete system. GERITEL WIRE can provide samples or technical documents for the confirmed size, subject to availability and order terms. The confirmed product is a 0.6/1kV V-90 PVC insulated Class 5 copper cable for fixed applications only. GERITEL WIRE supports project datasheets, sample confirmation, cable marking and export packing. Useful specification terms are 0.6/1kV single core flexible cable, V-90 PVC flexible cable and AS/NZS 5000.1 cable.

Is the cable suitable for 480V equipment?

The voltage class can be suitable for many 480V systems, but compliance depends on local standards and equipment requirements. Confirm the phase-to-earth voltage, grounding arrangement and terminal rating before specifying a 0.6/1kV flexible copper cable. For repeat projects, GERITEL WIRE can retain approved drawings, marking and packing requirements to improve batch consistency. The confirmed product is a 0.6/1kV V-90 PVC insulated Class 5 copper cable for fixed applications only. GERITEL WIRE can provide production inspection records and batch identification for project orders. Useful specification terms are 0.6/1kV single core flexible cable, V-90 PVC flexible cable and AS/NZS 5000.1 cable.

Can it be used on 690V motors?

A 690V motor circuit may fall within the nominal 0.6/1kV voltage class, but cable selection still depends on system earthing, starting current, installation method and local rules. Confirm the conductor size and termination equipment with the project engineer. GERITEL WIRE can review the motor data and provide the relevant cable datasheet. The confirmed product is a 0.6/1kV V-90 PVC insulated Class 5 copper cable for fixed applications only. GERITEL WIRE supports standard colour options and project-specific lengths subject to order requirements. Useful specification terms are 0.6/1kV single core flexible cable, V-90 PVC flexible cable and AS/NZS 5000.1 cable.

Is 0.6/1kV the same as 1kV cable?

In purchasing language, it is often called a 1kV cable, but the full rating should remain 0.6/1kV or 600/1000V. Using the complete single core flexible cable voltage rating avoids ambiguity in specifications and approvals. With international export experience, GERITEL WIRE can coordinate product documents, packing and shipping requirements. The confirmed product is a 0.6/1kV V-90 PVC insulated Class 5 copper cable for fixed applications only. GERITEL WIRE can help coordinate the cable, gland, lug and fixed-installation requirements. Useful specification terms are 0.6/1kV single core flexible cable, V-90 PVC flexible cable and AS/NZS 5000.1 cable.
