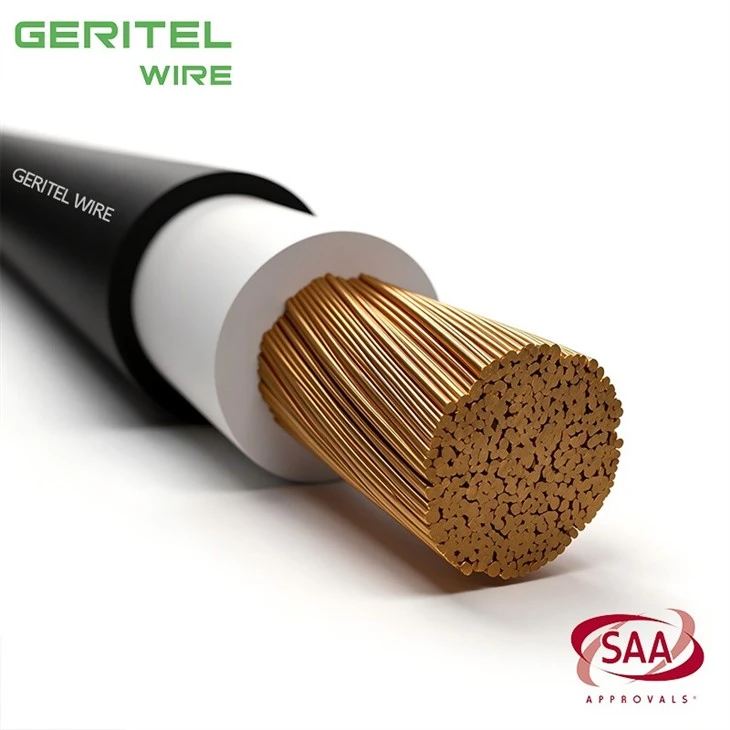

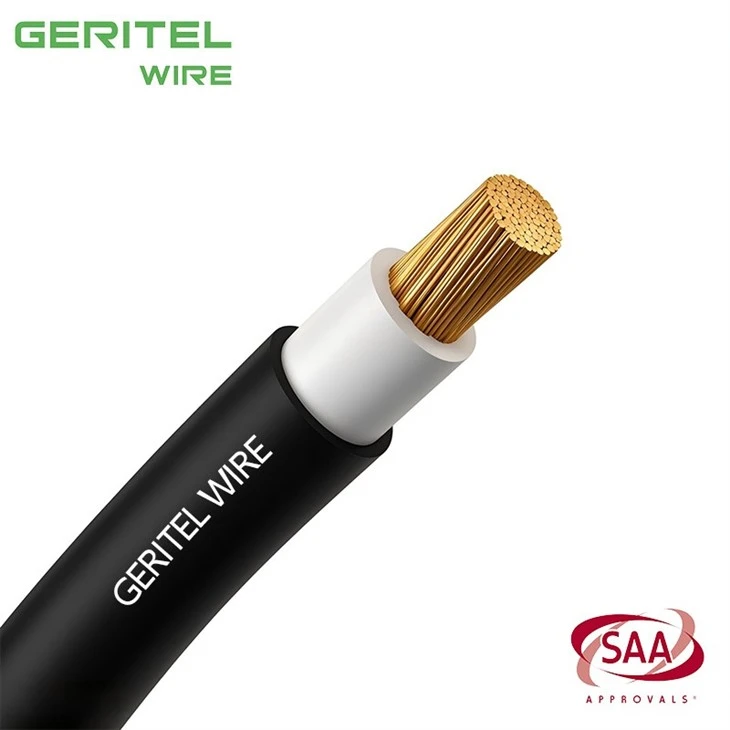

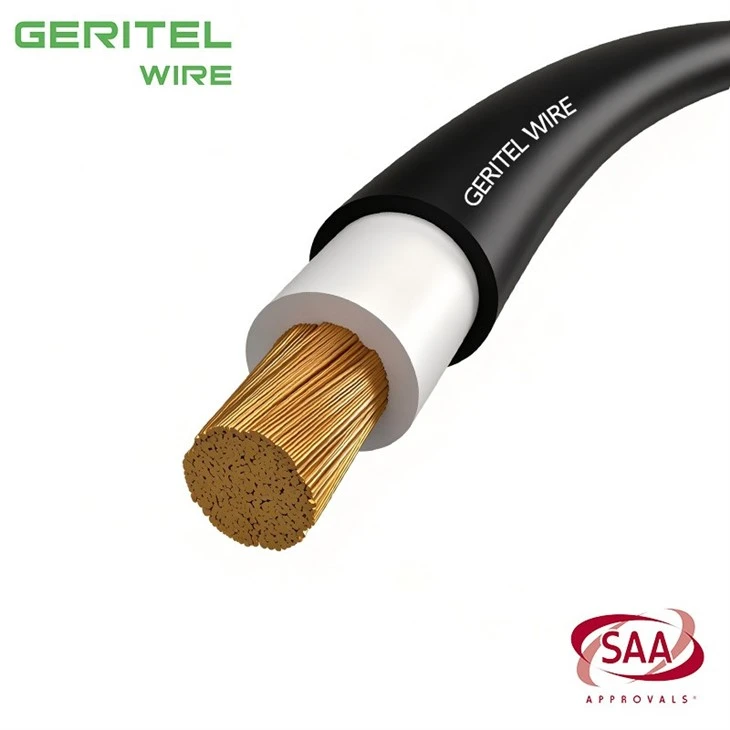

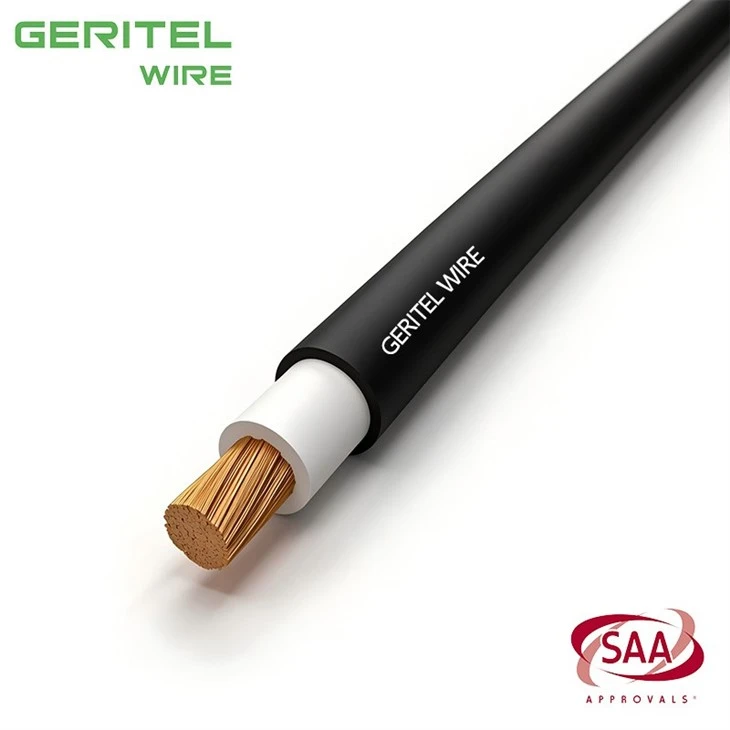

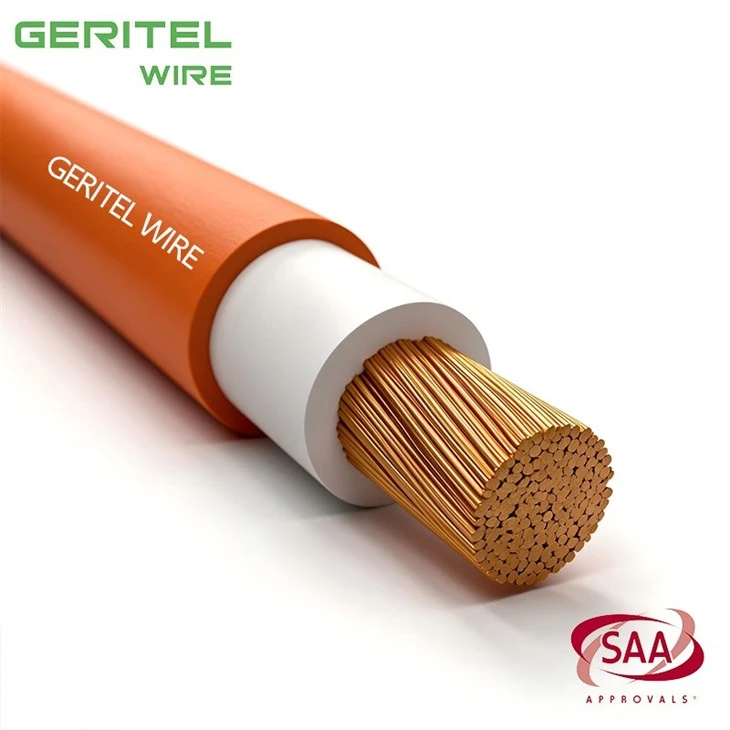

PRODUCT REAL SHOT

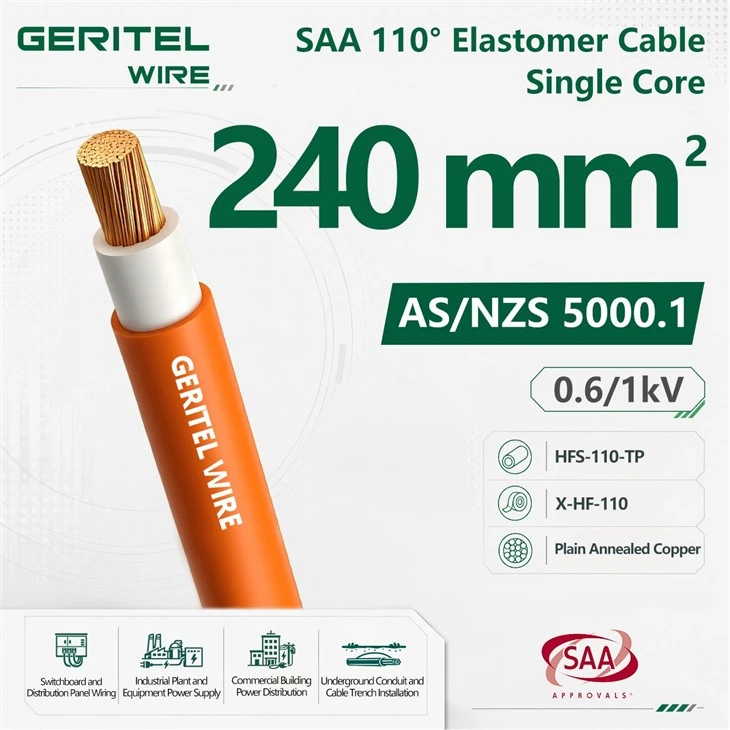

110C Flexible Power Cable for Transformer and Busbar Connections
PRODUCT SPECIFICATIONS
Applications
Flexible single core X-HF-110 insulated and HFS-110-TP sheathed cable for mains, submains and subcircuits unenclosed, enclosed in conduit or in underground ducts for building and industrial plants where not subject to mechanical damage. Suitable where space is at a premium and/or where conditions of overload may occur.
| SPECIFICATIONS | |
| Approvals | Suitable for fixed applications only in accordance with AS/NZS 3000+AS/NZS 5000.1 |
| Behaviour in flame and fire: | Flame propagation - AS/NZS IEC 60332-1 |
| Temperature range |
Maximum operating temperature: +110°C Minimum operating temperature: -25°C |
| Minimum bending radius |
Installed cables: 4D During installation: 6D |
| Resistance to |
Chemical exposure: OccasionaI Mechanical impact: Light Water exposure: Uccasional condensation Solar radiation and weather exposure:Occasional |
| Cable design |
Conductor: Flexible bunched annealed copper conductor to A5/NZ5 1125 (Class 5). Insulation: X-HF-110 Colour:Natural Sheath: HFS-110-TP Colour: Orange/Black |
| Installation conditions |
In free air In conduit In trench In duct |
|
Core x cross- section mm² |
|||||
|
Conductor Diameter mm |
Nominal insulation thickness |
Nominal sheath thickness |
Approx.overall diameter |
Approx. weight kg/km |
|
| 1x16 | 0.20 | 0.7 | 1.4 | 9.9 | 201 |
| 1x25 | 0.20 | 0.9 | 1.4 | 11.6 | 292 |
| 1x35 | 0.20 | 0.9 | 1.4 | 12.8 | 386 |
| 1x50 | 0.30 | 1.0 | 1.4 | 14.6 | 529 |
| 1x70 | 0.30 | 1.1 | 1.4 | 16.6 | 725 |
| 1x95 |
0.30 |
1.1 | 1.5 | 18.5 | 935 |
| 1x120 | 0.30 | 1.2 | 1.5. | 20.4 | 1174 |
| 1x150 | 0.30 | 1.4 | 1.6 | 22.7 | 1464 |
| 1x185 | 0.40 | 1.6 | 1.6 | 24.8 | 1765 |
| 1x240 | 0.40 | 1.7 | 1.7 | 28.0 | 2304 |
| 1x300 | 0.40 | 1.8 | 1.8 | 30.8 | 2847 |
| 1x400 | 0.50 | 1.9 | 1.9 | 34.9 | 3730 |
| 1x500 | 0.50 | 2.0 | 2.0 | 38.8 | 4689 |
| 1x630 | 0.50 | 2.0 | 2.2 | 44.3 | 6226 |
| mm² |
Min. Bending Radius mm |
||||||
| Current Rating (A) |
Electrical |
||||||
|
Underground Enclose |
Spaced |
Spaced from surface |
In the air |
Maximum DC Resistance 20°C Ω/km |
|||
| Enclosed | Touching | ||||||
| 16 | 59 | 97 | 130 | 114 | 91 | 105 | 1.21 |
| 25 | 70 | 125 | 173 | 153 | 121 | 139 | 0.780 |
| 35 | 77 | 151 | 214 | 188 | 148 | 172 | 0.554 |
| 50 | 88 | 188 | 270 | 230 |
190 |
217 | 0.386 |
| 70 | 100 | 229 | 340 | 291 | 234 | 273 | 0.272 |
| 95 | 111 | 268 | 410 | 363 | 277 | 329 | 0.206 |
| 120 | 122 | 316 | 487 | 422 | 331 | 390 | 0.161 |
| 150 | 136 | 357 | 562 | 486 | 378 | 450 | 0.129 |
| 185 | 149 | 404 | 644 | 564 | 438 | 516 | 0.106 |
| 240 | 168 | 481 | 775 | 674 | 538 | 620 | 0.0801 |
| 300 | 185 | 542 | 895 | 780 | 612 | 714 | 0.0641 |
| 400 | 209 | 648 | 1079 | 910 | 757 | 855 | 0.0486 |
| 500 | 233 | 729 | 1260 | 1053 | 864 | 990 | 0.0384 |
| 600 | 266 | 828 | 1493 | 1217 | 993 | 1154 | 0.0287 |
