Name: China 25mm² X-HF-110 Single Core Cable SAA Approved 600/1000V Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 311234247

Description

Technical Parameters

Certification

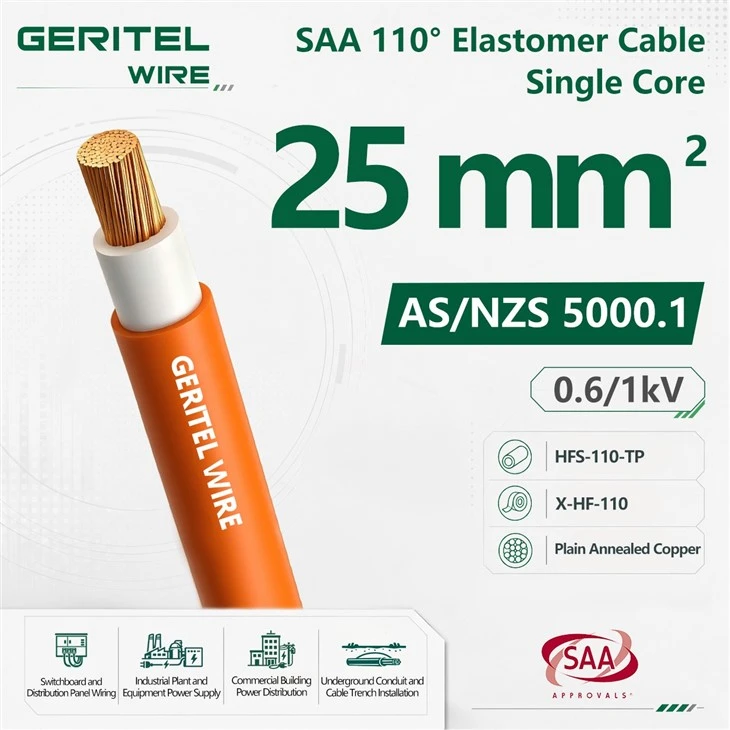

25mm2 110C elastomer cable

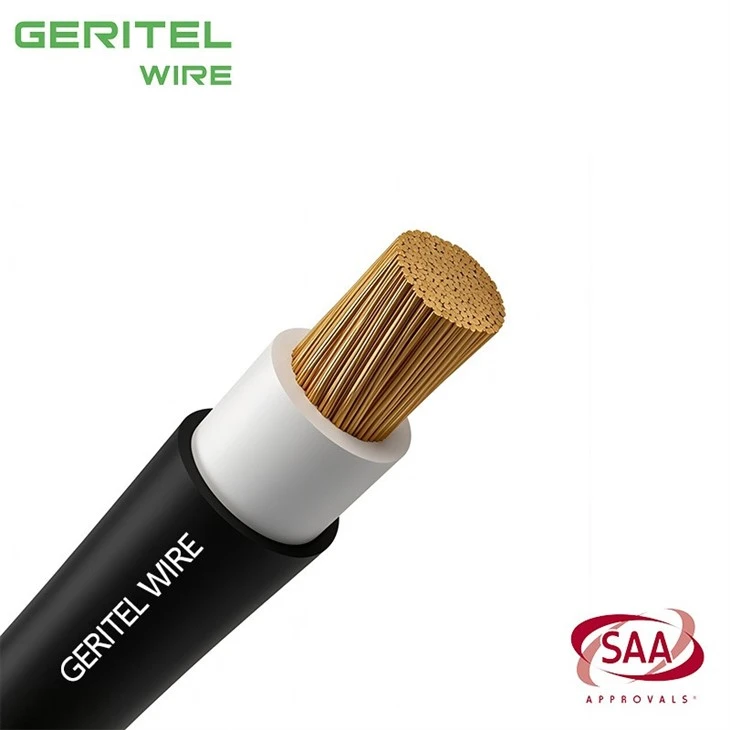

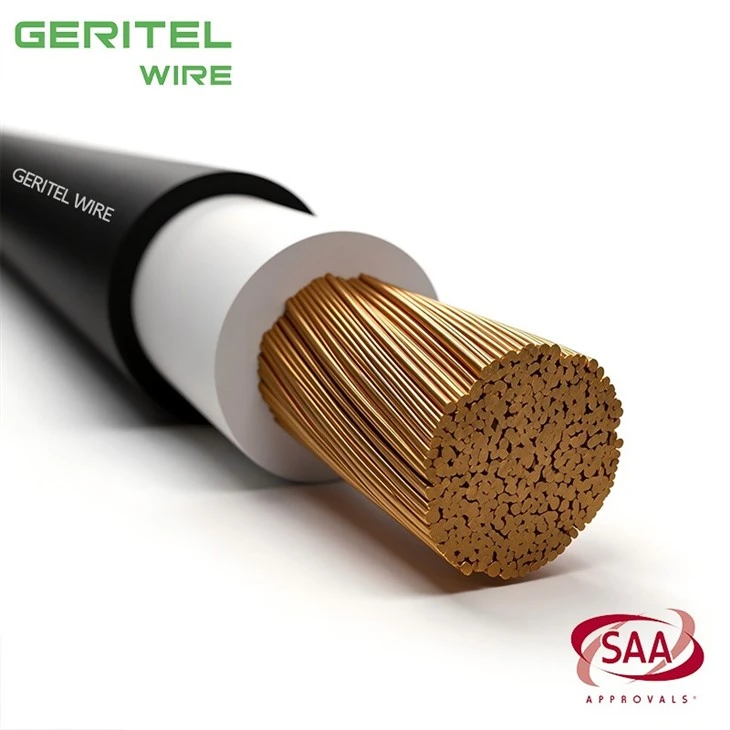

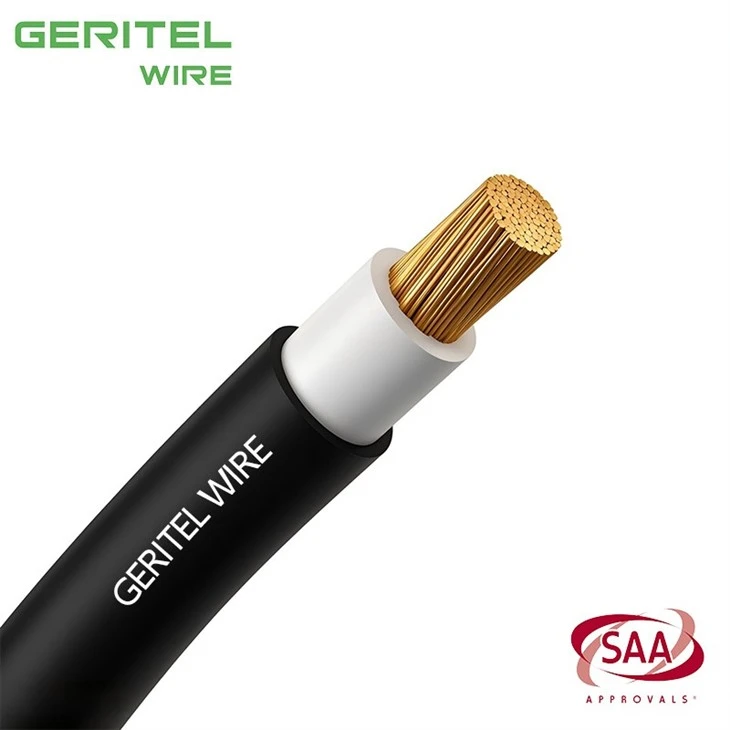

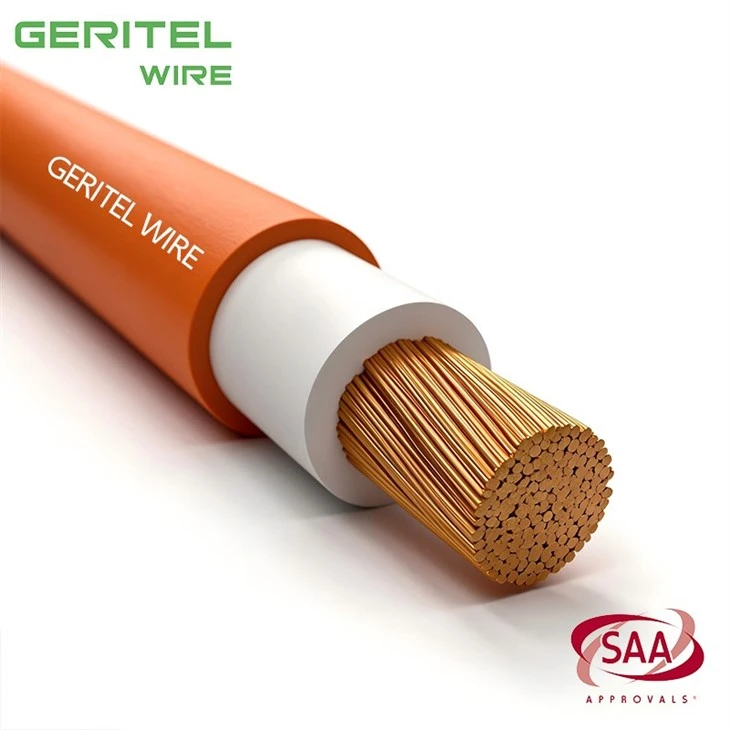

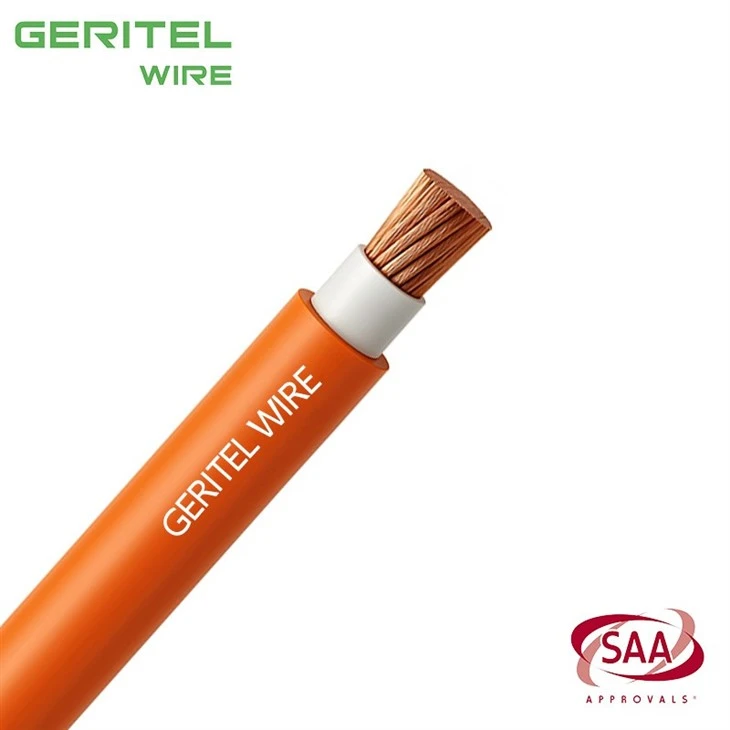

PRODUCT REAL SHOT

25mm2 HFS-110-TP cable

110°C LSHF SDI Cable for Building Mains and Subcircuits

The 25mm² 110C elastomer cable is designed for fixed low-voltage distribution where rigid conductors are difficult to route or terminate. A Class 5 annealed copper conductor is insulated with X-HF-110 and protected by an HFS-110-TP sheathed cable construction. This SAA approved flexible single core cable is rated 0.6/1kV and works as a building mains cable for switchboards, risers, conduit, trenches and protected underground ducts. It supports continuous conductor operation up to 110°C, low-smoke halogen-free performance and flame propagation compliance to AS/NZS IEC 60332-1. GERITEL WIRE offers OEM printing, drum selection, test documents and export support.

PRODUCT SPECIFICATIONS

25mm² SDI 110C cable

Applications

Flexible single core X-HF-110 insulated and HFS-110-TP sheathed cable for mains, submains and subcircuits unenclosed, enclosed in conduit or in underground ducts for building and industrial plants where not subject to mechanical damage. Suitable where space is at a premium and/or where conditions of overload may occur.

SPECIFICATIONS
Approvals	Suitable for fixed applications only in accordance with AS/NZS 3000+AS/NZS 5000.1
Behaviour in flame and fire:	Flame propagation - AS/NZS IEC 60332-1
Temperature range	Maximum operating temperature: +110°C Minimum operating temperature: -25°C
Minimum bending radius	Installed cables: 4D During installation: 6D
Resistance to	Chemical exposure: OccasionaI Mechanical impact: Light Water exposure: Uccasional condensation Solar radiation and weather exposure:Occasional
Cable design	Conductor: Flexible bunched annealed copper conductor to A5/NZ5 1125 (Class 5). Insulation: X-HF-110 Colour:Natural Sheath: HFS-110-TP Colour: Orange/Black
Installation conditions	In free air In conduit In trench In duct

Core x cross- section mm²
Core x cross- section mm²	Conductor Diameter mm	Nominal insulation thickness mm	Nominal sheath thickness mm	Approx.overall diameter mm	Approx. weight kg/km
1x16	0.20	0.7	1.4	9.9	201
1x25	0.20	0.9	1.4	11.6	292
1x35	0.20	0.9	1.4	12.8	386
1x50	0.30	1.0	1.4	14.6	529
1x70	0.30	1.1	1.4	16.6	725
1x95	0.30	1.1	1.5	18.5	935
1x120	0.30	1.2	1.5.	20.4	1174
1x150	0.30	1.4	1.6	22.7	1464
1x185	0.40	1.6	1.6	24.8	1765
1x240	0.40	1.7	1.7	28.0	2304
1x300	0.40	1.8	1.8	30.8	2847
1x400	0.50	1.9	1.9	34.9	3730
1x500	0.50	2.0	2.0	38.8	4689
1x630	0.50	2.0	2.2	44.3	6226

mm²	Min. Bending Radius mm
		Current Rating (A)					Electrical Characteristics
		Underground Enclose	Spaced	Spaced from surface	In the air		Maximum DC Resistance 20°C Ω/km
		Underground Enclose	Spaced	Spaced from surface	Enclosed	Touching	Maximum DC Resistance 20°C Ω/km
16	59	97	130	114	91	105	1.21
25	70	125	173	153	121	139	0.780
35	77	151	214	188	148	172	0.554
50	88	188	270	230	190	217	0.386
70	100	229	340	291	234	273	0.272
95	111	268	410	363	277	329	0.206
120	122	316	487	422	331	390	0.161
150	136	357	562	486	378	450	0.129
185	149	404	644	564	438	516	0.106
240	168	481	775	674	538	620	0.0801
300	185	542	895	780	612	714	0.0641
400	209	648	1079	910	757	855	0.0486
500	233	729	1260	1053	864	990	0.0384
600	266	828	1493	1217	993	1154	0.0287

CERTIFICATIONS

25mm2 0.6/1kV flexible cable

25mm² SAA approved cable

PACKAGING

Plastic Reel

Small Wooden Reel

Large Wooden Reel

APPLICATION

Industrial Equipment and Motor Power Supply

Switchboard and Distribution Panel Wiring

Underground Cable Trench and Conduit Installation

CASE

Induction Melting Furnace Power System

Mining Processing Plant MCC and Substation UpgradeModular Homes

Steel Mill Walking Beam Furnace Electrical Installation

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

GLOBAL CERTIFICATIONS

flexible SDI cable X-HF-110

CUSTOMER PHOTOS

double insulated SDI cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

single core double insulated flexible cable

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

Is elastomer cable the same as rubber cable?

Elastomer is a broad material category, while rubber refers to particular elastomeric compounds. A single core elastomer cable should therefore be purchased by its full construction and standard, not by the word rubber alone. GERITEL WIRE confirms insulation, sheath, conductor class and certificate model before production.

Is the 110°C elastomer cable single core or multicore?

This product range is a flexible single core power cable. Each cable contains one Class 5 copper conductor, so phase, neutral and earth conductors are installed as separate cables when required. GERITEL WIRE helps buyers calculate the required quantities, colours or identification methods for a complete circuit.

What is the rated voltage of this cable?

The standard rated voltage is 0.6/1kV. A 0.6/1kV elastomer cable is intended for low-voltage power distribution and should not be substituted for medium-voltage cable. GERITEL WIRE checks the system voltage, earthing arrangement and cable schedule before confirming the offered construction.

Which conductor sizes are available?

GERITEL WIRE can supply the SAA-covered single-core range according to the relevant certificate and order construction, including sizes used from 16mm² through 630mm² in this product matrix. For a specific flexible copper cable size, the team confirms certificate coverage, nominal diameter, drum capacity and production availability before the order.
