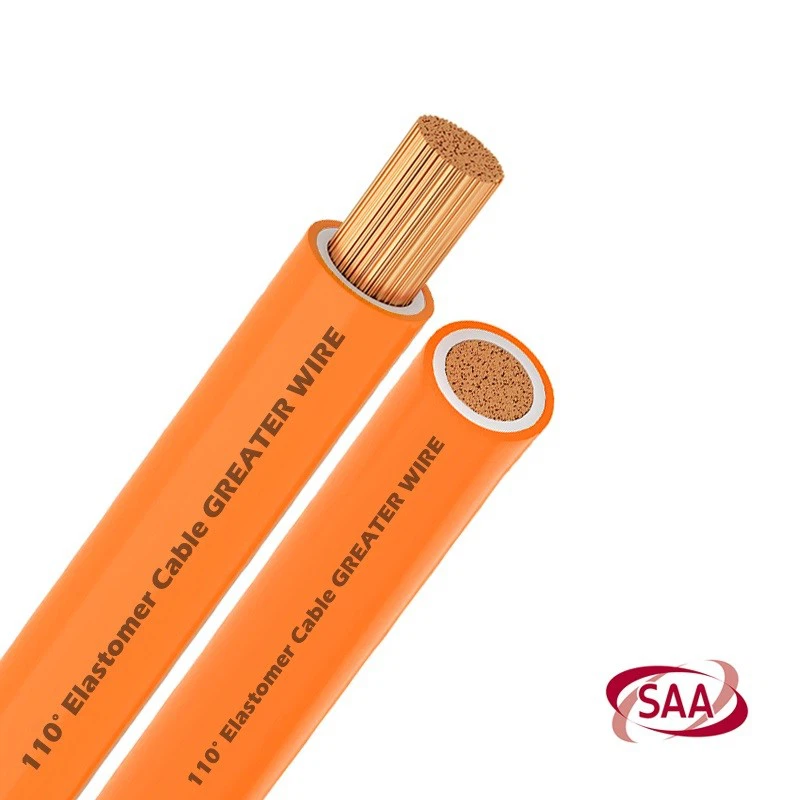

Elastomer Cables are standards set by AS/NZS 5000.1. These cables are specifically engineered for environments where both durability and flexibility are crucial. Flexible bunched annealed copper. This type of conductor is chosen for its excellent electrical conductivity and its ability to withstand frequent bending and twisting without breaking. The annealing process makes the copper more malleable, enhancing its flexibility, which is a vital attribute in complex wiring configurations.
X-HF-110 Insulated is high thermal stability, resistance to chemical and physical stress, and excellent insulating properties. HFS-110-TP Sheathed Cable provides additional protection against external factors such as abrasion, moisture, and chemicals.
The wide temperature range is the maximum operating temperature of +90°C and a minimum operating temperature of -25°C. This broad temperature range makes the cables suitable for both hot and cold environments, maintaining their performance and structural integrity.
Application
1. Industrial Machinery: Elastomer cables, with their flexible nature, can be easily routed through tight spaces without being damaged. This flexibility is crucial in complex machinery where cables need to bend around corners or through small conduits.
2. High-Temperature Environments: Elastomer cables are designed to withstand high temperatures, making them suitable for use near industrial machinery that generates heat. This includes applications near engines, furnaces, or other heat-producing equipment where standard cables might degrade.
3. Outdoor and Underground Installations: These cables are ideal for outdoor applications, including mains and submains in building constructions. They are also used in underground ducts where moisture and varying temperatures can affect cable performance. Their robust sheathing protects against environmental factors, ensuring reliable performance.
Feature
● Product: Elastomer Cables
● Voltage: 0.6/1kV
● Conductor: Copper
● Insulated: Flexible X-HF-110 Insulated
● Sheath: HFS-110-TP Sheathed Cable
● Colour: Orange
● Standard: AS/NZS 5000.1
● Certification: SAA
Certification
Our products have achieved various prestigious international certifications, including SAA, UL, TUV, EU CPR, CE, ROHS, and others.
Package
Factory
Greater wire & cable manufacturer was established in 1999. It is a company integrating R&D, production, sales and service. It specializes in the production of wire and cable products and has rich experience in wire and cable production. Its operations include rubber cable, solar cable, THHN wire, flexible cable, power cable and other low-voltage wires and cables. The product features include cross-linked, flame retardant, fire-resistant, halogen-free and low-smoke, ant-proof, rodent-proof, etc. dozens of series and thousands of varieties of cables. Greater wire & cable manufacturer is located in Dongguan City, Guangdong Province, covering an area of about 12,000 square meters. It has advanced automated production and testing equipment, professional management and production technicians, complete living and entertainment cultural facilities, a professional foreign trade service team, and wire and cable exports Covering more than 180 countries and regions, we have rich export experience.
Case
Partner
FAQ
Q: What is elastomer cable?
Q: What is the difference between rubber and elastomer?
Q: What are the disadvantages of elastomers?
1. Temperature Sensitivity:
Low-Temperature Performance: Some elastomers can become brittle at low temperatures, losing their elasticity and flexibility.
High-Temperature Limitations: While many elastomers are heat resistant, they typically have an upper-temperature limit, beyond which they degrade or lose their properties.
2. Chemical Degradation:
Chemical Compatibility: Elastomers can be vulnerable to degradation when exposed to certain chemicals, oils, solvents, and fuels, depending on the specific elastomer type.
Ozone and UV Degradation: Some elastomers, especially natural rubber, can degrade when exposed to ozone or ultraviolet (UV) radiation over time.
3. Mechanical Properties:
Wear and Tear: While durable, elastomers can still suffer from abrasion, cuts, and punctures, especially in high-stress applications.
Compression Set: Elastomers can experience permanent deformation (compression set) when subjected to prolonged compressive forces, losing their ability to return to their original shape.
4. Aging and Durability:
Oxidation: Over time, elastomers can undergo oxidation, leading to hardening, cracking, or other forms of deterioration.
Degradation: The material properties of elastomers can degrade over time, especially if they are not stored properly or are exposed to adverse environmental conditions.
5. Cost:
Material Cost: High-performance elastomers, such as silicone or fluorocarbon-based materials, can be expensive compared to other materials.
Processing Cost: The manufacturing and processing of certain elastomers can be more complex and costly, particularly for those requiring specialized curing or vulcanization processes.
6. Limited Load-Bearing Capacity:
Structural Use: Elastomers are not typically suitable for applications requiring high structural strength or load-bearing capacity, as they are generally softer and more flexible than other materials like metals or hard plastics.
Q: What is the purpose of elastomer?
Hot Tags: 110°single core elastomer cables, China 110°single core elastomer cables manufacturers, suppliers, factory, nmd90, xlpe armoured cable, H07ZZ F Cable, AC Power Cable, High Temp Ultra Flexible Silicone Insulated Wire, rubber welding cable
| Conductor | Cable | Min installed bending radius(a)mm |
||||
| Nominal C.S.A. mm |
Number and diameter of wires No/mm | Nominal insulation thickness mm |
Overall diameter mm | Approx. mass kg/100m | ||
| Minimum mm | Maximum mm | |||||
| 35 | 7.7 | 1.2 | 12.5 | 13.3 | 40.3 | 55 |
| 50 | 9.3 | 1.4 | 14.5 | 15.3 | 55.9 | 65 |
| 70 | 11.1 | 1.4 | 16.3 | 17.2 | 75.0 | 70 |
| 95 | 12.8 | 1.6 | 18.5 | 19.4 | 97.9 | 80 |
| 120 | 14.5 | 1.6 | 20.2 | 21.1 | 122.0 | 85 |
| 150 | 16.3 | 1.8 | 22.5 | 23.6 | 151.1 | 95 |
| 185 | 18.0 | 2.0 | 24.8 | 25.8 | 183.1 | 105 |
| 240 | 20.8 | 2.2 | 28.1 | 29.2 | 239.0 | 120 |
| 300 | 23.4 | 2.4 | 31.2 | 32.4 | 296.7 | 130 |
| 400 | 26.8 | 2.6 | 35.1 | 36.4 | 386.0 | 150 |
| 500 | 30.3 | 2.8 | 39.1 | 40.5 | 485.2 | 165 |
| 630 | 35.1 | 2.8 | 39.1 | 40.5 | 637.0 | 185 |
