Heavy duty multicore flexible cable is a 0.6/1KV rated cable designed for durability, bend resistance, and versatility. Able to withstand high mechanical stress and durability, it is often used in applications that require frequent bending, twisting, or other mechanical stress. In addition, heavy duty multicore flexible cables have a strong outer sheath that can be used in harsh conditions to demonstrate durability and resist the effects of chemicals, oil, moisture, and other environmental factors.
Application
Heavy duty multicore flexible cable is suitable for a variety of applications, such as transmitting power, data or control signals, moving or connecting equipment, machines and tools, industrial machinery, construction equipment, mining equipment, heavy-duty transportation vehicles, military equipment, and others.
Feature

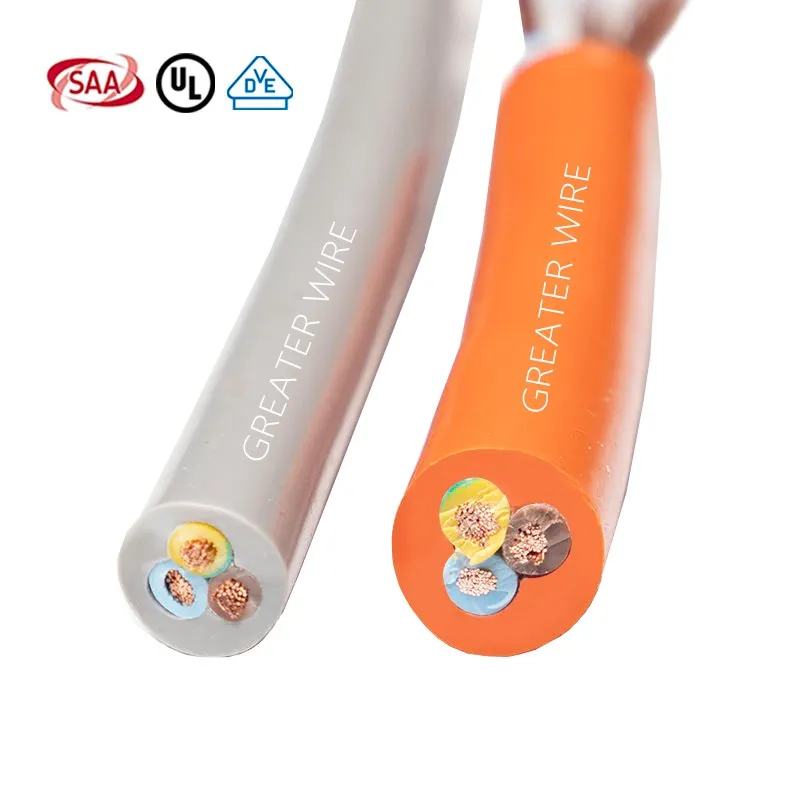

Product : Heavy Duty Multicore Flexible Cable
Conductor: 2C, 3C, 4C, flexible pure copper conductors
Insulation and Sheath: PVC
Standard: AS/NZS 3191
Rated Voltage: 0.6/1KV
1. Conductors: This is the core part of the cable, made of copper and used to carry electrical current.
2. Stranding: Usually multi-stranded windings that make the cable flexible and can bend and bend without breaking easily. .
3. Insulation and sheath: PVC insulation and sheath to prevent current leakage and short circuits.
Certification
Our products have passed UL, SAA, TUV, VDE, CE, CB and other certifications. Our company has corresponding certification for each region. We have more than 10 years of experience in foreign trade export, exporting to more than 90 countries around the world, and are familiar with the wire and cable specifications and standards of many countries.
Package
Factory
Greater Wire manufacturer's advanced cable factory has an intelligent and digital manufacturing environment. Through the seamless integration of cutting-edge technology, the factory successfully eliminates errors and defects that may occur in the traditional manual assembly process. The shift to digital manufacturing not only increases efficiency but also demonstrates our commitment to providing our customers with products of the highest reliability. The smart factory framework ensures a streamlined and error-free production process, minimizing the possibility of human-related variances and increasing previously unattainable precision. Accurate and automated inspection mechanism, the factory strictly adheres to quality control. Products are thoroughly inspected from the beginning to the final stage of the manufacturing process. Digital intelligent image detection and laser technologies are used to ensure that each product meets the strict standards set by our company. This commitment to quality extends to our inspection accuracy, with automated production equipment achieving an impressive accuracy of 0.002 mm, exceeding industry benchmarks.
Case
Partner
FAQ
Q: Are you factory or trader?
Q: How is the quality of these products?
Flexible cords are multiple-stranded wires, similar to flexible cables, but typically in a lighter and more flexible design, Which are used for connecting household appliances and light fixtures to the main electrical supply.
Hot Tags: 0.6/1kv heavy duty multicore flexible cable, China 0.6/1kv heavy duty multicore flexible cable manufacturers, suppliers, factory, 0 6 1KV Heavy Duty Multicore Flexible Cable
| Conductor Area mm2 | Nominal Overall Diameter mm |
Approx. Mass Kg/100 M2 |
| 2C CIRCULAR | ||
| 0.75 | 6.6 | 6 |
| 1 | 6.8 | 6.6 |
| 1.5 | 7.8 | 8.9 |
| 2.5 | 9.6 | 13.6 |
| 4 | 10.6 | 18.2 |
| 2C+E CIRCULAR | ||
| 0.75 | 6.9 | 7 |
| 1 | 7.2 | 7.9 |
| 1.5 | 8.5 | 11 |
| 2.5 | 10.4 | 17 |
| 4 | 11.5 | 22.9 |
| 3C+E CIRCULAR | ||
| 0.75 | 7.6 | 8.5 |
| 1 | 8.1 | 9.9 |
| 1.5 | 9.5 | 13.8 |
| 2.5 | 11.3 | 20.6 |
| 4 | 12.5 | 28 |
| 4C+E CIRCULAR | ||
| 0.75 | 8.5 | 10.3 |
| 1 | 8.8 | 11.6 |
| 1.5 | 10.6 | 16.9 |
| 2.5 | 12.6 | 25.8 |
| 4 | 14.1 | 35.7 |
