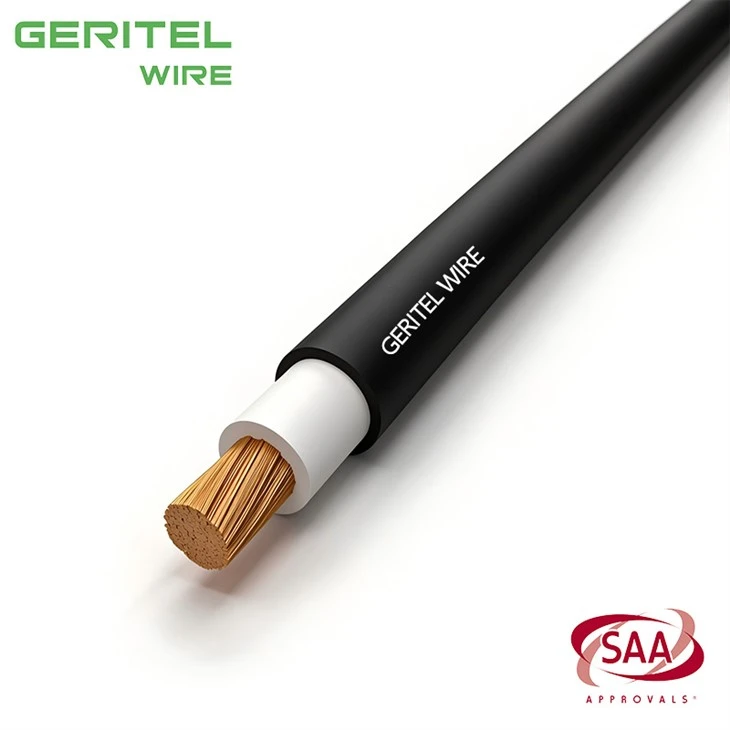

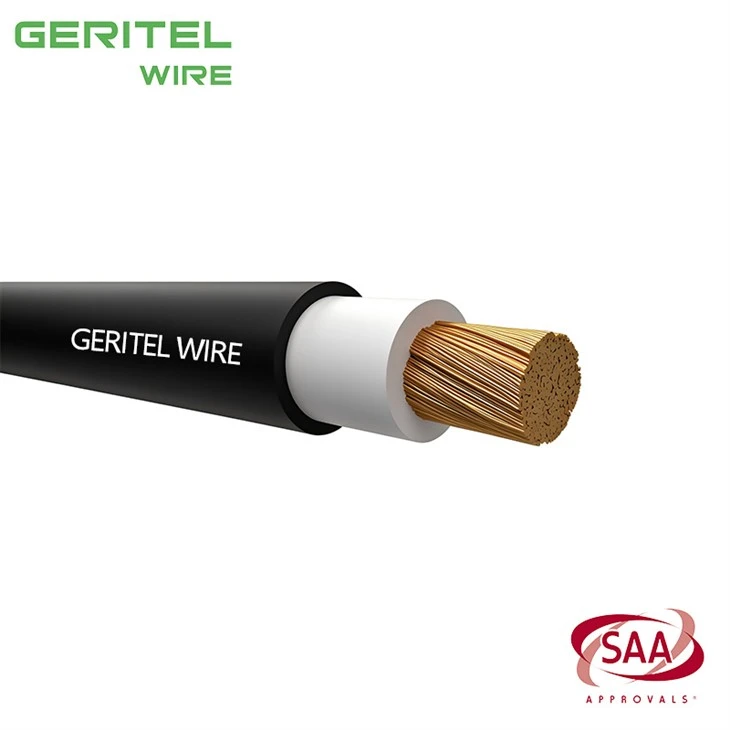

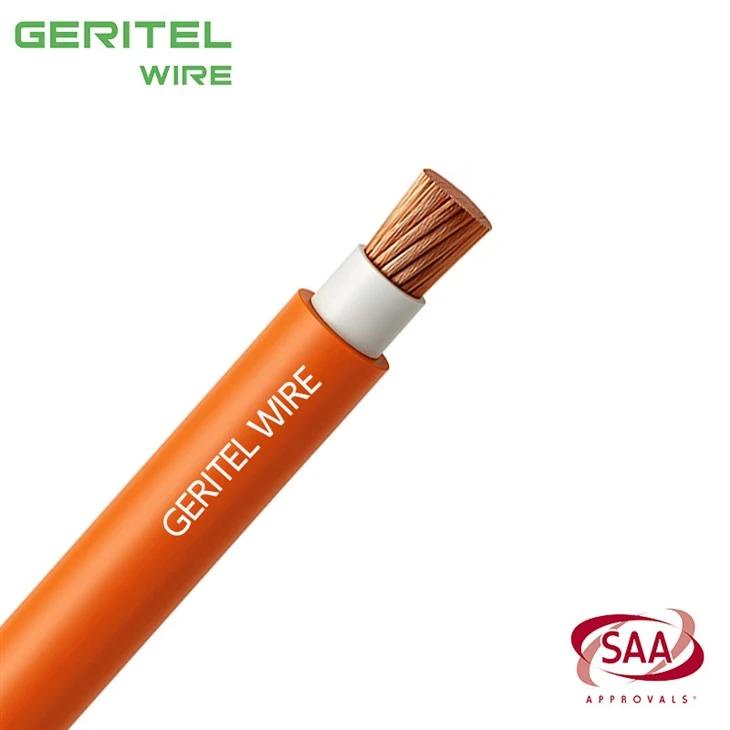

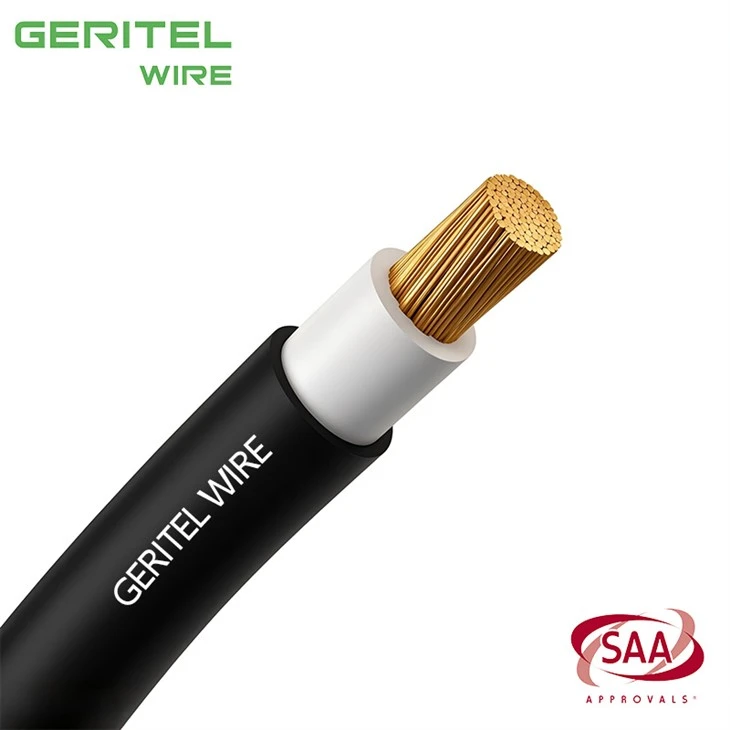

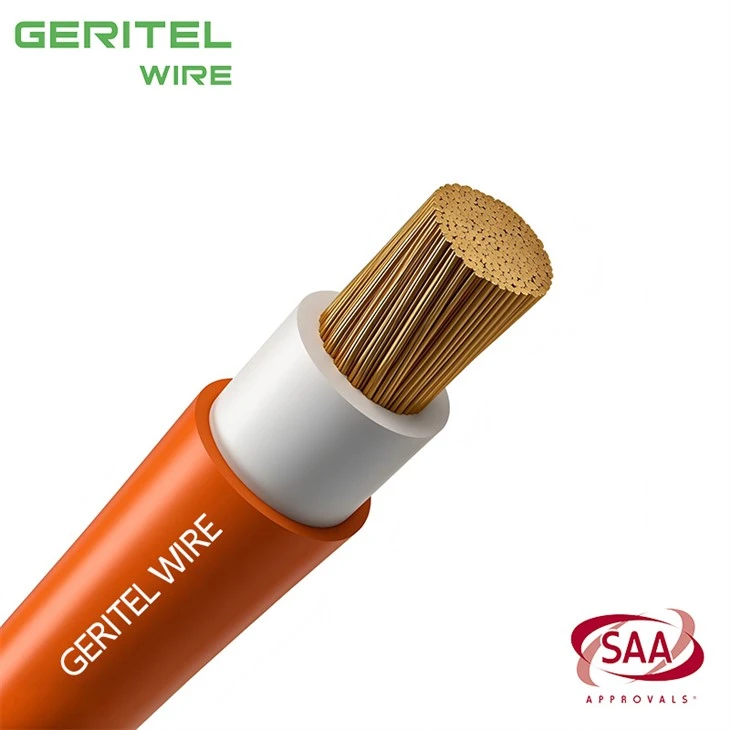

16mm² X-HF-110 cable

PRODUCT REAL SHOT

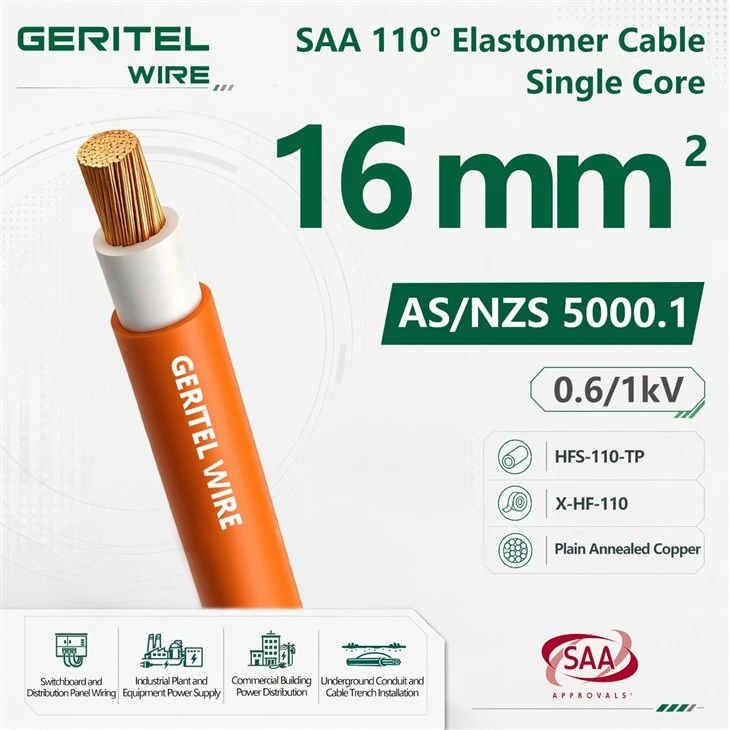

16mm2 flexible single core cable

Flexible Single Core Power Cable for Compact Switchboard Wiring

Designed for compact distribution work, this 16mm² X-HF-110 cable combines a flexible bunched annealed conductor with X-HF-110 insulation and a black HFS-110-TP sheath. The Class 5 copper cable is rated 0.6/1kV and supports mains, subcircuits and switchboard connections where easier routing is valuable. As a fixed wiring cable for conduit installation, it may also be installed in free air, protected trenches or underground ducts when mechanical damage is controlled. The low smoke zero halogen cable operates at conductor temperatures up to 110°C, complies with AS/NZS 5000.1 and has flame propagation performance to AS/NZS IEC 60332-1. GERITEL WIRE supports cable marking, drums, test documents and export orders.

PRODUCT SPECIFICATIONS

16mm² LSZH single core cable

Applications

Flexible single core X-HF-110 insulated and HFS-110-TP sheathed cable for mains, submains and subcircuits unenclosed, enclosed in conduit or in underground ducts for building and industrial plants where not subject to mechanical damage. Suitable where space is at a premium and/or where conditions of overload may occur.

SPECIFICATIONS
Approvals	Suitable for fixed applications only in accordance with AS/NZS 3000+AS/NZS 5000.1
Behaviour in flame and fire:	Flame propagation - AS/NZS IEC 60332-1
Temperature range	Maximum operating temperature: +110°C Minimum operating temperature: -25°C
Minimum bending radius	Installed cables: 4D During installation: 6D
Resistance to	Chemical exposure: OccasionaI Mechanical impact: Light Water exposure: Uccasional condensation Solar radiation and weather exposure:Occasional
Cable design	Conductor: Flexible bunched annealed copper conductor to A5/NZ5 1125 (Class 5). Insulation: X-HF-110 Colour:Natural Sheath: HFS-110-TP Colour: Orange/Black
Installation conditions	In free air In conduit In trench In duct

Core x cross- section mm²
Core x cross- section mm²	Conductor Diameter mm	Nominal insulation thickness mm	Nominal sheath thickness mm	Approx.overall diameter mm	Approx. weight kg/km
1x16	0.20	0.7	1.4	9.9	201
1x25	0.20	0.9	1.4	11.6	292
1x35	0.20	0.9	1.4	12.8	386
1x50	0.30	1.0	1.4	14.6	529
1x70	0.30	1.1	1.4	16.6	725
1x95	0.30	1.1	1.5	18.5	935
1x120	0.30	1.2	1.5.	20.4	1174
1x150	0.30	1.4	1.6	22.7	1464
1x185	0.40	1.6	1.6	24.8	1765
1x240	0.40	1.7	1.7	28.0	2304
1x300	0.40	1.8	1.8	30.8	2847
1x400	0.50	1.9	1.9	34.9	3730
1x500	0.50	2.0	2.0	38.8	4689
1x630	0.50	2.0	2.2	44.3	6226

mm²	Min. Bending Radius mm
		Current Rating (A)					Electrical Characteristics
		Underground Enclose	Spaced	Spaced from surface	In the air		Maximum DC Resistance 20°C Ω/km
		Underground Enclose	Spaced	Spaced from surface	Enclosed	Touching	Maximum DC Resistance 20°C Ω/km
16	59	97	130	114	91	105	1.21
25	70	125	173	153	121	139	0.780
35	77	151	214	188	148	172	0.554
50	88	188	270	230	190	217	0.386
70	100	229	340	291	234	273	0.272
95	111	268	410	363	277	329	0.206
120	122	316	487	422	331	390	0.161
150	136	357	562	486	378	450	0.129
185	149	404	644	564	438	516	0.106
240	168	481	775	674	538	620	0.0801
300	185	542	895	780	612	714	0.0641
400	209	648	1079	910	757	855	0.0486
500	233	729	1260	1053	864	990	0.0384
600	266	828	1493	1217	993	1154	0.0287
