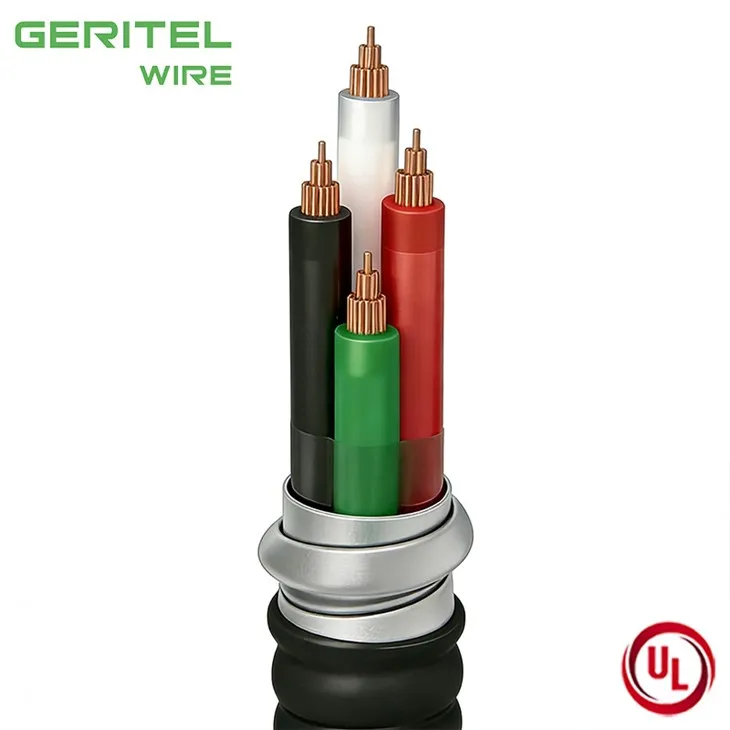

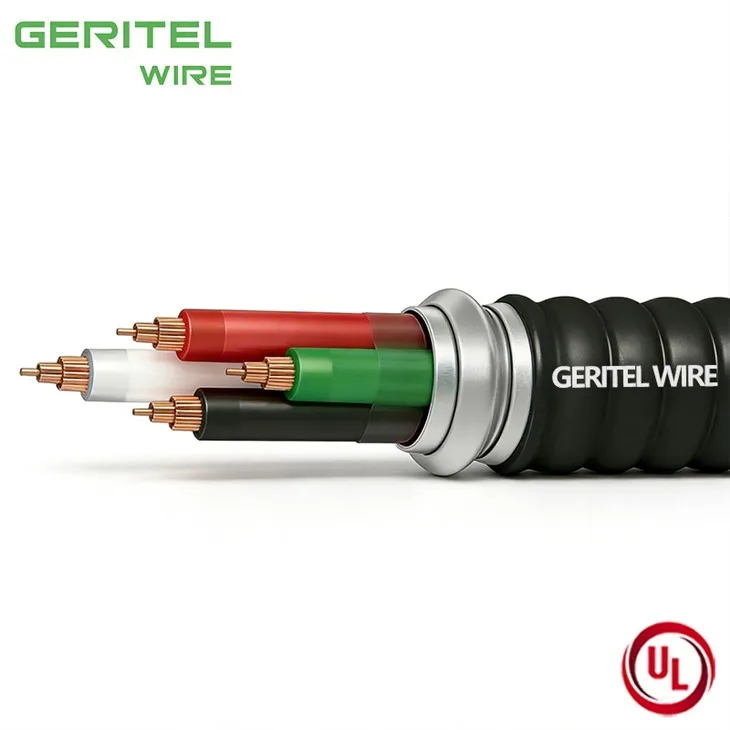

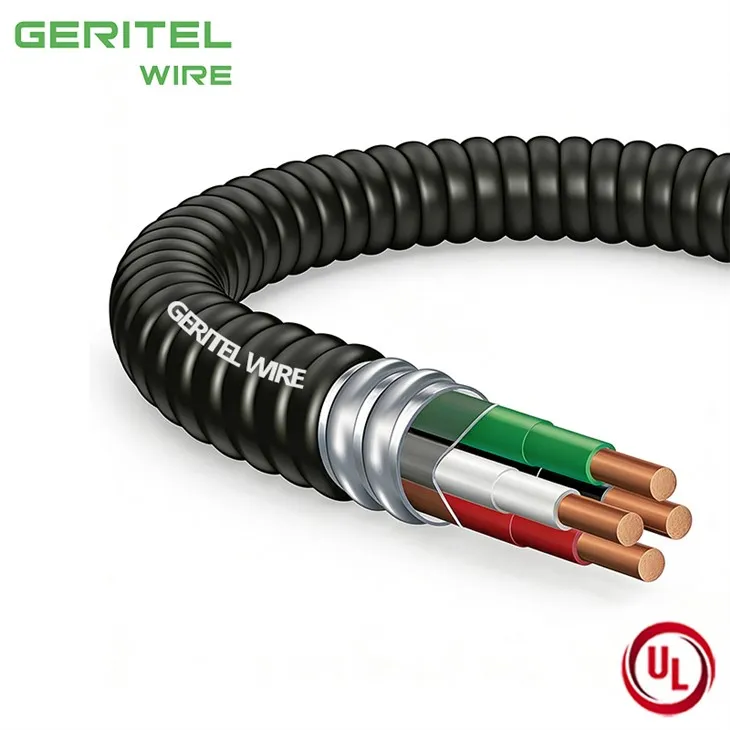

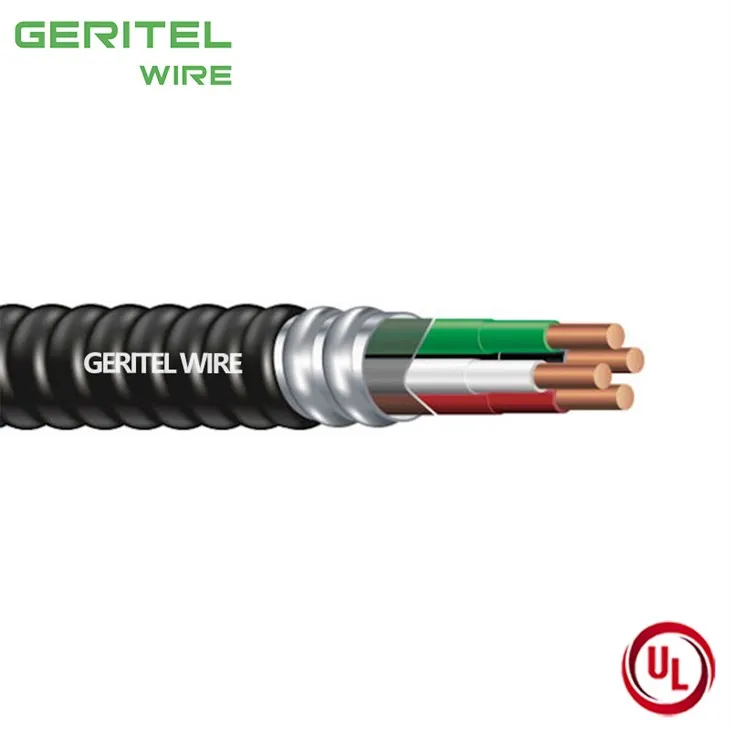

PRODUCT REAL SHOT

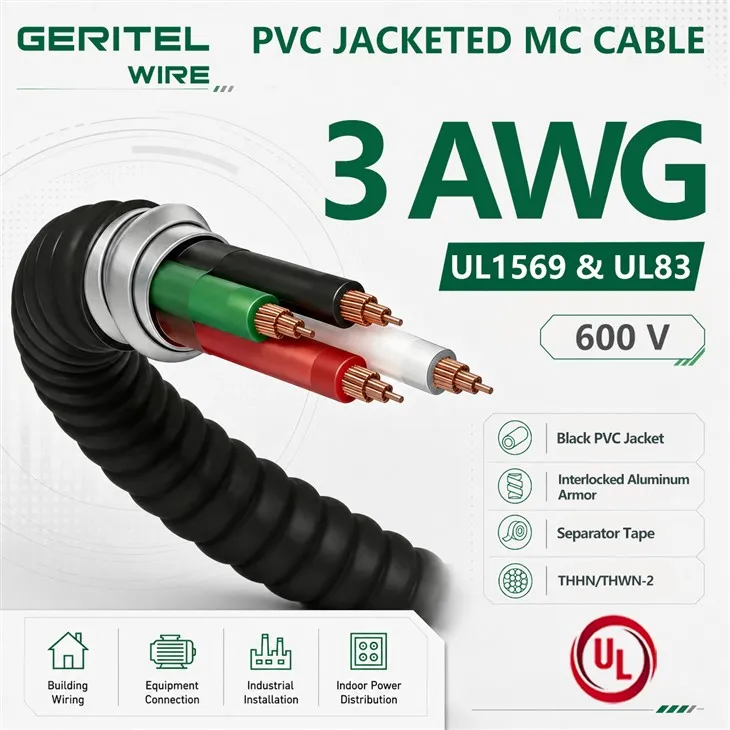

3 AWG MC Cable Construction & Features
The 3 AWG PVC Jacketed Metal Clad Cable is engineered for heavy-duty power transmission in commercial and industrial environments. Its interlocked steel armor provides outstanding mechanical protection against impact and crushing, while the outer PVC jacket adds resistance to moisture, sunlight, oil, and corrosive materials. Inside the cable, the conductors are made of high-quality THHN/THWN-2 copper, ensuring excellent conductivity and thermal performance up to 90°C in both dry and wet locations. A full-sized insulated grounding conductor is also included for safety. This construction makes the cable ideal for feeders, branch circuits, and outdoor installations where ruggedness and reliability are critical.
PRODUCT SPECIFICATIONS
| Conductors |
Outside Diameter Over Armor (in) |
Outside Diameter Over Jacket (in) |
PVC Thickness (in) |
Approximate Net Weight (lbs/1000ft) |
Allowable Ampacity (Amps) |
Standard Packaging | ||||
| AWG/NO. | Type | Ground | 75℃ | 75℃ | Coils | Reels | ||||
| 3/3 | Stranded | 6 AWG Green Insulated | 1.063 | 1.163 | 0.050 | 1,130.79 | 100 | 115 | 100' | 500' |
| 3/4 | Stranded | 6 AWG Green Insulated | 1.152 | 1.252 | 0.050 | 1,355.95 | 100 | 115 |
100' |
500' |
CERTIFICATIONS
PACKAGING
Roll
Small Wooden Reel
Large Wooden Reel
APPLICATION
CASE
WHY CHOOSE US
in one-stop service
Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.
With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.
We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.
Greater Cable - Certified Quality. Reliable Supply. Engineering Value.
PLANT EQUIPMENT
GLOBAL CERTIFICATIONS
CUSTOMER PHOTOS
INTERNATIONL TRANSPORTATION
01
Sea Freight
We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.
02
Air Freight
For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.
03
International Express
Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.
COOPERATIVE PARTNER
We are looking for a cooperative partner to expand our business.
Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.
Our address
Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China
Phone Number
+86 136 6257 9592
+86 135 1078 4550
manager01@greaterwire.com
FAQ
Is the interlocked steel armor of the 3 AWG PVC Jacketed MC Cable corrosion resistant?
The steel armor is made of galvanized steel, which provides basic rust resistance. The additional PVC jacket significantly improves overall corrosion protection, making the cable suitable for wet, chemical-exposed, or outdoor environments where the armor would otherwise be vulnerable.
Can this cable be installed in cable trays or direct burial applications?
Yes, the PVC jacket provides additional protection for cable tray installations, especially in outdoor or damp environments. For direct burial, the interlocked armor plus PVC jacket offers good resistance to soil moisture and mechanical stress, but local codes should be consulted. A direct burial–rated variant with a heavier jacket may also be available upon request.
What is the maximum operating temperature for this cable?
The 3 AWG PVC Jacketed MC Cable is rated for 90°C in both dry and wet locations (based on the THHN/THWN-2 conductor insulation). The PVC jacket and steel armor are suitable for the same temperature range.
Can GERITEL WIRE provide customized MC Cable solutions?
Yes. GERITEL WIRE supports OEM and custom manufacturing services, including conductor size, cable length, packaging, and labeling requirements. Our team can help you find the right Metal Clad Cable solution for your project and target market.
