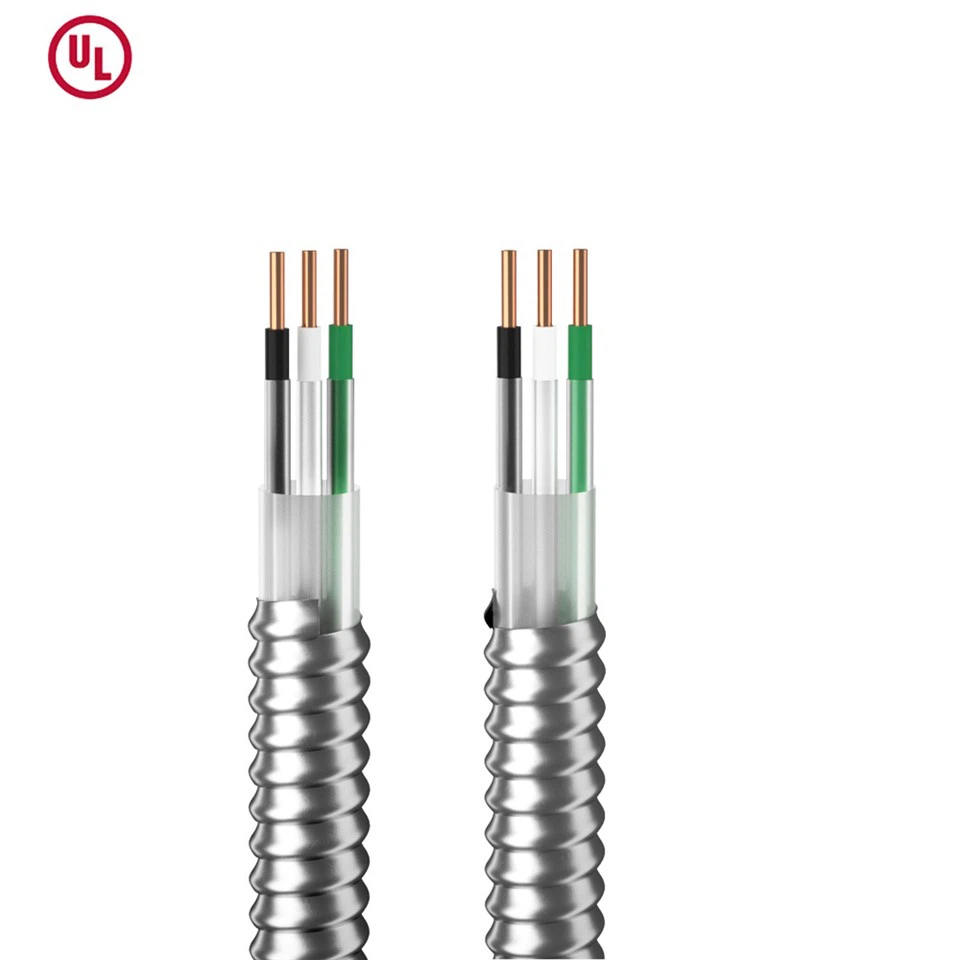

MC cable is Metal-Clad cable, which is a metal-sheathed cable made of aluminum or steel. It provides physical protection of the cable, making the cable durable and resistant to some external environmental factors, such as mechanical damage and chemical corrosion. MC cable is easy to install because its metal sheath allows it to be buried directly in a wall or floor without the need for additional protective conduits. It is typically used to transmit power and control wires to electrical equipment and systems in buildings.
Application
Metal Clad (MC) cables are widely used in commercial, industrial, and institutional buildings due to their robust construction and enhanced protection capabilities. They are especially ideal in environments where both electromagnetic interference (EMI) shielding and physical durability are critical. Common application areas include factories, warehouses, hospitals, schools, office buildings, data centers, and airports.
In these settings, MC electrical cables are frequently used for connecting power distribution systems, lighting circuits, HVAC controls, machinery, fire alarm systems, and communication equipment. Their interlocking metal armor provides excellent mechanical protection, making them suitable for exposed or concealed installations, even in areas with high traffic or potential impact.

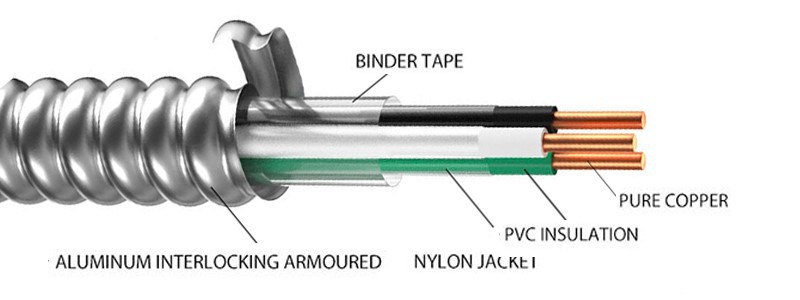

Feature
-
Conductor: Copper, Multi-Core
-
Insulation: PVC Insulation
-
Jacket: Nylon
-
Sheath: Armored
-
Rated Voltage: 600V
-
Standard:
UL 83
UL 1569
UL 1685
Certification
MC cables are UL certified under file number E544860. You can verify this certification directly on the official UL database. In addition, our cables have achieved various prestigious international certifications, including TUV, SAA, PSE, EU CPR, CE, ROHS, and others. Strict testing, reliable quality.
Package
Factory
1. Greater wire & cable manufacturer produces MC cables in different voltage levels, conductor sizes, insulation types and metal sheath material choices to meet the needs of various applications.
2. Our factory is responsible for selecting high-quality materials, such as copper or aluminum conductors, insulation materials and metal sheaths to ensure the electrical performance, durability and safety of the cables.
3. Our factory has a complete quality control process, including electrical performance testing, insulation testing, mechanical strength testing, and safety testing to ensure that the produced cables meet high standards.
4. The factory may conduct research and development activities to continuously improve product performance, design new wires and cables, and meet the changing needs of the market.
Case
Partner
FAQ
Q: What is metal clad cable?
Q: Does metal clad cable need conduit?
Q: Can you use metal clad cable outdoors?
Hot Tags: metal clad cable, China metal clad cable manufacturers, suppliers, factory, SAA Orange Circular Cable, NM B Wire, multicore rubber cable, h03vv-f, sdi cable, silicone insulated wire
| Conductor Size |
No.of Conductors |
Ground Size |
Diameter Over Armor | Diameter Over Jacket |
Net Weight | ||
| AWG/KCM | AWG | Inches | mm | Inches | mm | lbs/kft | |
| 12 | 2 | 12 | 0.511 | 12.98 | 0.616 | 15.65 | 179 |
| 12 | 3 | 12 | 0.546 | 13.87 | 0.651 | 16.54 | 212 |
| 12 | 4 | 12 | 0.584 | 14.83 | 0.689 | 17.5 | 257 |
| 10 | 2 | 10 | 0.586 | 14.88 | 0.631 | 17.55 | 239 |
| 10 | 3 | 10 | 0.63 | 16.00 | 0.735 | 18.67 | 290 |
| 10 | 4 | 10 | 0.679 | 17.25 | 0.784 | 19.91 | 356 |
| 8 | 3 | 10 | 0.752 | 19.10 | 0.857 | 21.77 | 390 |
| 6 | 3 | 8 | 0.864 | 21.95 | 0.969 | 24.61 | 547 |
| 4 | 3 | 8 | 0.991 | 25.17 | 1.096 | 27.84 | 754 |
