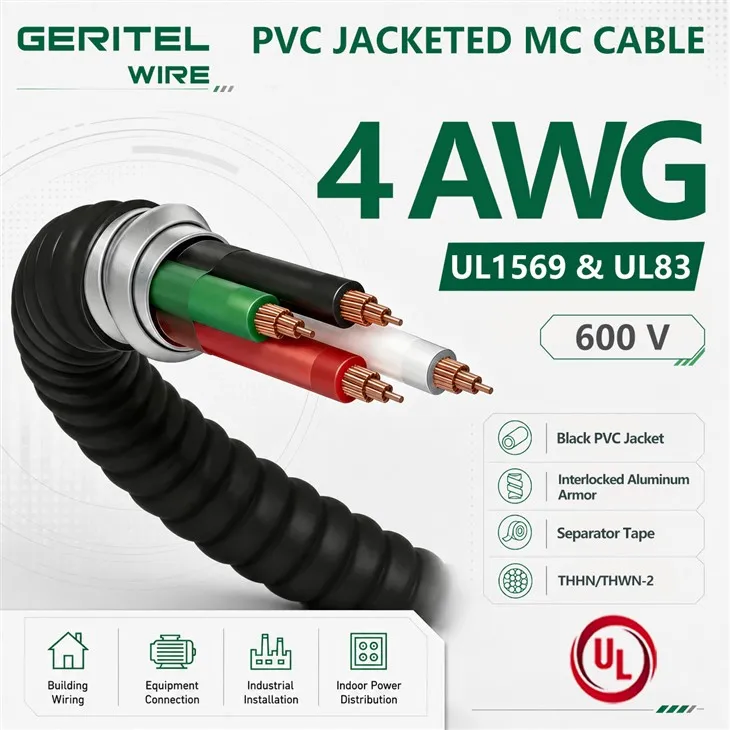

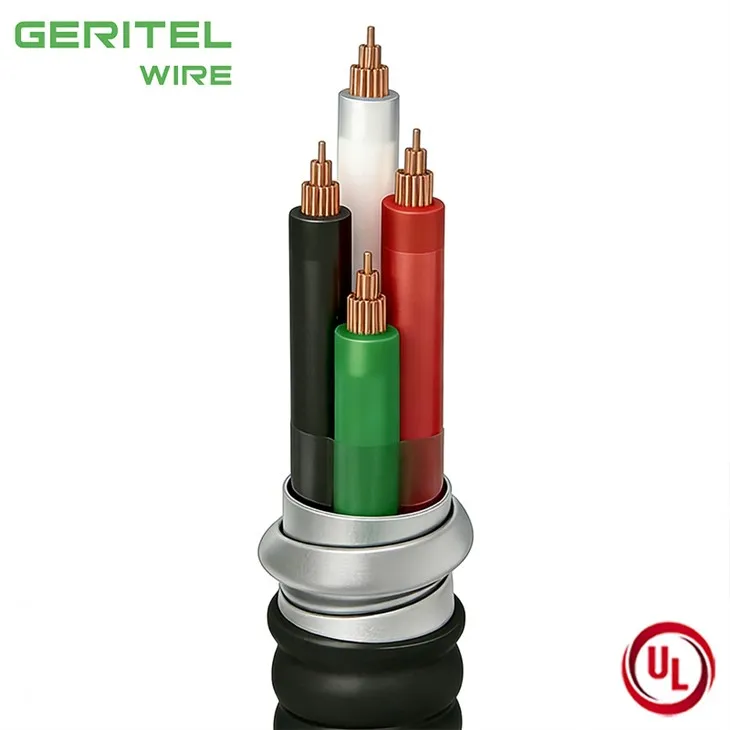

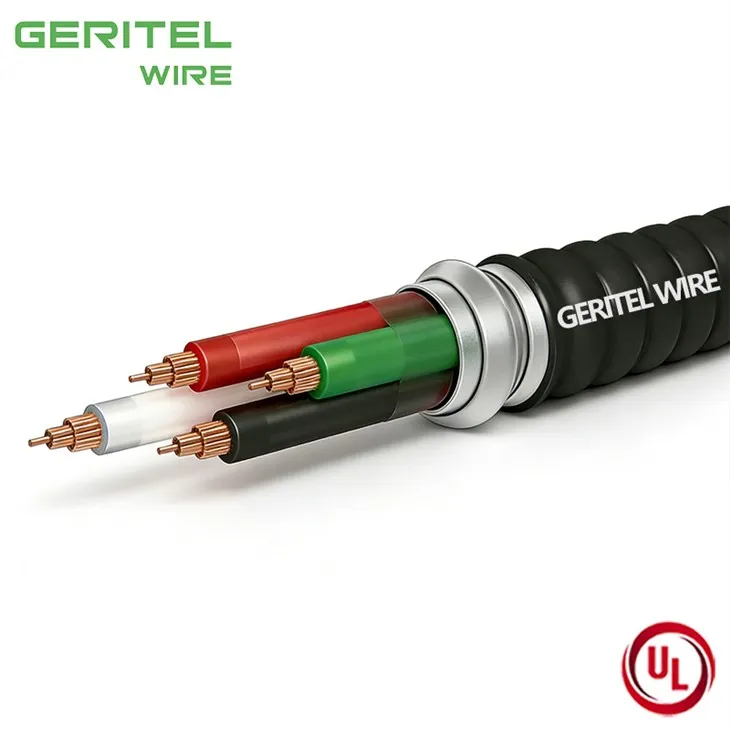

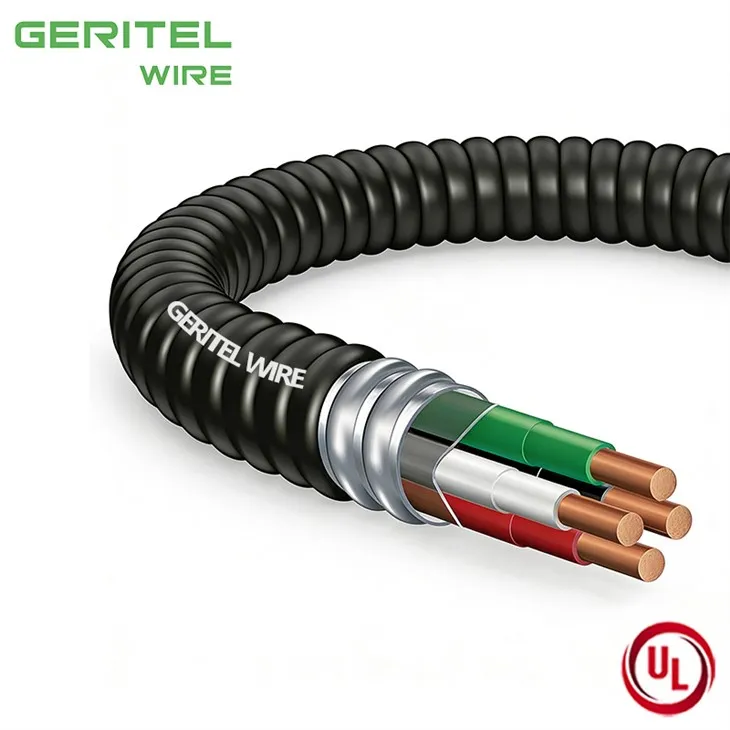

Brief introduction of 4 AWG MC Cable PVC Jacketed
The 4 AWG MC cable with THHN/THWN-2 copper conductors and a durable PVC outer jacket is designed for demanding commercial and industrial applications. Its interlocked galvanized steel armor provides excellent mechanical protection against impact, crushing, and rodent damage. The PVC jacket adds an extra layer of resistance to moisture, sunlight, oil, and corrosive chemicals, making this cable suitable for both indoor and outdoor installations, including wet and dry locations rated up to 90°C. Furthermore, the cable includes a full-sized insulated grounding conductor to help reduce electrical noise and meet modern code requirements. With all these features, this product is UL1569 certified, ensuring compliance with North American safety standards for metal clad cables.
PRODUCT SPECIFICATIONS
| Conductors |
Outside Diameter Over Armor (in) |
Outside Diameter Over Jacket (in) |
PVC Thickness (in) |
Approximate Net Weight (lbs/1000ft) |
Allowable Ampacity (Amps) |
Standard Packaging | ||||
| AWG/NO. | Type | Ground | 75℃ | 90℃ | Coils | Reels | ||||
| 4/2 | Stranded | 8 AWG Green Insulated | 0.863 | 0.963 | 0.050 | 601.18 | 85 | 95 | 100' | 500' |
| 4/3 | Stranded | 8 AWG Green Insulated | 0.972 | 1.072 | 0.050 | 949.63 | 85 | 95 |
100' |
500' |
| 4/4 | Stranded | 8 AWG Green Insulated | 1.085 | 1.185 | 0.050 | 1,152.94 | 85 | 95 | 100' | 500' |
CERTIFICATIONS
PACKAGING
Roll
Small Wooden Reel
Large Wooden Reel
APPLICATION
CASE
WHY CHOOSE US
in one-stop service
Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.
With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.
We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.
Greater Cable - Certified Quality. Reliable Supply. Engineering Value.
PLANT EQUIPMENT
GLOBAL CERTIFICATIONS
CUSTOMER PHOTOS
INTERNATIONL TRANSPORTATION
01
Sea Freight
We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.
02
Air Freight
For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.
03
International Express
Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.
COOPERATIVE PARTNER
We are looking for a cooperative partner to expand our business.
Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.
Our address
Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China
Phone Number
+86 136 6257 9592
+86 135 1078 4550
manager01@greaterwire.com
FAQ
What are the typical applications and key features of this 4 AWG PVC Jacketed MC Cable?
This cable is commonly used for industrial feeders, commercial power distribution, outdoor lighting, and equipment connections in wet or corrosive environments. It features UL1569 certification, THHN/THWN-2 copper conductors rated for 90°C in dry and wet locations, interlocked steel armor for mechanical protection, a PVC jacket for moisture and sunlight resistance, and an insulated grounding conductor.
Is the PVC jacket sunlight resistant for outdoor rooftop installations?
Yes, the PVC jacket is sunlight resistant per UL 2556, making it suitable for outdoor exposed runs such as rooftop solar installations or exterior lighting feeders.
Is this UL1569 certified cable approved for direct burial without additional conduit?
While the PVC jacket and steel armor offer good moisture and crush protection, direct burial is not automatically allowed by UL1569. Check local codes. For most applications, additional conduit or a direct burial–rated variant is recommended. Please consult GERITEL WIRE for a direct burial option.
Can GERITEL WIRE provide this 4 AWG MC cable in custom lengths with a colored jacket?
Yes, GERITEL WIRE offers custom cut lengths (e.g., 500 ft, 1000 ft) and optional jacket colors (black, gray, blue, etc.) upon request. Minimum order quantities may apply.
