- Conductor: Copper, Multi-Core
- Insulation: PVC Insulation
- Jacket: Nylon
- Sheath: Armored
- Rated Voltage: 600V
Application
BX MC electrical cable is a high-performance metal-clad cable widely used in commercial, industrial, and residential projects. It has passed UL Classified's 1, 2, and 3-hour through-fire system certification to ensure safety performance in complex wiring scenarios such as through walls and floors.
Feature
BX MC electrical cable uses a lightweight aluminum alloy sheath, which is up to 45% lighter than traditional steel MC cables, effectively reducing the difficulty of handling and installation, and helping to reduce installation costs by up to 50%. The cable is placed on the reel in a reverse winding manner at the factory, which is easier to pull during installation; if the wire is pulled from the coil, it is recommended to pull it from the inside for the best wiring experience.
Certification

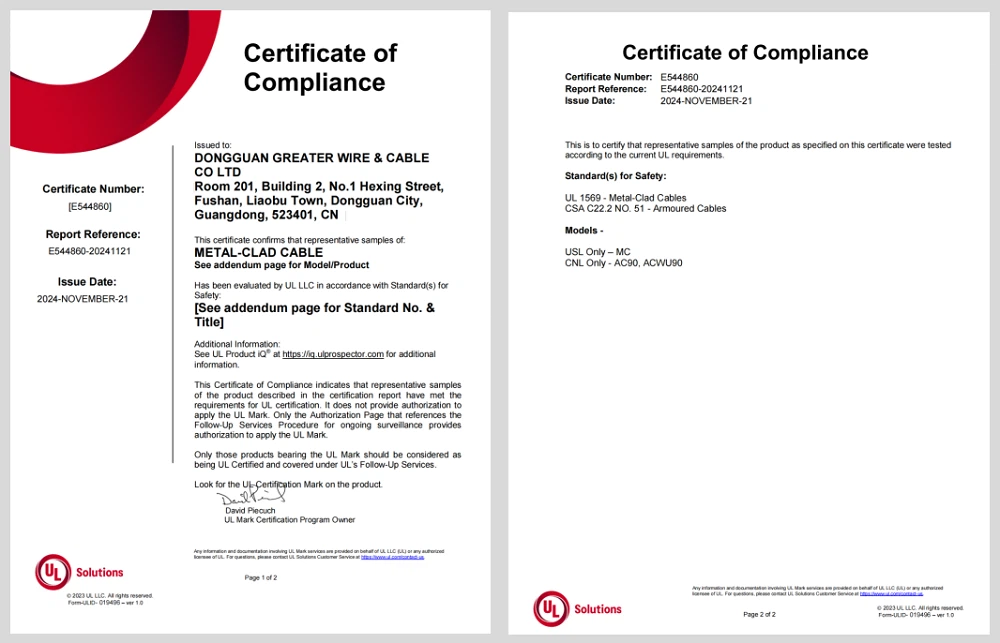

BX MC electrical cable is UL Classified. According to NEC and UL standards, this product does not require the use of anti-short bushings during installation, further simplifying the construction process
Package
Factory
Our cables and wires have passed SAA, UL, TUV, CE, and other standard certifications. Our products have gained tremendous traction in the international market and are frequently exported to regions such as Southeast Asia, Australia, the Middle East, Africa, America, and Europe, Sales cover more than 400 cities at home and abroad. Greater Wire Company has developed a strong team encompassing research and development, technical expertise, sales, production, and quality inspection, which ensures that from wire and cable design to project implementation, we can provide professional and high-quality services to meet the various needs of customers with excellent quality. Our commitment to quality and customer satisfaction has made Greater Wire a trusted partner to the global wire and cable industry.
Case
Partner
FAQ
Q: What does bx cable stand for?
Q: Is bx cable still used today?
Hot Tags: bx mc electrical cable, China bx mc electrical cable manufacturers, suppliers, factory, NM B Wire, Solar Cable 1500V H1Z2Z2 K TUV UL EN 50618 Solar PV Cable, xlpe power cable, 300V CSA VW 1 UL1007 Hook Up Wire, h03vv-f, AS NZS5000 1 Aerial Parallel Cable
| Conductor Size |
No.of Conductors |
Ground Size |
Diameter Over Armor | Diameter Over Jacket |
Net Weight | ||
| AWG/KCM | AWG | Inches | mm | Inches | mm | lbs/kft | |
| 12 | 2 | 12 | 0.511 | 12.98 | 0.616 | 15.65 | 179 |
| 12 | 3 | 12 | 0.546 | 13.87 | 0.651 | 16.54 | 212 |
| 12 | 4 | 12 | 0.584 | 14.83 | 0.689 | 17.5 | 257 |
| 10 | 2 | 10 | 0.586 | 14.88 | 0.631 | 17.55 | 239 |
| 10 | 3 | 10 | 0.63 | 16.00 | 0.735 | 18.67 | 290 |
| 10 | 4 | 10 | 0.679 | 17.25 | 0.784 | 19.91 | 356 |
| 8 | 3 | 10 | 0.752 | 19.10 | 0.857 | 21.77 | 390 |
| 6 | 3 | 8 | 0.864 | 21.95 | 0.969 | 24.61 | 547 |
| 4 | 3 | 8 | 0.991 | 25.17 | 1.096 | 27.84 | 754 |
