630mm² X-HF-110 cable

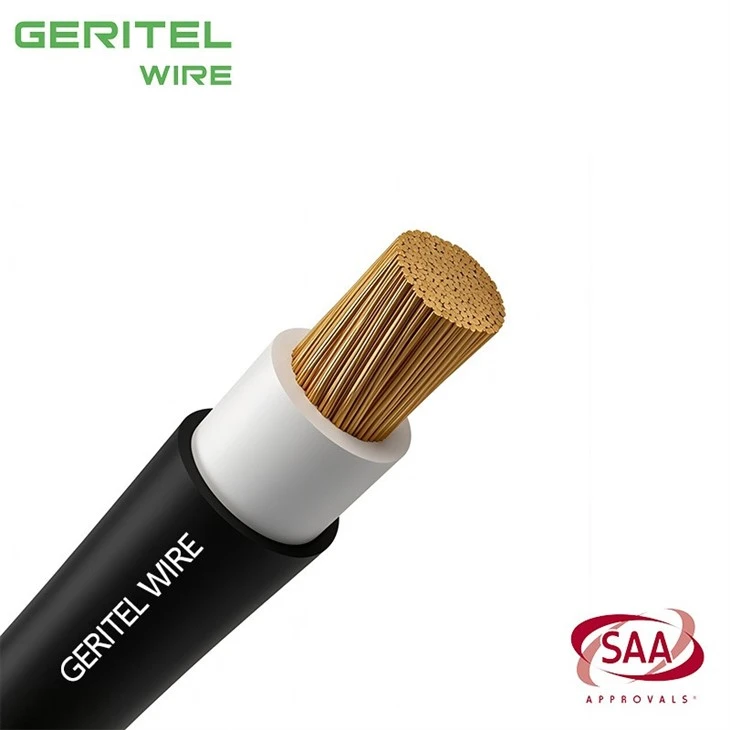

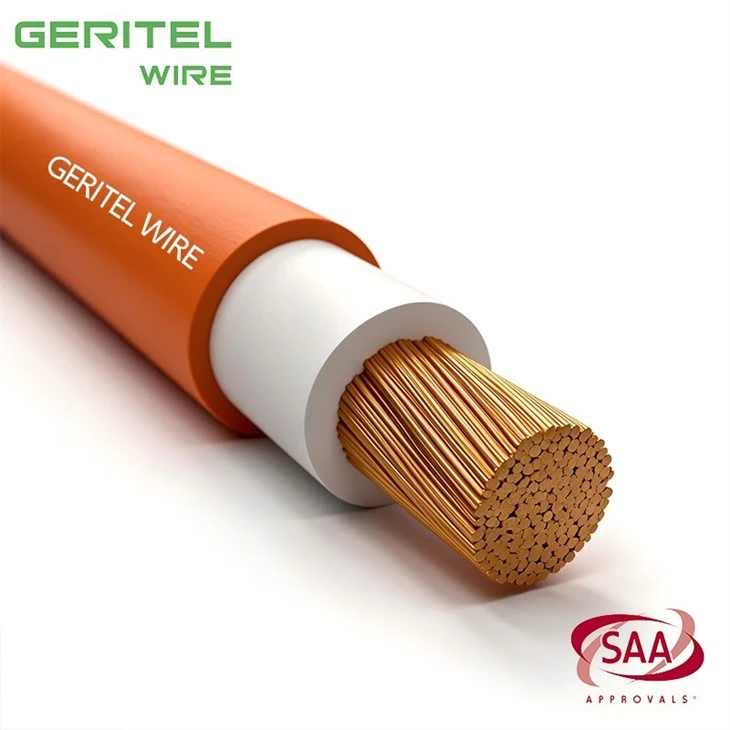

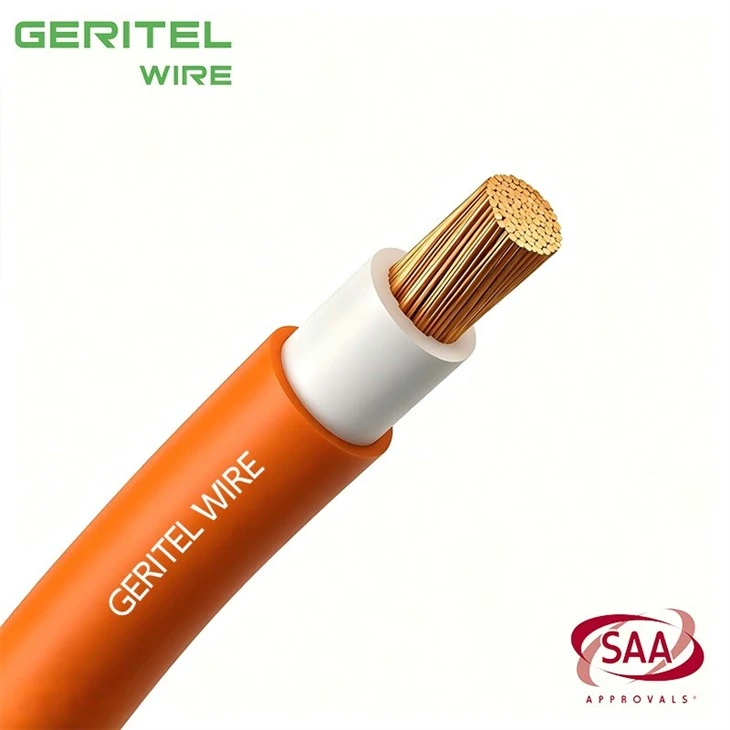

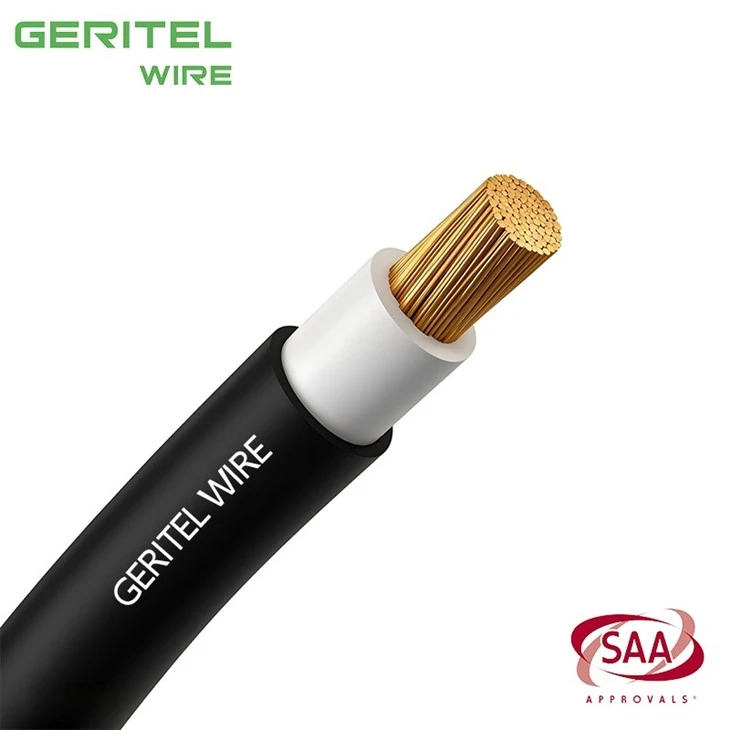

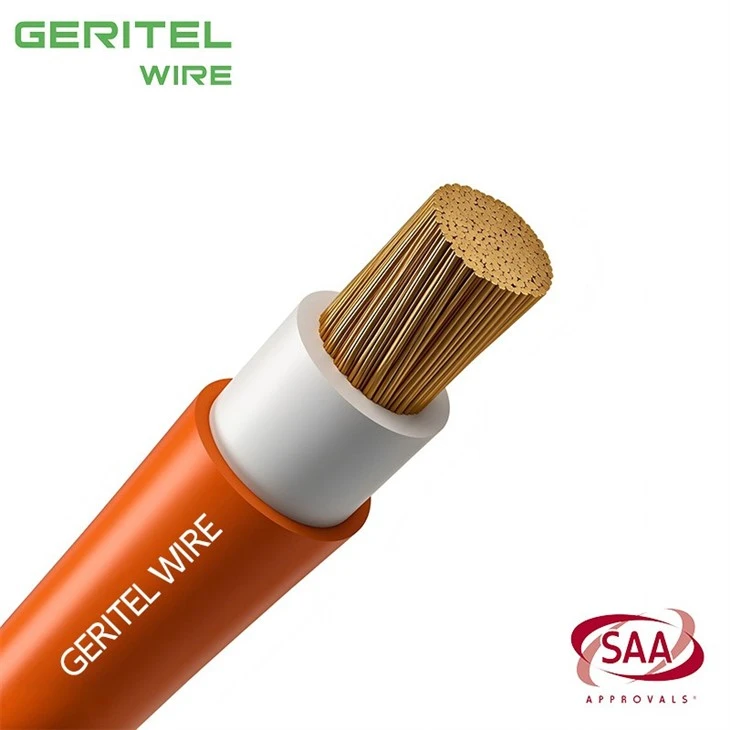

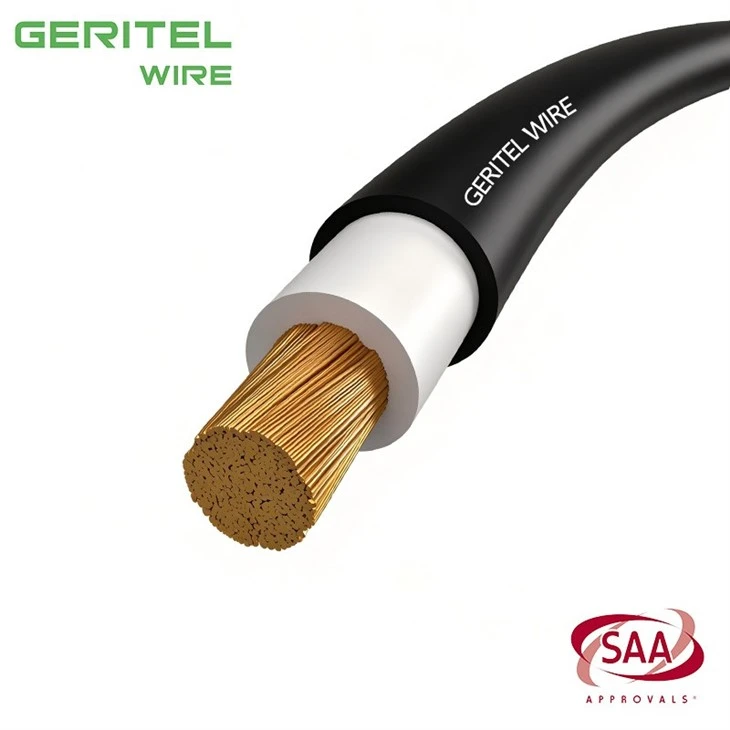

PRODUCT REAL SHOT

630mm2 flexible single core cable

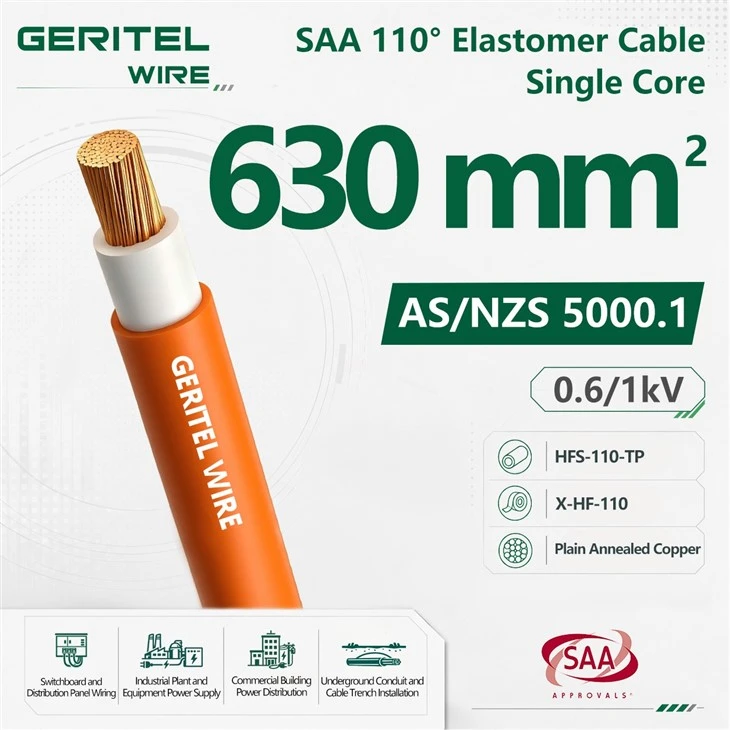

SAA 110°C Single Core Elastomer Cable for Large Industrial Feeders

At the top of the listed range, the 630mm² X-HF-110 cable is intended for major fixed low-voltage feeders requiring a large copper cross-section and installation flexibility. The Class 5 bunched annealed conductor is insulated with X-HF-110 and sheathed with black HFS-110-TP to create a 0.6/1kV SAA 110°C elastomer cable for protected building and industrial systems. It can serve as a main power distribution cable between transformer rooms, main switchboards and high-load plant areas, or as a large industrial feeder cable in free air, conduit, trench and underground duct. GERITEL WIRE supports drawings, test certificates, production inspection, customized marking, heavy drums and export logistics.

PRODUCT SPECIFICATIONS

630mm² LSZH single core cable

Applications

Flexible single core X-HF-110 insulated and HFS-110-TP sheathed cable for mains, submains and subcircuits unenclosed, enclosed in conduit or in underground ducts for building and industrial plants where not subject to mechanical damage. Suitable where space is at a premium and/or where conditions of overload may occur.

SPECIFICATIONS
Approvals	Suitable for fixed applications only in accordance with AS/NZS 3000+AS/NZS 5000.1
Behaviour in flame and fire:	Flame propagation - AS/NZS IEC 60332-1
Temperature range	Maximum operating temperature: +110°C Minimum operating temperature: -25°C
Minimum bending radius	Installed cables: 4D During installation: 6D
Resistance to	Chemical exposure: OccasionaI Mechanical impact: Light Water exposure: Uccasional condensation Solar radiation and weather exposure:Occasional
Cable design	Conductor: Flexible bunched annealed copper conductor to A5/NZ5 1125 (Class 5). Insulation: X-HF-110 Colour:Natural Sheath: HFS-110-TP Colour: Orange/Black
Installation conditions	In free air In conduit In trench In duct

Core x cross- section mm²
Core x cross- section mm²	Conductor Diameter mm	Nominal insulation thickness mm	Nominal sheath thickness mm	Approx.overall diameter mm	Approx. weight kg/km
1x16	0.20	0.7	1.4	9.9	201
1x25	0.20	0.9	1.4	11.6	292
1x35	0.20	0.9	1.4	12.8	386
1x50	0.30	1.0	1.4	14.6	529
1x70	0.30	1.1	1.4	16.6	725
1x95	0.30	1.1	1.5	18.5	935
1x120	0.30	1.2	1.5.	20.4	1174
1x150	0.30	1.4	1.6	22.7	1464
1x185	0.40	1.6	1.6	24.8	1765
1x240	0.40	1.7	1.7	28.0	2304
1x300	0.40	1.8	1.8	30.8	2847
1x400	0.50	1.9	1.9	34.9	3730
1x500	0.50	2.0	2.0	38.8	4689
1x630	0.50	2.0	2.2	44.3	6226

mm²	Min. Bending Radius mm
		Current Rating (A)					Electrical Characteristics
		Underground Enclose	Spaced	Spaced from surface	In the air		Maximum DC Resistance 20°C Ω/km
		Underground Enclose	Spaced	Spaced from surface	Enclosed	Touching	Maximum DC Resistance 20°C Ω/km
16	59	97	130	114	91	105	1.21
25	70	125	173	153	121	139	0.780
35	77	151	214	188	148	172	0.554
50	88	188	270	230	190	217	0.386
70	100	229	340	291	234	273	0.272
95	111	268	410	363	277	329	0.206
120	122	316	487	422	331	390	0.161
150	136	357	562	486	378	450	0.129
185	149	404	644	564	438	516	0.106
240	168	481	775	674	538	620	0.0801
300	185	542	895	780	612	714	0.0641
400	209	648	1079	910	757	855	0.0486
500	233	729	1260	1053	864	990	0.0384
600	266	828	1493	1217	993	1154	0.0287

CERTIFICATIONS

630mm2 HFS-110-TP cable

630mm² SDI 110C cable

PACKAGING

Plastic Reel

Small Wooden Reel

Large Wooden Reel

APPLICATION

Industrial Equipment and Motor Power Supply

Switchboard and Distribution Panel Wiring

Underground Cable Trench and Conduit Installation

CASE

Induction Melting Furnace Power System

can 110C elastomer cable be installed underground

Mining Processing Plant MCC and Substation UpgradeModular Homes

Steel Mill Walking Beam Furnace Electrical Installation

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

110C cable installation in underground duct

minimum bending radius for X-HF-110 cable

fixed installation only flexible single core cable

how to install double insulated SDI cable

GLOBAL CERTIFICATIONS

is X-HF-110 cable low smoke zero halogen

CUSTOMER PHOTOS

is 110C elastomer cable PVC free

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

low fire hazard 110C cable for public buildings

LSZH cable with reduced toxic smoke emissions

flame propagation IEC 60332-1 single core cable

weather resistant high temperature cable

low smoke halogen free cable for safe evacuation

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

Can it be installed in a cable trench?

Yes. A cable trench installation is permitted where the cable is protected from mechanical damage and the thermal conditions are considered. GERITEL WIRE can provide cable dimensions, weight and bending radius for tray, cleat and route planning.

Can the cable be directly buried without protection?

Do not assume unrestricted direct burial. The specified applications focus on ducts, trenches or ground routes with protection. For a direct buried elastomer cable request, GERITEL WIRE reviews the mechanical, water and environmental requirements and may recommend another sheath or protection system.

What is the minimum bending radius?

The referenced data specifies a minimum bending radius of 4D after installation and 6D during installation, where D is the overall cable diameter. GERITEL WIRE provides the actual diameter for each 110°C cable bending radius calculation so installers do not use one value for every size.

How much pulling tension can the cable withstand?

Allowable pulling tension depends on conductor size, pulling method, route length and accessories, so a universal value should not be guessed. GERITEL WIRE can provide cable weight and dimensions and review the pulling method for a large flexible single core cable.
