500mm² X-HF-110 cable

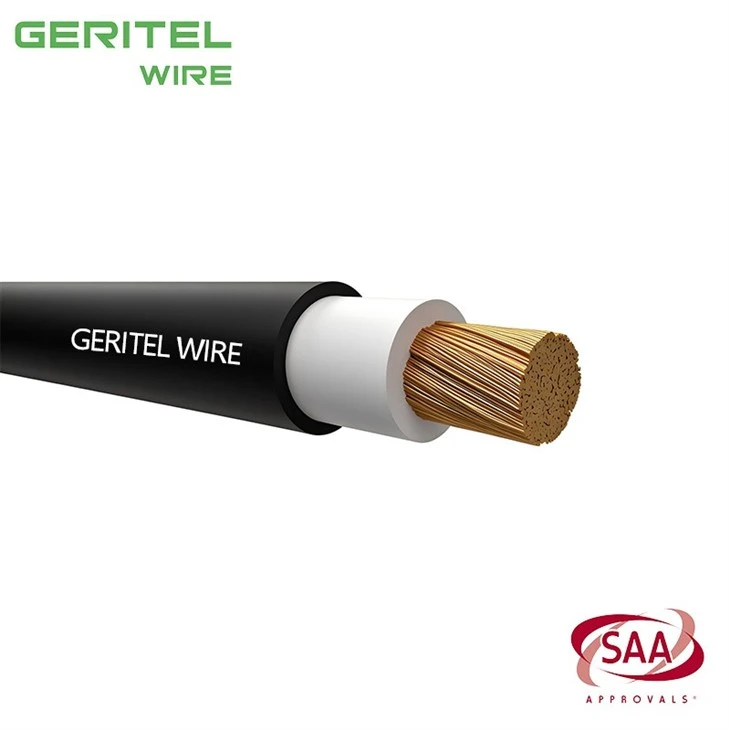

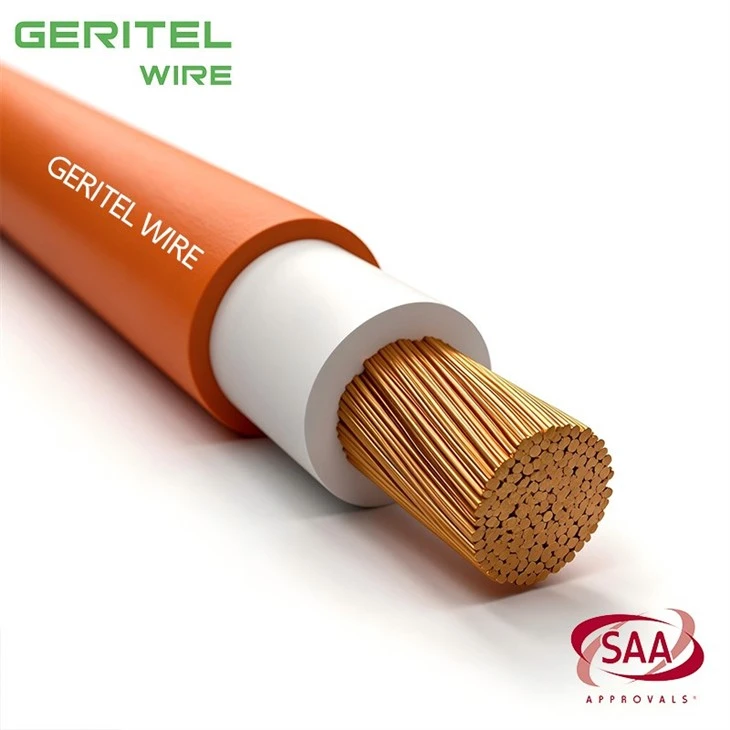

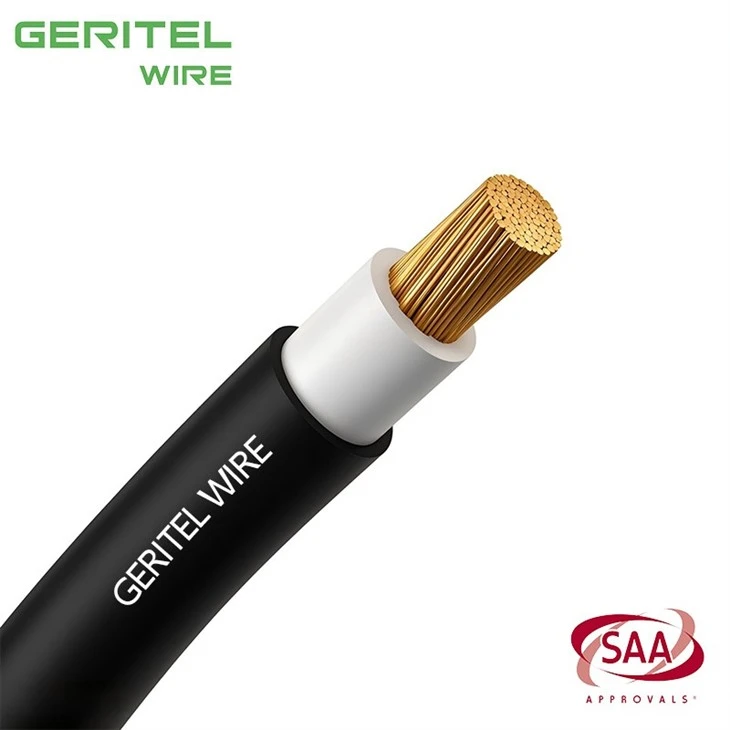

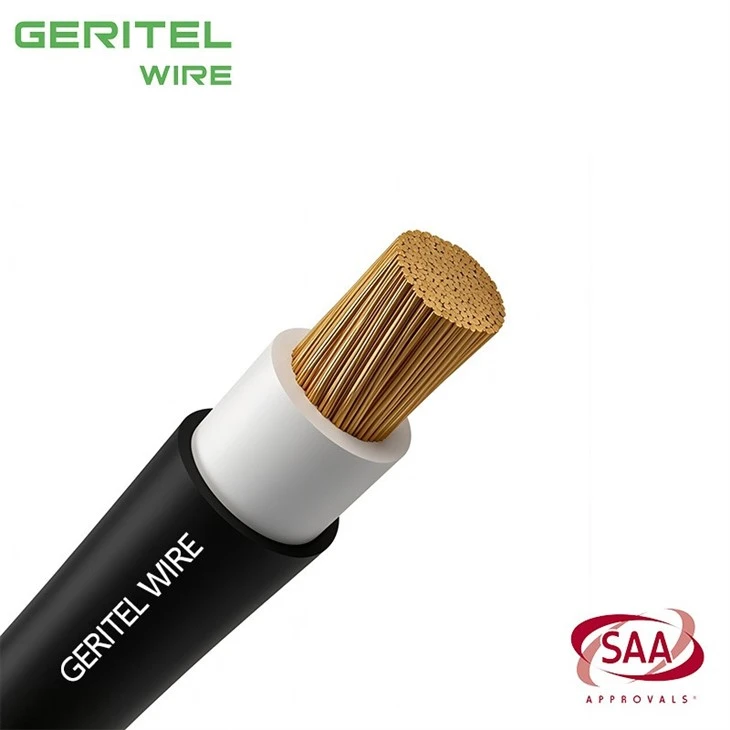

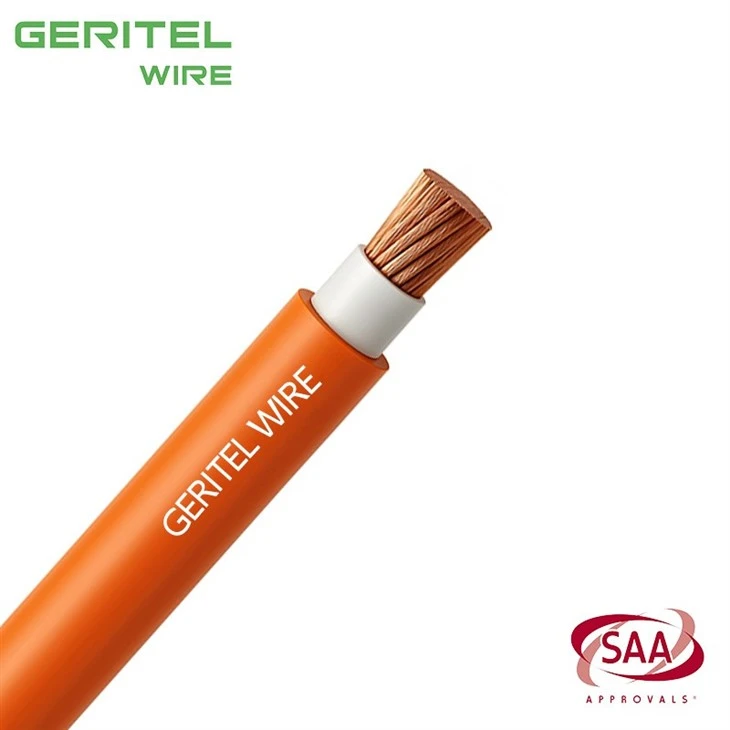

PRODUCT REAL SHOT

500mm2 flexible single core cable

Halogen Free X-HF-110 Cable for Substation Low-Voltage Distribution

The 500mm² flexible copper cable is developed for high-capacity fixed circuits in substations, industrial plants and major building power systems. Its fine-stranded Class 5 conductor improves installation handling, while X-HF-110 insulation and an HFS-110-TP black sheath form a 0.6/1kV halogen free power cable rated for conductor temperatures up to 110°C. Typical use includes a transformer secondary connection cable, main switchboard feeder or substation low voltage cable installed in free air, protected conduit, trench or underground duct. The cable should be protected from mechanical damage and sized for actual load and installation conditions. GERITEL WIRE supports technical submittals, inspections, marking, drums and export documents.

PRODUCT SPECIFICATIONS

500mm² LSZH single core cable

Applications

Flexible single core X-HF-110 insulated and HFS-110-TP sheathed cable for mains, submains and subcircuits unenclosed, enclosed in conduit or in underground ducts for building and industrial plants where not subject to mechanical damage. Suitable where space is at a premium and/or where conditions of overload may occur.

SPECIFICATIONS
Approvals	Suitable for fixed applications only in accordance with AS/NZS 3000+AS/NZS 5000.1
Behaviour in flame and fire:	Flame propagation - AS/NZS IEC 60332-1
Temperature range	Maximum operating temperature: +110°C Minimum operating temperature: -25°C
Minimum bending radius	Installed cables: 4D During installation: 6D
Resistance to	Chemical exposure: OccasionaI Mechanical impact: Light Water exposure: Uccasional condensation Solar radiation and weather exposure:Occasional
Cable design	Conductor: Flexible bunched annealed copper conductor to A5/NZ5 1125 (Class 5). Insulation: X-HF-110 Colour:Natural Sheath: HFS-110-TP Colour: Orange/Black
Installation conditions	In free air In conduit In trench In duct

Core x cross- section mm²
Core x cross- section mm²	Conductor Diameter mm	Nominal insulation thickness mm	Nominal sheath thickness mm	Approx.overall diameter mm	Approx. weight kg/km
1x16	0.20	0.7	1.4	9.9	201
1x25	0.20	0.9	1.4	11.6	292
1x35	0.20	0.9	1.4	12.8	386
1x50	0.30	1.0	1.4	14.6	529
1x70	0.30	1.1	1.4	16.6	725
1x95	0.30	1.1	1.5	18.5	935
1x120	0.30	1.2	1.5.	20.4	1174
1x150	0.30	1.4	1.6	22.7	1464
1x185	0.40	1.6	1.6	24.8	1765
1x240	0.40	1.7	1.7	28.0	2304
1x300	0.40	1.8	1.8	30.8	2847
1x400	0.50	1.9	1.9	34.9	3730
1x500	0.50	2.0	2.0	38.8	4689
1x630	0.50	2.0	2.2	44.3	6226

mm²	Min. Bending Radius mm
		Current Rating (A)					Electrical Characteristics
		Underground Enclose	Spaced	Spaced from surface	In the air		Maximum DC Resistance 20°C Ω/km
		Underground Enclose	Spaced	Spaced from surface	Enclosed	Touching	Maximum DC Resistance 20°C Ω/km
16	59	97	130	114	91	105	1.21
25	70	125	173	153	121	139	0.780
35	77	151	214	188	148	172	0.554
50	88	188	270	230	190	217	0.386
70	100	229	340	291	234	273	0.272
95	111	268	410	363	277	329	0.206
120	122	316	487	422	331	390	0.161
150	136	357	562	486	378	450	0.129
185	149	404	644	564	438	516	0.106
240	168	481	775	674	538	620	0.0801
300	185	542	895	780	612	714	0.0641
400	209	648	1079	910	757	855	0.0486
500	233	729	1260	1053	864	990	0.0384
600	266	828	1493	1217	993	1154	0.0287

CERTIFICATIONS

500mm2 HFS-110-TP cable

500mm² SDI 110C cable

PACKAGING

Plastic Reel

Small Wooden Reel

Large Wooden Reel

APPLICATION

Industrial Equipment and Motor Power Supply

Switchboard and Distribution Panel Wiring

Underground Cable Trench and Conduit Installation

CASE

Induction Melting Furnace Power System

double insulated LSZH single core cable construction

Mining Processing Plant MCC and Substation UpgradeModular Homes

PVC free flexible power cable construction

Steel Mill Walking Beam Furnace Electrical Installation

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

110C cable maximum operating temperature

110C cable minimum operating temperature minus 25

high temperature cable for overload conditions

flexible cable for high ambient temperature installations

110 degree cable for hot electrical rooms

GLOBAL CERTIFICATIONS

high temperature single core cable for confined spaces

CUSTOMER PHOTOS

110C cable current carrying capacity

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

110C cable amp rating by installation method

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

SAA approved X-HF-110 cable AS/NZS 5000.1

AS/NZS 3000 compliant flexible single core cable

AS/NZS IEC 60332-1 flame propagation cable

Australian certified 110C flexible cable

SAA certificate for 110C elastomer cable

Australian standard LSZH single core cable

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

can X-HF-110 cable be installed in conduit

FAQ

Can it be used outdoors?

Outdoor use depends on the level and duration of weather, UV, water and mechanical exposure. The base data refers to protected or occasional exposure rather than unrestricted permanent sunlight. GERITEL WIRE reviews the route before confirming an outdoor 110°C cable or recommending conduit and shielding.

Can I use this cable for solar DC circuits?

This 0.6/1kV AC power cable is not automatically a certified solar cable. Photovoltaic circuits normally require a dedicated PV standard, voltage rating and outdoor performance. GERITEL WIRE will recommend a solar cable instead of misapplying the X-HF-110 power cable.

Can the cable be installed in free air?

Yes. Free-air installation is one of the listed conditions, but ampacity depends on spacing, grouping, ambient temperature and exposure. GERITEL WIRE can provide free air cable current data from the applicable technical table and the cable dimensions needed for support design.

Can it be pulled through conduit?

Yes, provided the conduit fill, bend radius, pulling tension and route are suitable. The Class 5 conductor helps installation, but it does not remove pulling limits. GERITEL WIRE supplies conduit installation cable diameter and drum information so the contractor can plan the pull.
