Name: China 120mm² 0.6/1kV Elastomer Cable For Mains And Submains Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 311241325

Description

Technical Parameters

Certification

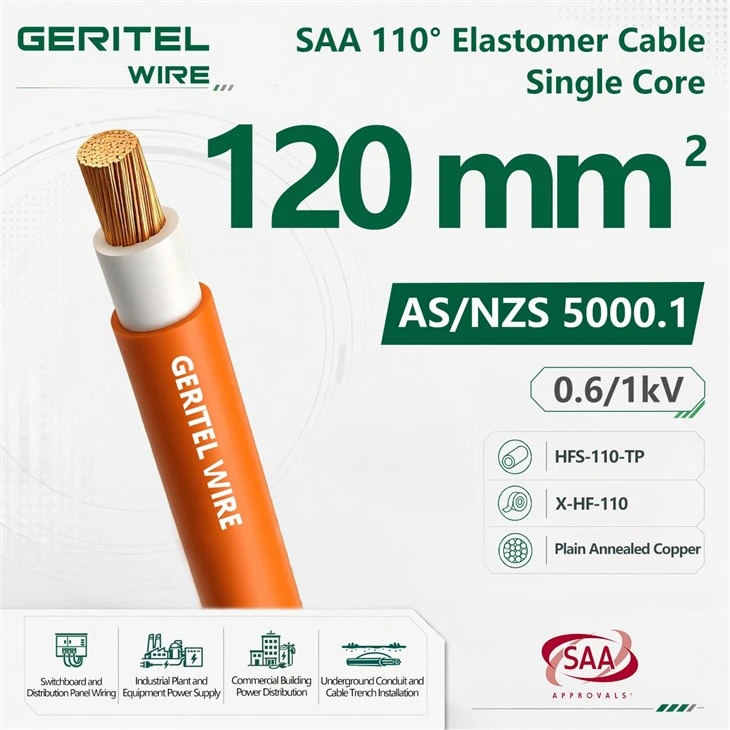

120mm² X-HF-110 cable

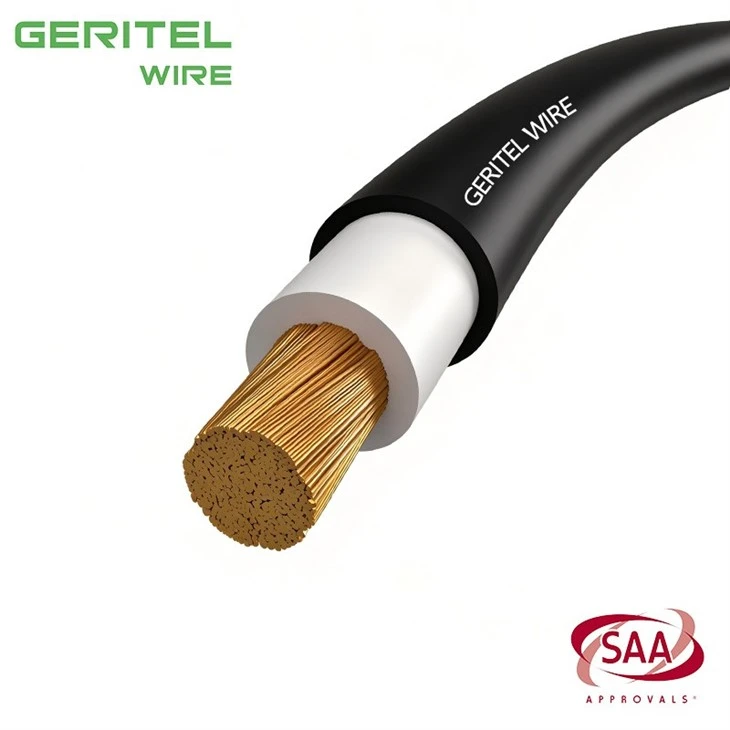

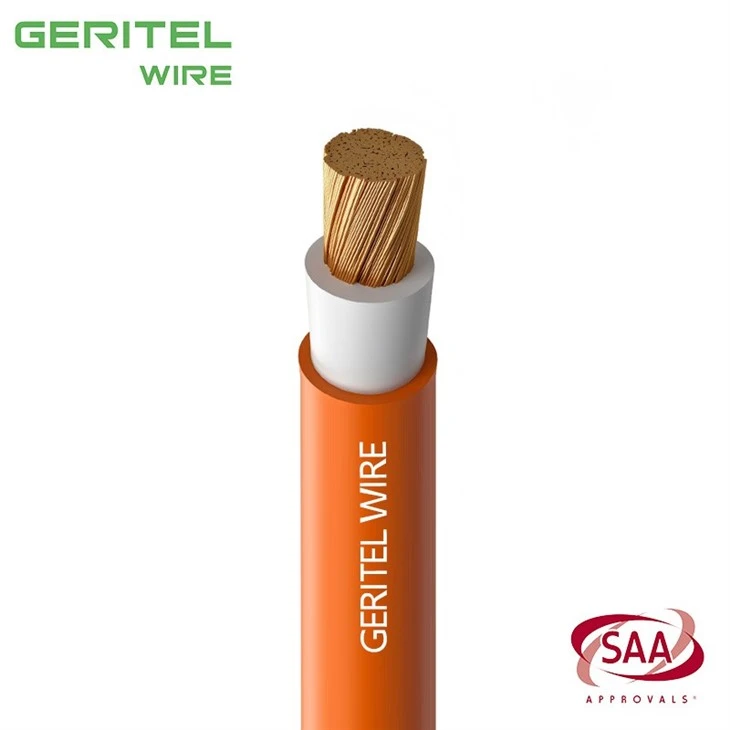

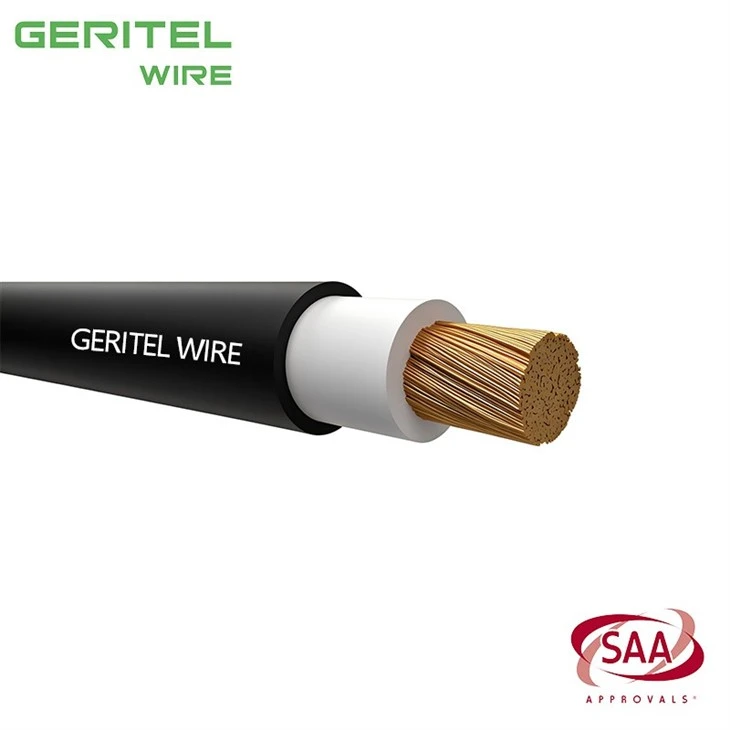

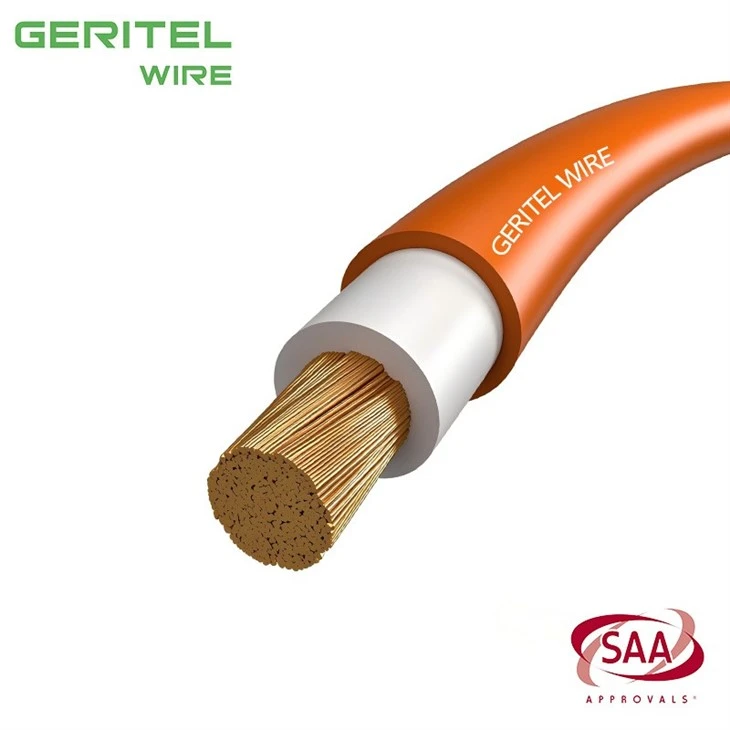

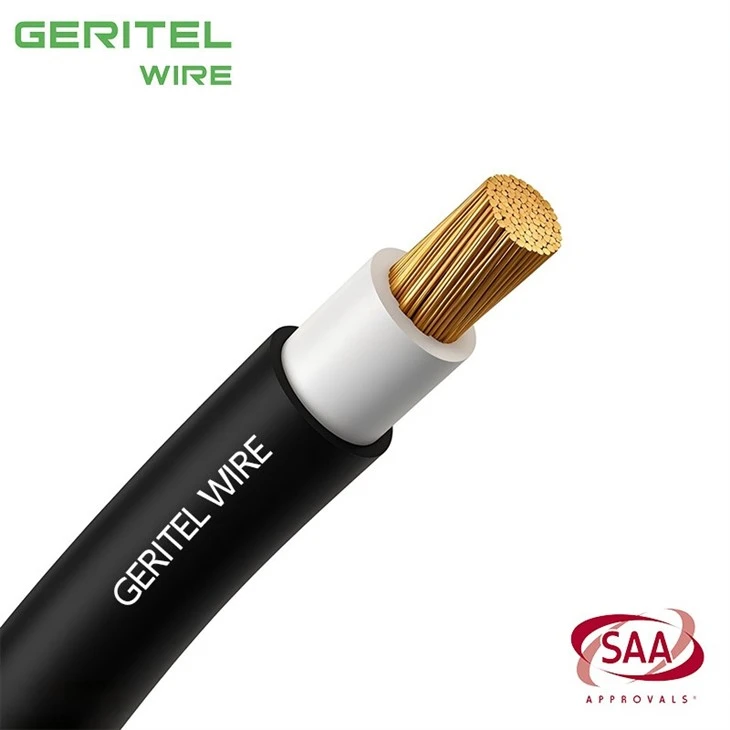

PRODUCT REAL SHOT

120mm2 flexible single core cable

Flexible X-HF-110 Single Conductor Cable for Commercial Power Systems

For commercial buildings and industrial facilities, the 120mm² single core elastomer cable provides a flexible Class 5 conductor in a fixed-wiring design rated 0.6/1kV. X-HF-110 insulation and the black HFS-110-TP sheath create a mains and submains cable that supports conductor temperatures up to 110°C while reducing smoke and halogen emissions. The PVC free flexible power cable is suitable for free-air routes, protected conduits, trenches and underground ducts, and can be used as a cable for commercial switchboards, distribution rooms and large equipment feeders. GERITEL WIRE provides SAA-related documents, conductor data, customized printing, drum packing and export coordination.

PRODUCT SPECIFICATIONS

120mm² LSZH single core cable

Applications

Flexible single core X-HF-110 insulated and HFS-110-TP sheathed cable for mains, submains and subcircuits unenclosed, enclosed in conduit or in underground ducts for building and industrial plants where not subject to mechanical damage. Suitable where space is at a premium and/or where conditions of overload may occur.

SPECIFICATIONS
Approvals	Suitable for fixed applications only in accordance with AS/NZS 3000+AS/NZS 5000.1
Behaviour in flame and fire:	Flame propagation - AS/NZS IEC 60332-1
Temperature range	Maximum operating temperature: +110°C Minimum operating temperature: -25°C
Minimum bending radius	Installed cables: 4D During installation: 6D
Resistance to	Chemical exposure: OccasionaI Mechanical impact: Light Water exposure: Uccasional condensation Solar radiation and weather exposure:Occasional
Cable design	Conductor: Flexible bunched annealed copper conductor to A5/NZ5 1125 (Class 5). Insulation: X-HF-110 Colour:Natural Sheath: HFS-110-TP Colour: Orange/Black
Installation conditions	In free air In conduit In trench In duct

Core x cross- section mm²
Core x cross- section mm²	Conductor Diameter mm	Nominal insulation thickness mm	Nominal sheath thickness mm	Approx.overall diameter mm	Approx. weight kg/km
1x16	0.20	0.7	1.4	9.9	201
1x25	0.20	0.9	1.4	11.6	292
1x35	0.20	0.9	1.4	12.8	386
1x50	0.30	1.0	1.4	14.6	529
1x70	0.30	1.1	1.4	16.6	725
1x95	0.30	1.1	1.5	18.5	935
1x120	0.30	1.2	1.5.	20.4	1174
1x150	0.30	1.4	1.6	22.7	1464
1x185	0.40	1.6	1.6	24.8	1765
1x240	0.40	1.7	1.7	28.0	2304
1x300	0.40	1.8	1.8	30.8	2847
1x400	0.50	1.9	1.9	34.9	3730
1x500	0.50	2.0	2.0	38.8	4689
1x630	0.50	2.0	2.2	44.3	6226

mm²	Min. Bending Radius mm
		Current Rating (A)					Electrical Characteristics
		Underground Enclose	Spaced	Spaced from surface	In the air		Maximum DC Resistance 20°C Ω/km
		Underground Enclose	Spaced	Spaced from surface	Enclosed	Touching	Maximum DC Resistance 20°C Ω/km
16	59	97	130	114	91	105	1.21
25	70	125	173	153	121	139	0.780
35	77	151	214	188	148	172	0.554
50	88	188	270	230	190	217	0.386
70	100	229	340	291	234	273	0.272
95	111	268	410	363	277	329	0.206
120	122	316	487	422	331	390	0.161
150	136	357	562	486	378	450	0.129
185	149	404	644	564	438	516	0.106
240	168	481	775	674	538	620	0.0801
300	185	542	895	780	612	714	0.0641
400	209	648	1079	910	757	855	0.0486
500	233	729	1260	1053	864	990	0.0384
600	266	828	1493	1217	993	1154	0.0287

CERTIFICATIONS

120mm2 HFS-110-TP cable

120mm² SDI 110C cable

PACKAGING

Plastic Reel

Small Wooden Reel

Large Wooden Reel

APPLICATION

Industrial Equipment and Motor Power Supply

Switchboard and Distribution Panel Wiring

Underground Cable Trench and Conduit Installation

CASE

Induction Melting Furnace Power System

Mining Processing Plant MCC and Substation UpgradeModular Homes

Steel Mill Walking Beam Furnace Electrical Installation

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

flexible single core cable for transformers

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

high temperature busbar connection cable

GLOBAL CERTIFICATIONS

double insulated transformer power cable

CUSTOMER PHOTOS

110C industrial plant cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

flexible cable for industrial plant wiring

LSZH cable for factory power distribution

single core cable for industrial machinery power

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

flexible cable for generator switchboards

FAQ

Is this cable double insulated?

Yes, the market commonly describes this construction as a single core double insulated cable because the conductor has an insulation layer plus an outer protective sheath. GERITEL WIRE lists both layers in the datasheet so installers can distinguish it from unsheathed building wire.

Can GERITEL WIRE make the sheath orange instead of black?

A custom orange sheath may be technically possible, but colour must be reviewed against the certificate, marking rules, quantity and material availability. GERITEL WIRE will not automatically treat a custom orange X-HF-110 cable as certificate-equivalent; the sales and technical teams verify compliance before confirming it.

Is this a low-smoke zero-halogen cable?

The X-HF-110 and HFS-110-TP material system is used for low-smoke halogen-free cable constructions. GERITEL WIRE can provide the relevant material and flame-performance documents for the exact LSZH single core cable, helping buyers avoid unsupported claims based only on a product name.

Does the sheath contain PVC?

HFS-110-TP is a halogen-free sheathing material rather than a PVC sheath. Therefore this construction is commonly marketed as a PVC-free flexible power cable. GERITEL WIRE can support the claim with the applicable material declaration or test documentation available for the order.
