XLPE/PVC orange circular cable

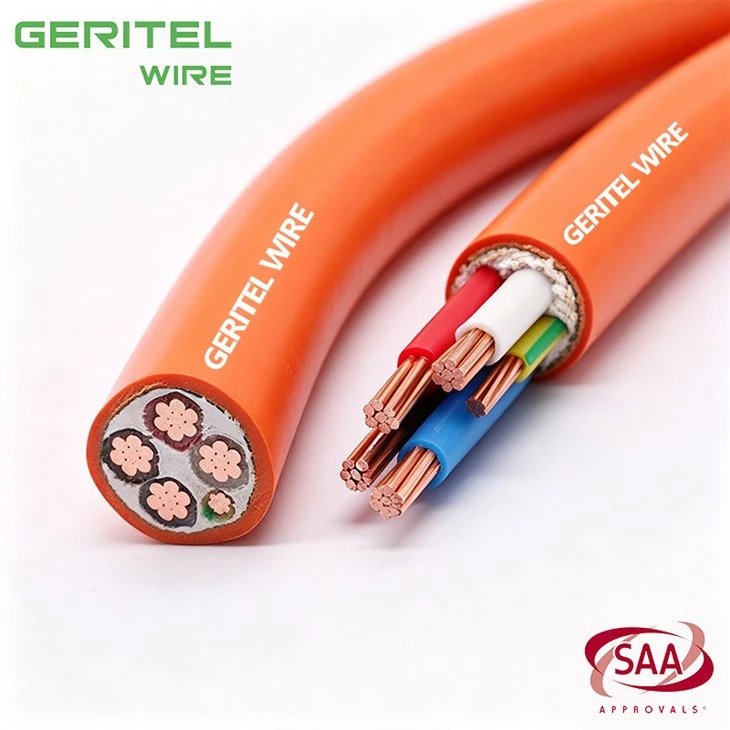

PRODUCT REAL SHOT

4C+E cable

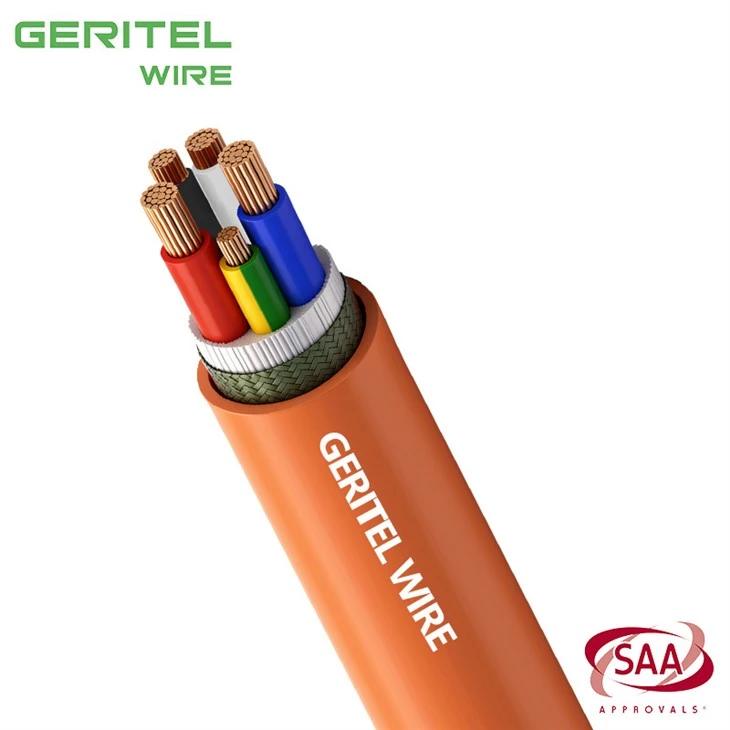

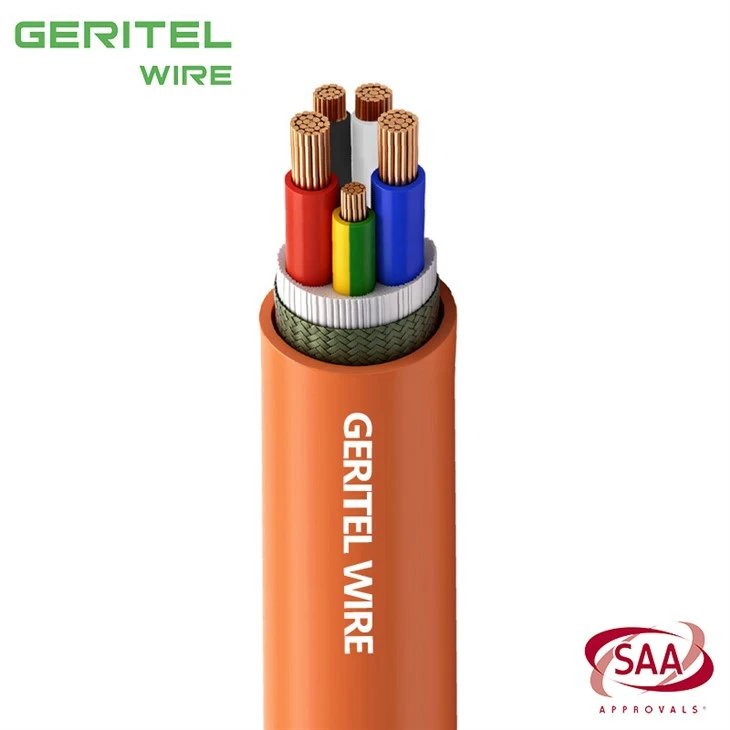

35mm2 4C+E Copper XLPE PVC Feeder Cable for Switchboard Connections

35mm² 4C+E orange circular feeder cable is purpose-built for main switchboard interconnections and large industrial sub-main distribution lines. Featuring four 35mm² copper XLPE-insulated cores plus integrated earth conductor and thick orange PVC sheath, this cable transfers high three-phase current between primary and secondary switchboards in factories, shopping centres and industrial parks. Its uniform round shape simplifies bundling inside large switchboard enclosures, and XLPE insulation eliminates overheating risks during peak power demand periods.

PRODUCT SPECIFICATIONS

4C&E cable

Product Description

Suitable for mains, submains and subcircuits unenclosed, in conduit, buried or in underground ducts for buildings and industrial plants where not subject to mechanical damage and where out of balance currents may require a neutral equal in size to the active. Suitable where space is at a premium and/or where conditions of overload may occur.

SPECIFICATIONS
Approvals	Suitable for fixed installations only, in accordance with AS/NZS 5000.1 PVC Best practice guidelines - GBCA
Behaviour in flame and fire	Flame Retardant
Temperature range	Maximum operating temperature: +90℃ Minimum operating temperature: -15°C
Minimum bending radius	Diameter 25.0 mm and below: Installed cables: 4D During installation: 6D Greater than 25.0 mm: Installed cables: 6D During installation: 9D
Resistance to	Chemical exposure: Occasional Mechanical impact: Light Water exposure: Occasional condensation Solar radiation and weather exposure: Occasional
Cable design	Conductor: Plain annealed copper conductor to AS/NZS 1125 (Class 2). Insulation: X-90 XLPE Colour: Red, White, Blue, Black, Green/yellow Sheath： 5V-90 PVC Colour: Orange
Installation conditions	Industrial equipment In free air In conduit Machines Min. installation temperature: -0°C In trench In ground with protection Induct External building

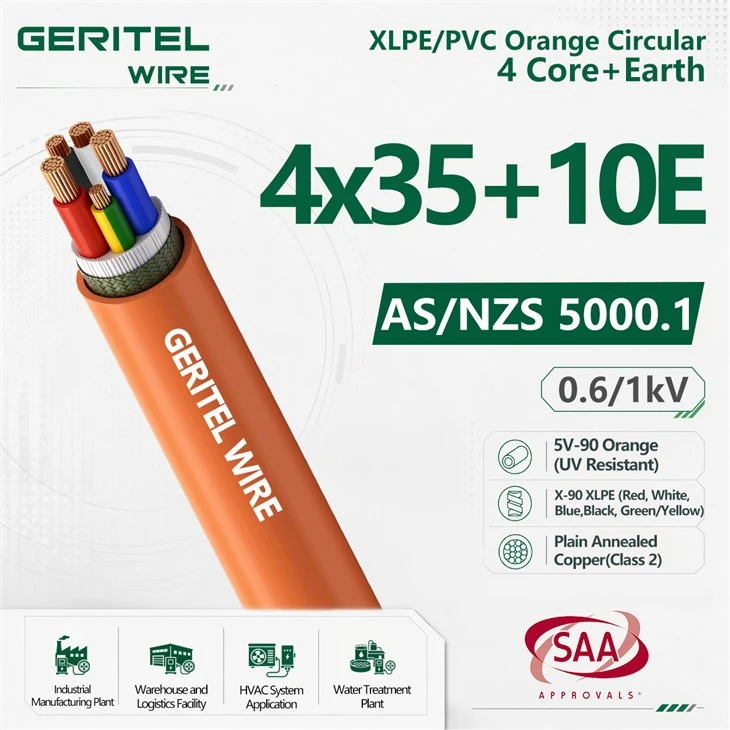

XLPE/PVC Orange Circular 4 Core+Earth

Core x cross- section mm²	Conductor No.		Nominal insulation thickness		Nominal sheath thickness mm	Approx. Overall Diameter in (mm)	Approx. Weight kg/km
	phase	earth	phase mm	earth mm
	phase	earth	phase mm	earth mm
4x1.5+1x1.5E	7	7	0.7	0.5	1.8	11.5	220
4x2.5+1x2.5E	7	7	0.7	0.6	1.8	13.0	305
4x4+1x2.5E	7	7	0.7	0.6	1.8	14.2	420
4x6+1x2.5E	7	7	0.7	0.6	1.8	15.4	528
4x10+1x4E	7	7	0.7	0.7	1.8	17.9	740
4x16+1x6E	7	7	0.7	0.7	1.8	20.5	878
4x25+1x6E	7	7	0.7	0.7	1.8	23.7	1266
4x35+1x10E	7	7	0.7	0.7	1.8	26.4	1700
4x50+1x16E	19	7	1.0	0.7	1.9	30.2	2384
4x70+1x25E	19	7	1.1	0.9	2.0	35.1	3308
4x95+1x25E	19	7	1.1	0.9	2.2	39.7	4283
4x120+1x35E	19	7	1.2	0.9	2.3	44.2	5406
4x150+1x50E	30	19	1.4	1.0	2.5	49.0	6805
4x185+1x70E	37	19	1.6	1.1	2.7	55.4	8477
4x240+1x95E	48	19	1.7	1.1	2.9	62.7	10920

Conductor Size mm²	Min. Bending Radius mm	Unenclosed Spaced (A)	Unenclosed Touching (A)	Unenclosed partially surrounded by themal insulation (A)	Enclosed partially surrounded by themal insulation (A)	Buried direct (A)	Underground Wiring Enclosure (A)


1.5	50	20	19	15	13	20	20
2.5	55	28	26	21	19	29	29
4	65	38	35	28	24	37	37
6	70	48	45	36	30	46	46
10	80	66	62	49	42	63	63
16	90	88	83	66	55	110	81
25	160	119	111	89	73	143	107
35	180	147	137	110	91	172	130
50	210	180	168	134	108	204	155
70	240	229	213	170	138	251	193
95	270	283	263	210	167	302	233
120	300	330	306	245	197	344	270
150	330	377	350	280	222	385	304
185	360	436	404	323	257	435	348
240	410	517	479	383	309	504	411

CERTIFICATIONS

4 core earth cable

PACKAGING

Plastic Reel

Small Wooden Reel

Large Wooden Reel

APPLICATION

Industrial Equipment Power Supply

Warehouse Electrical Distribution

Water Treatment Pump System

CASE

Mondelz Manufacturing Distribution Facility

Mondelēz Manufacturing & Distribution Facility

Portside Distribution Centre

Western Sydney Recycled Water Scheme

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

GLOBAL CERTIFICATIONS

XLPE 4 core and earth cable

CUSTOMER PHOTOS

XLPE 4C+E cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

What is the main use case for this 35mm² feeder cable?

It is primarily used for inter-connecting main distribution switchboards with sub-switchboards in large industrial and commercial facilities.

Can multiple lengths of this cable be bundled together in one cable tray?

Yes, the orange sheath provides clear visual separation, and XLPE insulation maintains stable performance even when multiple heat-generating cables are routed side-by-side.

Does this cable suit outdoor unprotected installation?

No, it is rated for indoor switchboard and tray wiring only; outdoor exposure requires UV-resistant or armoured cable variants.

Is the copper conductor fully annealed for better conductivity?

All copper cores are soft annealed pure copper, delivering maximum electrical conductivity and low voltage drop over long feeder runs.
