Name: China 10mm2 Photovoltaic Cable IEC 62930 Halogen-Free PV Wire Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 312579569

Description

Technical Parameters

Certification

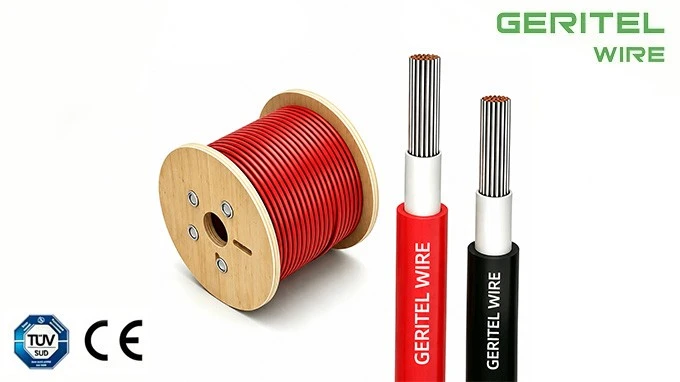

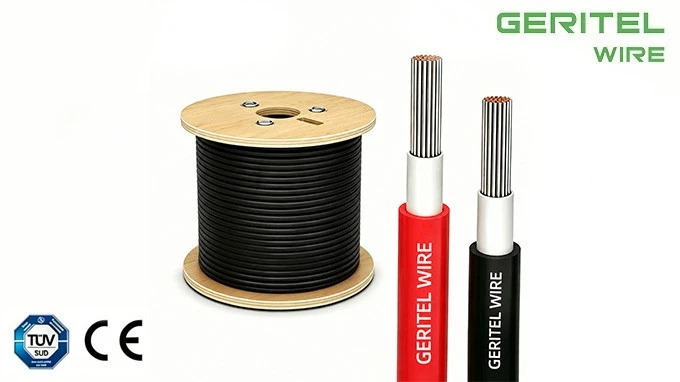

10mm2 solar cable

PRODUCT REAL SHOT

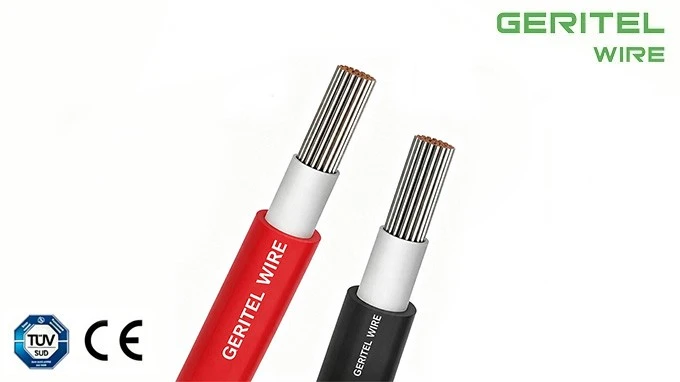

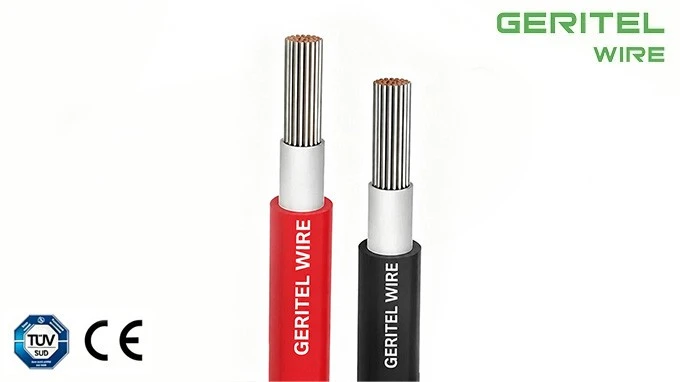

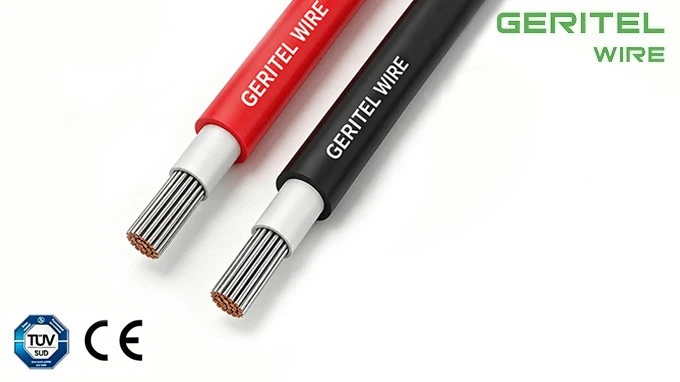

10mm2 solar DC cable

IEC 62930 PV Cable 10mm² for Long-Life Photovoltaic Power Distribution

Designed for larger DC collection circuits, GERITEL WIRE offers this 10mm² single-core option for array outputs and combiner-to-inverter connections. The 10mm² solar cable targets reliable DC transmission where installers need flexibility and long outdoor service. Class 5 tinned copper supports easy routing, while the cross-linked insulation and sheath are designed for demanding PV environments. It supports 1500V DC solar systems, 90°C normal conductor operation, and resistance to UV, ozone, moisture and weathering. Buyers searching for halogen free PV cable can match this size to project current, route length and voltage-drop requirements. Project buyers can coordinate customized printing, packaging and technical-file requirements with GERITEL WIRE.

PRODUCT SPECIFICATIONS

ground mounted PV plant PV cable

Applications

For general wiring, unenclosed, enclosed in conduit,for domestic, commercial and industrial installations where not subject to mechanical damage.

SPECIFICATIONS
Cable description	PVC insulated laid flat and PVC sheathed cableto A5/NZ5 5000.2
Approvals	A5/NZS5000.2
Behaviour in flame and fire	Flame retardant
Temperature range	Normal operating temperature: +90°C Minimum operating temperature: 0°C
Flexibility	Semi-rigid
Resistance to	Chemical exposure: Occasional Mechanical impact: Light Water exposure:Occasional condensation Solar radiation and weather exposure:Occasional
Cable design	Conductor: Plain annealed copper conductor to AS/NZS 1125Can also be operated at temperatures up to 90°Cwhen not exposed to mechanical deformation(see AS/NZS 3008.1). Insulation: V-90 PVC Colours: Red, Black Sheath: 3V-90PVC Colour: White
Installation conditions	In free air In conduit In ground with protection In duct External building with protection

	Conductor
Insulation Colours	Conductor			Cable						Min. installed bending radius(a) mm
	Nominal C.S.A mm²	Nominal diameter of wires No/mm	Nominal diameter mm	Nominal insulation thickness mm	Overall diameter mm				Approx. mass kg/100m
					Minimum		Maximum
					Major axis	Major axis	Major axis	Major axis
TWIN FLAT PVC
Red,Black	1.0	7/0.42	1.26	0.6	6.4	4.2	6.6	4.3	5.2	15
Red,Black	1.5	7/0.50	1.56	0.6	7.1	4.5	7.3	4.6	6.4	20
Red,Black	2.5	7/0.67	2.0	0.7	8.7	5.4	8.9	5.5	10	20
Red,Black	4	7/0.85	2.6	0.8	10.4	6.3	10.7	6.5	15	25
Red,Black	6	7/1.04	3.1	0.8	11.5	6.9	11.9	7.1	20	30
Red,Black	10	7/1.35	4.1	1	14.2	8.4	15.0	8.8	31	35
Red,Black	16	7/1.70	5.1	1	16.7	9.7	17.3	10.0	45	40
TWIN ACTIVE FLAT PVC
Red, White	1.0	7/0.42	1.26	0.6	6.4	4.2	11.7	4.3	5.2	15
Red, White	1.5	7/0.50	1.56	0.6	7.1	4.5	12.8	4.6	6.4	20
Red, White	2.5	7/0.67	2.0	0.7	8.7	5.4	15.8	5.5	10	20
Red, White	4	7/0.85	2.6	0.8	10.4	6.3	18.3	6.5	15	25
Red, White	6	7/1.04	3.1	0.8	11.5	6.9	20.1	7.1	20	30
Red, White	10	7/1.35	4.1	1.0	14.2	8.4	25.8	8.8	31	35
Red, White	16	7/1.70	5.1	1.0	16.7	9.7	17.3	10.0	45	40

CERTIFICATIONS

10mm2 tinned copper solar cable

PACKAGING

Roll

Plastic Reel

Small Wooden Reel

APPLICATION

Capsule Accommodation

Prefabricated Housing

Recreational Vehicle Wiring

CASE

2020 Ford Transit AWD Camper Van Conversion

Epping Forest District Council Modular Homes

Wethersfield Modular Accommodation Deployment

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

photovoltaic cable for residential rooftop PV

GLOBAL CERTIFICATIONS

commercial rooftop solar H1Z2Z2-K cable

CUSTOMER PHOTOS

solar cable for commercial rooftop solar

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

photovoltaic cable for commercial rooftop solar

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

photovoltaic cable for industrial rooftop PV

solar cable for utility scale solar farm

photovoltaic cable for utility scale solar farm

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

Can solar cable be used between batteries and an inverter?

A solar power cable designed for high-voltage PV strings should not automatically replace dedicated battery cable. Battery circuits can carry very high current at lower voltage, so conductor size, terminal type, flexibility and the applicable battery/inverter requirements must be checked separately. GERITEL WIRE focuses on matching the ordered construction to the applicable certificate and can provide supporting technical documents for project review.

Is this cable suitable for BIPV projects?

BIPV solar cable can be used for photovoltaic module interconnection in building-integrated systems when the cable routing, fire-performance requirement, voltage and certification match the building design. LSZH and CPR requirements may be particularly important in building projects. GERITEL WIRE can assist with OEM marking and packaging while keeping the electrical construction aligned with the approved product specification.

What makes a cable 'solar rated'?

A solar rated cable is distinguished by a PV-specific construction and testing program covering electrical performance plus outdoor stresses such as UV, ozone, temperature, flame behavior and moisture. The certificate and printed cable marking should be checked rather than relying only on marketing language. GERITEL WIRE can help confirm the requested standard, size, color and marking before quotation so the cable matches the project specification.r.

Can I use the cable indoors as well as outdoors?

Yes. H1Z2Z2-K is commonly specified as an indoor outdoor PV cable for photovoltaic interconnection. Indoor routing may add building-fire or CPR requirements, while outdoor use emphasizes UV, ozone, weather and moisture resistance. For project orders, GERITEL WIRE can support technical clarification, cable marking, reel or drum packaging and export documentation.
