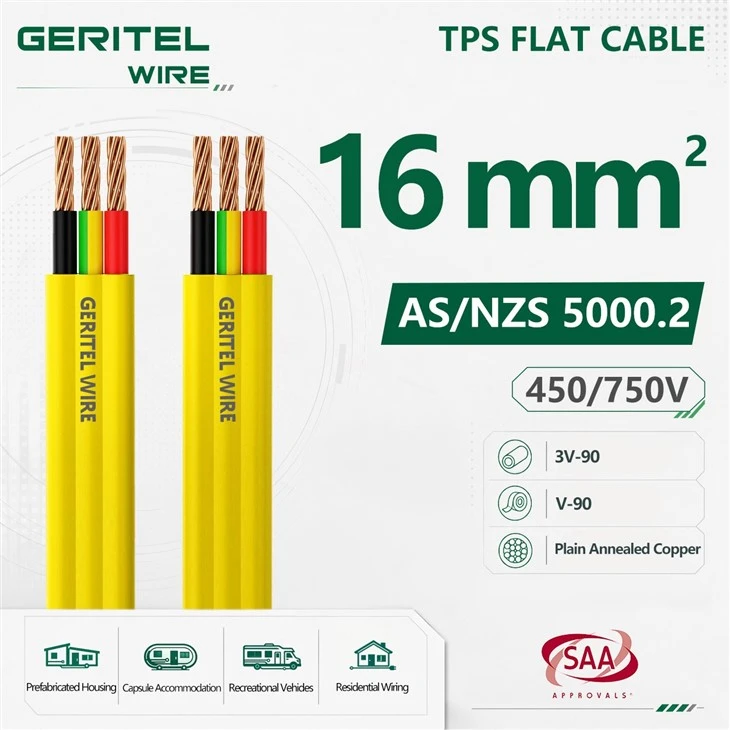

16mm Yellow Flat TPS Feeder Cable With Earth

16mm Yellow Flat TPS Feeder Cable With Earth
Details:
·Insulation: V-90 PVC
·Sheath: 3V-90 PVC
·APPROVALS: AS/NZS 5000.2
·Normal operating temperature: +90℃
·Minimum operating temperature: 0℃
Send Inquiry
Download
Description
Technical Parameters
Certification

16mm yellow TPS cable

PRODUCT REAL SHOT



1.5mm2 flat TPS cable
1.5 mm² white TPS cable
1.5mm PVC flat cable

1.5mm 3 core and earth cable

16 mm² Yellow Copper Building Cable for Project Distribution
GERITEL WIRE offers 16mm Yellow Flat TPS Feeder Cable for project-specific fixed distribution circuits requiring a large copper conductor size and protective earth. The 2C+E construction uses plain annealed copper, V-90 PVC insulation and a yellow flat sheath for consistent identification. This Yellow Copper Building Cable may be evaluated for prefabricated utility modules, commercial service areas and selected submain routes where calculations and certificate scope support its use. It also targets Yellow TPS Cable for Modular Distribution Systems rather than general switch wiring. Samples, custom marking and drums are available for 16 mm² Yellow 2C+E Cable; engineers must confirm current rating, voltage drop, earth size and fire specification.
PRODUCT SPECIFICATIONS



16mm² yellow flat TPS cable

Applications



For general wiring, unenclosed, enclosed in conduit,for domestic, commercial and industrial installations where not subject to mechanical damage.

SPECIFICATIONS
Cable description PVC insulated laid flat and PVC sheathed cableto AS/NZS 5000.2
Approvals A5/NZS 5000.2
Behaviour in flame and fire Flame retardant
Temperature range

Normal operating temperature: +90°C

Minimum operating temperature: 0°C
Flexibility Semi-rigid
Resistance to

Chemical exposure: Occasional

Mechanical impact: Light

Water exposure: Occasional condensation

Solar radiation and weather exposure:Occasional
Cable design

Conductor:

Plain annealed copper conductor to AS/NZS 1125 Can also be operated at temperatures up to 90°C when not exposed to mechanical deformation(see AS/NZS 3008.1).

Insulation: V-90 PVC
Colours: Red, Black, Green/Yellow

Sheath: 3V-90 PVC

Colour: Yellow
Installation conditions

In free air

In conduit

In ground with protection

In duct

External building with protection

Insulation Colours

Conductor

Cable

Min.

installed

bending

radius(a)

mm

Nominal

C.S.A

mm²

Nominal

diameter

of wires
No/mm

Nominal

diameter

mm

Nominal

insulation

thickness

mm

Overall diameter mm

Approx.

mass

kg/100m

Minimum

Maximum
Major axis Major axis Major axis Major axis
2C+E FLAT PVC
Red,Green/Yellow,Black 1.0 7/0.42 1.26 0.6 9.5 4.3 9.6 4.4 8 20
Red,Green/Yellow,Black 1.5 7/0.50 1.56 0.6 9.8 4.5 10.1 4.6 10 20
Red,Green/Yellow,Black 2.5 7/0.67 2.0 0.7 12.1 5.4 12.4 5.5 15 20
Red,Green/Yellow,Black 4 7/0.85 2.6 0.8 13.8 6.3 14.1 6.5 19 30
Red,Green/Yellow,Black 6 7/1.04 3.1 0.8 14.9 6.9 15.3 7.1 24 30
Red,Green/Yellow,Black 10 7/1.35 4.1 1 18.9 8.4 19.6 8.8 38 35
Red,Green/Yellow,Black 16 7/1.70 5.1 1 21.8 9.7 22.5 10.0 54 40
3C+E FLAT PVC
Red,White,Green/Yellow,Black 1.0 7/0.42 1.26 0.6 11.4 4.5 11.7 4.6 10 20
Red,White,Green/Yellow,Black 1.5 7/0.50 1.56 0.6 12.4 4.5 12.8 4.6 12 20
Red,White,Green/Yellow,Black 2.5 7/0.67 2.0 0.7 15..4 5.4 15.8 5.5 19 20
Red,White,Green/Yellow,Black 4 7/0.85 2.6 0.8 17.9 6.3 18.3 6.5 26 25
Red,White,Green/Yellow,Black 6 7/1.04 3.1 0.8 19.5 6.9 20.1 7.1 33 30
Red,White,Green/Yellow,Black 10 7/1.35 4.1 1.0 24.9 8.4 25.8 8.8 52 35
Red,White,Green/Yellow,Black 16 7/1.70 5.1 1.0 28.8 9.7 29.7 10.0 75 40
3C FLAT PVC
Red, White, Blue 1.0 7/0.42 1.26 0.6 8.8 4.1 9.0 4.3 8 20
Red, White, Blue 1.5 7/0.50 1.56 0.6 9.8 4.5 10.1 4.6 10 20
Red, White, Blue 2.5 7/0.67 2.0 0.7 12.1 5.4 12.4 5.5 15 20
CERTIFICATIONS



16 mm2 yellow sheath electrical cable





PACKAGING



16mm yellow twin and earth cable

Roll

16mm² yellow 2 core and earth cable

Plastic Reel

16 mm2 yellow 2C+E TPS cable

Small Wooden Reel

APPLICATION



16mm V-90 yellow flat cable
Capsule Accommodation
16mm² 450/750V yellow TPS cable
Prefabricated Housing
16 mm2 AS/NZS 5000.2 yellow cable

Recreational Vehicle Wiring



CASE



16mm yellow copper building cable

2020 Ford Transit AWD Camper Van Conversion

16mm² yellow fixed wiring cable

Epping Forest District Council Modular Homes

16 mm2 yellow power cable 100m

Wethersfield Modular Accommodation Deployment

WHY CHOOSE US



30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

16mm yellow lighting cable

15K
Finished Projects
150+
professional staff
15K
happy clients
92+
awards & certifacates
PLANT EQUIPMENT



16mm² yellow switch cable

16 mm2 yellow TPS cable supplier

16mm yellow flat cable manufacturer

16mm² yellow TPS cable price

16 mm2 yellow electrical cable wholesale

16mm yellow cable 100m roll

GLOBAL CERTIFICATIONS



16mm² yellow cable datasheet

CUSTOMER PHOTOS


yellow switch cable for container office lighting

INTERNATIONL TRANSPORTATION



01

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

02

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

03

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

yellow cable for container classroom lighting
COOPERATIVE PARTNER



We are looking for a cooperative partner to expand our business.

yellow TPS cable for tiny house lighting
yellow switch cable for granny flat lighting
yellow TPS cable for caravan lighting
yellow switch cable for motorhome lighting
yellow flat cable for RV interior lighting
yellow cable for campervan fixed lighting
yellow TPS cable for caravan two way switching
yellow lighting cable for mobile homes
yellow switch cable for recreational vehicles
yellow cable for RV bathroom fan and light
How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

yellow TPS cable for caravan cabin lighting
FAQ



What material is used for the yellow outer sheath?
The outer layer is a yellow PVC sheath, commonly described as 3V-90 in the product specification. It protects and groups the insulated conductors for fixed installation. GERITEL WIRE can confirm sheath thickness and dimensions for 3V-90 Yellow Flat Cable orders and provide a sample of the Yellow PVC Sheathed Cable.
What is the voltage rating of this yellow TPS cable?
The product is positioned as a 450/750V fixed-wiring cable, subject to the exact approved specification. GERITEL WIRE prints the agreed rating on the 450/750V Yellow TPS Cable and provides technical documents for the Low Voltage Flat Building Cable. The project engineer must still confirm system voltage and installation conditions.
Does the cable comply with AS/NZS 5000.2?
The product should be manufactured and documented to AS/NZS 5000.2 where the order and certificate scope require it. GERITEL WIRE can provide available compliance documents and product markings for AS/NZS 5000.2 Yellow TPS Cable. Buyers should verify that the exact size and construction of the Australian Standard Flat Cable are included.
Is the cable suitable for continuous operation at 90°C?
V-90 identifies the insulation temperature classification, but usable current capacity also depends on deformation, installation method, grouping and ambient conditions. GERITEL WIRE provides the material specification for V-90 PVC Insulated Cable, while the designer selects the Yellow Fixed Wiring Cable using the applicable cable-selection rules rather than temperature marking alone.



Hot Tags: 16mm yellow flat tps feeder cable with earth, China 16mm yellow flat tps feeder cable with earth manufacturers, suppliers, factory, 3 Core TPS Cable, SAA Australia Flat 2C E Electrical TPS Cable, SAA Australia Flat Twin Active TPS Cable, tps cable

You Might Also Like

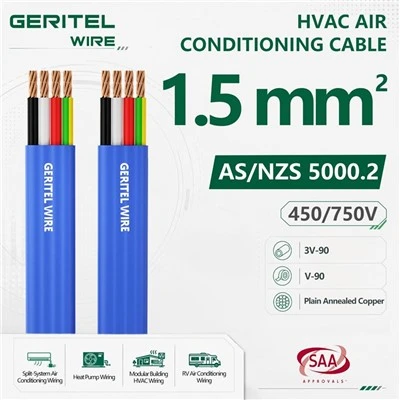

  • 1.5mm 3 Core And Earth Blue Air Conditioning Cable 100m
