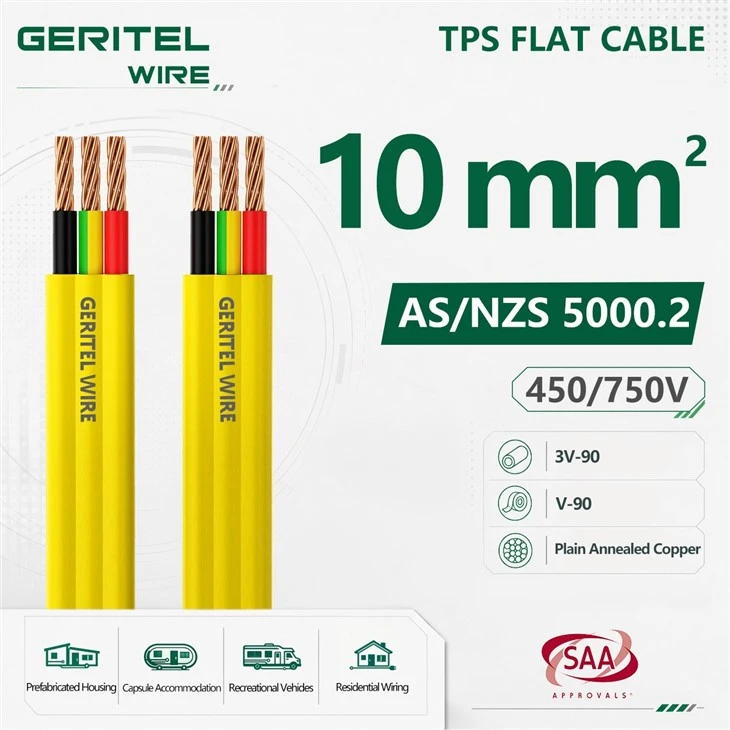

10mm Yellow 2 Core And Earth Flat TPS Submain Cable

10mm Yellow 2 Core And Earth Flat TPS Submain Cable
Details:
·Insulation: V-90 PVC
·Sheath: 3V-90 PVC
·APPROVALS: AS/NZS 5000.2
·Normal operating temperature: +90℃
·Minimum operating temperature: 0℃
Send Inquiry
Download
Description
Technical Parameters
Certification

10mm yellow TPS cable

PRODUCT REAL SHOT



1.5mm2 flat TPS cable
1.5 mm² white TPS cable
1.5mm PVC flat cable

1.5mm 3 core and earth cable

10 mm² Yellow V-90 Cable for Data Center Support-Area Wiring
The 10mm Yellow 2 Core and Earth Cable is intended for engineered fixed distribution routes requiring a larger flat TPS conductor size. GERITEL WIRE combines plain annealed copper, V-90 PVC insulation and a yellow sheath in a 2C+E construction. As a Yellow Flat TPS Submain Cable, it may be considered for modular distribution boards, technical rooms and protected support-area circuits after electrical calculation. The page can target Yellow TPS Cable for Data Center Support Areas, limited to approved normal lighting or auxiliary circuits-not server power, data or emergency wiring. Project drums and documents are available for 10 mm² Yellow V-90 Building Cable; earth size, fault protection and fire requirements must be confirmed.
PRODUCT SPECIFICATIONS



10mm² yellow flat TPS cable

Applications



For general wiring, unenclosed, enclosed in conduit,for domestic, commercial and industrial installations where not subject to mechanical damage.

SPECIFICATIONS
Cable description PVC insulated laid flat and PVC sheathed cableto A5/NZS 5000.2
Approvals AS/NZS 5000.2
Behaviour in flame and fire Flame retardant
Temperature range

Normal operating temperature: +90°C

Minimum operating temperature: 0°C
Flexibility Semi-rigid
Resistance to

Chemical exposure: Occasional

Mechanical impact: Light

Water exposure:Occasional condensation

Solar radiation and weather exposure:Occasional
Cable design

Conductor:

Plain annealed copper conductor to AS/NZS 1125 Can also be operated at temperatures up to 90°C when not exposed to mechanical deformation(see AS/NZS 3008.1).

Insulation: V-90 PVC
Colours: Red, Black, Green/Yellow

Sheath: 3V-90 PVC

Colour: Yellow
Installation conditions

In free air

In conduit

In ground with protection

In duct

External building with protection

Insulation Colours

Conductor

Cable

Min.

installed

bending

radius(a)

mm

Nominal

C.S.A

mm²

Nominal

diameter

of wires
No/mm

Nominal

diameter

mm

Nominal

insulation

thickness

mm

Overall diameter mm

Approx.

mass

kg/100m

Minimum

Maximum
Major axis Major axis Major axis Major axis
2C+E FLAT PVC
Red,Green/Yellow,Black 1.0 7/0.42 1.26 0.6 9.5 4.3 9.6 4.4 8 20
Red,Green/Yellow,Black 1.5 7/0.50 1.56 0.6 9.8 4.5 10.1 4.6 10 20
Red,Green/Yellow,Black 2.5 7/0.67 2.0 0.7 12.1 5.4 12.4 5.5 15 20
Red,Green/Yellow,Black 4 7/0.85 2.6 0.8 13.8 6.3 14.1 6.5 19 30
Red,Green/Yellow,Black 6 7/1.04 3.1 0.8 14.9 6.9 15.3 7.1 24 30
Red,Green/Yellow,Black 10 7/1.35 4.1 1 18.9 8.4 19.6 8.8 38 35
Red,Green/Yellow,Black 16 7/1.70 5.1 1 21.8 9.7 22.5 10.0 54 40
3C+E FLAT PVC
Red,White,Green/Yellow,Black 1.0 7/0.42 1.26 0.6 11.4 4.5 11.7 4.6 10 20
Red,White,Green/Yellow,Black 1.5 7/0.50 1.56 0.6 12.4 4.5 12.8 4.6 12 20
Red,White,Green/Yellow,Black 2.5 7/0.67 2.0 0.7 15..4 5.4 15.8 5.5 19 20
Red,White,Green/Yellow,Black 4 7/0.85 2.6 0.8 17.9 6.3 18.3 6.5 26 25
Red,White,Green/Yellow,Black 6 7/1.04 3.1 0.8 19.5 6.9 20.1 7.1 33 30
Red,White,Green/Yellow,Black 10 7/1.35 4.1 1.0 24.9 8.4 25.8 8.8 52 35
Red,White,Green/Yellow,Black 16 7/1.70 5.1 1.0 28.8 9.7 29.7 10.0 75 40
3C FLAT PVC
Red, White, Blue 1.0 7/0.42 1.26 0.6 8.8 4.1 9.0 4.3 8 20
Red, White, Blue 1.5 7/0.50 1.56 0.6 9.8 4.5 10.1 4.6 10 20
Red, White, Blue 2.5 7/0.67 2.0 0.7 12.1 5.4 12.4 5.5 15 20
CERTIFICATIONS



10 mm2 yellow sheath electrical cable





PACKAGING



10mm yellow twin and earth cable

Roll

10mm² yellow 2 core and earth cable

Plastic Reel

10 mm2 yellow 2C+E TPS cable

Small Wooden Reel

APPLICATION



10mm V-90 yellow flat cable
Capsule Accommodation
10mm² 450/750V yellow TPS cable
Prefabricated Housing
10 mm2 AS/NZS 5000.2 yellow cable

Recreational Vehicle Wiring



CASE



10mm yellow copper building cable

2020 Ford Transit AWD Camper Van Conversion

10mm² yellow fixed wiring cable

Epping Forest District Council Modular Homes

10 mm2 yellow power cable 100m

Wethersfield Modular Accommodation Deployment

WHY CHOOSE US



30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

10mm yellow lighting cable

15K
Finished Projects
150+
professional staff
15K
happy clients
92+
awards & certifacates
PLANT EQUIPMENT



10mm² yellow switch cable

10 mm2 yellow TPS cable supplier

10mm yellow flat cable manufacturer

10mm² yellow TPS cable price

10 mm2 yellow electrical cable wholesale

10mm yellow cable 100m roll

GLOBAL CERTIFICATIONS



10mm² yellow cable datasheet

CUSTOMER PHOTOS


yellow switch cable for commercial lighting controls

INTERNATIONL TRANSPORTATION



01

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

02

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

03

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

yellow heat light fan cable for bathrooms
COOPERATIVE PARTNER



We are looking for a cooperative partner to expand our business.

yellow TPS cable for prefabricated house lighting
yellow lighting cable for modular homes
yellow switch cable for integrated houses
yellow flat cable for factory built homes
yellow TPS cable for transportable buildings
yellow lighting cable for capsule houses
yellow switch cable for capsule accommodation
yellow TPS cable for capsule hotel lighting
yellow cable for hotel pod bedside lighting
yellow flat cable for glamping pod lighting
How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

yellow TPS cable for container house lighting
FAQ



Does a yellow sheath prove the cable is SAA approved?
No. Sheath colour is not evidence of certification. Approval must be checked against the certificate holder, product description, construction, sizes and markings. GERITEL WIRE will only use SAA Approved Yellow TPS Cable wording when the exact product is covered, and can provide available documentation for the AS/NZS 5000.2 Yellow Cable.
Should I create separate website pages for yellow 2C+E and yellow 3-core cable?
Yes. They answer different search intent and have different conductor structures. A Yellow 2C+E TPS Cable page should focus on twin-and-earth applications, while a Yellow 3 Core Lighting Cable page should state that it has three working conductors and no earth if that is the product supplied. Separate pages improve accuracy and SEO relevance.
What conductor material is used in Yellow Flat TPS Cable?
GERITEL WIRE specifies plain annealed copper conductors for this Copper Yellow TPS Cable. Copper offers stable conductivity and standard termination practices for building wiring. Buyers can request conductor construction, resistance data and sample inspection for each Yellow Copper Building Cable size before placing a bulk order.
What insulation is used around the conductors?
The working conductors use V-90 PVC insulation in the stated GERITEL specification. The insulation must remain compatible with the application temperature and installation method. GERITEL WIRE can provide a datasheet for V-90 Yellow TPS Cable and confirm the agreed internal colours of the PVC Insulated Flat Cable.



Hot Tags: 10mm yellow 2 core and earth flat tps submain cable, China 10mm yellow 2 core and earth flat tps submain cable manufacturers, suppliers, factory, 3 Core TPS Cable, SAA Australia Flat 2C E Electrical TPS Cable, SAA Australia Flat Twin Active TPS Cable, tps cable

You Might Also Like

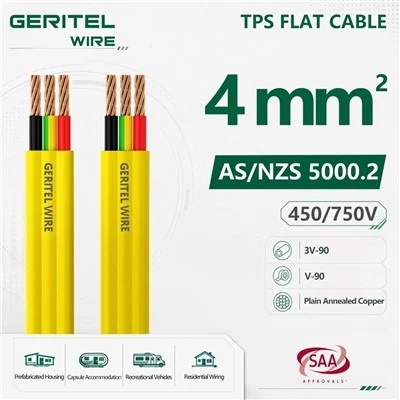

  • 4mm Yellow 2C+E Flat Building Cable For Dedicated Circuits
    4mm Yellow 2C+E Flat Building Cable For Dedicated Ci...

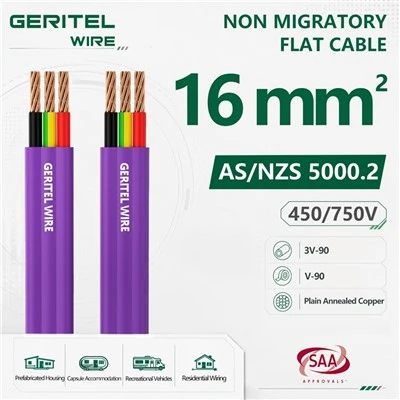

  • 16mm Violet Non-Migratory Flat Power Cable
