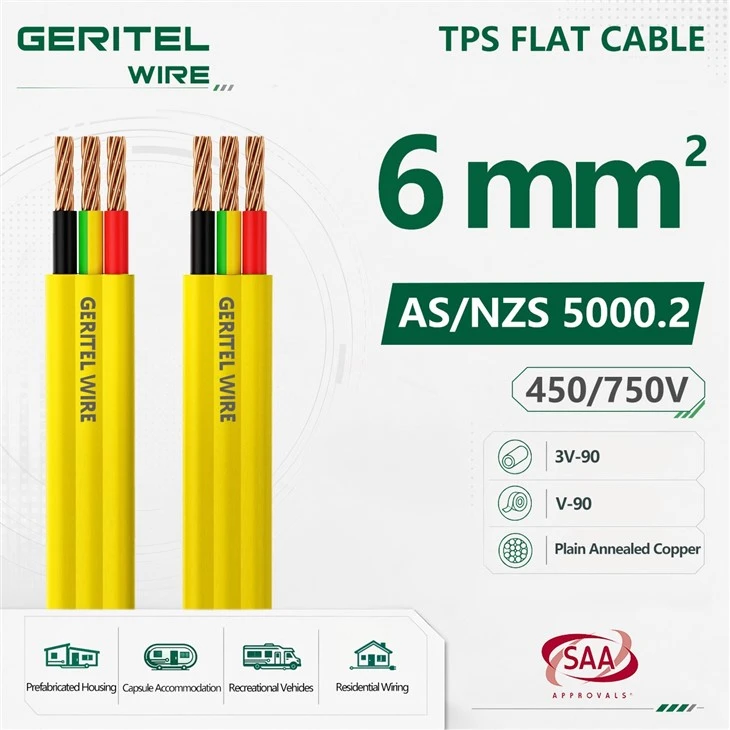

6mm yellow TPS cable

PRODUCT REAL SHOT

1.5mm 3 core and earth cable

6 mm² Yellow Flat Cable for Modular Utility and HVAC Circuits

GERITEL WIRE supplies 6mm Yellow Twin and Earth Cable for engineered fixed circuits needing greater conductor area than common lighting sizes. The flat 2C+E construction uses plain annealed copper, V-90 PVC insulation and a yellow sheath for project identification. This 450/750V Yellow Flat Cable can be evaluated for modular utility rooms, selected HVAC auxiliary circuits and dedicated building services where drawings specify this construction. It also targets Yellow TPS Cable for Modular Utility Wiring. Samples, custom printing and project drums are available for 6 mm² Yellow 2 Core and Earth Cable; the consultant must verify ampacity, voltage drop, protection, fire requirements and approval coverage.

PRODUCT SPECIFICATIONS

6mm² yellow flat TPS cable

Applications

For general wiring, unenclosed, enclosed in conduit,for domestic, commercial and industrial installations where not subject to mechanical damage.

SPECIFICATIONS
Cable description	PVC insulated laid flat and PVC sheathed cableto AS/NZS 5000.2
Approvals	AS/NZS 5000.2
Behaviour in flame and fire	Flame retardant
Temperature range	Normal operating temperature: +90°C Minimum operating temperature: 0°C
Flexibility	Semi-rigid
Resistance to	Chemical exposure: Occasional Mechanical impact: Light Water exposure:Occasional condensation Solar radiation and weather exposure:Occasional
Cable design	Conductor: Plain annealed copper conductor to AS/NZS 1125 Can also be operated at temperatures up to 90°C when not exposed to mechanical deformation(see AS/NZS 3008.1). Insulation: V-90 PVC Colours: Red, Black, Green/Yellow Sheath: 3V-90 PVC Colour: Yellow
Installation conditions	In free air In conduit In ground with protection In duct External building with protection

	Conductor
Insulation Colours	Conductor			Cable						Min. installed bending radius(a) mm
	Nominal C.S.A mm²	Nominal diameter of wires No/mm	Nominal diameter mm	Nominal insulation thickness mm	Overall diameter mm				Approx. mass kg/100m
					Minimum		Maximum
					Major axis	Major axis	Major axis	Major axis
2C+E FLAT PVC
Red,Green/Yellow,Black	1.0	7/0.42	1.26	0.6	9.5	4.3	9.6	4.4	8	20
Red,Green/Yellow,Black	1.5	7/0.50	1.56	0.6	9.8	4.5	10.1	4.6	10	20
Red,Green/Yellow,Black	2.5	7/0.67	2.0	0.7	12.1	5.4	12.4	5.5	15	20
Red,Green/Yellow,Black	4	7/0.85	2.6	0.8	13.8	6.3	14.1	6.5	19	30
Red,Green/Yellow,Black	6	7/1.04	3.1	0.8	14.9	6.9	15.3	7.1	24	30
Red,Green/Yellow,Black	10	7/1.35	4.1	1	18.9	8.4	19.6	8.8	38	35
Red,Green/Yellow,Black	16	7/1.70	5.1	1	21.8	9.7	22.5	10.0	54	40
3C+E FLAT PVC
Red,White,Green/Yellow,Black	1.0	7/0.42	1.26	0.6	11.4	4.5	11.7	4.6	10	20
Red,White,Green/Yellow,Black	1.5	7/0.50	1.56	0.6	12.4	4.5	12.8	4.6	12	20
Red,White,Green/Yellow,Black	2.5	7/0.67	2.0	0.7	15..4	5.4	15.8	5.5	19	20
Red,White,Green/Yellow,Black	4	7/0.85	2.6	0.8	17.9	6.3	18.3	6.5	26	25
Red,White,Green/Yellow,Black	6	7/1.04	3.1	0.8	19.5	6.9	20.1	7.1	33	30
Red,White,Green/Yellow,Black	10	7/1.35	4.1	1.0	24.9	8.4	25.8	8.8	52	35
Red,White,Green/Yellow,Black	16	7/1.70	5.1	1.0	28.8	9.7	29.7	10.0	75	40
3C FLAT PVC
Red, White, Blue	1.0	7/0.42	1.26	0.6	8.8	4.1	9.0	4.3	8	20
Red, White, Blue	1.5	7/0.50	1.56	0.6	9.8	4.5	10.1	4.6	10	20
Red, White, Blue	2.5	7/0.67	2.0	0.7	12.1	5.4	12.4	5.5	15	20

CERTIFICATIONS

6 mm2 yellow sheath electrical cable

PACKAGING

Roll

Plastic Reel

Small Wooden Reel

APPLICATION

Capsule Accommodation

Prefabricated Housing

Recreational Vehicle Wiring

CASE

2020 Ford Transit AWD Camper Van Conversion

Epping Forest District Council Modular Homes

Wethersfield Modular Accommodation Deployment

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

GLOBAL CERTIFICATIONS

6mm² yellow cable datasheet

CUSTOMER PHOTOS

yellow TPS cable for residential lighting

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

yellow switch cable for bedroom lighting

yellow TPS cable for living room lighting

yellow cable for kitchen lighting circuits

yellow cable for staircase two way switching

yellow cable for hallway multiway switching

yellow lighting cable for apartment wiring

yellow switch cable for retail store lighting

yellow cable for hotel corridor lighting

yellow lighting cable for school classrooms

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

Is yellow TPS the same as blue air-conditioning cable?

No. Blue TPS is commonly marketed for air-conditioning and heat-pump wiring, while yellow products are often associated with lighting or project identification. The GERITEL Yellow Flat Electrical Cable should be selected by structure and circuit design, not by substituting it for Blue HVAC TPS Cable. Separate product pages prevent colour-based confusion.

Is yellow TPS the same as purple non-migratory cable?

No. Purple sheath is commonly used to identify non-migratory TPS intended for compatibility with certain foam insulation materials. A standard Yellow PVC TPS Cable should not be assumed to have that performance. For insulated panels or capsule-house walls, GERITEL WIRE recommends confirming whether Non-Migratory Flat TPS Cable is required.

Can the yellow colour be customized to match a project code?

GERITEL WIRE can discuss sheath-colour matching for project identification, subject to pigment, production quantity and approval requirements. Customers ordering Custom Yellow Sheath Cable should provide a colour reference and required markings. We can prepare a sample of the OEM Yellow TPS Cable before mass production.

Will the yellow sheath fade during indoor use?

PVC colour stability depends on formulation, heat, chemicals and exposure conditions. For protected indoor fixed wiring, the sheath is not normally selected as a decorative finish. GERITEL WIRE can provide an approved sample of Yellow PVC Sheathed Cable and discuss storage requirements for Yellow Flat Building Wire before shipment.
