Description

Technical Parameters

Certification

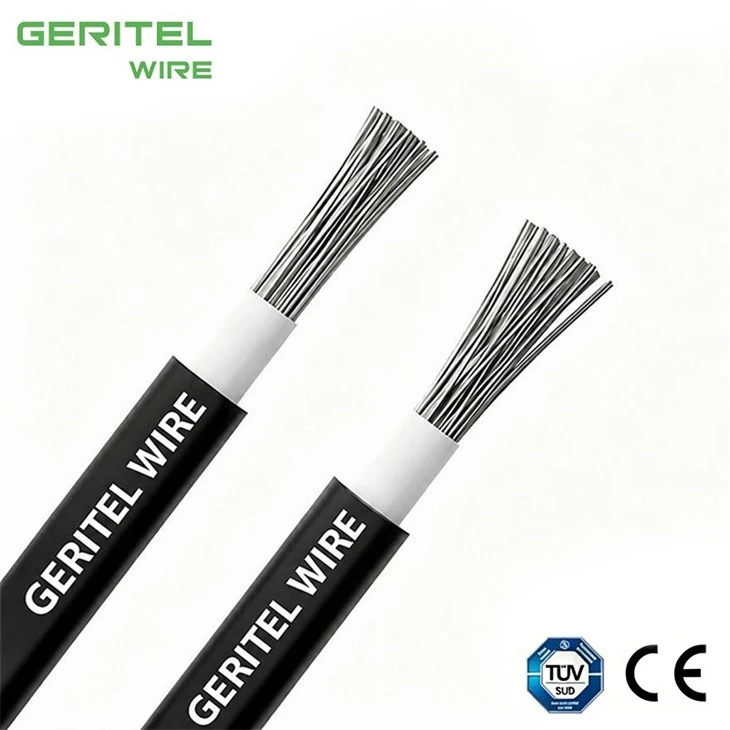

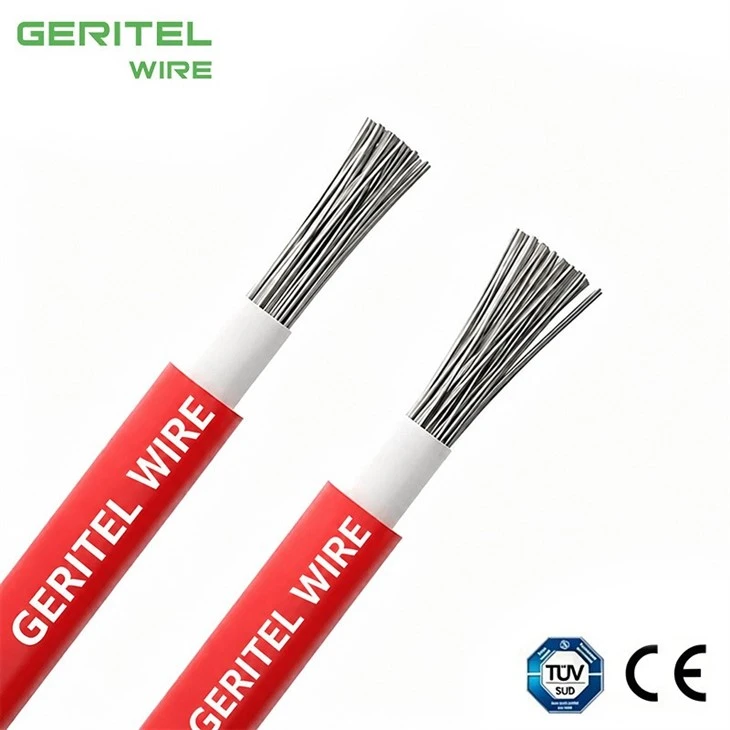

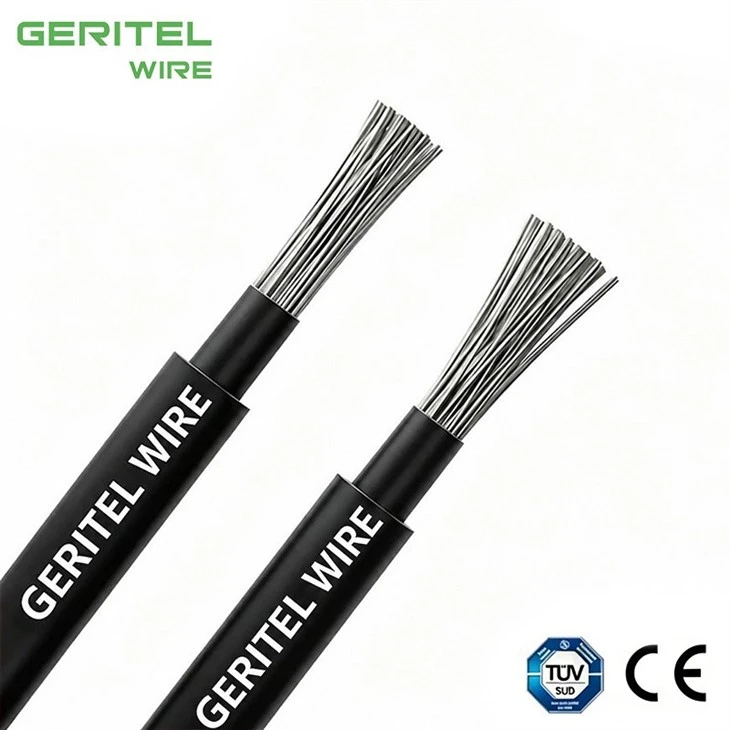

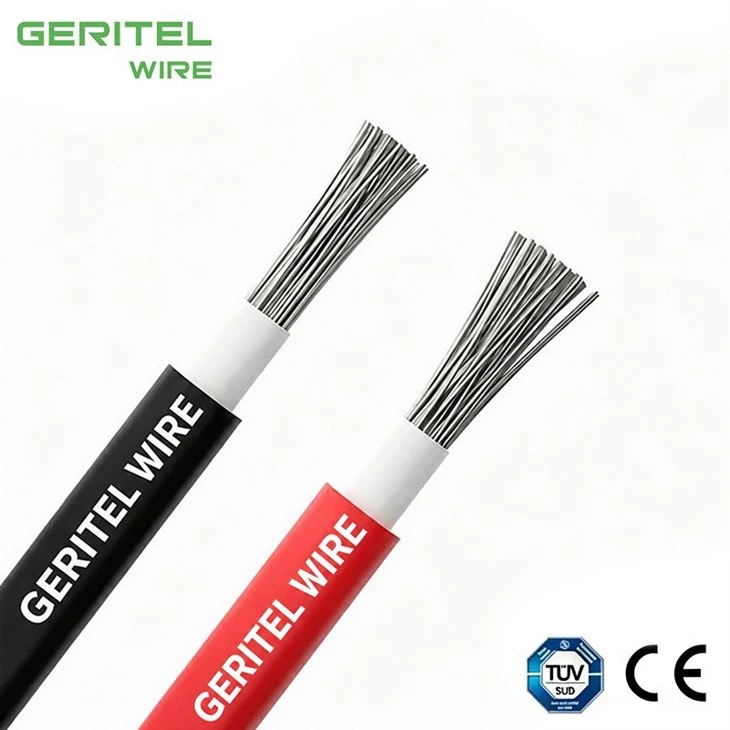

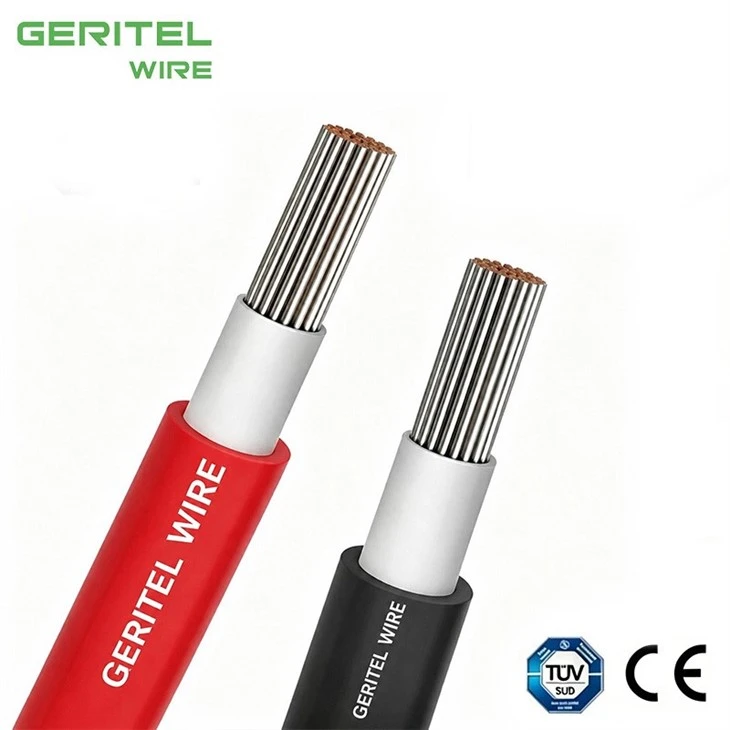

H1Z2Z2-K 1x35mm2 solar cable

PRODUCT REAL SHOT

EN 50618 solar cable 35mm2

35mm² Solar Farm Cable for Flexible Photovoltaic DC Installation

Designed for longer high-current PV runs, GERITEL WIRE offers this 35mm² single-core option for solar farms and central inverter layouts. The 35mm² solar cable targets reliable DC transmission where installers need flexibility and long outdoor service. The construction combines corrosion-resistant Class 5 tinned copper with cross-linked halogen-free insulation and a durable outer sheath. For PV DC service, it combines high-voltage capability with UV, weather, ozone and moisture resistance. Buyers searching for ground mounted PV cable can match this size to project current, route length and voltage-drop requirements. GERITEL WIRE can support OEM marking, packaging, technical documentation and export supply for projects and distributors.

PRODUCT SPECIFICATIONS

IEC 62930 solar cable 35mm2

Applications

For general wiring, unenclosed, enclosed in conduit,for domestic, commercial and industrial installations where not subject to mechanical damage.

SPECIFICATIONS
Cable description	PVC insulated laid flat and PVC sheathed cableto A5/NZ5 5000.2
Approvals	A5/NZS5000.2
Behaviour in flame and fire	Flame retardant
Temperature range	Normal operating temperature: +90°C Minimum operating temperature: 0°C
Flexibility	Semi-rigid
Resistance to	Chemical exposure: Occasional Mechanical impact: Light Water exposure:Occasional condensation Solar radiation and weather exposure:Occasional
Cable design	Conductor: Plain annealed copper conductor to AS/NZS 1125Can also be operated at temperatures up to 90°Cwhen not exposed to mechanical deformation(see AS/NZS 3008.1). Insulation: V-90 PVC Colours: Red, Black Sheath: 3V-90PVC Colour: White
Installation conditions	In free air In conduit In ground with protection In duct External building with protection

	Conductor
Insulation Colours	Conductor			Cable						Min. installed bending radius(a) mm
	Nominal C.S.A mm²	Nominal diameter of wires No/mm	Nominal diameter mm	Nominal insulation thickness mm	Overall diameter mm				Approx. mass kg/100m
					Minimum		Maximum
					Major axis	Major axis	Major axis	Major axis

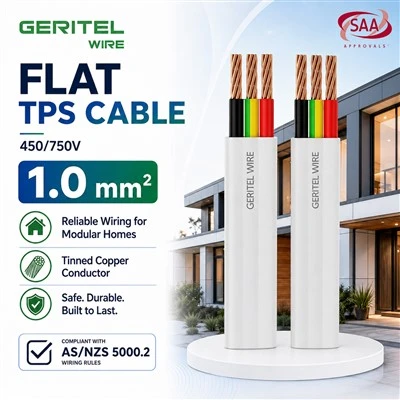

TWIN FLAT PVC
Red,Black	1.0	7/0.42	1.26	0.6	6.4	4.2	6.6	4.3	5.2	15
Red,Black	1.5	7/0.50	1.56	0.6	7.1	4.5	7.3	4.6	6.4	20
Red,Black	2.5	7/0.67	2.0	0.7	8.7	5.4	8.9	5.5	10	20
Red,Black	4	7/0.85	2.6	0.8	10.4	6.3	10.7	6.5	15	25
Red,Black	6	7/1.04	3.1	0.8	11.5	6.9	11.9	7.1	20	30
Red,Black	10	7/1.35	4.1	1	14.2	8.4	15.0	8.8	31	35
Red,Black	16	7/1.70	5.1	1	16.7	9.7	17.3	10.0	45	40
TWIN ACTIVE FLAT PVC
Red, White	1.0	7/0.42	1.26	0.6	6.4	4.2	11.7	4.3	5.2	15
Red, White	1.5	7/0.50	1.56	0.6	7.1	4.5	12.8	4.6	6.4	20
Red, White	2.5	7/0.67	2.0	0.7	8.7	5.4	15.8	5.5	10	20
Red, White	4	7/0.85	2.6	0.8	10.4	6.3	18.3	6.5	15	25
Red, White	6	7/1.04	3.1	0.8	11.5	6.9	20.1	7.1	20	30
Red, White	10	7/1.35	4.1	1.0	14.2	8.4	25.8	8.8	31	35
Red, White	16	7/1.70	5.1	1.0	16.7	9.7	17.3	10.0	45	40

CERTIFICATIONS

1500V DC solar cable 35mm2

PACKAGING

Roll

Plastic Reel

Small Wooden Reel

APPLICATION

Capsule Accommodation

Prefabricated Housing

Recreational Vehicle Wiring

CASE

2020 Ford Transit AWD Camper Van Conversion

Epping Forest District Council Modular Homes

Wethersfield Modular Accommodation Deployment

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

GLOBAL CERTIFICATIONS

solar cable for commercial PV system

CUSTOMER PHOTOS

photovoltaic cable for commercial PV system

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

photovoltaic cable for floating solar plant

photovoltaic cable for agrivoltaic solar farm

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

What is IEC 62930 solar cable?

IEC 62930 is an international standard for photovoltaic DC cable. A buyer asking for IEC 62930 solar cable should confirm the rated voltage, conductor class, material system, cable marking and certificate scope for the ordered size. GERITEL WIRE focuses on matching the ordered construction to the applicable certificate and can provide supporting technical documents for project review.

Is EN 50618 the same as IEC 62930?

EN 50618 and IEC 62930 cover closely related photovoltaic cable requirements, but they are separate standards and should not be treated as identical paperwork. The project specification should determine which certificate or declaration must be supplied. GERITEL WIRE can assist with OEM marking and packaging while keeping the electrical construction aligned with the approved product specification. The relevant buyer keyword is EN 50618 vs IEC 62930.

Is PV1-F the same as H1Z2Z2-K?

PV1-F is an older market designation associated with earlier TÜV PV cable practice, while H1Z2Z2-K is tied to the newer EN 50618 framework. Substitution should only be made after the project engineer or buyer confirms the required standard. GERITEL WIRE can help confirm the requested standard, size, color and marking before quotation so the cable matches the project specification. The relevant buyer keyword is PV1-F vs H1Z2Z2-K.

Can I still specify 2PfG 1169 for a new project?

For new EN/IEC-oriented projects, buyers generally request current PV cable standards such as EN 50618 or IEC 62930 rather than relying only on older 2PfG 1169 documentation. Always follow the latest tender and destination-market requirements. For project orders, GERITEL WIRE can support technical clarification, cable marking, reel or drum packaging and export documentation. The relevant buyer keyword is 2PfG 1169 solar cable.
