Name: China Energy Storage Container Lighting Cable – 450/750V V-90 Fixed Wiring Cable Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 312633384

Description

Technical Parameters

Certification

rwhite flat TPS cable factory direct

PRODUCT REAL SHOT

Australian TPS cable factory

BESS HVAC Auxiliary Wiring Cable – Reliable Cable for BESS lighting & HVAC

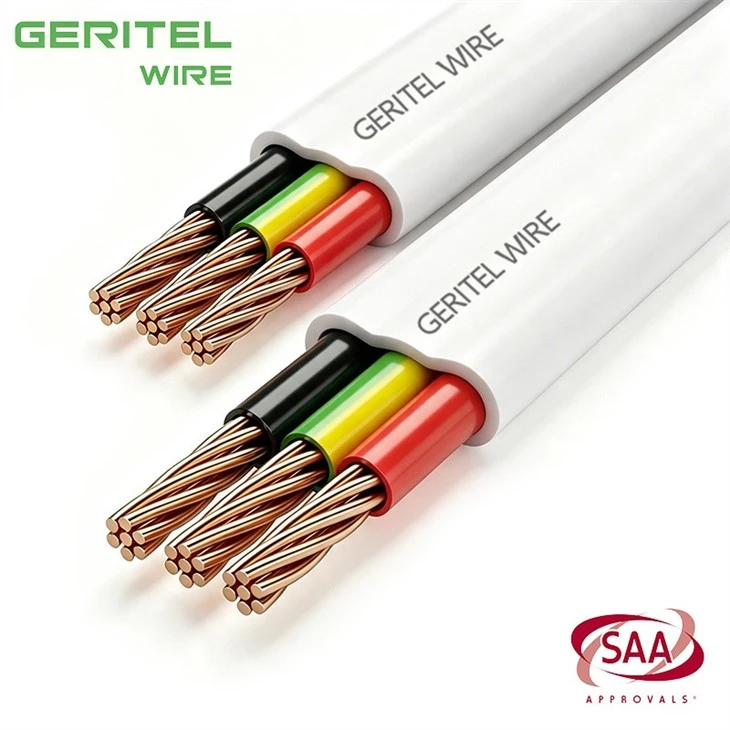

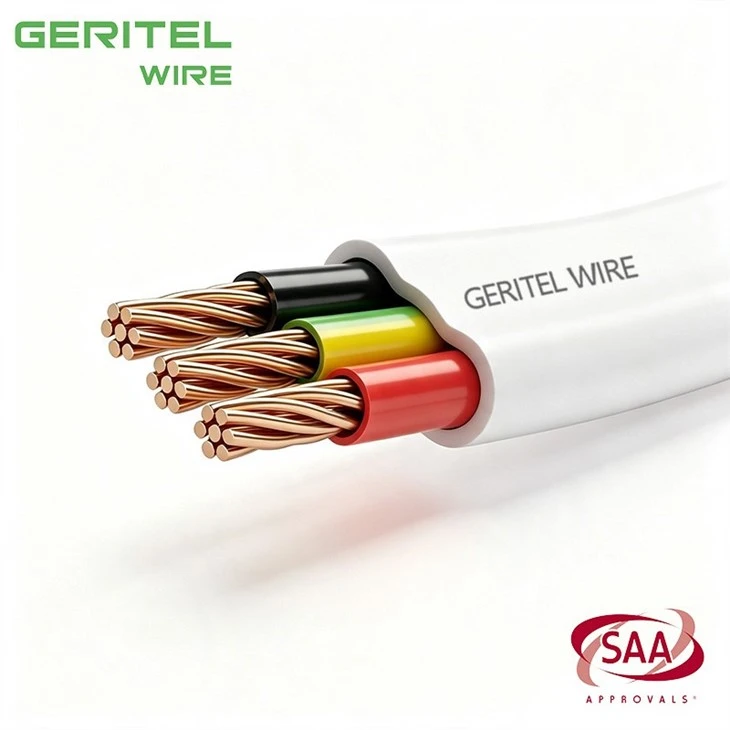

energy storage container lighting cable is a practical flat building cable for protected fixed wiring in power and lighting circuits. Copper conductors, V-90 PVC insulation and a PVC sheath provide a dependable fixed-wiring platform, including suitable 450/750V options. In BESS lighting & HVAC, use it for auxiliary AC services such as lighting or selected HVAC/service circuits-not battery DC, PV string or main power links. Related search terms include BESS HVAC auxiliary wiring cable and fixed wiring cable for energy storage containers. GERITEL WIRE supplies modular-home, RV and capsule-house projects with OEM marking, export packing and stable factory supply. Final selection should follow the project specification and applicable local wiring rules.

PRODUCT SPECIFICATIONS

Australian TPS cable wholesale

Applications

For general wiring, unenclosed, enclosed in conduit,for domestic, commercial and industrial installations where not subject to mechanical damage.

SPECIFICATIONS
Cable description	PVC insulated laid flat and PVC sheathed cableto AS/NZS 5000.2
Approvals	AS/NZS 5000.2
Behaviour in flame and fire	Flame retardant
Temperature range	Normal operating temperature: +90°C Minimum operating temperature: 0°C
Flexibility	Semi-rigid
Resistance to	Chemical exposure: Occasional Mechanical impact: Light Water exposure:Occasional condensation Solar radiation and weather exposure:Occasional
Cable design	Conductor: Plain annealed copper conductor to AS/NZS 1125 Can also be operated at temperatures up to 90°C when not exposed to mechanical deformation(see AS/NZS 3008.1). Insulation: V-90 PVC Colours: Red, Black, Green/Yellow Sheath: 3V-90 PVC Colour: White
Installation conditions	In free air In conduit In ground with protection In duct External building with protection

	Conductor
Insulation Colours	Conductor			Cable						Min. installed bending radius(a) mm
	Nominal C.S.A mm²	Nominal diameter of wires No/mm	Nominal diameter mm	Nominal insulation thickness mm	Overall diameter mm				Approx. mass kg/100m
					Minimum		Maximum
					Major axis	Major axis	Major axis	Major axis
2C+E FLAT PVC
Red,Green/Yellow,Black	1.0	7/0.42	1.26	0.6	9.5	4.3	9.6	4.4	8	20
Red,Green/Yellow,Black	1.5	7/0.50	1.56	0.6	9.8	4.5	10.1	4.6	10	20
Red,Green/Yellow,Black	2.5	7/0.67	2.0	0.7	12.1	5.4	12.4	5.5	15	20
Red,Green/Yellow,Black	4	7/0.85	2.6	0.8	13.8	6.3	14.1	6.5	19	30
Red,Green/Yellow,Black	6	7/1.04	3.1	0.8	14.9	6.9	15.3	7.1	24	30
Red,Green/Yellow,Black	10	7/1.35	4.1	1	18.9	8.4	19.6	8.8	38	35
Red,Green/Yellow,Black	16	7/1.70	5.1	1	21.8	9.7	22.5	10.0	54	40
3C+E FLAT PVC
Red,White,Green/Yellow,Black	1.0	7/0.42	1.26	0.6	11.4	4.5	11.7	4.6	10	20
Red,White,Green/Yellow,Black	1.5	7/0.50	1.56	0.6	12.4	4.5	12.8	4.6	12	20
Red,White,Green/Yellow,Black	2.5	7/0.67	2.0	0.7	15..4	5.4	15.8	5.5	19	20
Red,White,Green/Yellow,Black	4	7/0.85	2.6	0.8	17.9	6.3	18.3	6.5	26	25
Red,White,Green/Yellow,Black	6	7/1.04	3.1	0.8	19.5	6.9	20.1	7.1	33	30
Red,White,Green/Yellow,Black	10	7/1.35	4.1	1.0	24.9	8.4	25.8	8.8	52	35
Red,White,Green/Yellow,Black	16	7/1.70	5.1	1.0	28.8	9.7	29.7	10.0	75	40
3C FLAT PVC
Red, White, Blue	1.0	7/0.42	1.26	0.6	8.8	4.1	9.0	4.3	8	20
Red, White, Blue	1.5	7/0.50	1.56	0.6	9.8	4.5	10.1	4.6	10	20
Red, White, Blue	2.5	7/0.67	2.0	0.7	12.1	5.4	12.4	5.5	15	20

CERTIFICATIONS

Australian TPS cable exporter

PACKAGING

Roll

Plastic Reel

Small Wooden Reel

APPLICATION

Capsule Accommodation

Prefabricated Housing

Recreational Vehicle Wiring

CASE

2020 Ford Transit AWD Camper Van Conversion

Epping Forest District Council Modular Homes

Wethersfield Modular Accommodation Deployment

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

building wiring cable China manufacturer

GLOBAL CERTIFICATIONS

modular home TPS cable supplier

CUSTOMER PHOTOS

modular home TPS cable supplier

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

battery energy storage containers AS/NZS 5000.2 cable

modular home TPS cable China manufacturer

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

Can Flat TPS Cable be used as a data or network cable in a data center?

No. It is not designed for Ethernet, fibre or other data transmission. Use the specified structured-cabling product for communications. This application is commonly searched with terms such as TPS cable and data center data cable; the circuit design determines whether that specific construction is appropriate. GERITEL WIRE's direct-factory model helps purchasing teams coordinate specification, inspection, labeling and delivery in one workflow. This avoids treating a general building cable as a universal solution for every electrical environment.

Can Flat TPS Cable be used for BMS data signals?

Not as a general replacement for control or communication cable. It may provide a suitable power supply to equipment, but signal circuits need the cable type specified by the BMS designer. For a purchasing team, the relevant product phrases are data center auxiliary wiring cable and BMS control cable; use them to find options, then verify the construction against the project. GERITEL WIRE focuses on matching the cable to the actual circuit rather than making broad application claims that could mislead installers. Always verify the ordered model, cable size and installation method before energizing the circuit.

Can Flat TPS Cable be used in UPS rooms?

It can serve suitable auxiliary lighting or service circuits, but not automatically UPS main input/output feeders or battery connections, which require separate engineering. Distributor catalogs may use phrases such as data center building wire and UPS room auxiliary wiring, so matching the product marking and technical file is important. GERITEL WIRE supports buyers with technical clarification, OEM marking, export packing and repeat-order planning. The safest purchasing approach is to match the product construction to the circuit function and installation environment.

Can Flat TPS Cable be used in generator rooms?

Only for suitable auxiliary building circuits and where temperature, vibration, oil exposure and mechanical protection are acceptable. Generator power feeders need dedicated cable selection. Buyers searching the market may encounter data center fixed wiring cable and generator room wiring; GERITEL WIRE recommends confirming size, cores and standard before treating products as equivalent. GERITEL WIRE can provide product data and available certificate documents so engineering and purchasing teams can review the model before ordering. Where conditions differ from normal protected fixed wiring, select the cable only after a project-specific review.
