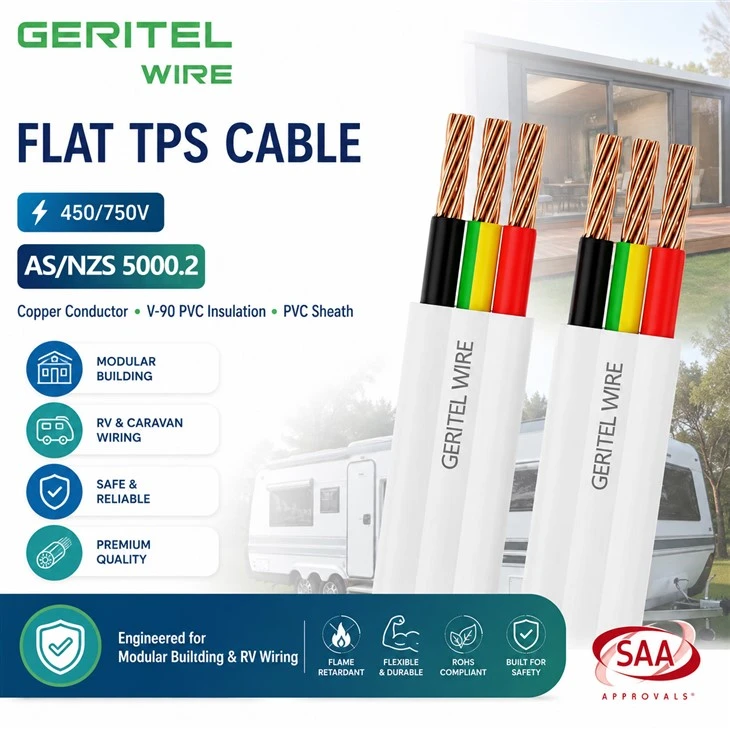

Name: China EV Charging Auxiliary Building Cable For EV Charging Sites | GERITEL WIRE Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 312633211

Description

Technical Parameters

Certification

AS/NZS 5000.2 cable supplier

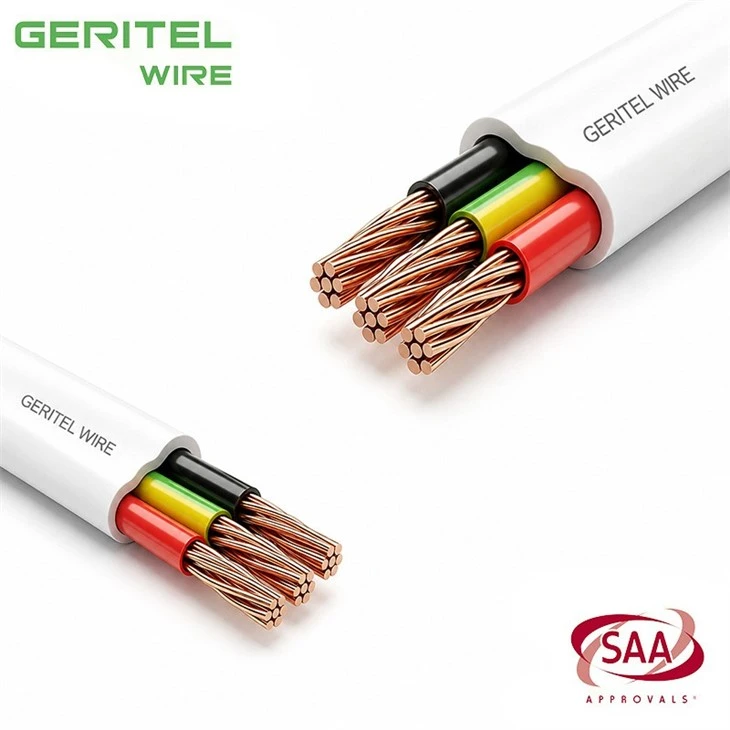

PRODUCT REAL SHOT

AS/NZS 5000.2 cable OEM manufacturer

EV Charging Site Building Wire for Protected Building Wiring Applications

For projects sourcing EV charging auxiliary building cable, the focus is reliable fixed installation, clear construction and repeatable project supply. The construction combines copper conductors, V-90 PVC insulation and a durable PVC sheath for protected fixed building routes. In EV charging sites, use it for auxiliary AC services such as lighting or selected HVAC/service circuits-not battery DC, PV string or main power links. Related search terms include EV charging site building wire and flat TPS cable for EV site auxiliary circuits. For modular buildings, RV production and capsule accommodation, GERITEL WIRE provides OEM identification and stable batch delivery. Final selection should follow the project specification and applicable local wiring rules.

PRODUCT SPECIFICATIONS

AS/NZS 5000.2 cable bulk supplier

Applications

For general wiring, unenclosed, enclosed in conduit,for domestic, commercial and industrial installations where not subject to mechanical damage.

SPECIFICATIONS
Cable description	PVC insulated laid flat and PVC sheathed cableto A5/NZ5 5000.2
Approvals	A5/NZS5000.2
Behaviour in flame and fire	Flame retardant
Temperature range	Normal operating temperature: +90°C Minimum operating temperature: 0°C
Flexibility	Semi-rigid
Resistance to	Chemical exposure: Occasional Mechanical impact: Light Water exposure:Occasional condensation Solar radiation and weather exposure:Occasional
Cable design	Conductor: Plain annealed copper conductor to AS/NZS 1125Can also be operated at temperatures up to 90°Cwhen not exposed to mechanical deformation(see AS/NZS 3008.1). Insulation: V-90 PVC Colours: Red, Black Sheath:3V-90PVC Colour: White
Installation conditions	In free air In conduit In ground with protection In duct External building with protection

	Conductor
Insulation Colours	Conductor			Cable						Min. installed bending radius(a) mm
	Nominal C.S.A mm²	Nominal diameter of wires No/mm	Nominal diameter mm	Nominal insulation thickness mm	Overall diameter mm				Approx. mass kg/100m
					Minimum		Maximum
					Major axis	Major axis	Major axis	Major axis
TWIN FLAT PVC
Red,Black	1.0	7/0.42	1.26	0.6	6.4	4.2	6.6	4.3	5.2	15
Red,Black	1.5	7/0.50	1.56	0.6	7.1	4.5	7.3	4.6	6.4	20
Red,Black	2.5	7/0.67	2.0	0.7	8.7	5.4	8.9	5.5	10	20
Red,Black	4	7/0.85	2.6	0.8	10.4	6.3	10.7	6.5	15	25
Red,Black	6	7/1.04	3.1	0.8	11.5	6.9	11.9	7.1	20	30
Red,Black	10	7/1.35	4.1	1	14.2	8.4	15.0	8.8	31	35
Red,Black	16	7/1.70	5.1	1	16.7	9.7	17.3	10.0	45	40
TWIN ACTIVE FLAT PVC
Red, White	1.0	7/0.42	1.26	0.6	6.4	4.2	11.7	4.3	5.2	15
Red, White	1.5	7/0.50	1.56	0.6	7.1	4.5	12.8	4.6	6.4	20
Red, White	2.5	7/0.67	2.0	0.7	8.7	5.4	15.8	5.5	10	20
Red, White	4	7/0.85	2.6	0.8	10.4	6.3	18.3	6.5	15	25
Red, White	6	7/1.04	3.1	0.8	11.5	6.9	20.1	7.1	20	30
Red, White	10	7/1.35	4.1	1.0	14.2	8.4	25.8	8.8	31	35
Red, White	16	7/1.70	5.1	1.0	16.7	9.7	17.3	10.0	45	40
