Name: China Granny Flat TPS Cable – Copper PVC Building Cable Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 312601140

Description

Technical Parameters

Certification

flat TPS cable for hotels

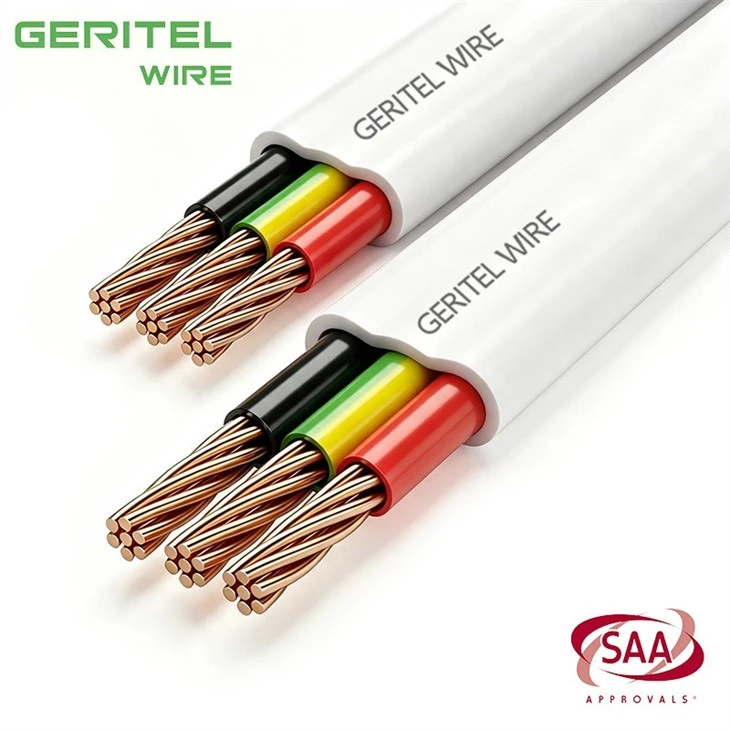

PRODUCT REAL SHOT

hotels fixed wiring cable

Granny Flat Electrical Wiring Cable with V-90 PVC Insulation for Fixed Installation

granny flat TPS cable is a practical flat building cable for protected fixed wiring in power and lighting circuits. It uses copper conductors with V-90 PVC insulation and a PVC sheath; relevant 450/750V constructions can be supplied to AS/NZS 5000.2. For Granny flats, it suits factory-prewired lighting, socket and general power routes inside protected walls, ceilings or service cavities. Related search terms include granny flat electrical wiring cable and power and lighting cable for granny flats. GERITEL WIRE is a cable supplier for modular homes, RVs and capsule houses, supporting OEM marking, export packing and stable factory supply. Final size, core configuration and installation method should follow the project drawings and local electrical rules.

PRODUCT SPECIFICATIONS

hotels power wiring cable

Applications

For general wiring, unenclosed, enclosed in conduit,for domestic, commercial and industrial installations where not subject to mechanical damage.

SPECIFICATIONS
Cable description	PVC insulated laid flat and PVC sheathed cableto AS/NZS 5000.2
Approvals	AS/NZS 5000.2
Behaviour in flame and fire	Flame retardant
Temperature range	Normal operating temperature: +90°C Minimum operating temperature: 0°C
Flexibility	Semi-rigid
Resistance to	Chemical exposure: Occasional Mechanical impact: Light Water exposure:Occasional condensation Solar radiation and weather exposure:Occasional
Cable design	Conductor: Plain annealed copper conductor to AS/NZS 1125 Can also be operated at temperatures up to 90°C when not exposed to mechanical deformation(see AS/NZS 3008.1). Insulation: V-90 PVC Colours: Red, Black, Green/Yellow Sheath: 3V-90 PVC Colour: White
Installation conditions	In free air In conduit In ground with protection In duct External building with protection

	Conductor
Insulation Colours	Conductor			Cable						Min. installed bending radius(a) mm
	Nominal C.S.A mm²	Nominal diameter of wires No/mm	Nominal diameter mm	Nominal insulation thickness mm	Overall diameter mm				Approx. mass kg/100m
					Minimum		Maximum
					Major axis	Major axis	Major axis	Major axis
2C+E FLAT PVC
Red,Green/Yellow,Black	1.0	7/0.42	1.26	0.6	9.5	4.3	9.6	4.4	8	20
Red,Green/Yellow,Black	1.5	7/0.50	1.56	0.6	9.8	4.5	10.1	4.6	10	20
Red,Green/Yellow,Black	2.5	7/0.67	2.0	0.7	12.1	5.4	12.4	5.5	15	20
Red,Green/Yellow,Black	4	7/0.85	2.6	0.8	13.8	6.3	14.1	6.5	19	30
Red,Green/Yellow,Black	6	7/1.04	3.1	0.8	14.9	6.9	15.3	7.1	24	30
Red,Green/Yellow,Black	10	7/1.35	4.1	1	18.9	8.4	19.6	8.8	38	35
Red,Green/Yellow,Black	16	7/1.70	5.1	1	21.8	9.7	22.5	10.0	54	40
3C+E FLAT PVC
Red,White,Green/Yellow,Black	1.0	7/0.42	1.26	0.6	11.4	4.5	11.7	4.6	10	20
Red,White,Green/Yellow,Black	1.5	7/0.50	1.56	0.6	12.4	4.5	12.8	4.6	12	20
Red,White,Green/Yellow,Black	2.5	7/0.67	2.0	0.7	15..4	5.4	15.8	5.5	19	20
Red,White,Green/Yellow,Black	4	7/0.85	2.6	0.8	17.9	6.3	18.3	6.5	26	25
Red,White,Green/Yellow,Black	6	7/1.04	3.1	0.8	19.5	6.9	20.1	7.1	33	30
Red,White,Green/Yellow,Black	10	7/1.35	4.1	1.0	24.9	8.4	25.8	8.8	52	35
Red,White,Green/Yellow,Black	16	7/1.70	5.1	1.0	28.8	9.7	29.7	10.0	75	40
3C FLAT PVC
Red, White, Blue	1.0	7/0.42	1.26	0.6	8.8	4.1	9.0	4.3	8	20
Red, White, Blue	1.5	7/0.50	1.56	0.6	9.8	4.5	10.1	4.6	10	20
Red, White, Blue	2.5	7/0.67	2.0	0.7	12.1	5.4	12.4	5.5	15	20

CERTIFICATIONS

hotels lighting wiring cable

PACKAGING

Roll

Plastic Reel

Small Wooden Reel

APPLICATION

Capsule Accommodation

Prefabricated Housing

Recreational Vehicle Wiring

CASE

cable for hotels power and lighting circuits

2020 Ford Transit AWD Camper Van Conversion

Epping Forest District Council Modular Homes

Wethersfield Modular Accommodation Deployment

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

GLOBAL CERTIFICATIONS

schools 450/750V cable

CUSTOMER PHOTOS

schools AS/NZS 5000.2 cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

Can schools use Flat TPS Cable for classroom wiring?

General classroom power and lighting can use suitable fixed building cable. Project specifications may impose additional requirements for fire performance, mechanical protection or segregation. When comparing supplier listings, buyers may also see the terms school building wiring cable and fixed lighting wiring cable; always compare the actual construction, not the label alone. GERITEL WIRE can confirm the ordered construction, marking and available compliance files before production. Final installation should follow the project drawings and applicable local electrical rules..

Is Flat TPS Cable suitable for hospital projects?

It may be suitable for ordinary non-special areas, but medical locations and life-safety systems can have additional requirements. GERITEL WIRE recommends reviewing the project specification before substitution. This application is commonly searched with terms such as hospital building cable and AS/NZS 5000.2 cable; the circuit design determines whether that specific construction is appropriate. GERITEL WIRE's direct-factory model helps purchasing teams coordinate specification, inspection, labeling and delivery in one workflow. This avoids treating a general building cable as a universal solution for every electrical environment.

Can Flat TPS Cable be used in warehouse offices and amenities?

Yes, protected office, amenity and general building circuits can be candidates. Exposed industrial zones may need stronger mechanical or environmental protection. For a purchasing team, the relevant product phrases are warehouse building cable and commercial wiring cable; use them to find options, then verify the construction against the project. GERITEL WIRE focuses on matching the cable to the actual circuit rather than making broad application claims that could mislead installers. Always verify the ordered model, cable size and installation method before energizing the circuit.

Can I use Flat TPS Cable for kitchen appliance circuits?

Potentially, but kitchen appliances can have high loads. Each dedicated circuit should be sized for the appliance, protective device, cable route and local electrical rules. Distributor catalogs may use phrases such as fixed power wiring cable and house wiring TPS cable, so matching the product marking and technical file is important. GERITEL WIRE supports buyers with technical clarification, OEM marking, export packing and repeat-order planning. The safest purchasing approach is to match the product construction to the circuit function and installation environment.
