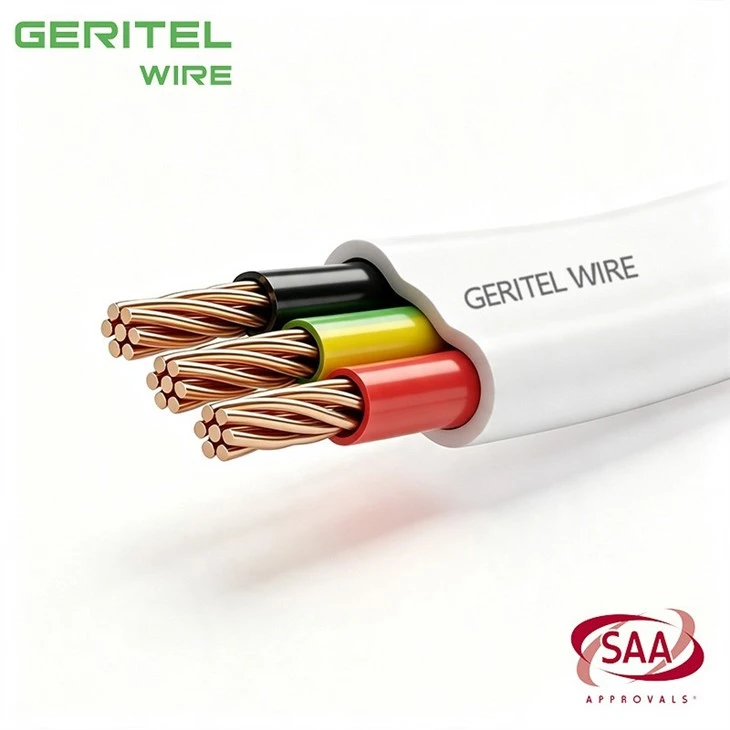

PRODUCT REAL SHOT

hospitals V90 cable

Tiny House Fixed Wiring Cable for Protected Building Wiring Applications

tiny house flat TPS cable is designed for buyers who need a compact fixed-wiring cable for repeat building and project installations. The construction combines copper conductors, V-90 PVC insulation and a durable PVC sheath for protected fixed building routes. For Tiny houses, it suits factory-prewired lighting, socket and general power routes inside protected walls, ceilings or service cavities. Related search terms include tiny house fixed wiring cable and building wire for tiny houses. As a GERITEL WIRE supplier for integrated housing, caravans and capsule accommodation, we support OEM printing and repeat project supply. Before ordering, confirm cable size, core configuration, certificate scope and installation method against the project specification.

PRODUCT SPECIFICATIONS

hospitals twin and earth cable

Applications

For general wiring, unenclosed, enclosed in conduit,for domestic, commercial and industrial installations where not subject to mechanical damage.

SPECIFICATIONS
Cable description	PVC insulated laid flat and PVC sheathed cableto AS/NZS 5000.2
Approvals	AS/NZS 5000.2
Behaviour in flame and fire	Flame retardant
Temperature range	Normal operating temperature: +90°C Minimum operating temperature: 0°C
Flexibility	Semi-rigid
Resistance to	Chemical exposure: Occasional Mechanical impact: Light Water exposure:Occasional condensation Solar radiation and weather exposure:Occasional
Cable design	Conductor: Plain annealed copper conductor to AS/NZS 1125 Can also be operated at temperatures up to 90°C when not exposed to mechanical deformation(see AS/NZS 3008.1). Insulation: V-90 PVC Colours: Red, Black, Green/Yellow Sheath: 3V-90 PVC Colour: White
Installation conditions	In free air In conduit In ground with protection In duct External building with protection

	Conductor
Insulation Colours	Conductor			Cable						Min. installed bending radius(a) mm
	Nominal C.S.A mm²	Nominal diameter of wires No/mm	Nominal diameter mm	Nominal insulation thickness mm	Overall diameter mm				Approx. mass kg/100m
					Minimum		Maximum
					Major axis	Major axis	Major axis	Major axis
2C+E FLAT PVC
Red,Green/Yellow,Black	1.0	7/0.42	1.26	0.6	9.5	4.3	9.6	4.4	8	20
Red,Green/Yellow,Black	1.5	7/0.50	1.56	0.6	9.8	4.5	10.1	4.6	10	20
Red,Green/Yellow,Black	2.5	7/0.67	2.0	0.7	12.1	5.4	12.4	5.5	15	20
Red,Green/Yellow,Black	4	7/0.85	2.6	0.8	13.8	6.3	14.1	6.5	19	30
Red,Green/Yellow,Black	6	7/1.04	3.1	0.8	14.9	6.9	15.3	7.1	24	30
Red,Green/Yellow,Black	10	7/1.35	4.1	1	18.9	8.4	19.6	8.8	38	35
Red,Green/Yellow,Black	16	7/1.70	5.1	1	21.8	9.7	22.5	10.0	54	40
3C+E FLAT PVC
Red,White,Green/Yellow,Black	1.0	7/0.42	1.26	0.6	11.4	4.5	11.7	4.6	10	20
Red,White,Green/Yellow,Black	1.5	7/0.50	1.56	0.6	12.4	4.5	12.8	4.6	12	20
Red,White,Green/Yellow,Black	2.5	7/0.67	2.0	0.7	15..4	5.4	15.8	5.5	19	20
Red,White,Green/Yellow,Black	4	7/0.85	2.6	0.8	17.9	6.3	18.3	6.5	26	25
Red,White,Green/Yellow,Black	6	7/1.04	3.1	0.8	19.5	6.9	20.1	7.1	33	30
Red,White,Green/Yellow,Black	10	7/1.35	4.1	1.0	24.9	8.4	25.8	8.8	52	35
Red,White,Green/Yellow,Black	16	7/1.70	5.1	1.0	28.8	9.7	29.7	10.0	75	40
3C FLAT PVC
Red, White, Blue	1.0	7/0.42	1.26	0.6	8.8	4.1	9.0	4.3	8	20
Red, White, Blue	1.5	7/0.50	1.56	0.6	9.8	4.5	10.1	4.6	10	20
Red, White, Blue	2.5	7/0.67	2.0	0.7	12.1	5.4	12.4	5.5	15	20

CERTIFICATIONS

hospitals 2 core and earth cable

PACKAGING

Roll

Plastic Reel

Small Wooden Reel

APPLICATION

cable for hospitals power and lighting circuits

Capsule Accommodation

Prefabricated Housing

Recreational Vehicle Wiring

CASE

2020 Ford Transit AWD Camper Van Conversion

Epping Forest District Council Modular Homes

Wethersfield Modular Accommodation Deployment

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

GLOBAL CERTIFICATIONS

warehouses twin and earth cable

CUSTOMER PHOTOS

warehouses 2 core and earth cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

warehouses electrical cable manufacturer

cable for warehouses power and lighting circuits

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

Is Flat TPS Cable suitable for bathroom circuits?

It can be used in permitted fixed circuits, but bathroom zones, RCD protection, equipment location and moisture rules must be followed. Cable choice is only one part of compliance. Buyers searching the market may encounter residential wiring cable and fixed wiring cable; GERITEL WIRE recommends confirming size, cores and standard before treating products as equivalent. GERITEL WIRE can provide product data and available certificate documents so engineering and purchasing teams can review the model before ordering. Where conditions differ from normal protected fixed wiring, select the cable only after a project-specific review.

Can Flat TPS Cable power a ceiling fan?

A suitable fixed circuit can supply a ceiling fan, but switching arrangement and required conductor count may affect whether a 2C+E or 3C+E construction is appropriate. In international sourcing, useful equivalent search terms include lighting circuit twin and earth cable and TPS building wire, but final approval should be based on the technical specification. If the project has special installation or certification requirements, GERITEL WIRE can review them before quotation to reduce later changes. The electrician or project engineer should confirm final cable selection for the actual installation.

Can Flat TPS Cable be used for electric water heaters?

A dedicated heater circuit may use appropriate fixed building cable, but size must be based on heater load, run length, installation method and protective device. Related catalog descriptions include power circuit TPS cable and 450/750V TPS cable; the correct choice still depends on the ordered model and application. For project orders, GERITEL WIRE can align cable size, core arrangement, packaging and documentation with the approved BOM. Clear technical confirmation before purchase helps reduce rework, approval delays and site substitutions.

Can Flat TPS Cable be used for residential air-conditioner supply circuits?

It can be used where the equipment manufacturer and electrical design call for an appropriate fixed building cable. For dedicated HVAC cable products, GERITEL WIRE can also discuss other TPS variants. For procurement, this requirement may be listed as fixed power wiring cable or flat electrical cable, so the datasheet and core configuration should be checked with the supplier. For distributors and OEM builders, GERITEL WIRE can support stable production batches, custom identification and export-ready packaging. For regulated projects, certificate scope and installation requirements should be checked together.
